Product Introduction

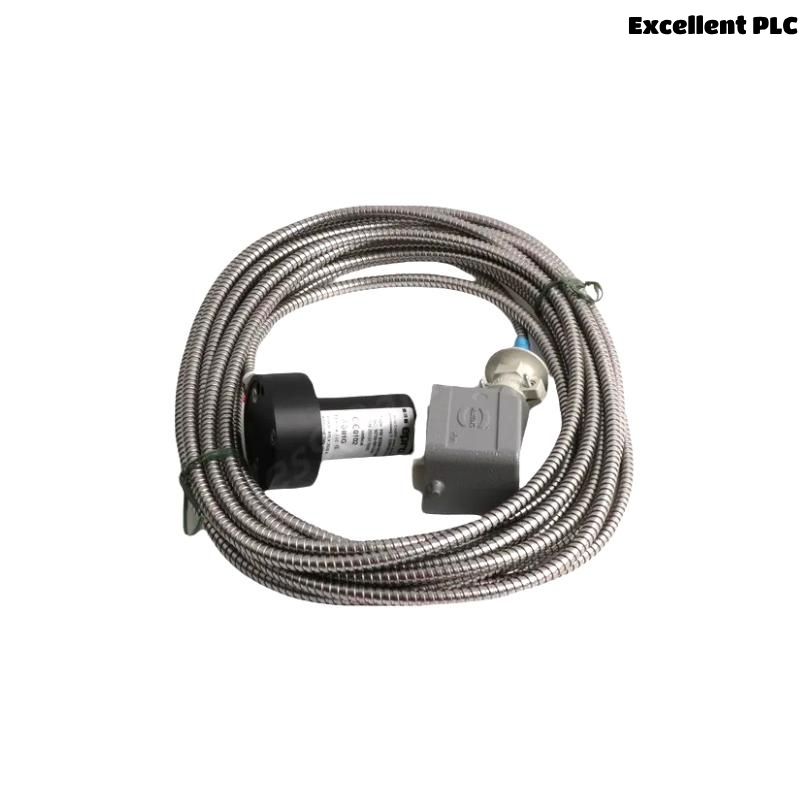

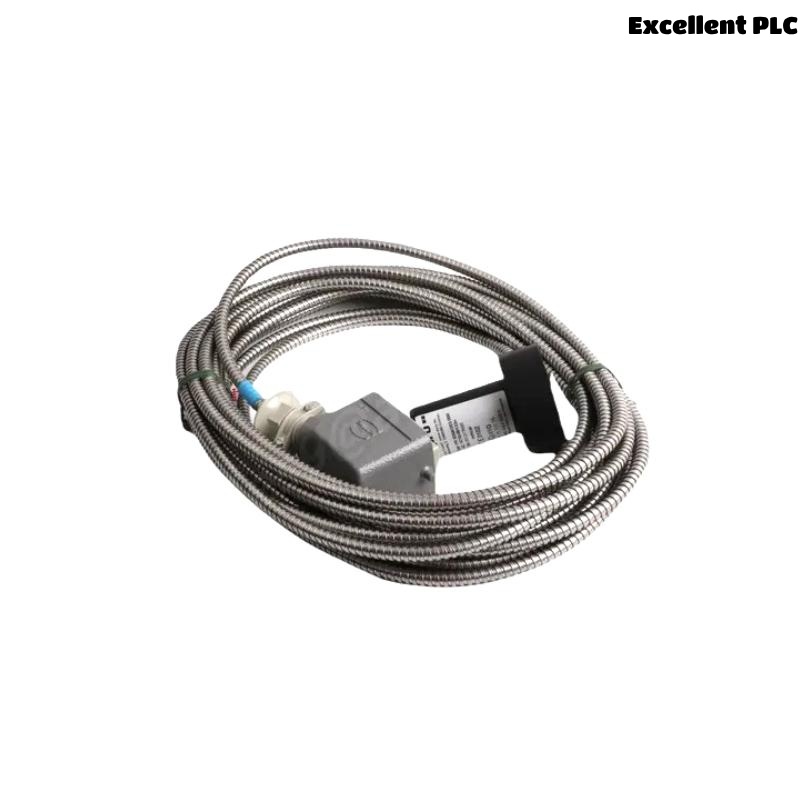

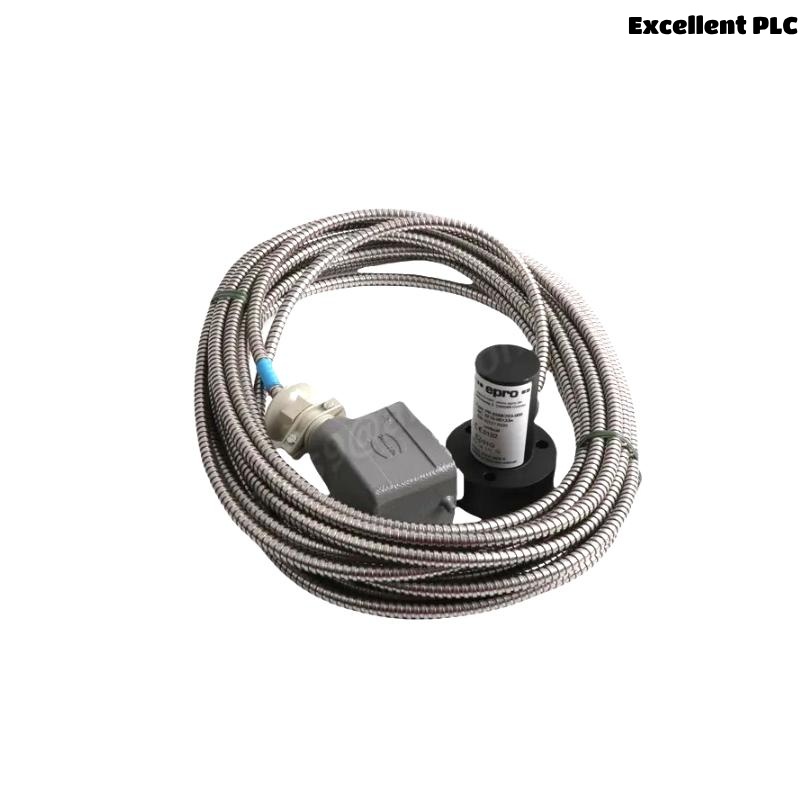

The Epro PR9268/201-100 Electrodynamic Velocity Sensor is an industrial-grade sensor designed to measure vibration velocity with outstanding accuracy and durability. It belongs to the well-known PR9268 family by Epro, a brand recognized worldwide for delivering reliable and high-quality vibration monitoring solutions for rotating machinery.
Utilizing an electrodynamic measuring principle, the PR9268/201-100 generates a voltage signal directly proportional to the velocity of the vibration. This allows engineers and maintenance professionals to monitor the condition of machinery and detect early signs of mechanical failure, misalignment, or imbalance. The sensor is specifically engineered to operate effectively in harsh industrial environments, including areas with high temperatures, oil mist, moisture, or dust.
Its rugged stainless-steel construction, excellent frequency response, and simple installation make the PR9268/201-100 a preferred choice in industries such as oil & gas, chemical processing, power generation, steel production, and marine applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | PR9268/201-100 |
| Type | Electrodynamic Velocity Sensor |
| Measuring Range | 0…50 mm/s RMS |
| Frequency Range | 10…1,000 Hz |
| Sensitivity | 20 mV/mm/s ±5% |
| Output Signal | Voltage Output |
| Mounting Thread | M8 x 1.25 |
| Operating Temperature Range | -25 °C to +120 °C |
| Shock Resistance | Up to 5000 g |
| Protection Class | IP68 |
| Housing Material | Stainless Steel |
| Cable Connection | Integral Cable or Connector (depends on variant) |
| Dimensions | 78 × 58 mm |
| Weight | 0.93 kg |
Product Applications
The PR9268/201-100 Electrodynamic Velocity Sensor is widely used in a variety of industrial settings where reliable vibration monitoring is critical:
-
Rotating Equipment: Pumps, fans, blowers, motors, compressors, turbines
-
Oil & Gas: Vibration analysis in pipelines, offshore rigs, and refining equipment
-
Power Plants: Monitoring of critical equipment in fossil fuel and hydroelectric power stations
-
Steel & Cement Industry: Harsh environments with high mechanical stress
-
Marine Industry: Monitoring ship engines, gearboxes, and propulsion systems
-
OEM Applications: Integrated into custom-designed machinery for condition monitoring
Product Advantages
-
High Sensitivity and Accuracy: Ensures precise measurement of vibration velocity for early fault detection.
-
Robust Design: Constructed with stainless steel housing, fully sealed to IP68 standard for operation in challenging environments.
-
Wide Operating Temperature: Functions reliably from -25 °C up to +120 °C.
-
Shock Resistant: Withstands shocks up to 5000 g, making it suitable for heavy-duty applications.
-
Flexible Mounting Options: Compatible with standard mounting threads, allowing easy integration into existing equipment.
-
Low Maintenance: Long service life with minimal maintenance required.
-
Versatile Use: Designed for a broad range of applications across multiple industries.
-
Excellent Signal Quality: Delivers a clear, stable voltage output suitable for all major vibration monitoring systems.
Frequently Asked Questions (FAQ)
-
What is the primary function of the PR9268/201-100?
It measures the vibration velocity of rotating or reciprocating machinery and outputs a corresponding voltage signal. -
What is the measuring range of this sensor?
The measuring range is from 0 to 50 mm/s RMS. -
Which industries typically use this sensor?
It is used across oil & gas, power generation, chemical processing, steel manufacturing, marine, and OEM applications. -
Is the PR9268/201-100 suitable for outdoor installation?
Yes, its IP68-rated housing makes it ideal for outdoor and harsh environmental conditions. -
Can this sensor handle shock loads?
Yes, it can withstand shock loads up to 5000 g. -
What is the temperature range for this sensor?
The operating temperature range is -25 °C to +120 °C. -
How is this sensor typically mounted?
It is mounted via an M8 x 1.25 threaded connection. -
What material is the housing made from?
The housing is stainless steel, providing superior resistance to corrosion and wear. -
What type of output signal does it provide?
It delivers a voltage signal proportional to the vibration velocity. -
Is it compatible with most monitoring systems?
Yes, it can be easily integrated into most industrial condition monitoring systems.
Related Models from the Same Series or Family
| Model Number | Measuring Range | Frequency Range | Sensitivity | Output Type |
|---|---|---|---|---|
| PR9268/201-100 | 0…50 mm/s RMS | 10…1,000 Hz | 20 mV/mm/s | Voltage Output |
| PR9268/301-100 | 0…100 mm/s RMS | 10…1,000 Hz | 20 mV/mm/s | Voltage Output |
| PR9268/302-100 | 0…100 mm/s RMS | 5…1,000 Hz | 20 mV/mm/s | Voltage Output |
| PR9268/501-100 | 0…50 mm/s RMS | 5…1,000 Hz | 10 mV/mm/s | Voltage Output |
| PR9268/601-100 | 0…100 mm/s RMS | 10…1,500 Hz | 25 mV/mm/s | Voltage Output |
| PR9268/701-100 | 0…200 mm/s RMS | 10…2,000 Hz | 30 mV/mm/s | Voltage Output |
Popular Models from the Same Brand (EPRO)
| Model Number | Description | Measuring Range | Frequency Range | Sensitivity |
|---|---|---|---|---|
| PR6423/005-010+CON021 | Eddy Current Probe | 0…5 mm | DC…10 kHz | 7.87 mV/μm |
| PR6424/010-040+CON021 | Eddy Current Probe | 0…10 mm | DC…10 kHz | 4.00 mV/μm |
| PR6424/012-100 | Eddy Current Probe | 0…12 mm | DC…10 kHz | 3.00 mV/μm |
| PR9268/201-100 | Velocity Sensor | 0…50 mm/s RMS | 10…1,000 Hz | 20 mV/mm/s |
| MMS6120 | Monitoring Module | N/A | N/A | N/A |
| MMS6312 | Monitoring Module | N/A | N/A | N/A |
