Product Overview

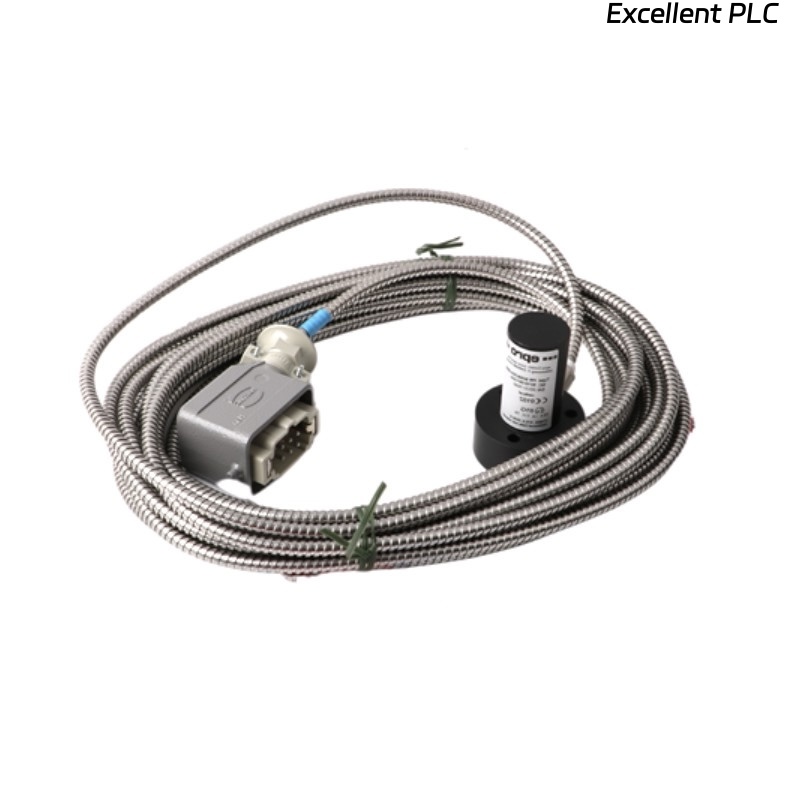

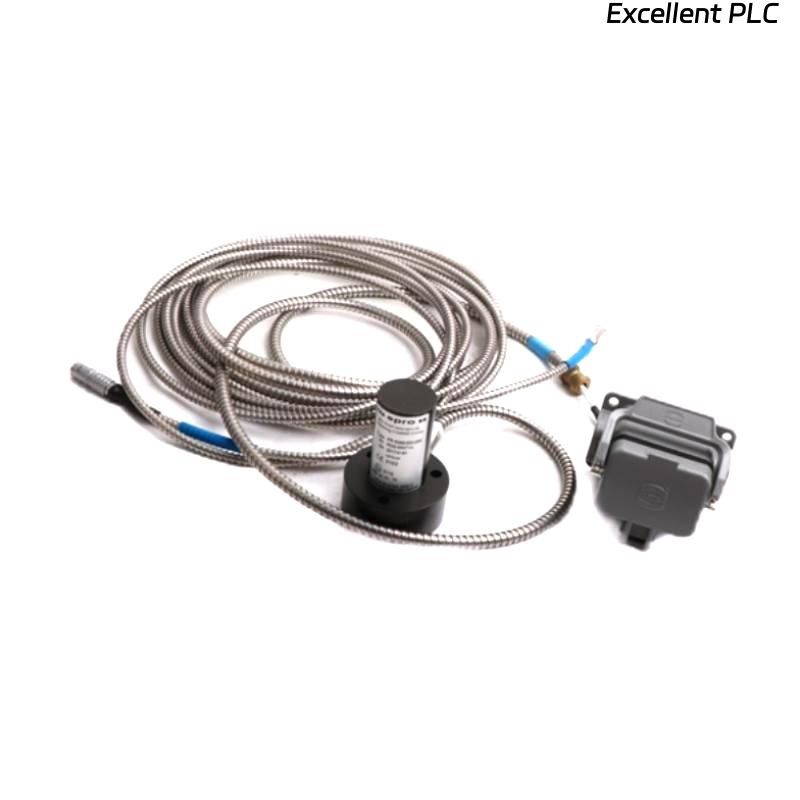

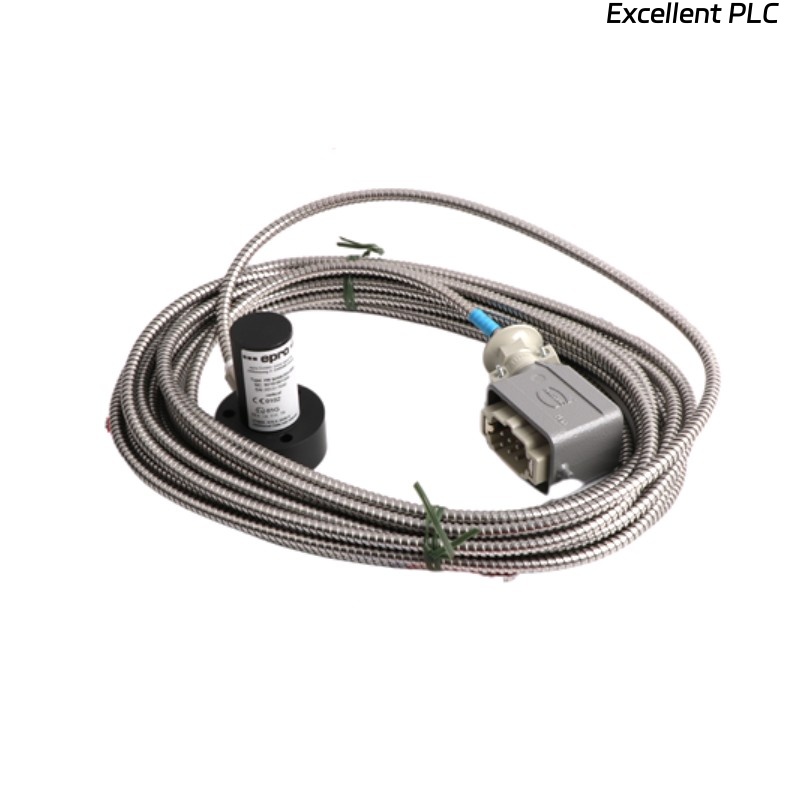

The Epro PR9268/707-000 Electric Speed Sensor is a high-precision, non-contacting speed sensor designed to accurately measure rotational speed in industrial machinery. It converts shaft rotation into a proportional electrical signal, ideal for turbines, compressors, pumps, and generators.
Key Features
-
Non-contacting speed detection for extended service life
-
High vibration and temperature resistance
-
Wide frequency response for accurate speed measurement
-
Compatible with Epro monitoring systems
-
Corrosion-resistant stainless steel housing
-
Easy installation and maintenance
-
Suitable for demanding and hazardous environments
-
Reliable performance for continuous operation
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Epro GmbH |
| Part Number | PR9268/707-000 |
| Product Type | Electric Speed Sensor |
| Sensor Type | Inductive (eddy current) speed sensor |
| Output Signal | Pulse output (frequency proportional to speed) |
| Measuring Range | Typically 0–20,000 rpm (depending on target design) |
| Sensitivity | 0.2–1.0 Vpp typical |
| Frequency Range | Up to 15 kHz |
| Supply Voltage | 10–30 VDC |
| Output Type | TTL or open collector (depending on configuration) |
| Response Time | < 1 ms |
| Operating Temperature | –35 °C to +125 °C |
| Storage Temperature | –40 °C to +150 °C |
| Housing Material | Stainless steel |
| Protection Class | IP67 |
| Dimensions | 78 × 58 mm |
| Weight | 0.93 kg |
| Mounting | Threaded installation (M18 × 1.5) |
| Applications | Speed measurement for turbines, compressors, pumps, motors |
Industry Applications
-
Steam and gas turbines
-
Compressors and pumps
-
Electric motors and generators
-
Gearboxes and rotating shafts
-
Power plants and petrochemical facilities
-
Industrial machinery and automation systems
Frequently Asked Questions (FAQ)
Q1: What type of sensor is the Epro PR9268/707-000?
It is a non-contact inductive (eddy current) electric speed sensor.
Q2: What is the primary function of this sensor?
It converts rotational speed into a proportional electrical pulse signal for monitoring and control.
Q3: Can it operate in high-temperature environments?
Yes, it is rated for operation up to +125 °C.
Q4: What is the protection rating?
It has an IP67 rating, providing excellent protection against dust and moisture.
Q5: Is it compatible with Epro monitoring systems?
Yes, it is fully compatible with Epro monitoring and control devices.
Q6: What type of output signal does it provide?
It outputs a frequency-proportional pulse signal, either TTL or open collector.
Q7: Can it be used in hazardous or industrial environments?
Yes, its robust stainless steel design and vibration resistance make it suitable for demanding industrial conditions.
Q8: How is it installed?
It is mounted using a threaded installation (M18 × 1.5) near the rotating target for precise measurement.
