Product Introduction

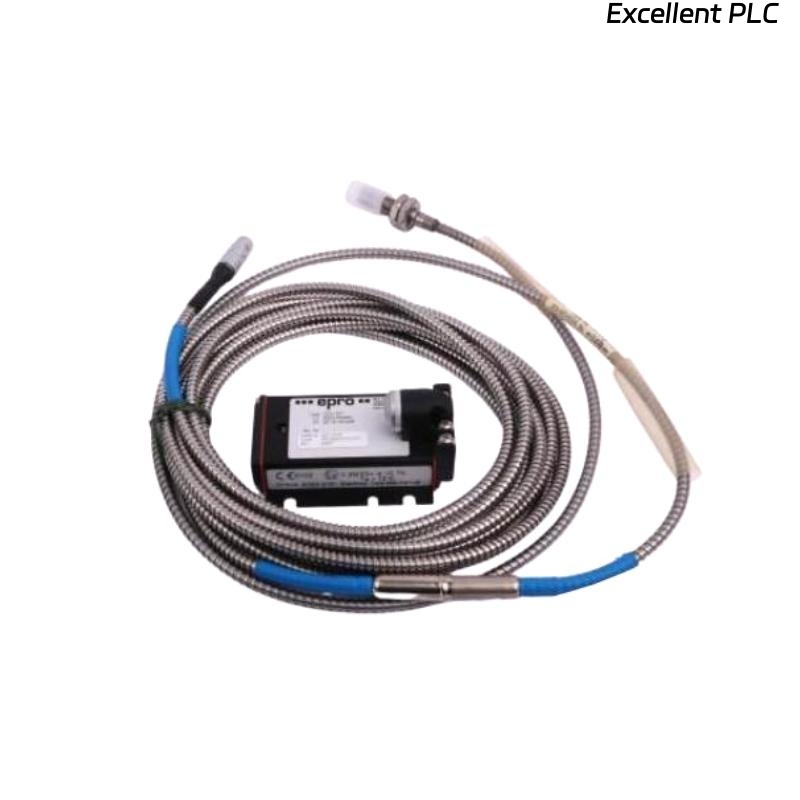

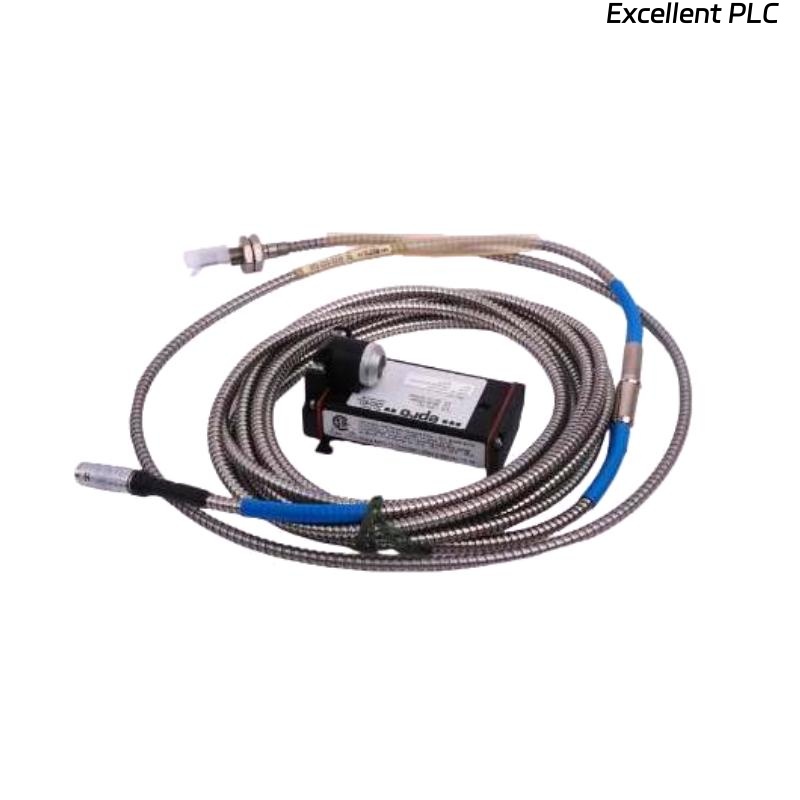

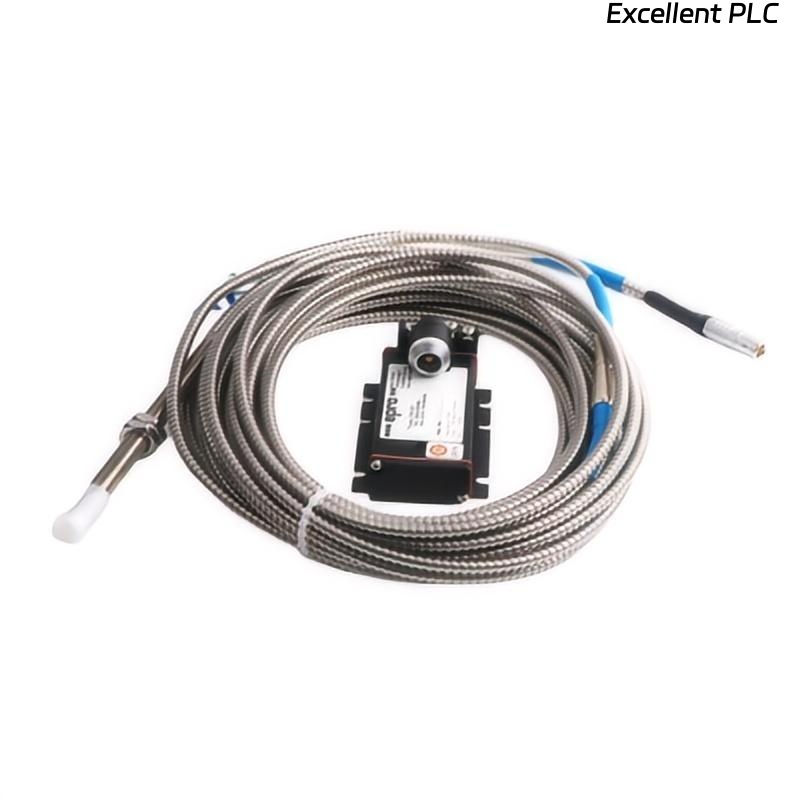

The Epro PR9670/010-100 Eddy Current Sensor is a high-precision, non-contact sensor designed for displacement and vibration monitoring of rotating machinery. It is part of Epro’s PR9670 series, which is widely recognized for its reliability, linear response, and durability under extreme industrial environments.
This sensor operates based on the eddy current principle, producing an electromagnetic field at the probe tip. When a conductive target moves within this field, it induces changes in eddy currents, which are then converted into a voltage signal proportional to the target’s displacement. The PR9670/010-100 provides accurate, real-time measurements for machinery monitoring, ensuring the detection of shaft vibration, misalignment, and axial movement.
It is fully compatible with Epro CON021 proximitor modules and MMS6000 monitoring systems, enabling seamless integration into industrial condition monitoring networks. The PR9670/010-100 is engineered to maintain stable performance under vibration, temperature variations, and challenging environmental conditions, making it ideal for turbines, compressors, pumps, motors, and other critical machinery.
Product Parameters
| Parameter | Description |
|---|---|
| Product Model | PR9670/010-100 |
| Manufacturer | Epro GmbH |
| Product Type | Eddy Current Displacement and Vibration Sensor |
| Measurement Principle | Eddy Current Induction |
| Measurement Range | 0.25 mm – 4.0 mm (application-dependent) |
| Sensitivity | 8.0 mV/μm (typical) |
| Frequency Range | DC – 10 kHz |
| Linearity Error | ≤ ±1% of full-scale output |
| Output Signal | Analog voltage proportional to displacement |
| Supply Voltage | Provided via Epro proximitor module (CON021) |
| Target Material | Conductive metals (steel, aluminum, copper) |
| Operating Temperature | -35°C to +180°C |
| Storage Temperature | -40°C to +200°C |
| Probe Material | Stainless steel body with ceramic tip |
| Mounting Thread | M10 × 1.0 or optional |
| Cable Type | Coaxial, low-noise, oil-resistant |
| Environmental Protection | IP67 (dust and moisture resistant) |
| Shock Resistance | 500 g, 1 ms half-sine pulse |
| Vibration Resistance | 50 g (10–2000 Hz) |
| Compatible Modules | CON021, MMS6000, MMS6800 |
| Sensor Head Diameter | Optional (per application) |
| Shipping Weight | 3 kg |
Product Applications
The PR9670/010-100 is widely used in industrial machinery monitoring where precise displacement and vibration measurements are critical for operational safety and efficiency.
Key applications include:
-
Steam and Gas Turbines: Continuous monitoring of shaft vibration, axial movement, and rotor alignment.
-
Centrifugal Compressors and Pumps: Detection of imbalance, misalignment, and mechanical defects.
-
Electric Motors and Generators: Measurement of rotor eccentricity, vibration amplitude, and axial displacement.
-
Industrial Gearboxes: Monitoring shaft deflection, vibration, and mechanical movement.
-
Petrochemical and Refinery Equipment: Reliable performance in oil-laden, high-temperature environments.
-
Heavy Industrial Machinery: Suitable for equipment operating under high vibration and mechanical shock conditions.
By integrating this sensor into a monitoring system, operators can detect early warning signs of machinery failure, enabling predictive maintenance and reducing unplanned downtime.
Product Advantages
The Epro PR9670/010-100 offers numerous technical and operational benefits:
-
High Accuracy: Linear response across its measurement range ensures precise readings.
-
Non-Contact Design: Reduces wear and eliminates mechanical friction errors.
-
Wide Operating Temperature: Maintains accuracy between -35°C and +180°C.
-
Low Noise Output: Shielded coaxial cable minimizes electromagnetic interference.
-
Robust Construction: Stainless steel body and ceramic tip resist corrosion and mechanical damage.
-
IP67 Protection: Fully sealed against dust, moisture, and oil.
-
Shock and Vibration Resistant: Withstands severe industrial vibrations and shock loads.
-
System Compatibility: Works seamlessly with CON021 proximitor and MMS6000 monitoring systems.
-
Flexible Mounting Options: Supports multiple thread types and cable lengths.
-
Low Maintenance: Stable output with minimal recalibration required over time.
FAQ
-
How does the PR9670/010-100 measure displacement?
It operates on the eddy current principle, detecting changes in electromagnetic fields caused by conductive targets moving near the probe tip. -
What type of output signal does the sensor provide?
It outputs an analog voltage signal proportional to the target’s displacement or vibration amplitude. -
Can it measure both static and dynamic movement?
Yes, it accurately detects both static shaft positions and dynamic vibration signals. -
Is the sensor compatible with Epro CON021 modules?
Yes, it is fully compatible and can interface seamlessly with the CON021 and MMS6000 systems. -
Which target materials are suitable for the sensor?
Conductive metals such as steel, aluminum, and copper provide the most accurate readings. -
How linear is the sensor output?
The sensor maintains linearity within ±1% of full-scale output across the measurement range. -
Does temperature affect sensor performance?
The sensor’s design minimizes thermal drift, and it provides stable readings across its operating temperature range. -
Can the sensor withstand industrial vibration?
Yes, it can handle vibration up to 50 g (10–2000 Hz) without compromising measurement accuracy. -
How is the sensor calibrated for machinery applications?
Calibration is performed via the connected proximitor or monitoring system to align output voltage with target displacement. -
Is it possible to connect the PR9670/010-100 to third-party monitoring systems?
Yes, as long as the third-party system supports the standard voltage output of the sensor.
Related Models (Same Series or Similar Type)
| Model | Description |
|---|---|
| PR9670/000-000 | Standard eddy current sensor for general displacement monitoring |
| PR9670/001-000 | High-sensitivity version for fine vibration analysis |
| PR9670/002-000 | Extended temperature range for turbine monitoring |
| PR9670/003-000 | General-purpose displacement and vibration sensor |
| PR9600/011-000 | Compact short-range sensor for precise measurements |
| PR9600/014-000 | Ceramic-tipped sensor for extended wear resistance |
