Functional Summary

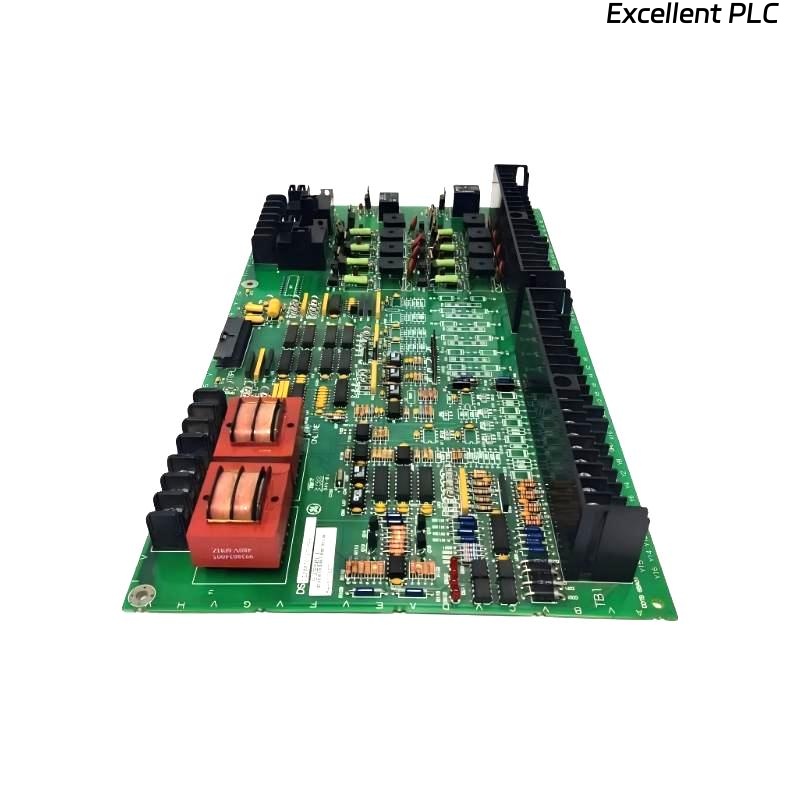

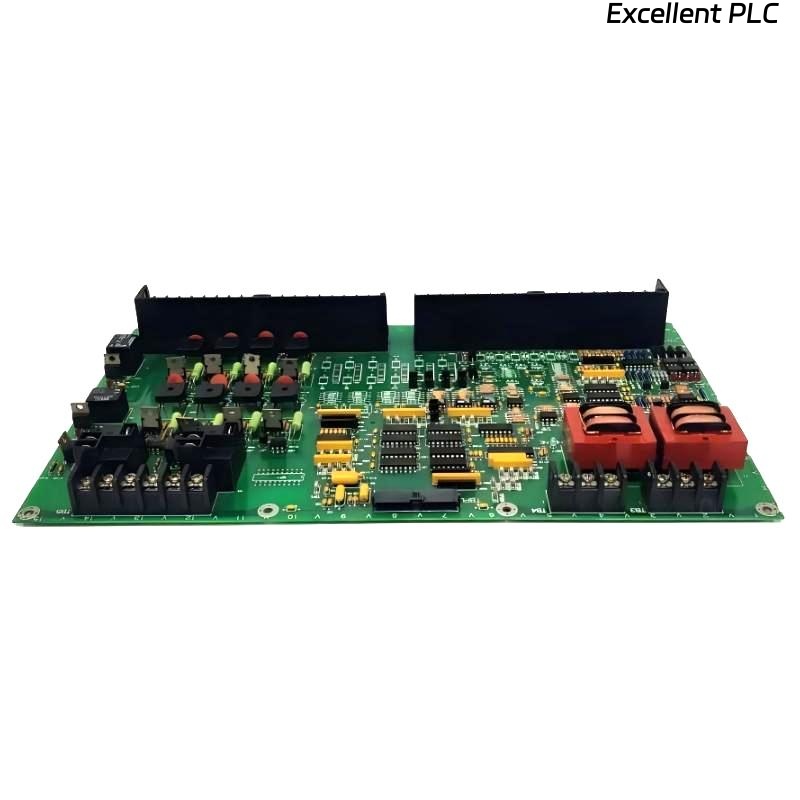

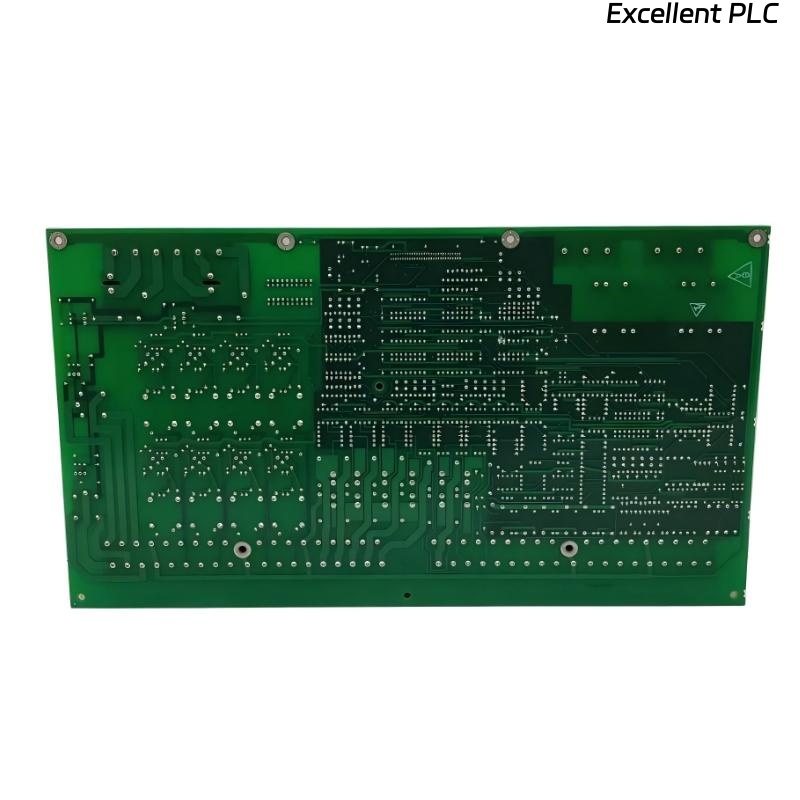

The GE DS200DDTBG2ABB is a robust timing and bridge gate interface board engineered for the GE DS200 drive control family. This module is designed to manage synchronized timing control for dual drive outputs and to interface directly with high-power bridge switching elements such as IGBTs and MOSFETs.
By delivering coordinated gate drive signals with precise timing and electrical isolation, the DS200DDTBG2ABB enhances drive efficiency, stability, and protection—making it ideal for industrial applications where timing integrity and switching accuracy are critical.
Technical Specifications & Physical Details
| Specification | Description |
|---|---|
| Module Type | Dual Drive Timing & Bridge Gate Interface |
| Compatible Platforms | GE DS200 Drive Control Systems |
| Primary Role | Timing coordination and bridge gate interface |
| Signal Focus | Synchronized drive gating for dual paths |
| Isolation | Electrical isolation of logic and power paths |
| Mounting Style | Standard rack or panel integration |
| Operating Temperature | –10°C to +60°C |
| Storage Temperature | –25°C to +85°C |
| Humidity | 5–90% RH, non-condensing |
| Dimensions (H × W × D) | 180 mm × 65 mm × 150 mm |
| Weight | Approx. 0.85 kg |
| Build Materials | Industrial-grade PCB with reinforced connectors |
Where It Is Used
-
Dual bridge drive timing management in VFD systems
-
Industrial motor control and precision speed regulation
-
Power electronics switching in inverter systems
-
Retrofitting legacy drive cabinets
-
High-speed timing and gate coordination applications
-
Enhanced drive system reliability for manufacturing, utilities, and processing plants
Why It Adds Value
-
Dual Path Gate Coordination: Ensures synchronized drive signals for multi-bridge configurations.
-
Precision Timing Control: Supports accurate switching for improved performance.
-
Industrial Toughness: Withstands continuous operation in harsh environments.
-
Signal Integrity: Isolation and conditioning reduce noise and switching errors.
-
Service-Ready Accessibility: Terminal labeling and connector placement simplify maintenance.
