Overview – Field Troubleshooting Insight

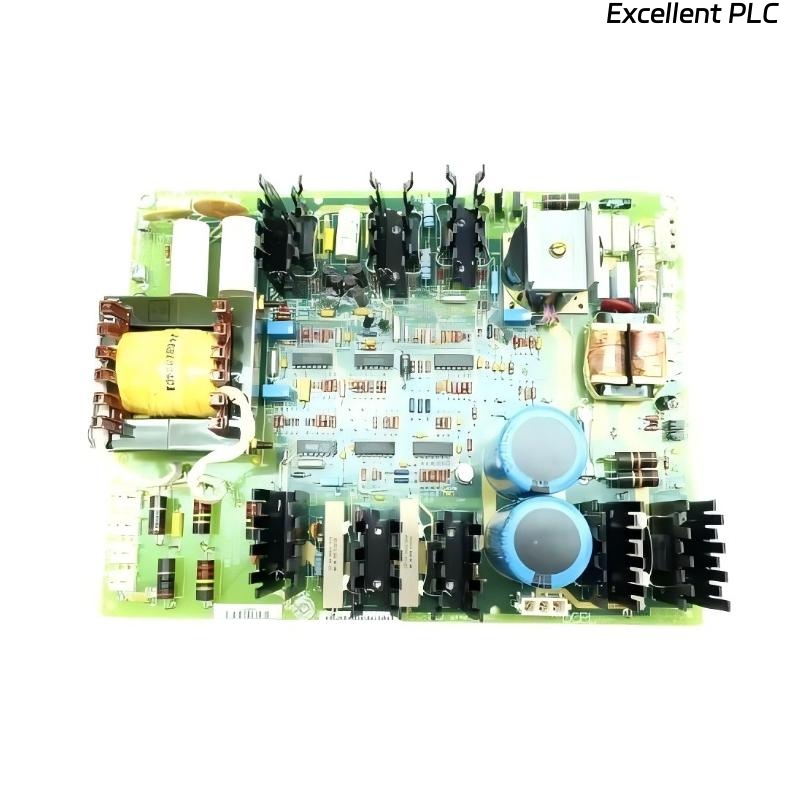

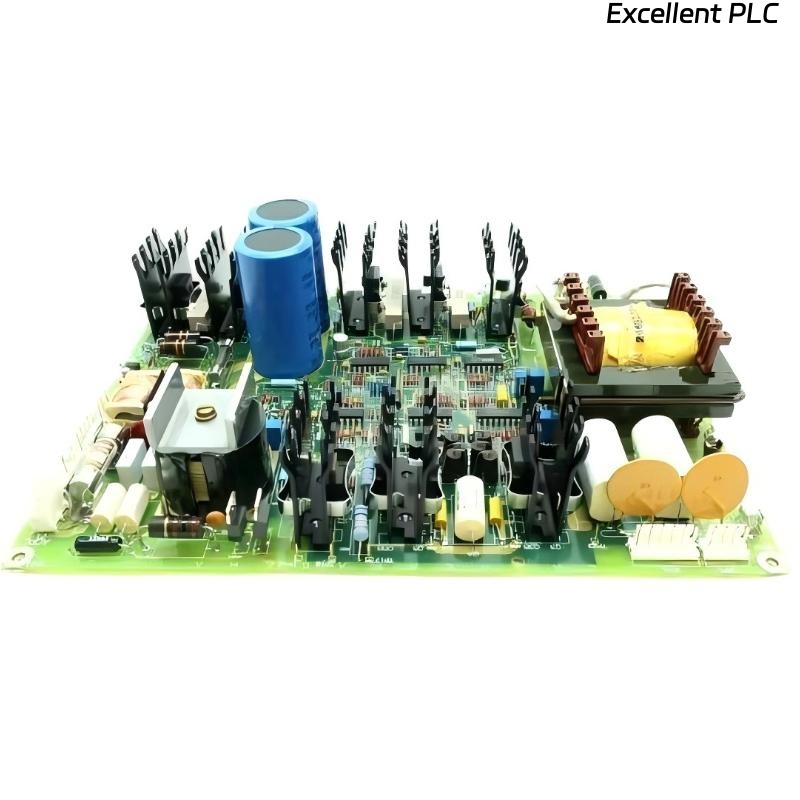

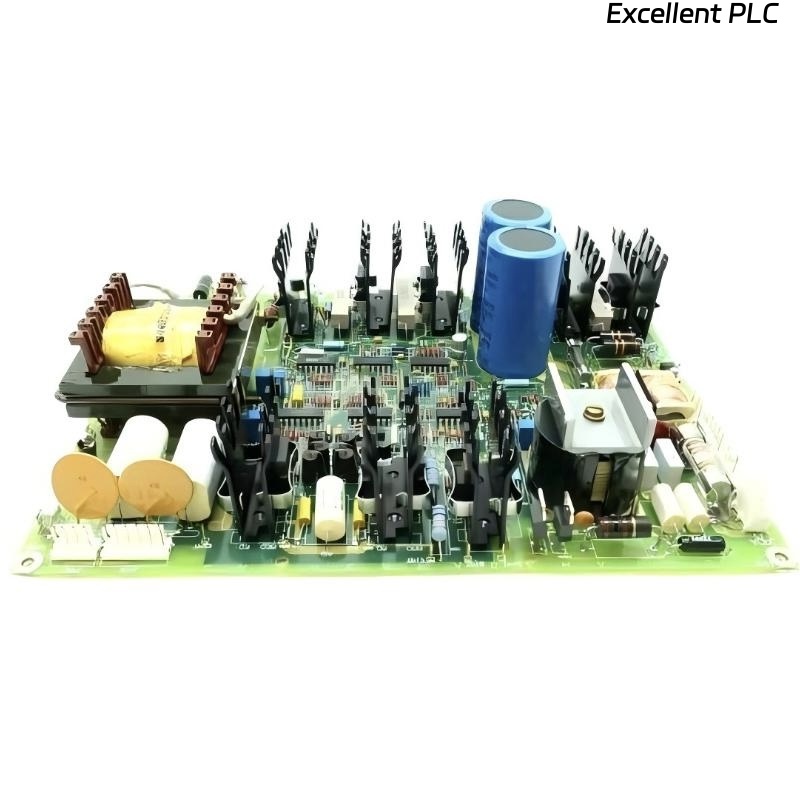

The DS200GDPAG1ALF is a GE gate driver and power amplification module widely used in industrial drive systems that operate under heavy electrical load. In field diagnostics, this board often appears in systems requiring robust and synchronized gate control for IGBT or SCR stages.
During real-world service situations, the module shows strong reliability, maintaining stable switching performance even after extended exposure to thermal cycling and line disturbances. Most issues encountered on-site are related to upstream signal inconsistencies rather than failures within the board itself, demonstrating its resilience and engineering depth.
Technical Specifications (Based on Field-Confirmed Data)
| Parameter |
Description |
| Module Type |
Gate Driver / Power Amplification Board |
| Platform |
GE Industrial AC Drives & Power Converter Systems |
| Functional Role |
Gate firing, pulse amplification, switching supervision |
| Gate Drive Outputs |
Multi-channel IGBT/SCR drive capability |
| Protective Logic |
Overcurrent gating lockout, fault inhibit lines |
| Signal Isolation |
High-voltage galvanic isolation |
| Communication Interface |
Backplane digital command distribution |
| LED Indicators |
Status, fault, and pulse presence diagnostics |
| Power Requirements |
+5 VDC logic, auxiliary driver supply rails |
| Operating Temperature |
0°C to 60°C |
| Storage Temperature |
–40°C to 85°C |
| Dimensions |
310 × 145 × 36 mm |
| Weight |
approx. 1.1 kg |
| PCB Design |
Multi-layer insulated structure with reinforced creepage paths |
Applications Observed in Actual Installations
-
High-power inverter gating
-
Synchronous motor and induction motor drive systems
-
Large-scale rectifier switching assemblies
-
Steel mill rolling line drives
-
Turbine auxiliary converters
-
Regenerative industrial drive architectures
Advantages – From Troubleshooting Experience
-
Exceptional tolerance to transient noise, rarely causing misgating events
-
Consistent pulse shaping, ensuring clean switching edges under electrical stress
-
High isolation durability, critical in high-voltage panels
-
Modular design, enabling fast board swaps during outages
-
Stable temperature performance, even near maximum ambient ratings
-
Reliable fault signaling, aiding rapid root-cause identification
Technical FAQs – Real Field Issues Answered
-
Does this module support high-current IGBT gate drive requirements?
Yes, the amplification circuitry is designed for high-current stages.
-
Are fault inhibit signals hardware-controlled?
Fault blocks are applied through dedicated hardware logic paths.
-
Can excessive line harmonics affect gate timing?
Typically no; internal filtering maintains pulse stability.
-
Is the module fully isolated from power semiconductor voltage levels?
Yes, it uses reinforced isolation structures.
-
Does this module require calibration after replacement?
No calibration is normally required after installation.
-
Are pulse shaping circuits susceptible to drift?
Drift is rare due to stable component tolerances.
-
How are gating failures reported?
Fault lines and LED indicators provide immediate notification.
-
Can it interface with redundant controller racks?
Yes, depending on overall rack configuration.
-
Is the module protected against back-fed energy from the power stage?
Protective paths mitigate reverse energy exposure.
-
Is DS200GDPAG1ALF backward-compatible with older GDPA versions?
Compatibility depends on system firmware and semiconductor type.
