Product Introduction

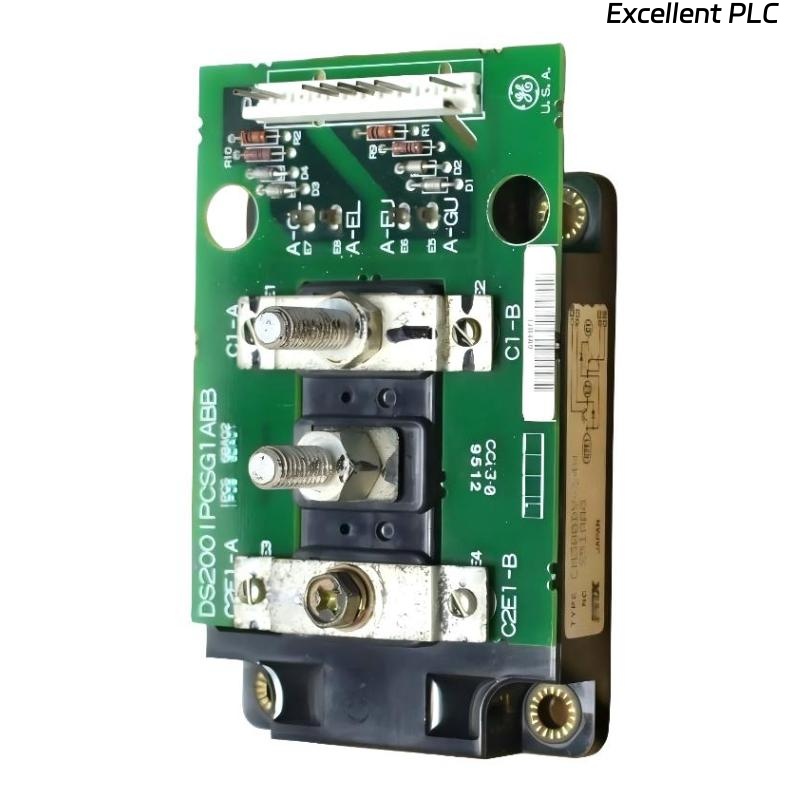

The GE DS200IPCSG1ABB IGBT P3 Snubber Board is an industrial-grade module designed to protect IGBTs and power transistors in DS200 series drives from voltage spikes and switching transients. By providing efficient energy absorption and dissipation, this board ensures reliable operation, reduced electrical stress, and enhanced system stability.
It is commonly used in high-speed power switching applications, including industrial drives, process automation, and distributed control systems. The DS200IPCSG1ABB is suitable for both new installations and retrofit applications, ensuring precise IGBT operation under dynamic load conditions.
Product Specifications
| Parameter |
Description |
| Product Type |
IGBT Snubber Board |
| Series |
DS200 Series |
| Functionality |
Protects IGBTs and power transistors from voltage spikes and switching transients |
| Supported Devices |
IGBTs, P3 power modules, and compatible power transistors |
| Interface |
Direct connection to DS200 drive modules and field power devices |
| Protection Features |
Snubber network for voltage spike absorption, overvoltage mitigation, and fault signaling |
| Diagnostics |
LED indicators for status and fault detection |
| Material |
FR4 PCB with industrial-grade components and connectors |
| Compatibility |
Compatible with DS200 series drives and auxiliary modules |
| Operating Environment |
Designed for standard industrial operating conditions |
| Dimensions |
130 × 100 × 35 mm |
| Weight |
1.36 kg |
Applications
• IGBT Protection in DS200 series drives to mitigate voltage spikes and reduce switching stress
• High-Speed Power Switching ensuring safe and reliable operation of IGBTs and transistors
• Industrial Drive Systems requiring energy absorption and mitigation of transient events
• Retrofit Projects upgrading existing DS200 installations with snubber protection
• Distributed Control Systems where precise IGBT operation is critical for system stability
• Process Automation Applications involving frequent switching of power modules
Advantages
• Effective Voltage Spike Mitigation protecting IGBTs and transistors from electrical stress
• Enhanced Reliability with industrial-grade components for stable operation under dynamic load conditions
• Integrated Fault Detection via LED indicators for quick troubleshooting
• Seamless Integration with DS200 series drives and auxiliary modules
• Flexible Installation suitable for both new builds and retrofit applications
• Robust Industrial Design capable of withstanding vibration, transient currents, and standard industrial operating conditions
FAQ
1. What is the primary function of this board?
It protects IGBTs and power transistors from voltage spikes and switching transients in DS200 series drives.
2. Which devices are supported?
It supports IGBTs, P3 power modules, and compatible power transistors.
3. How does the board protect IGBTs?
Through a snubber network that absorbs energy from voltage spikes and mitigates overvoltage conditions.
4. Is this board compatible with all DS200 modules?
It is compatible with most DS200 series drives; verification is recommended for specific system configurations.
5. Does the board provide diagnostic feedback?
Yes, LED indicators show status and fault conditions for troubleshooting.
6. Can multiple boards be used in a single system?
Yes, multiple snubber boards can be installed for systems with several IGBTs or power modules.
7. What operating environment is recommended?
It is designed for standard industrial operating conditions, including typical control cabinet environments.
8. Can this board be used in retrofit projects?
Yes, it is suitable for upgrading existing DS200 installations with enhanced IGBT protection.
9. How is signal and power integrity maintained?
High-quality components, proper PCB design, and integrated snubber circuitry ensure stable operation.
10. Is this board suitable for high-frequency switching applications?
Yes, it is specifically designed to handle fast switching and transient events in industrial power systems.
Related Models
| Model |
Description |
| DS200IPCDG1ABA |
IGBT P3 Snubber Board for DS200 drives |
| DS200IPCDG1ABB |
High-speed snubber board variant |
| DS200IPCSG1ABC |
Compact snubber board for space-constrained cabinets |
| DS200IPCSG1ABD |
Redundant snubber board for critical power applications |
| DS200IPCSG1ABE |
Auxiliary snubber board for distributed DS200 systems |
| DS200IPCSG1ABF |
Advanced diagnostic snubber board with LED feedback |
