Product Introduction

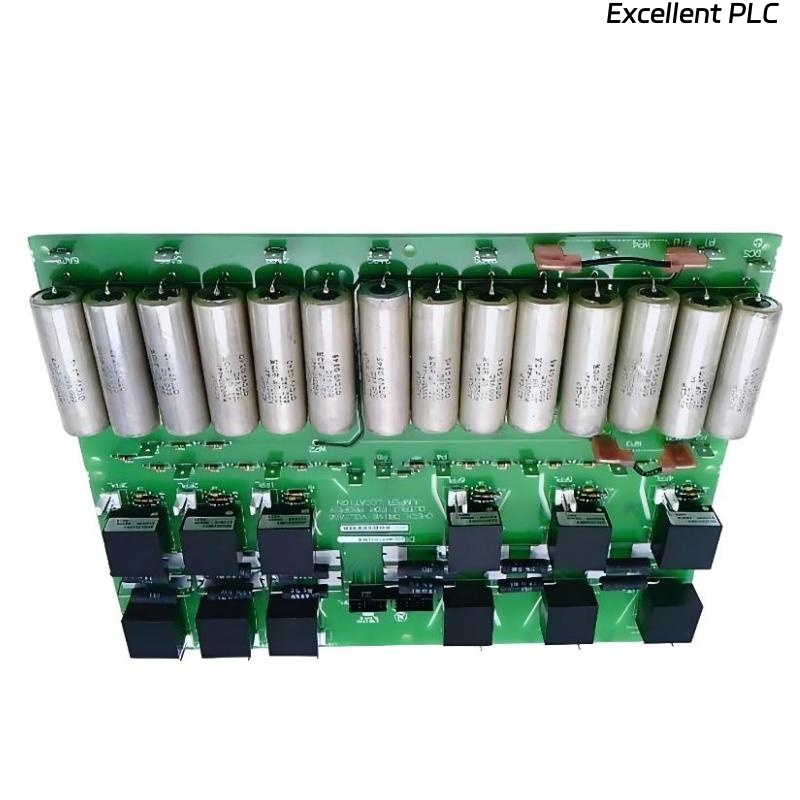

The GE DS200PCCAG1ACB Power Connect Card is a robust power interface module designed to provide reliable electrical distribution and connection within DS200 series drive systems. This card ensures stable power delivery, secure connections, and fault protection for drive modules, enabling consistent performance in industrial automation applications.
Constructed for high-current capability and industrial-grade reliability, the DS200PCCAG1ACB is suitable for both new installations and retrofit projects, ensuring seamless integration with DS200 series drives and controllers. Its design supports high availability, operational safety, and system diagnostics in demanding industrial environments.
Product Specifications
| Parameter |
Description |
| Product Type |
Power Connect Card |
| Series |
DS200 Series |
| Functionality |
Provides power distribution and module connections within DS200 drive systems |
| Current Capacity |
Rated for industrial high-current applications (specific values depend on system configuration) |
| Protection Features |
Overcurrent protection, short-circuit handling, and fault signaling |
| Interface |
Direct connection to DS200 modules |
| Operating Temperature |
Industrial range (-20°C to +70°C typical) |
| Environmental Protection |
Designed for control cabinet installation in industrial environments |
| Diagnostics |
LED indicators for power status and fault detection |
| Material |
FR4 PCB with high-current connectors and industrial-grade components |
| Compatibility |
Compatible with DS200 series drives and auxiliary modules |
| Dimensions |
188 × 129 × 50 mm |
| Weight |
0.862 kg |
Applications
• Power Distribution within DS200 series drives and controllers for industrial automation
• Secure Electrical Connection between drive modules in distributed systems
• Industrial Drive Installations requiring stable and reliable power delivery
• Retrofit Projects upgrading existing DS200 systems with modern power interface solutions
• System Redundancy providing alternative power paths for improved reliability
• Control Cabinet Integration in manufacturing, process, and power generation industries
Advantages
• High-Current Capability for reliable operation of connected modules
• Robust Industrial Construction resistant to vibration, temperature variations, and electrical stress
• Integrated Protection Features for overcurrent, short-circuit, and fault signaling
• Seamless Integration with DS200 series drives for straightforward system assembly
• Diagnostic Support via LED indicators for fast troubleshooting
• Flexible Installation suitable for both new installations and retrofits
FAQ
1. What is the main function of this card?
It provides power distribution and secure electrical connections within DS200 series drive systems.
2. What current levels can the card handle?
It is rated for high-current industrial applications; exact capacity depends on system configuration.
3. Does this card provide fault protection?
Yes, it includes overcurrent protection, short-circuit handling, and fault signaling.
4. Is this card compatible with all DS200 modules?
It is compatible with most DS200 drives and auxiliary modules; always verify firmware and revision compatibility.
5. Does the card have diagnostic indicators?
Yes, LED indicators show power status and fault conditions for quick troubleshooting.
6. Can multiple cards be used in the same system?
Yes, multiple power connect cards can be installed to expand distribution or create redundancy.
7. What is the operating temperature range?
Typical industrial range is -20°C to +70°C.
8. Can this card be used in retrofit projects?
Yes, it is suitable for upgrading existing DS200 installations with additional or modernized power connections.
9. How is signal and power integrity maintained?
High-current connectors, industrial-grade PCB construction, and integrated protection features ensure reliability.
10. Is this card suitable for harsh industrial control cabinets?
Yes, it is designed to operate reliably under vibration, temperature changes, and standard industrial conditions.
Related Models
| Model |
Description |
| DS200PCCAG5ACB |
Mark V Power Connect Board, high-current industrial applications |
| DS200PCCAG5AAA |
Standard Power Connect Board for DS200 systems |
| DS200PCCAG1AAA |
Standard Power Connect Card variant |
| DS200PCCAG1AAB |
Auxiliary Power Connect Card with enhanced protection |
| DS200PCCAG1AAC |
Compact card for space-constrained control cabinets |
| DS200PCCAG1AAD |
Redundant Power Connect Card for critical applications |
Popular Models
| Model |
Description |
| DS200LDCCH1AHA |
Drive Control LAN Communication Board |
| DS200ADG1H1AAA |
Auxiliary Interface Board |
| DS200SIOCG1AEA |
VME Stand I/O Board |
| DS200HSCM1AAA |
High-speed control module for DS200 drives |
| DS200ACCM1AAA |
Analog control module for DS200 series |
| DS200DIGM1AAA |
Digital interface module for DS200 drives |
