Product Introduction

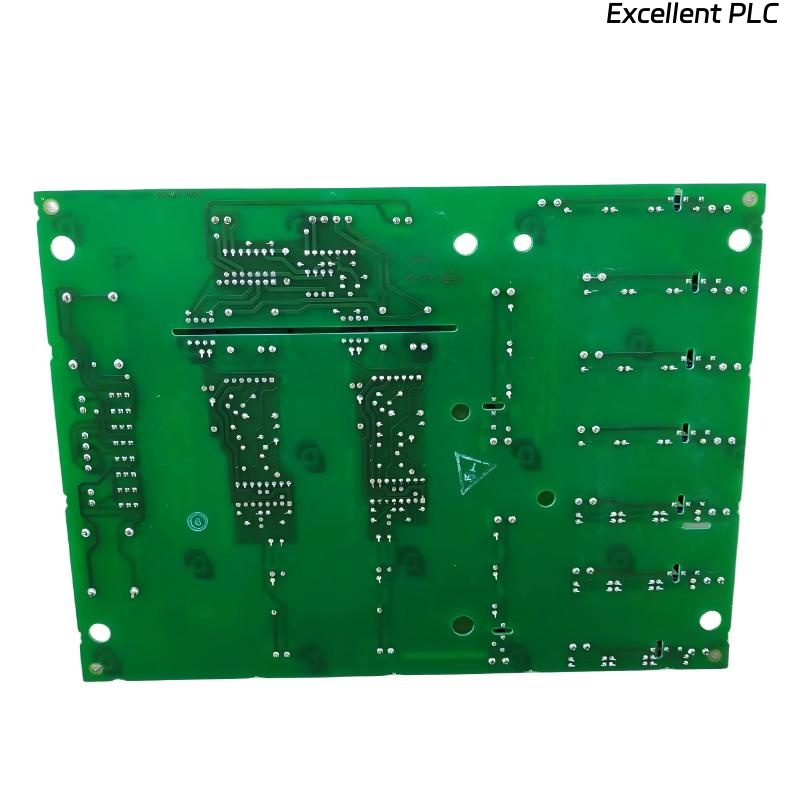

The GE DS200SHVMG1AFE is an SCR High Voltage M-Frame Interface Board, designed for industrial and power system applications requiring precise and reliable control of high-voltage SCR-based equipment. The board functions as a robust interface between the control system and power modules, ensuring accurate triggering, feedback, and signal isolation.
It is engineered to operate in high-voltage environments, providing electrical isolation and signal conditioning for reliable SCR operation. Its compact design allows integration into M-Frame assemblies, facilitating modular system construction and straightforward maintenance.
Product Specifications
| Parameter |
Description |
| Product Name |
GE DS200SHVMG1AFE |
| Product Type |
SCR High Voltage Interface Board |
| Device Function |
Signal interface for SCR M-Frame power modules |
| Input Signal Type |
Control voltage (logic-level) |
| Output Signal Type |
SCR trigger pulses |
| Mounting Method |
M-Frame integration |
| Insulation Voltage |
High-voltage isolation per industrial standards |
| Ambient Temperature Range |
-20 °C to 55 °C |
| Relative Humidity |
Up to 95% non-condensing |
| Dimensions |
159 × 178 mm |
| Weight |
1.2 kg |
Applications
• Industrial SCR power control, providing precise gate triggering for high-voltage thyristors.
• High-voltage power converters, facilitating reliable interface between control circuits and SCR modules.
• Motor drive systems, where M-Frame SCR assemblies are used for large AC or DC motors.
• Process control systems, delivering fast and accurate SCR pulse control for heating or power regulation.
• Energy management systems, supporting modular high-voltage switching and load control.
Advantages
• High-voltage isolation, ensuring operator and system safety.
• Reliable SCR triggering, maintaining accurate timing and repeatability.
• Compact M-Frame design, simplifying integration and modular maintenance.
• Wide ambient tolerance, suitable for standard industrial environments.
• Enhanced signal integrity, minimizing interference and misfiring risks.
FAQ
1. What is the primary function of the DS200SHVMG1AFE?
It provides reliable high-voltage SCR triggering and signal interface in M-Frame assemblies.
2. Can this board be used with all types of SCR modules?
It is designed for high-voltage SCR modules compatible with M-Frame systems.
3. How does the board ensure reliable SCR triggering?
It uses precise timing circuits and signal conditioning to provide accurate trigger pulses.
4. Is the DS200SHVMG1AFE suitable for high-voltage motor drives?
Yes, it is designed for industrial M-Frame motor drive systems requiring SCR control.
5. Can the board operate in high-humidity environments?
Yes, it supports up to 95% relative humidity, non-condensing.
6. How does it handle electrical noise or interference?
The board includes signal isolation and filtering to maintain pulse integrity.
7. Is it compatible with fast switching SCRs?
Yes, it is engineered to handle high-frequency SCR pulse requirements.
8. Can the board be used in process control and energy management systems?
Yes, it is suitable for both industrial process control and modular energy management applications.
9. What kind of maintenance is required?
Routine inspection and cleaning are sufficient; the design ensures long-term reliability.
10. Does it provide isolation between control and power circuits?
Yes, high-voltage isolation ensures safe separation of control signals from SCR power modules.
Related Models
| Model |
Series |
Description |
| DS200SHVMG1AFB |
SCR Interface Board |
Similar high-voltage SCR interface |
| DS200SHVMG1AFC |
SCR Interface Board |
M-Frame SCR control board with advanced timing |
| DS200SHVMG2AFE |
SCR Interface Board |
Upgraded version with higher isolation |
| DS200SHVMG2AFB |
SCR Interface Board |
Dual SCR module interface board |
| DS200SHVMG3AFE |
SCR Interface Board |
Extended high-voltage M-Frame support |
| DS200SHVMG3AFB |
SCR Interface Board |
Multi-channel SCR interface |
Popular Models
| Model |
Series |
Typical Application |
| DS200SHVMG1AFE |
M-Frame SCR Interface |
Industrial high-voltage SCR control |
| DS200SHVMG1AFB |
M-Frame SCR Interface |
Standard SCR triggering applications |
| DS200SHVMG1AFC |
M-Frame SCR Interface |
Advanced timing SCR systems |
| DS200SHVMG2AFE |
M-Frame SCR Interface |
High-isolation SCR control |
| DS200SHVMG3AFE |
M-Frame SCR Interface |
Multi-channel SCR systems |
| DS200SHVMG2AFB |
M-Frame SCR Interface |
Dual SCR interface for motor drives |
