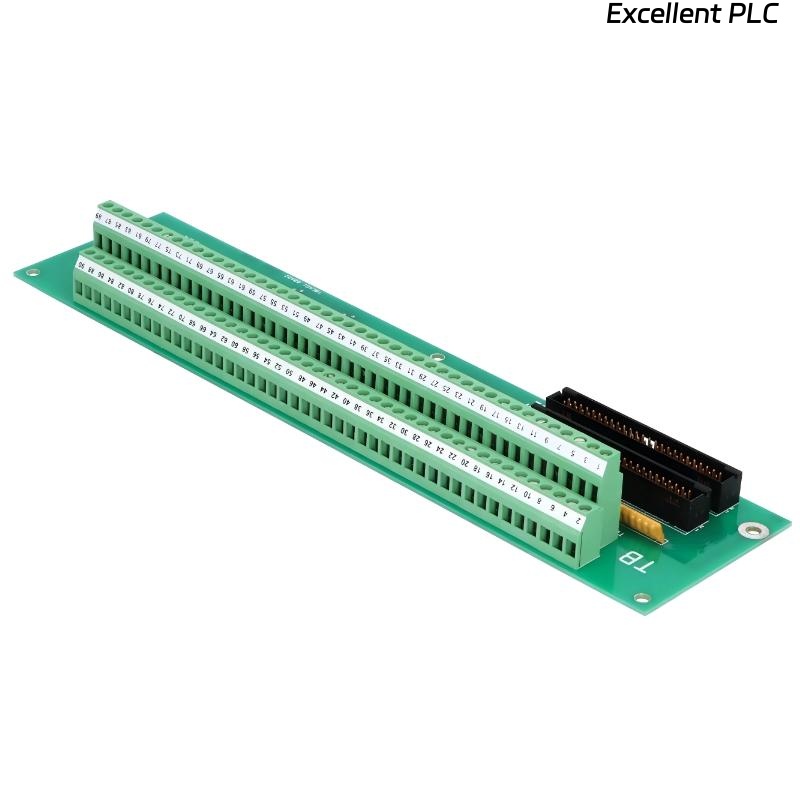

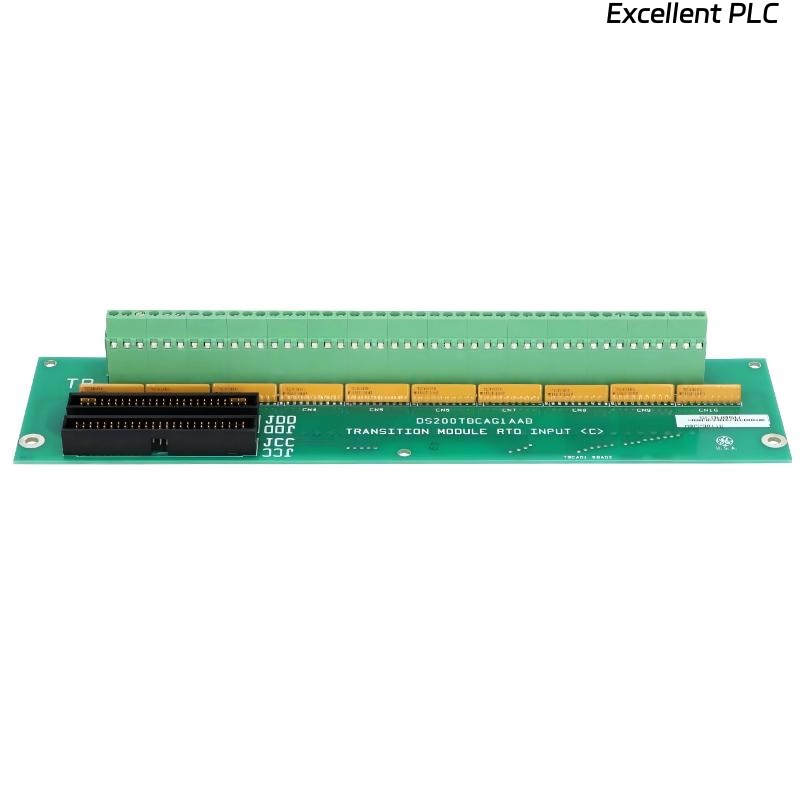

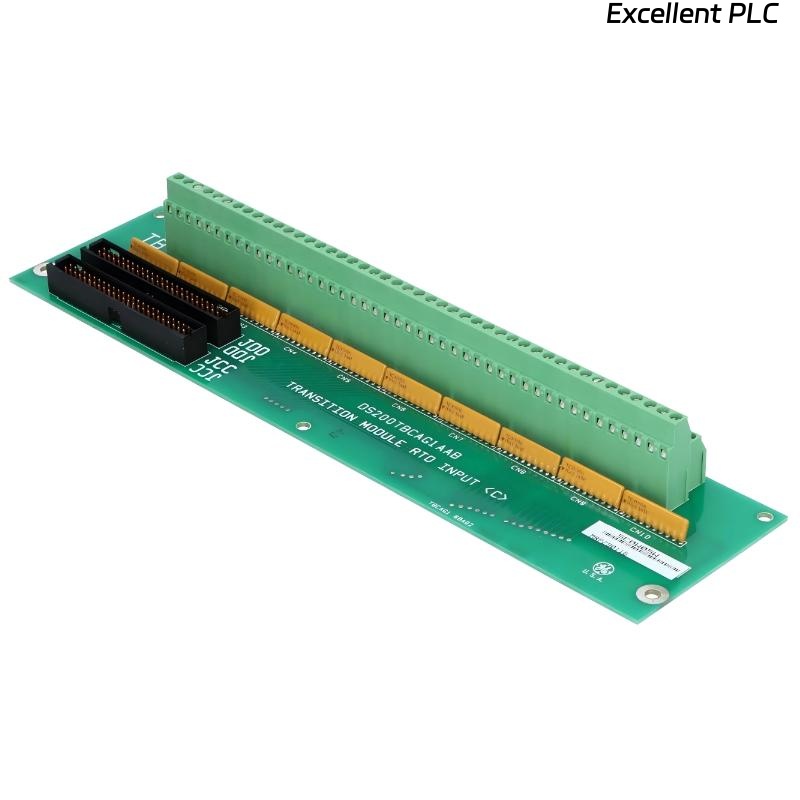

The GE DS200TBCAG1AAB Analog I/O Terminal Board is a precision analog input/output module designed for GE DS200 turbine control systems. It provides reliable acquisition of analog signals from field sensors and outputs precise analog control signals to actuators or auxiliary devices.
This terminal board is engineered for integration with DS200 control systems, enabling accurate monitoring and control of turbines and associated process equipment. Its robust design ensures stable operation under industrial conditions, maintaining safe and efficient turbine performance.
Product Specifications
| Parameter | Specification |
|---|---|
| Module Type | Analog I/O Terminal Board |
| Compatible Systems | GE DS200 Turbine Control Systems |
| Analog Outputs | 4 Analog Outputs (Voltage/Current) |
| Resolution | High-resolution analog signal processing |
| Response Time | Fast response for control loops (<10 ms) |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Signal Conditioning | Filtering, scaling, and isolation supported |
| Diagnostics Support | Input/output status monitoring, fault detection |
| Installation Type | Rack-mounted / integrated into DS200 system |
| Compliance | Meets GE turbine safety and control standards |
| Communication Protocols | Compatible with DS200 control network architecture |
| Mounting Type | Standard DS200 card slot |
| Dimensions | 210 × 100 × 35 mm |
| Weight | 0.295 kg |
Applications
• Analog Signal Acquisition: Collects signals from turbine and process sensors, such as temperature, pressure, and flow.
• Analog Control Outputs: Provides precise control signals to actuators, valves, or auxiliary devices.
• Integration with DS200 Systems: Interfaces seamlessly with GE DS200 turbine control modules for automation.
• Process Monitoring: Allows real-time monitoring of turbine and auxiliary process parameters.
• Closed-Loop Control: Supports analog feedback loops for precise turbine operation.
• Fault Detection and Diagnostics: Monitors I/O channels for safe and reliable operation.
Advantages
• High Accuracy: Ensures precise analog signal acquisition and output.
• Fast Response: Provides rapid analog processing for critical turbine control.
• Reliable Industrial Performance: Designed for continuous operation in turbine environments.
• Seamless Integration: Compatible with GE DS200 turbine control systems.
• Enhanced Diagnostics: Supports input/output status monitoring and fault detection.
• Compact Design: Minimal footprint while providing full analog I/O functionality.
