Introduction

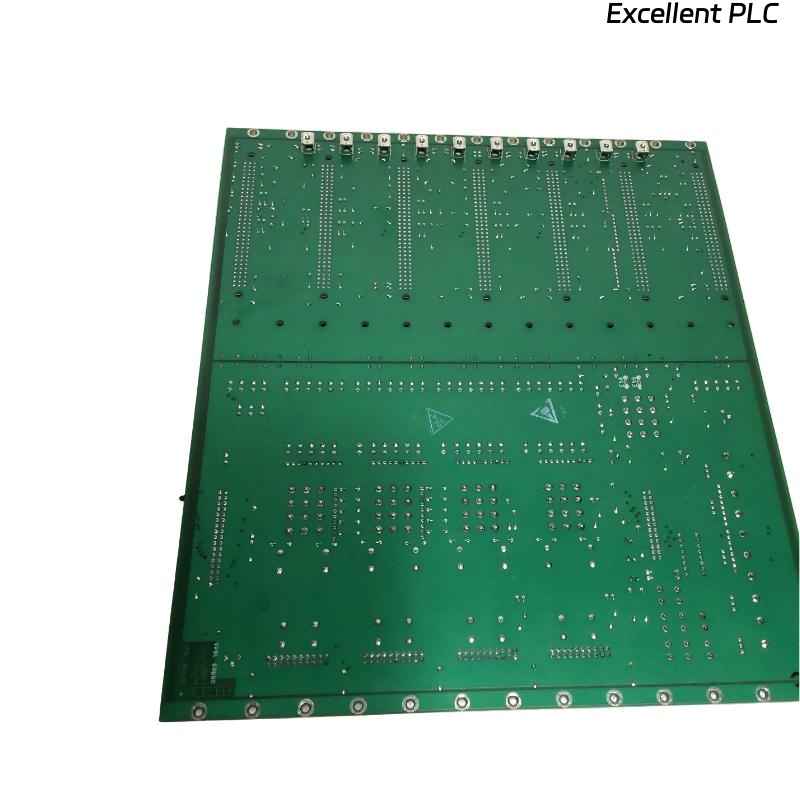

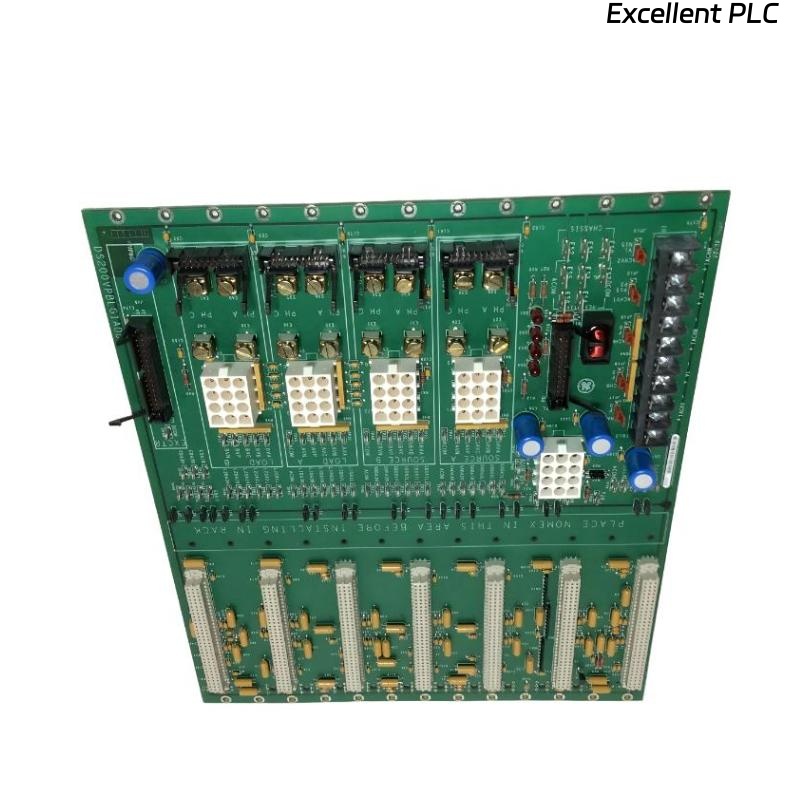

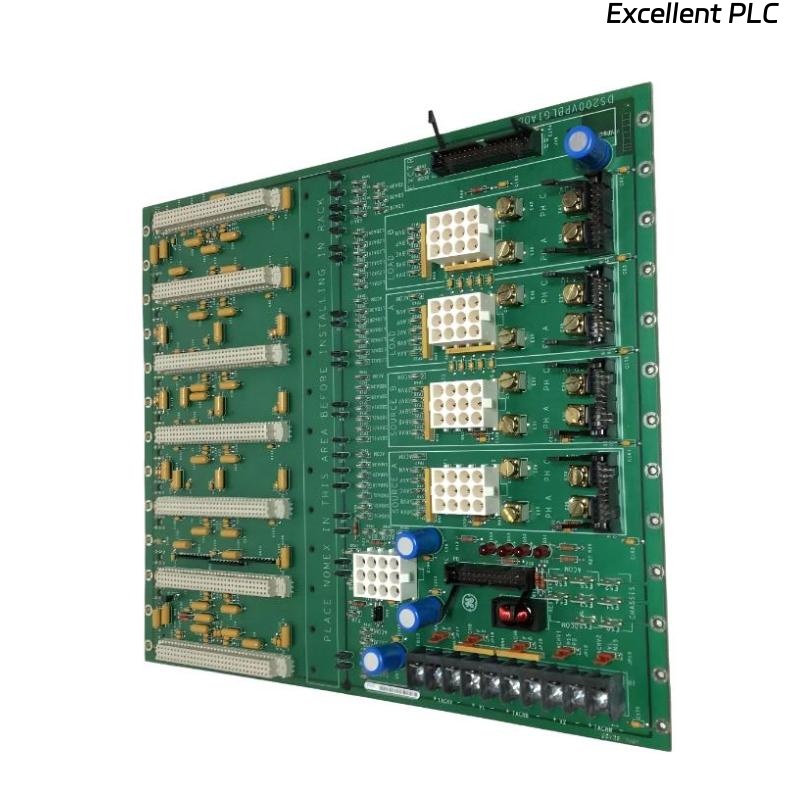

The GE DS200VPBLG1ADD Power Supply Module is a high-performance solution designed to deliver stable DC power to industrial automation systems. Built for reliability and continuous operation, this module ensures consistent voltage output to support CPUs, I/O modules, and communication networks. Its compact design allows efficient integration into control cabinets while maintaining robust performance in demanding industrial environments.
Technical Specifications
| Specification |
Details |
| Brand |
GE |
| Module Type |
Power Supply Module |
| Input Voltage |
120–240V AC |
| Output Voltage |
24V DC |
| Output Current |
8A |
| Efficiency |
91% |
| Dimensions (L × W × H) |
145 mm × 85 mm × 55 mm |
| Weight |
0.88 kg |
| Operating Temperature |
-20°C to 60°C |
| Storage Temperature |
-40°C to 85°C |
| Certifications |
UL, CE, RoHS |
Applications
The DS200VPBLG1ADD is widely used in scenarios requiring reliable and continuous power delivery:
-
PLC and CPU systems
-
Industrial motor controllers
-
Robotics and automated assembly lines
-
Process automation in manufacturing plants
-
Safety-critical backup power systems
Its stable voltage output minimizes risks of system failures and ensures smooth operation of downstream modules.
Advantages
-
Reliable DC Power: Ensures consistent operation of sensitive control equipment.
-
Compact and Lightweight: Optimizes cabinet space utilization.
-
Energy Efficient: 91% efficiency reduces heat and operational costs.
-
Robust Construction: Resistant to industrial vibration, dust, and temperature variations.
-
Wide Input Voltage Range: Supports multiple industrial environments.
-
Safety Certified: Complies with UL, CE, and RoHS standards.
-
Ease of Maintenance: Modular design allows fast replacement if needed.
Technical FAQs
-
What is the maximum output current?
Rated at 8A DC continuous output.
-
Can it tolerate short-term voltage spikes?
Minor surges are tolerated, but prolonged overcurrent may reduce lifespan.
-
Does it require active cooling?
No, passive cooling is sufficient with proper cabinet airflow.
-
Is it compatible with other GE power modules?
Yes, fully compatible within GE automation systems.
-
What is the expected MTBF?
Approximately 70,000 hours under normal operating conditions.
-
Can it operate continuously at 55°C?
Yes, within the specified operating range.
-
Are replacement parts available?
Yes, components can be serviced via GE support.
-
Does it support redundant configurations?
Yes, multiple modules can be used in parallel for redundancy.
-
How should it be mounted?
DIN rail or panel mounting with proper grounding is recommended.
-
Is there any diagnostic indication?
Status LEDs indicate power presence and fault conditions.
Recommended Related Models
| Model |
Description |
| DS200VPBLG1ABA |
Lower output current variant (5A) |
| DS200VPBLG1ADC |
Extended input voltage support |
| DS200VPBLG1ADD-E |
Enhanced module with integrated monitoring |
Popular GE Automation Modules
| Model |
Module Type |
| DS200SDCIG2AFB |
CPU Module |
| DS200MDOBG1ABB |
Discrete I/O Module |
| DS200ADOBG1ABB |
Analog I/O Module |
| DS200DTBBG1ABB |
Communication Module |
| DS200RTBBG1ABB |
Remote Terminal Module |
