Product Introduction

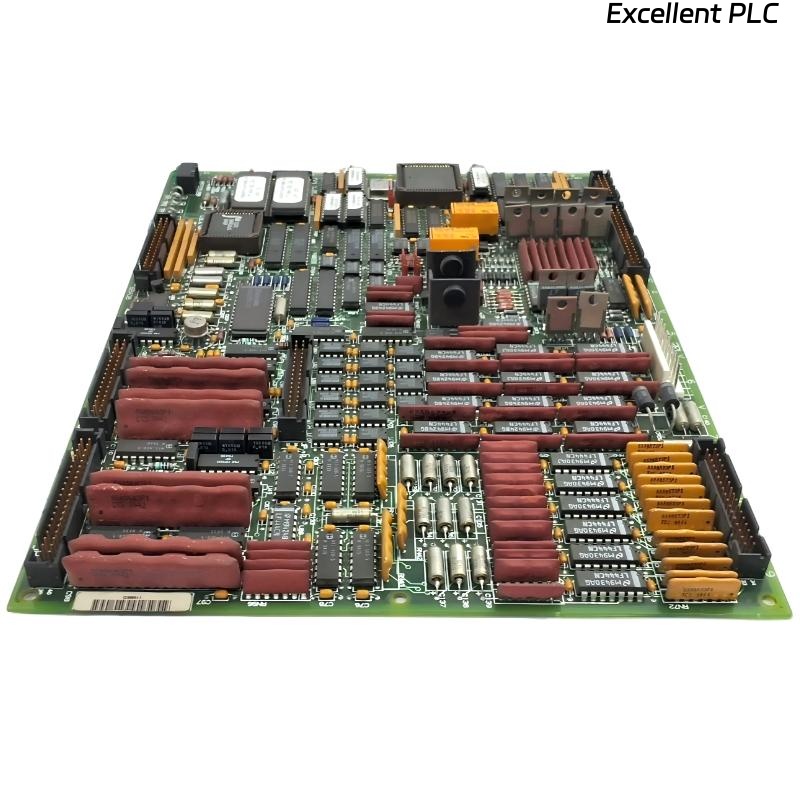

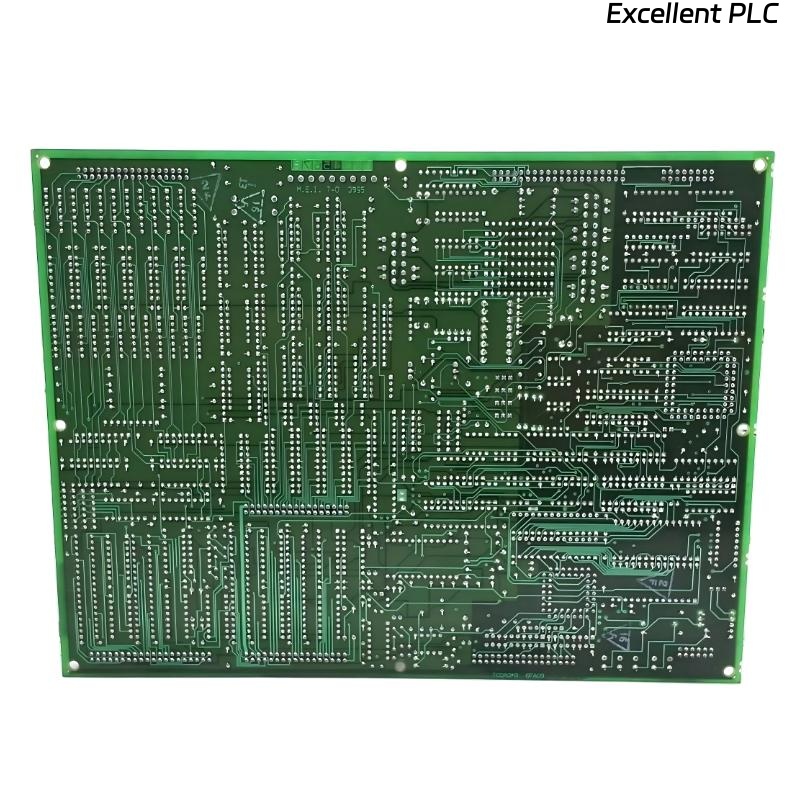

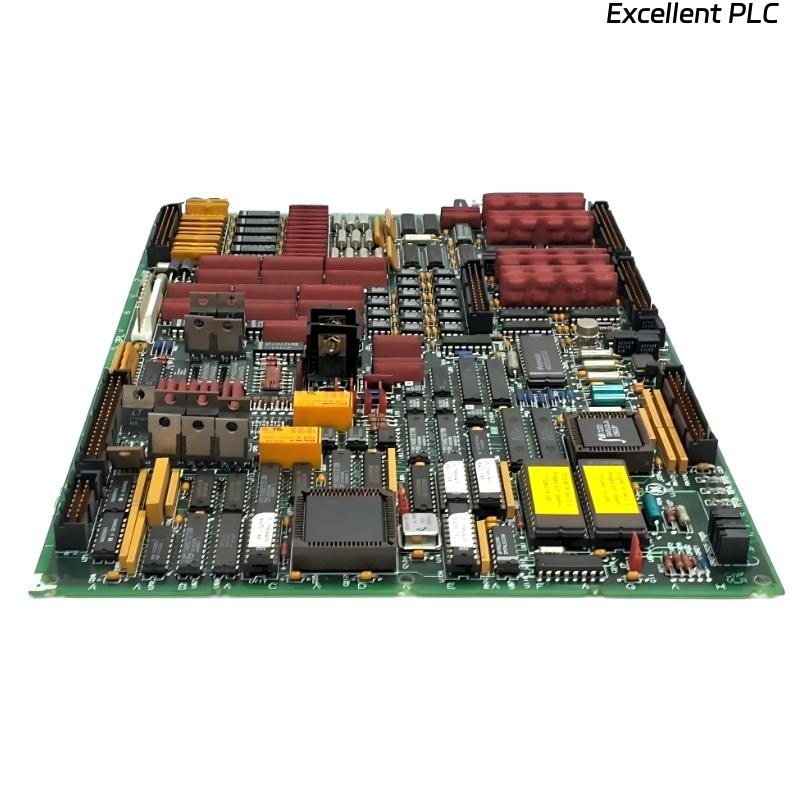

The GE DS215TCQAG1BZZ01A / DS200TCQAG1BEC Analog I/O Board is a high-performance analog input/output module designed for GE DS200 turbine control systems. This board provides precise analog signal acquisition and output capabilities, enabling accurate monitoring and control of turbines and auxiliary process equipment.
It supports integration with GE DS200 control systems, allowing reliable communication with sensors, actuators, and other field devices. With robust industrial-grade components, this board ensures stable, high-resolution analog I/O performance, critical for maintaining safe and efficient turbine operations.
Product Specifications
| Parameter | Specification |
|---|---|
| Module Type | Analog I/O Board |
| Compatible Systems | GE DS200 Turbine Control Systems |
| Analog Inputs | 8 Analog Inputs (Voltage/Current) |
| Analog Outputs | 6 Analog Outputs (Voltage/Current) |
| Resolution | High-resolution analog signal processing |
| Response Time | Fast analog response for control loops |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Signal Conditioning | Filtering, scaling, and isolation supported |
| Diagnostics Support | Input/output status monitoring, fault detection |
| Installation Type | Rack-mounted / integrated into DS200 system |
| Compliance | Meets GE turbine safety and control standards |
| Maximum Channels | Extended analog I/O capacity for advanced monitoring |
| Communication Protocols | Compatible with DS200 control network architecture |
| Mounting Type | Standard DS200 card slot |
| Dimensions | 262 × 185 × 39 mm |
| Weight | 0.8 kg |
Applications
• Analog Signal Acquisition: Collects signals from turbine and process sensors, including temperature, pressure, and flow.
• Analog Control Outputs: Provides precise control signals to actuators, valves, and other auxiliary devices.
• Integration with DS200 Systems: Seamlessly interfaces with GE DS200 control modules for process automation.
• Process Monitoring: Allows real-time monitoring of turbine performance and auxiliary systems.
• Closed-Loop Control: Supports analog feedback loops for precise turbine control.
• Industrial Diagnostics: Monitors I/O channels and supports fault detection for safety and reliability.
Advantages
• High Accuracy: Provides reliable and precise analog signal acquisition and output.
• Extended Capacity: Supports higher channel count for complex monitoring and control.
• Fast Response: Ensures quick analog processing for critical control applications.
• Seamless Integration: Compatible with GE DS200 control systems and communication protocols.
• Robust Industrial Performance: Engineered for continuous operation in turbine control environments.
• Enhanced Diagnostics: Supports monitoring and fault detection to maintain operational safety.
