Product Overview

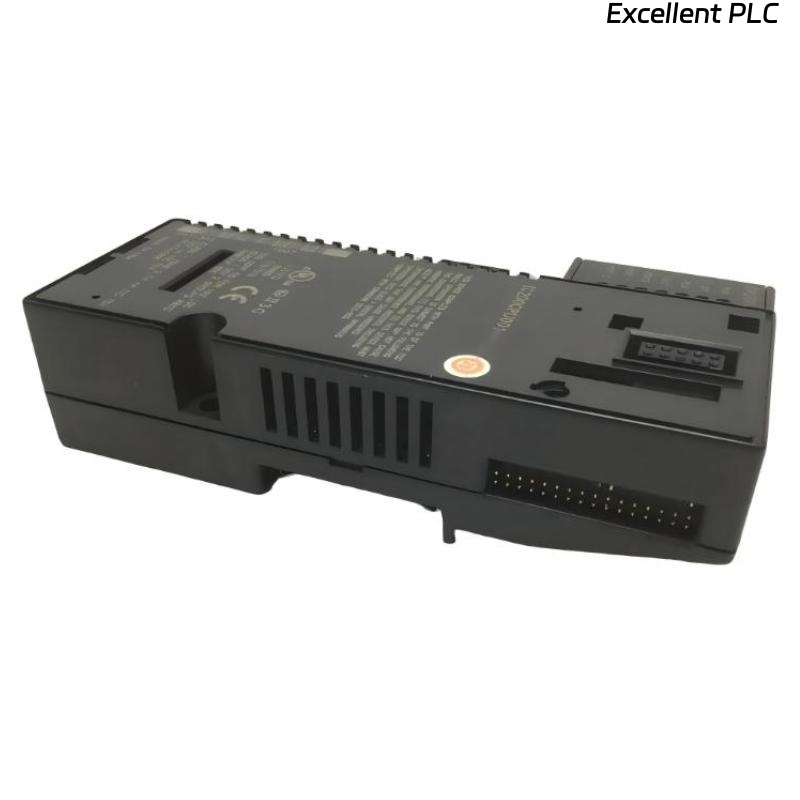

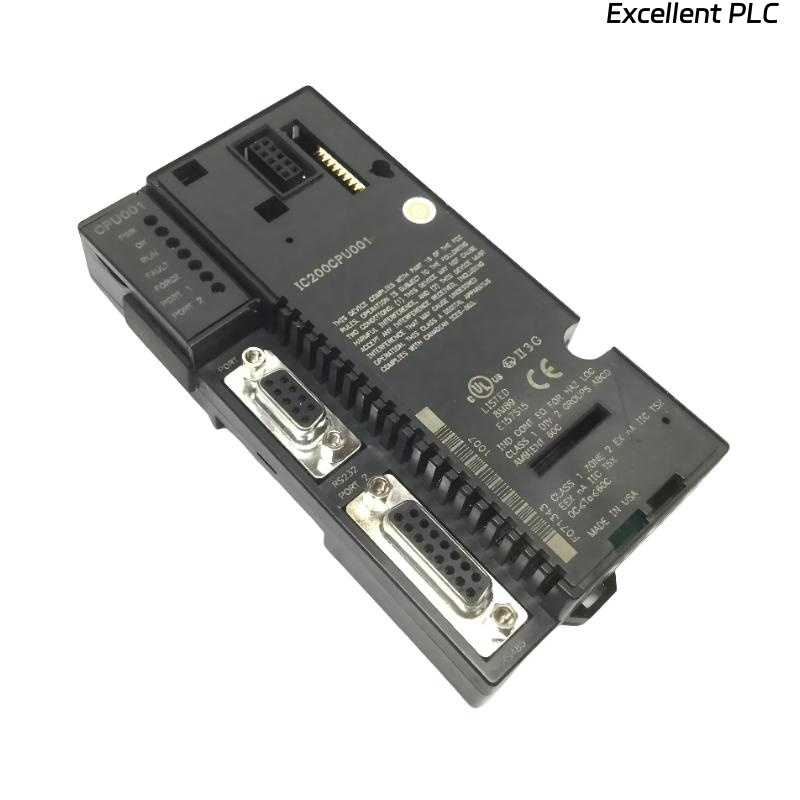

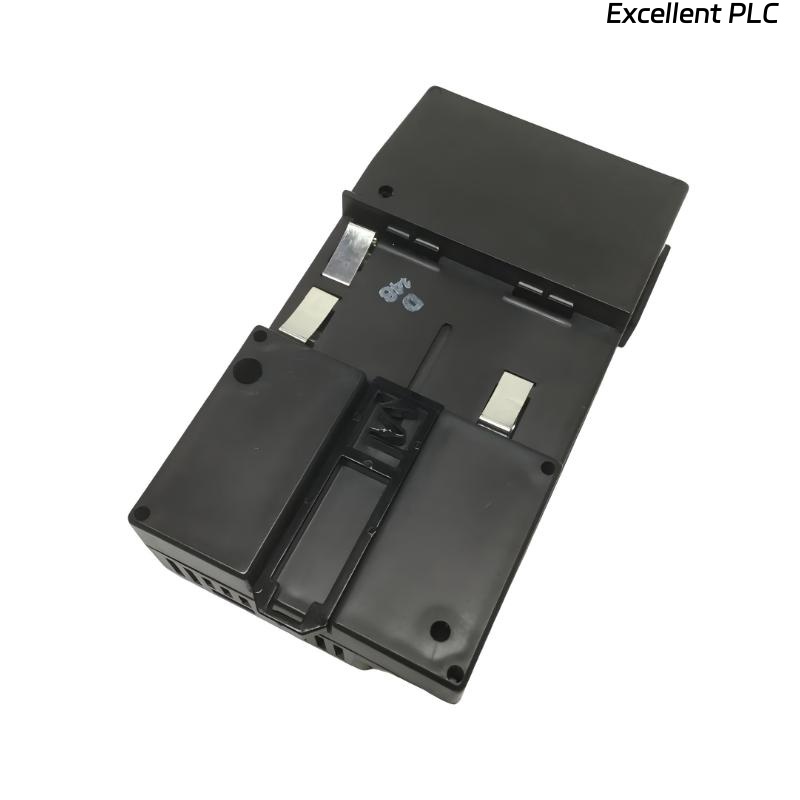

The GE Fanuc IC200CPU001 CPU Module is the central processing unit for the VersaMax Compact I/O system. It provides high-performance control and processing capabilities for industrial automation applications. Designed for reliability and efficiency, the IC200CPU001 CPU Module manages data exchange with connected I/O modules and executes user programs for real-time control.
Key Features
-
High-performance CPU for VersaMax Compact I/O systems
-
Supports control of multiple distributed I/O modules
-
Compatible with VersaMax serial communication protocol
-
Flexible programming via GE Fanuc software tools
-
Provides real-time processing for industrial applications
-
Compact, DIN rail or chassis-mountable design
-
Reliable operation in harsh industrial environments
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC200CPU001 |
| Type | CPU Module |
| Supported System | GE Fanuc VersaMax Compact I/O |
| Program Memory | 16 KB standard (expandable via IC200MEM series) |
| Data Memory | 4 KB |
| Communication Protocol | VersaMax serial communication |
| Scan Time | Typical 0.5 ms per 1 K of logic |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Power Requirements | +5 VDC, 1.0 A typical |
| Indicators | Run, Fault, I/O, Communication LEDs |
| Mounting | DIN rail or chassis mount |
| Dimensions | 66.8 x 128 x 69.1 mm |
| Weight | 0.449 kg |
Frequently Asked Questions (FAQ)
1. What is the main function of the IC200CPU001 module?
It serves as the central processing unit, controlling I/O modules and executing user programs.
2. Which I/O systems is it compatible with?
It is compatible with GE Fanuc VersaMax Compact I/O systems.
3. How much program memory does it have?
It has 16 KB of standard program memory, expandable via IC200MEM modules.
4. What is the typical scan time?
Typical scan time is 0.5 ms per 1 K of logic.
5. What are the operating temperature limits?
The module operates reliably between 0 °C and +60 °C.
6. How is the module mounted?
It can be mounted on a DIN rail or directly on a chassis.
7. What indicators are available on the module?
It includes Run, Fault, I/O, and Communication LEDs.
8. What is the power requirement?
The module typically consumes +5 VDC at 1.0 A.
Related GE Fanuc Models
| Model | Description |
|---|---|
| IC200CPU002 | CPU Module with increased program memory |
| IC200CPU003 | High-speed CPU Module |
| IC200CPU004 | Redundant CPU Module |
| IC200MEM001 | Memory Expansion Module for IC200CPU001 |
| IC200CHS022 | VersaMax Compact I/O Bay Cassette |
| IC200MDL740 | 32-Point Discrete Input Module |
