Product Overview

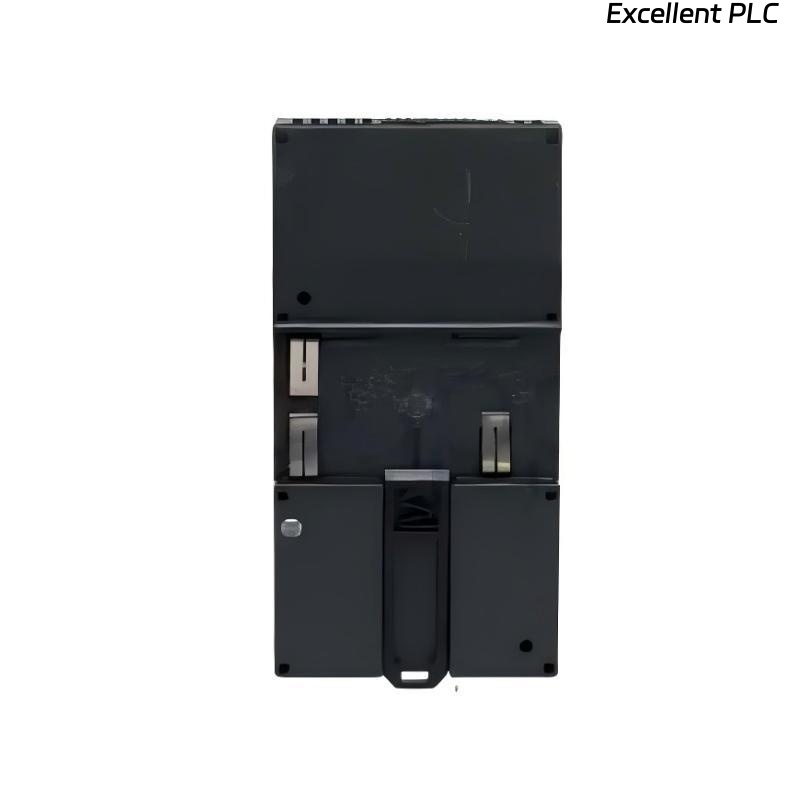

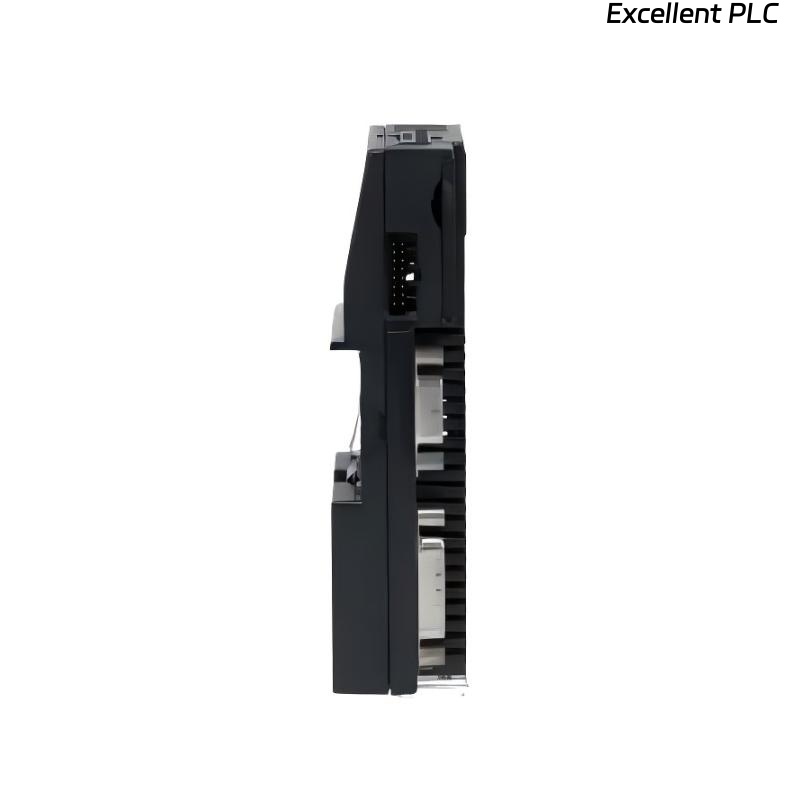

The GE Fanuc IC200CPU002 CPU Module is a high-performance central processing unit for the VersaMax Compact I/O system. It provides enhanced control and processing capabilities for industrial automation applications, supporting more complex programs and faster execution compared to the IC200CPU001.
Key Features
-
High-performance CPU for VersaMax Compact I/O systems
-
Increased program memory for complex applications
-
Supports control of multiple distributed I/O modules
-
Compatible with VersaMax serial communication protocol
-
Flexible programming via GE Fanuc software tools
-
Compact, DIN rail or chassis-mountable design
-
Reliable operation in harsh industrial environments
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC200CPU002 |
| Type | CPU Module |
| Supported System | GE Fanuc VersaMax Compact I/O |
| Program Memory | 32 KB standard (expandable via IC200MEM series) |
| Data Memory | 8 KB |
| Communication Protocol | VersaMax serial communication |
| Scan Time | Typical 0.4 ms per 1 K of logic |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Power Requirements | +5 VDC, 1.2 A typical |
| Indicators | Run, Fault, I/O, Communication LEDs |
| Mounting | DIN rail or chassis mount |
| Dimensions | 66.8 x 128 x 69.1 mm |
| Weight | 0.449 kg |
Frequently Asked Questions (FAQ)
1. What is the main function of the IC200CPU002 module?
It serves as the central processing unit, controlling I/O modules and executing user programs with enhanced performance.
2. Which I/O systems is it compatible with?
It is compatible with GE Fanuc VersaMax Compact I/O systems.
3. How much program memory does it have?
It has 32 KB of standard program memory, expandable via IC200MEM modules.
4. What is the typical scan time?
Typical scan time is 0.4 ms per 1 K of logic.
5. What are the operating temperature limits?
The module operates reliably between 0 °C and +60 °C.
6. How is the module mounted?
It can be mounted on a DIN rail or directly on a chassis.
7. What indicators are available on the module?
It includes Run, Fault, I/O, and Communication LEDs.
8. What is the power requirement?
The module typically consumes +5 VDC at 1.2 A.
