Product Overview

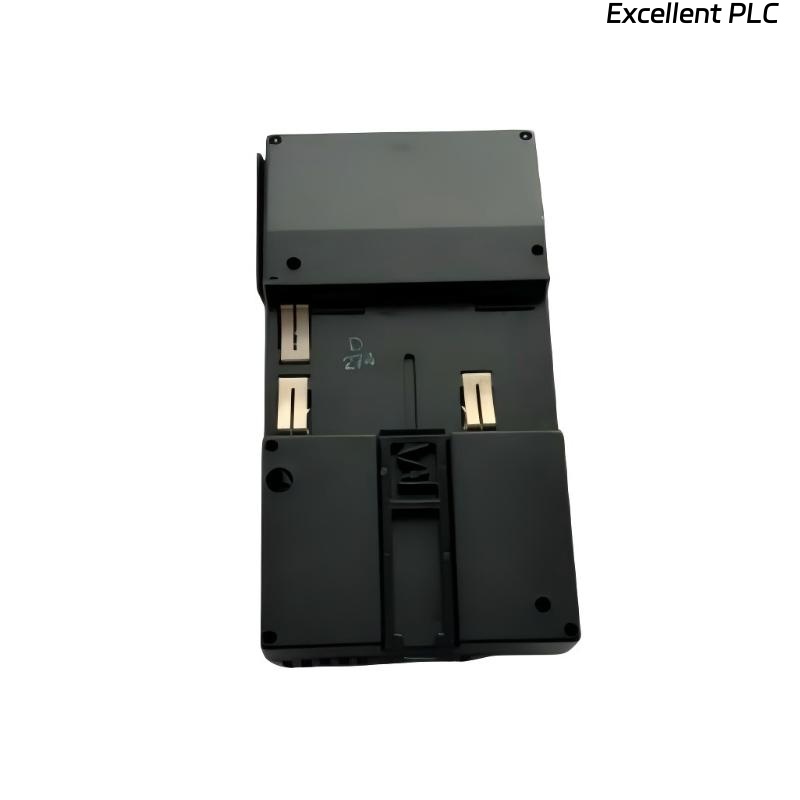

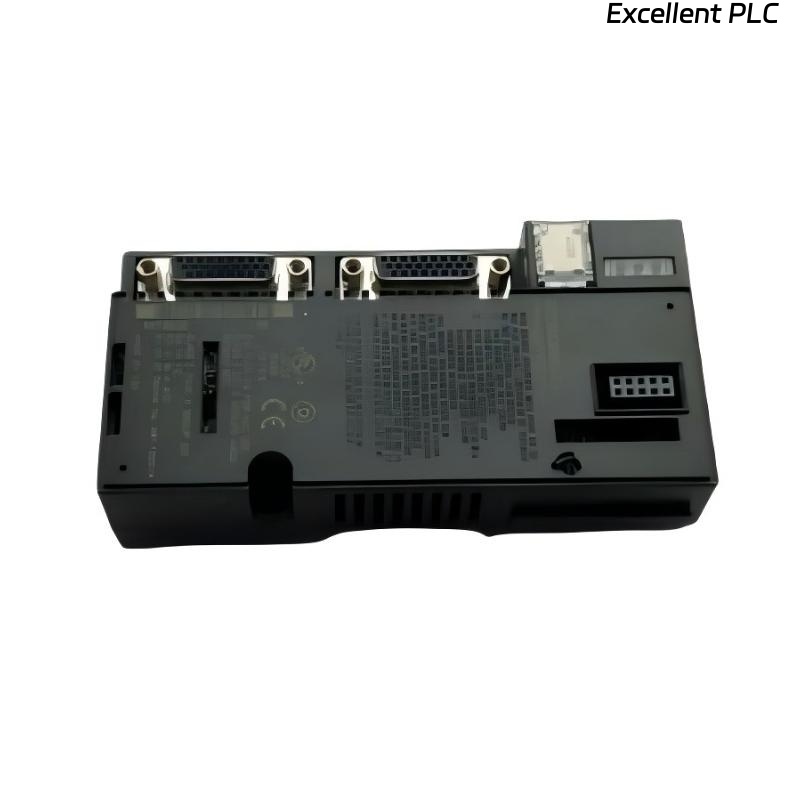

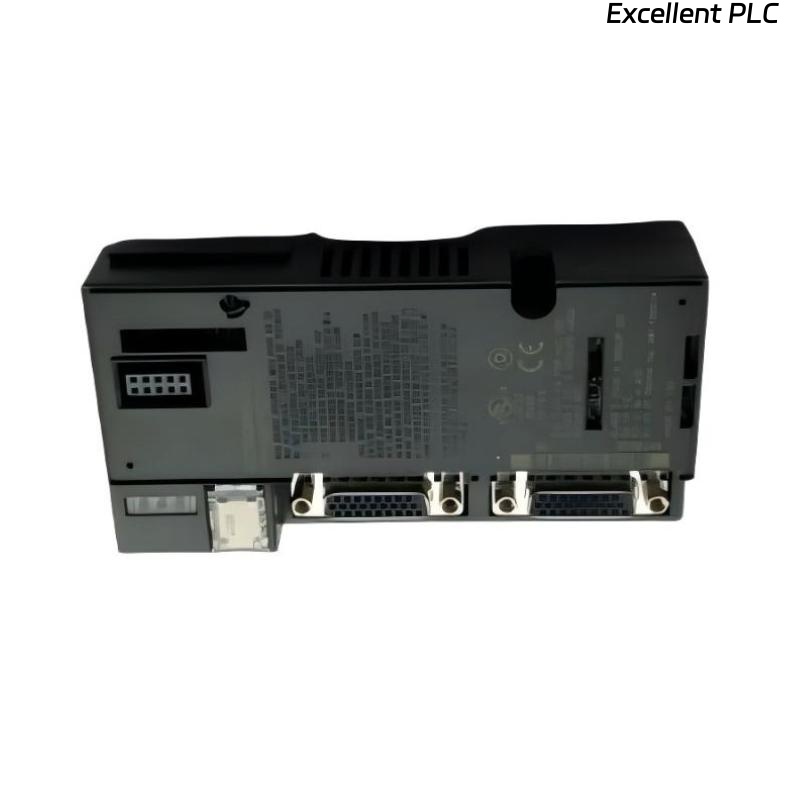

The GE Fanuc IC200ERM001 Expansion Receiver Module is designed to expand the connectivity of VersaMax Compact I/O systems. It enables the communication and integration of additional I/O modules across multiple cassettes, allowing for scalable and flexible system expansion.This module ensures reliable data transfer, synchronization, and secure connections between the main CPU and additional I/O modules, maintaining high system performance and stability in industrial automation applications.
Key Features
-
Expansion receiver for GE Fanuc VersaMax Compact I/O systems
-
Ensures reliable communication between CPU and expanded I/O modules
-
Compact design for easy installation in limited panel space
-
Simplifies system expansion without reconfiguring the main bus
-
Durable construction suitable for industrial environments
-
Compatible with standard VersaMax serial communication protocols
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC200ERM001 |
| Type | Expansion Receiver Module |
| Supported System | GE Fanuc VersaMax Compact I/O |
| Number of Slots Supported | Up to 8 additional I/O modules |
| Communication Protocol | VersaMax serial communication |
| Power Requirements | 5 VDC from main backplane |
| Indicators | Communication OK, Fault LEDs |
| Mounting | DIN rail or chassis mount |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions | 66.8 x 128 x 69.1 mm |
| Weight | 0.222 kg |
Frequently Asked Questions (FAQ)
1. What is the main function of the IC200ERM001 module?
It expands the I/O capacity of a VersaMax Compact system by allowing additional cassettes to connect to the main CPU.
2. How many I/O modules can it support?
It supports up to 8 additional I/O modules per expansion cassette.
3. Which systems is it compatible with?
It is compatible with GE Fanuc VersaMax Compact I/O systems.
4. How is the module mounted?
It can be mounted on a DIN rail or chassis.
5. What indicators does it have?
It has Communication OK and Fault LEDs to monitor status.
6. What is the operating temperature range?
The module operates reliably between 0 °C and +60 °C.
7. What communication protocol does it use?
It uses the VersaMax serial communication protocol.
8. What are the dimensions of the module?
The module measures 66.8 x 128 x 69.1 mm.
