Product Overview

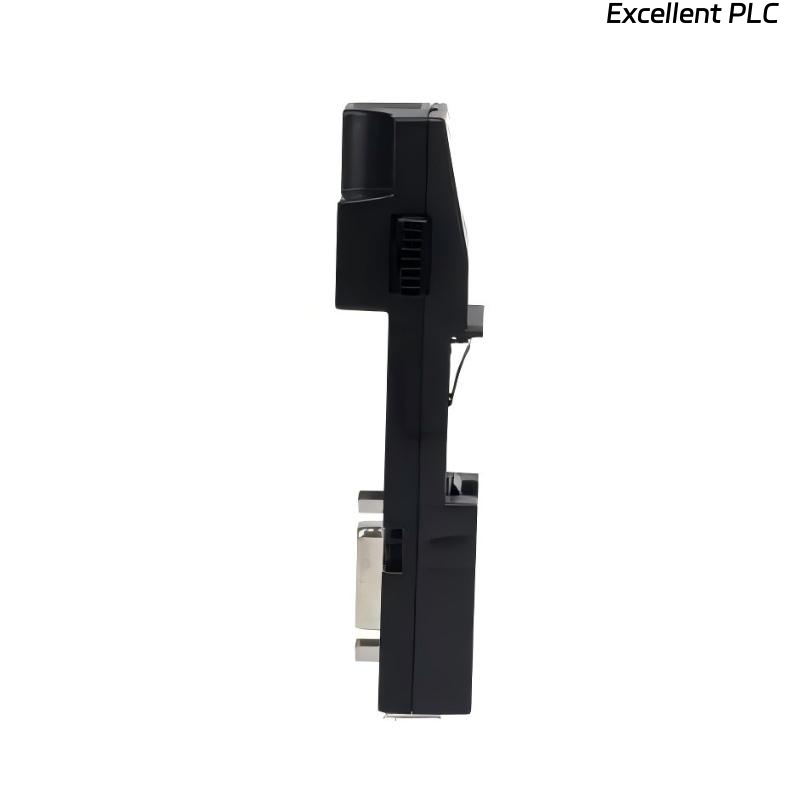

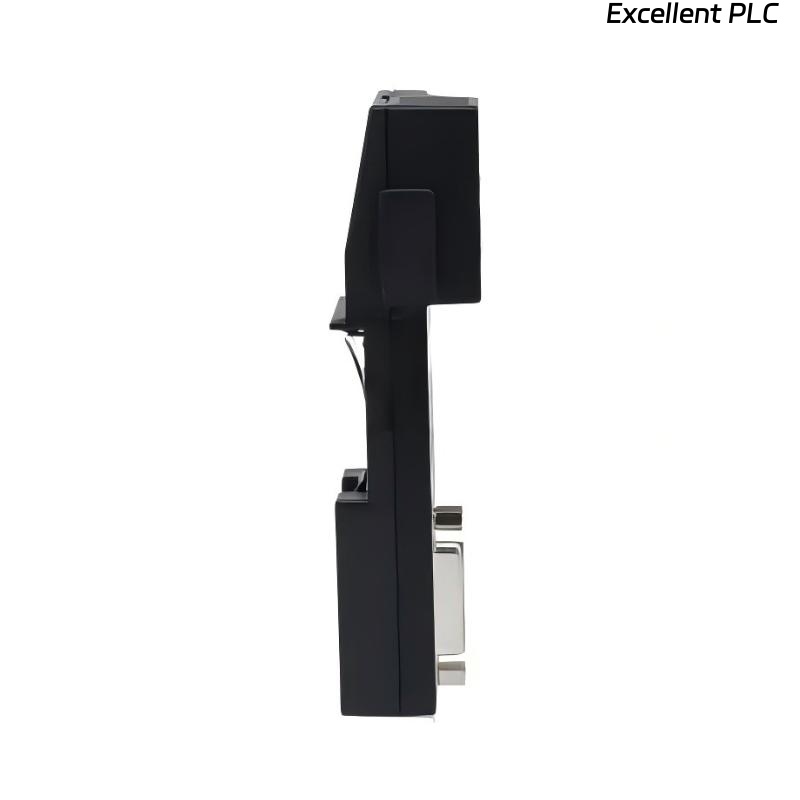

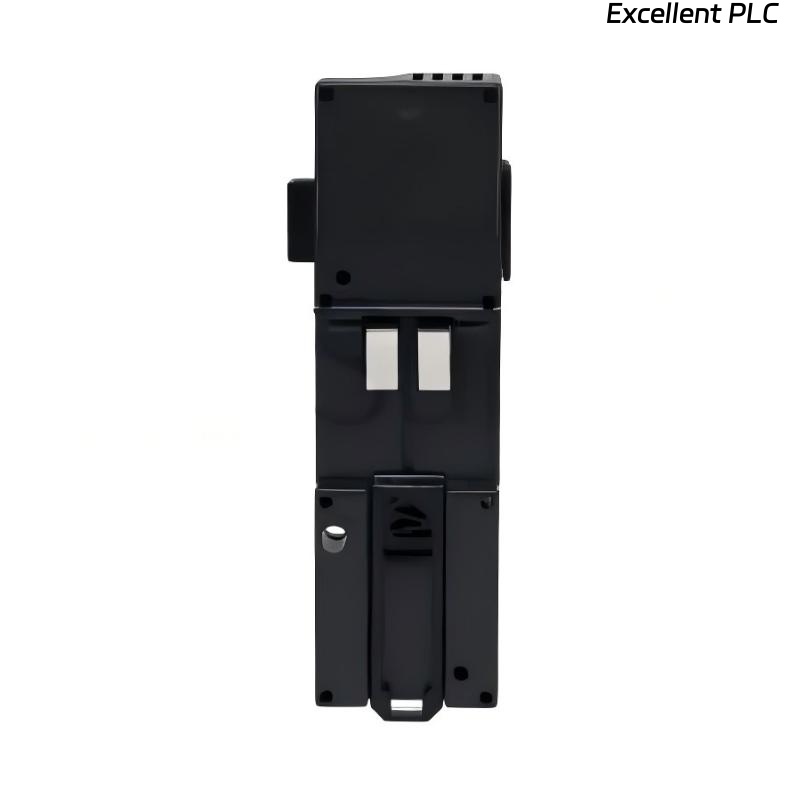

The GE Fanuc IC200ETM001 Expansion Connector Module is designed for the VersaMax Compact I/O system to enable seamless connection and integration of additional I/O modules and expansion cassettes. It provides a reliable electrical and mechanical interface, ensuring stable communication between the main CPU and extended modules.
Key Features
-
Expansion connector for GE Fanuc VersaMax Compact I/O systems
-
Provides secure electrical and mechanical connection for additional I/O modules
-
Supports reliable communication between CPU and expanded modules
-
Compact design suitable for limited panel space
-
Simplifies system expansion without reconfiguring the main bus
-
Durable construction for industrial applications
-
Compatible with standard VersaMax serial communication protocols
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC200ETM001 |
| Type | Expansion Connector Module |
| Supported System | GE Fanuc VersaMax Compact I/O |
| Number of Slots Supported | Up to 8 additional I/O modules |
| Communication Protocol | VersaMax serial communication |
| Power Requirements | 5 VDC from main backplane |
| Indicators | Communication OK, Fault LEDs |
| Mounting | DIN rail or chassis mount |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions | 125 x 35 x 120 mm |
| Weight | 0.14 kg |
Frequently Asked Questions (FAQ)
1. What is the main function of the IC200ETM001 module?
It provides a reliable connector interface for expansion cassettes, enabling system expansion and communication with additional I/O modules.
2. How many I/O modules can it support?
It supports up to 8 additional I/O modules per expansion cassette.
3. Which systems is it compatible with?
It is compatible with GE Fanuc VersaMax Compact I/O systems.
4. How is the module mounted?
It can be mounted on a DIN rail or chassis.
5. What indicators does it have?
It has Communication OK and Fault LEDs for monitoring status.
6. What is the operating temperature range?
The module operates reliably between 0 °C and +60 °C.
7. What communication protocol does it use?
It uses the VersaMax serial communication protocol.
8. What are the dimensions of the module?
The module measures 125 mm × 35 mm × 120 mm.
