Product Overview

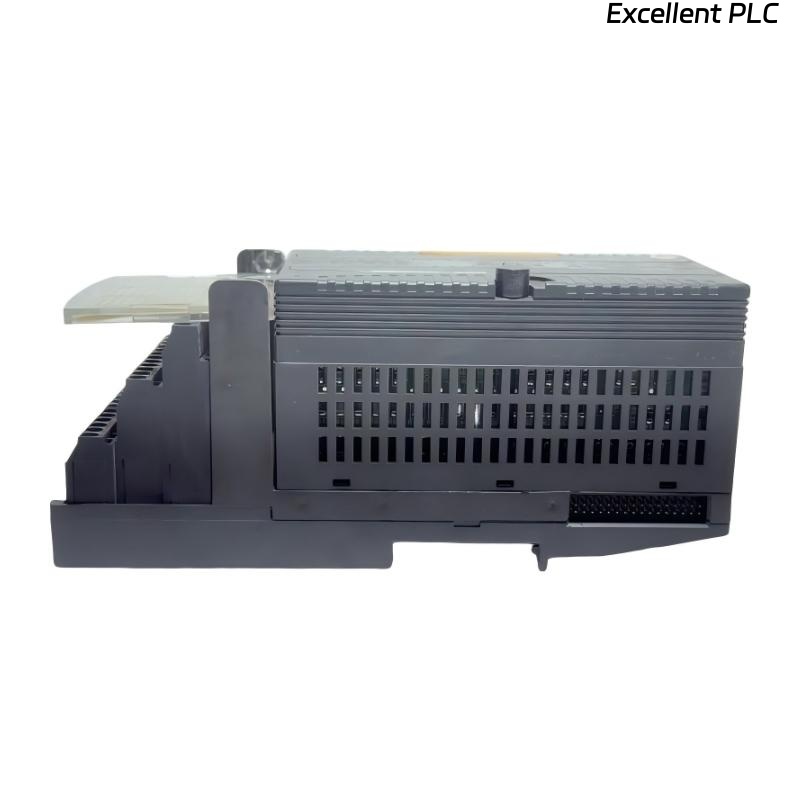

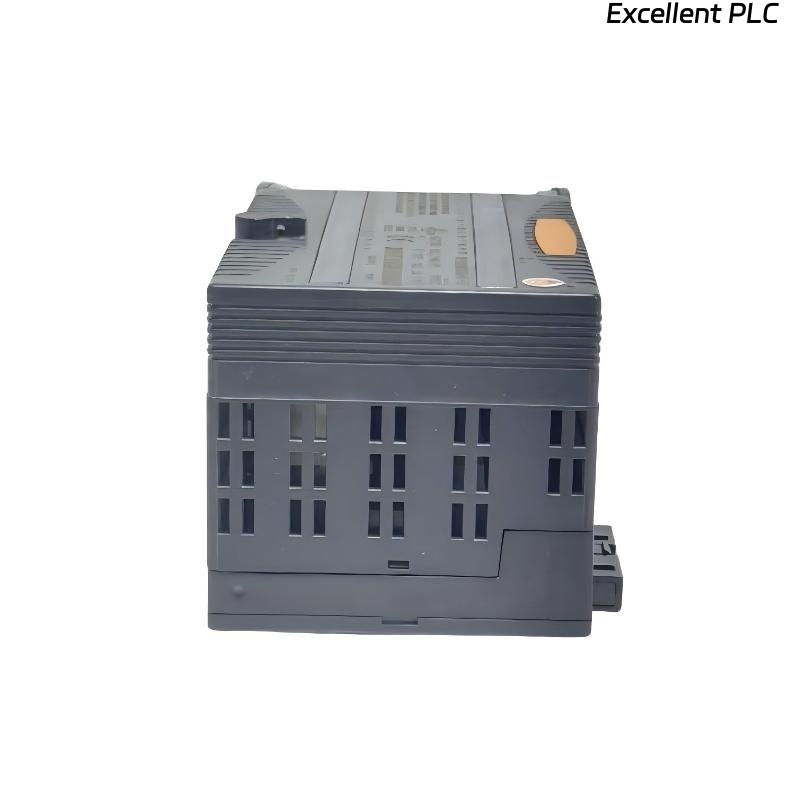

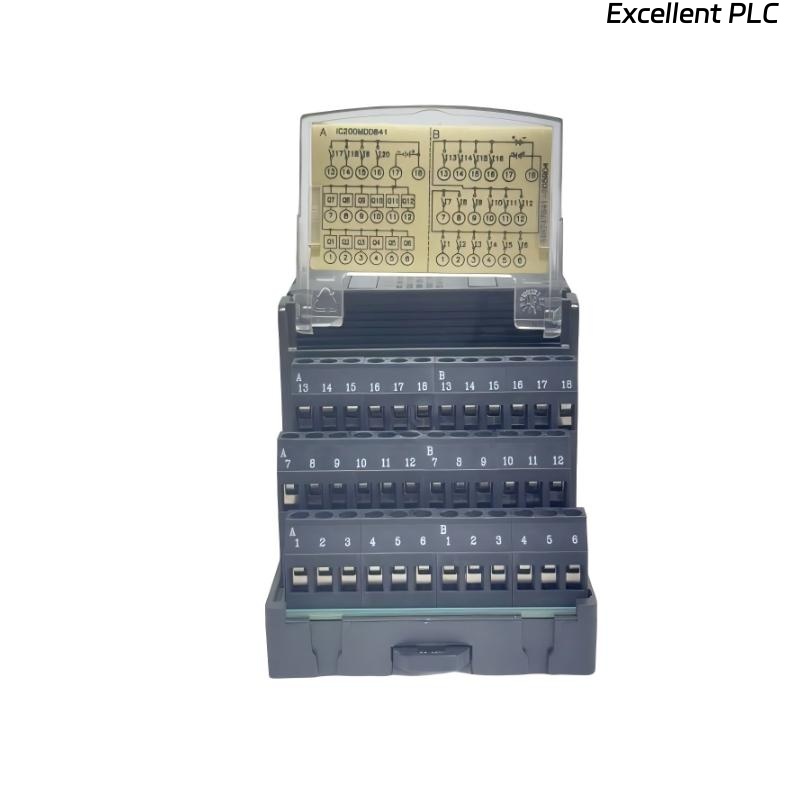

The GE Fanuc IC200MDD841 VersaMax Discrete Mixed I/O Module is a compact and efficient module designed for use within the VersaMax PLC system. It combines both input and output channels into a single module, offering flexibility and space-saving benefits for control system configurations.
Key Features
-
Combines discrete input and output channels in one module
-
Compatible with GE Fanuc VersaMax PLC systems
-
Compact design reduces panel space requirements
-
LED indicators for easy status and fault diagnostics
-
Reliable operation in harsh industrial environments
-
Simplifies system wiring and installation
-
Supports quick module replacement for minimal downtime
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC200MDD841 |
| Type | Discrete Mixed I/O Module |
| Supported System | GE Fanuc VersaMax PLC |
| Input Channels | 16 DC inputs (24 VDC, sink/source) |
| Output Channels | 16 DC outputs (24 VDC, 0.5 A per point) |
| Isolation | 1500 V between field and logic circuits |
| Input Current | 7 mA typical per point at 24 VDC |
| Output Type | Sourcing or sinking (configurable) |
| Power Requirements | 5 VDC from backplane, 80 mA typical |
| Indicators | Individual input/output status LEDs |
| Mounting | DIN rail or panel mounting |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions | 133.4 x 85.9 x 69.1 mm |
| Weight | 0.159 kg |
Frequently Asked Questions (FAQ)
1. What is the primary function of the IC200MDD841 module?
It provides both discrete input and output capabilities in a single module for VersaMax PLC systems.
2. How many inputs and outputs does the module have?
The module includes 16 discrete inputs and 16 discrete outputs.
3. What voltage does this module operate on?
It operates on 24 VDC for both inputs and outputs.
4. Can the outputs handle inductive loads?
Yes, outputs are suitable for resistive and inductive loads within rated limits.
5. How are input and output statuses displayed?
LED indicators on the front panel display real-time input and output status.
6. What is the isolation rating of this module?
It provides 1500 V isolation between logic and field circuits.
7. What communication system is it used with?
It is designed for use with GE Fanuc VersaMax PLC backplane communication.
8. How is it mounted?
It can be DIN rail or panel-mounted for flexible installation options.
