Product Overview

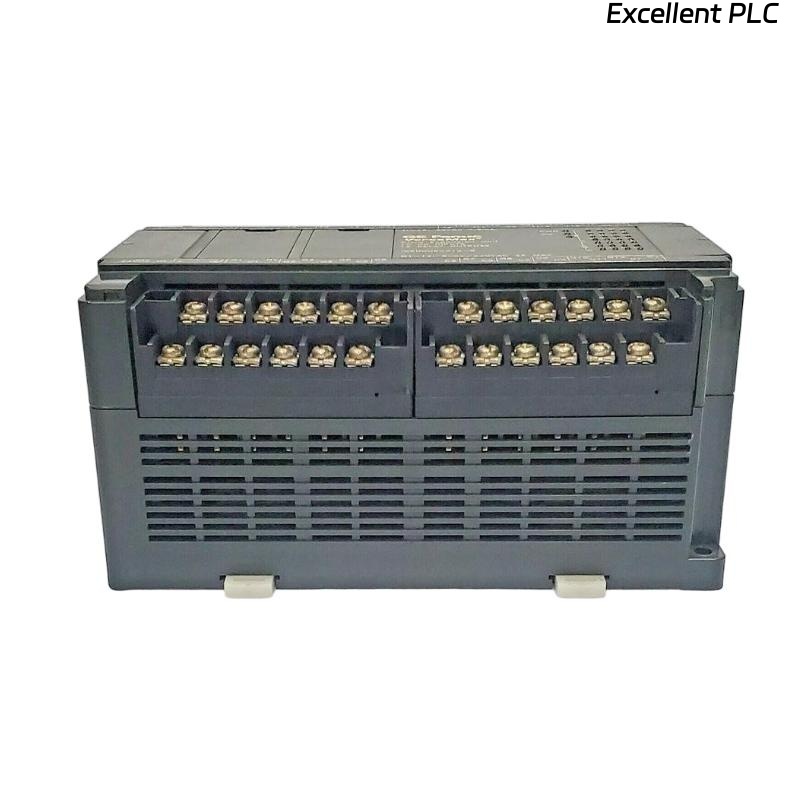

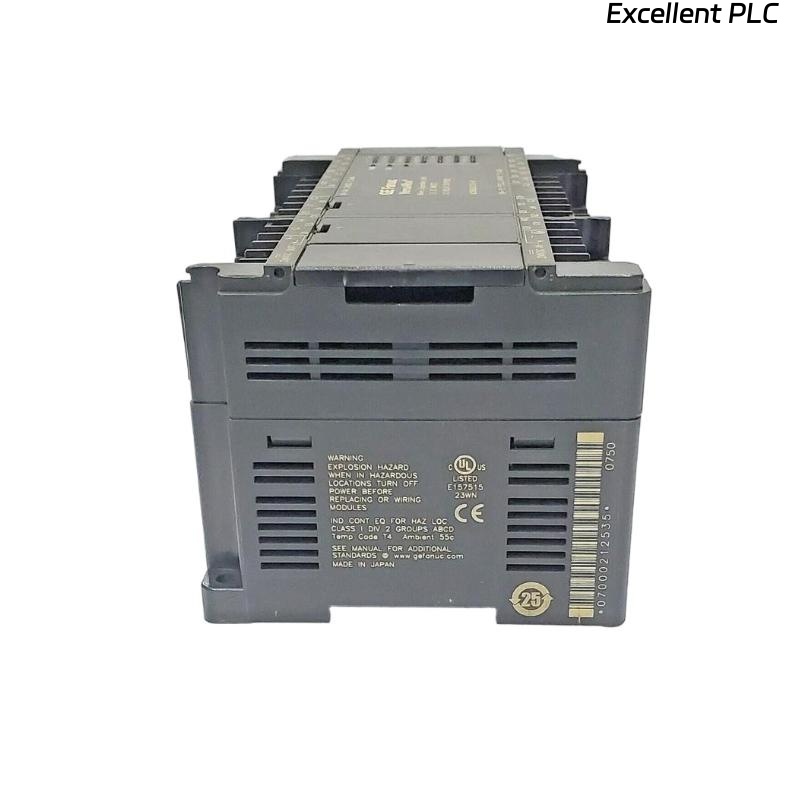

The GE Fanuc IC200UEX212 is a VersaMax Micro series expansion module designed to enhance the I/O capabilities of small to medium-scale industrial automation systems. This module provides a total of 28 I/O points, comprising 16 digital 24VDC inputs and 12 relay outputs, facilitating efficient control and monitoring of automation systems.
Key Features
-
I/O Configuration: 16 digital 24VDC inputs and 12 relay outputs, offering a total of 28 I/O points
-
Power Supply: Operates on a 24VDC supply for easy integration
-
Compact Design: DIN rail mounting for simple installation in control panels
-
Hot-Swappable: Supports insertion and removal without shutting down the system
-
Compatibility: Fully compatible with VersaMax Micro CPUs and expansion modules
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC200UEX212 |
| Series | VersaMax Micro |
| Inputs | 16 × 24VDC Digital |
| Outputs | 12 × Relay |
| Power Supply | 24VDC |
| Mounting | DIN Rail |
| Dimensions | 120 x 90 x 60 mm |
| Weight | 0.55 kg |
| Hot-Swappable | Yes |
| Operating Temperature | 0°C to +60°C |
| Humidity | 5% to 95% non-condensing |
Frequently Asked Questions (FAQ)
1. What is the primary function of the IC200UEX212?
It expands the I/O capacity of VersaMax Micro PLC systems by providing 16 digital inputs and 12 relay outputs.
2. What type of power supply does it require?
The module operates on a 24VDC power supply.
3. Can it be replaced without shutting down the system?
Yes, it supports hot-swapping for maintenance without system downtime.
4. How is the IC200UEX212 mounted?
It is mounted on a DIN rail for easy installation in control panels.
5. Does it retain data during power outages?
Yes, the RAM backup ensures user data is retained during power loss.
6. Is the IC200UEX212 compatible with other VersaMax modules?
Yes, it is fully compatible with VersaMax Micro CPUs and expansion modules.
7. What is the operating temperature range?
The module operates between 0°C and +60°C.
8. How many I/O points does the module provide in total?
It provides a total of 28 I/O points: 16 inputs and 12 outputs.
