Product Overview

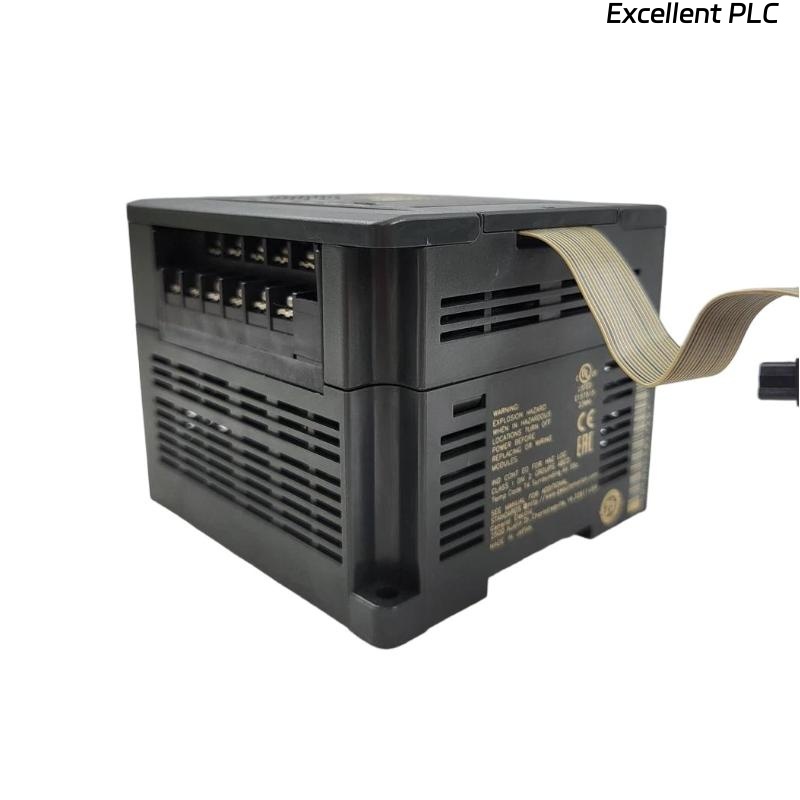

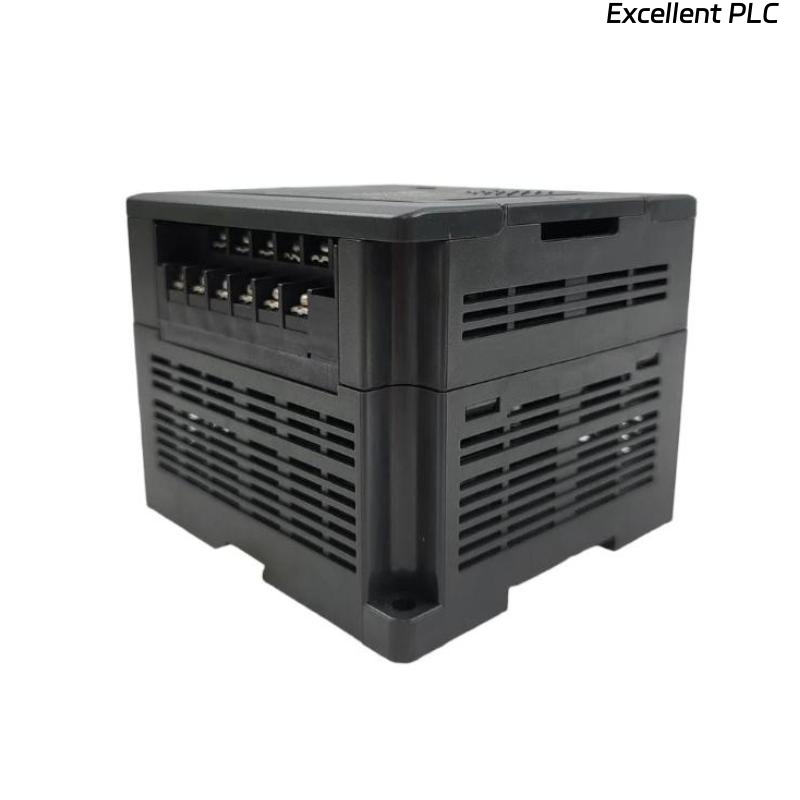

The GE Fanuc IC200UEX626 is an analog expansion module in the VersaMax Micro series designed to enhance the analog I/O capabilities of compact PLC systems. It provides precise monitoring and control for industrial automation applications by offering 4 analog inputs and 2 analog outputs. This module allows small to medium-scale automation systems to scale up analog data handling without replacing the CPU.
Key Features
-
4 analog inputs and 2 analog outputs, totaling 6 I/O points
-
Supports voltage (0–10V) and current (4–20mA) signals
-
Operates on 24VDC power supply
-
DIN rail mounting for easy integration into control panels
-
Hot-swappable for maintenance without shutting down the system
-
Fully compatible with VersaMax Micro CPUs and expansion modules
-
Compact and rugged design for industrial environments
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC200UEX626 |
| Series | VersaMax Micro |
| Analog Inputs | 4 × 0–10V or 4–20mA |
| Analog Outputs | 2 × 0–10V or 4–20mA |
| Power Supply | 24VDC |
| Mounting | DIN Rail |
| Dimensions | 75 x 80 x 47 mm |
| Weight | 0.5 kg |
| Hot-Swappable | Yes |
| Operating Temperature | 0°C to +60°C |
| Humidity | 5% to 95% non-condensing |
Frequently Asked Questions (FAQ)
1. What is the primary function of the IC200UEX626?
It is an analog expansion module that provides 4 analog inputs and 2 analog outputs to increase the analog I/O capacity of VersaMax Micro PLC systems.
2. What types of signals does the module support?
It supports both voltage (0–10V) and current (4–20mA) signals.
3. What is the required power supply for this module?
The IC200UEX626 operates on a 24VDC power supply.
4. Can it be replaced without shutting down the system?
Yes, it supports hot-swapping, allowing maintenance without system downtime.
5. How is the module mounted?
It is designed for DIN rail mounting, simplifying installation in control panels.
6. Is the IC200UEX626 compatible with other VersaMax modules?
Yes, it is fully compatible with VersaMax Micro CPUs and expansion modules.
7. What is the operating temperature and humidity range?
The module operates between 0°C and +60°C and can tolerate 5% to 95% non-condensing humidity.
8. How many I/O points does the module provide in total?
It provides a total of 6 analog I/O points, including 4 inputs and 2 outputs.
