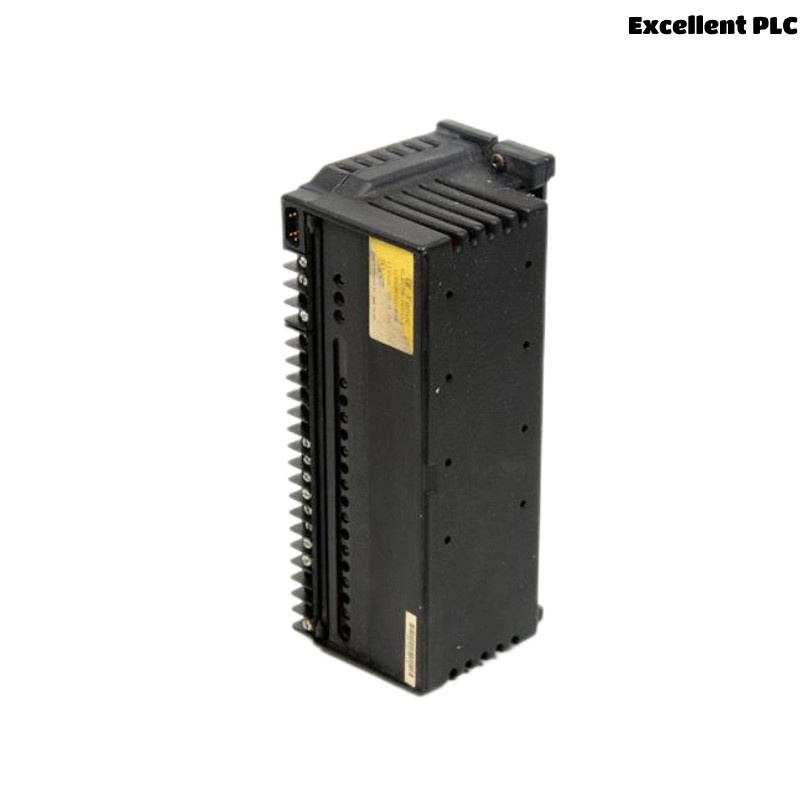

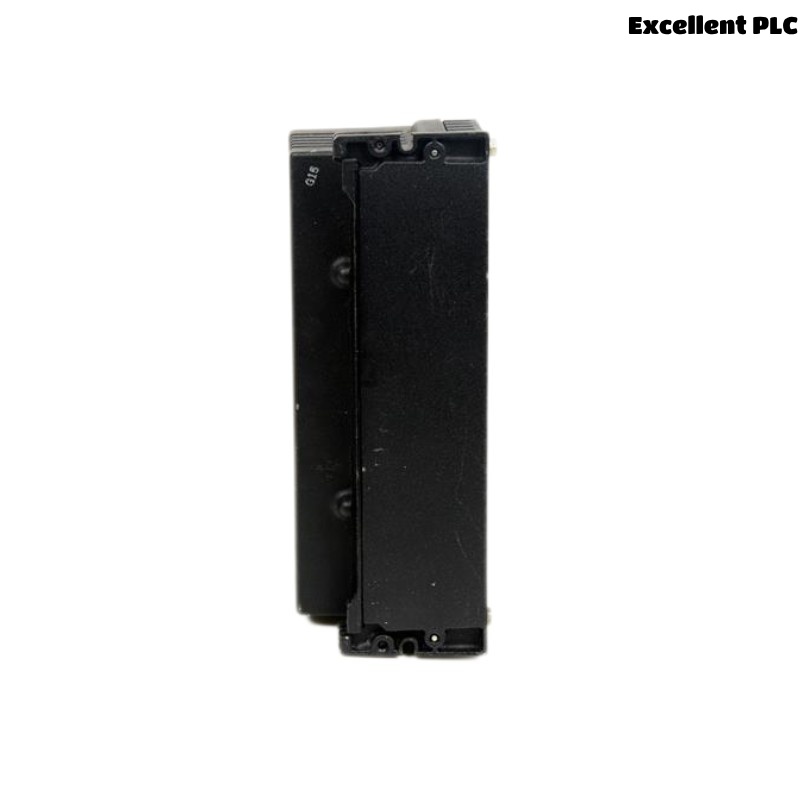

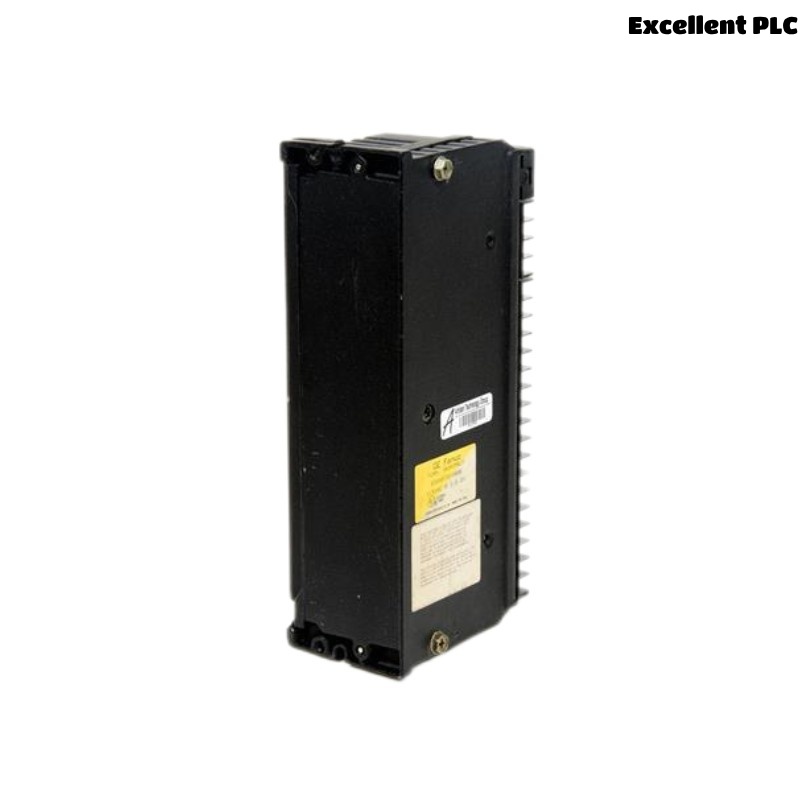

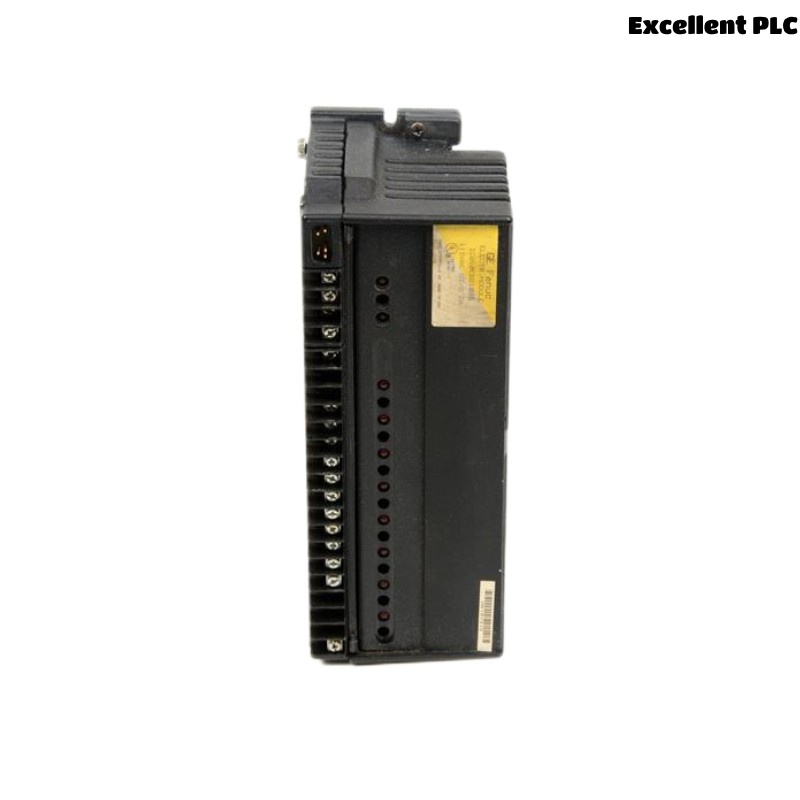

GE Fanuc IC660EBD100 I/O Block Electronics

Product Overview

The GE Fanuc IC660EBD100 is a discrete input/output Electronics Assembly designed to operate as part of the Genius I/O Block family within distributed industrial control systems. This module serves as the intelligent electronics portion of a modular I/O block and is engineered to support discrete input operations when paired with a compatible terminal base unit.

The IC660EBD100 enables high-speed, real-time communication over the Genius bus and provides enhanced diagnostics and configuration capabilities. It is designed to work in harsh industrial environments where reliability, noise immunity, and modularity are critical.

Key Features

• Designed for use with discrete I/O terminal bases

• Compatible with Genius I/O networks for fast and reliable data communication

• Provides 16 discrete inputs with configurable logic

• Optical isolation between field and logic circuits

• Built-in diagnostic and status indicators for simplified maintenance

• Retains user configuration with non-volatile memory

• Hot-swap capable electronics without disturbing wiring

• Supports various industrial voltage levels and input types

• Fully compatible with legacy GE Fanuc Genius systems

Technical Specifications

Industry Applications

• Factory Automation: For managing sensors and switches in automated lines

• Packaging Systems: Monitors limit switches, photoeyes, and control buttons

• Power Generation: For system protection, monitoring, and feedback systems

• Oil & Gas Facilities: Used for critical process monitoring and feedback control

• Water Treatment Plants: Supports input from pumps, valves, and safety sensors

• Industrial Machinery OEMs: Embedded within custom control solutions

Product Advantages

• Dedicated Discrete Input Design: Simplifies control logic and wiring

• Network-Enabled: Integrates with Genius bus for decentralized control

• Flexible Configuration: Input logic configurable for varied application needs

• Rugged Performance: Built for long-term industrial use with high durability

• Reduced Downtime: Onboard diagnostics help prevent and identify issues quickly

• Modular Assembly: Electronics can be replaced without touching field wiring

• Legacy Compatibility: Suitable for upgrades and expansions of existing GE Genius installations

• Ease of Maintenance: LED indicators and handheld monitor interface speed up diagnostics

Frequently Asked Questions (FAQ)

1. What kind of inputs does the IC660EBD100 support?
   It supports 16 discrete digital inputs, either sourcing or sinking based on the terminal base used.

2. Does it provide input isolation?
   Yes, optical isolation is provided between logic and field-side circuits.

3. How is configuration stored in this module?
   It uses non-volatile memory to retain configuration through power cycles.

4. Can I replace the electronics unit without disconnecting field wiring?
   Yes, the modular design allows hot-swapping of the electronics unit independently.

5. Is this product compatible with legacy Genius I/O systems?
   Yes, it is fully compatible with GE Fanuc Genius legacy systems.

6. How do I configure the IC660EBD100?
   You can use a GE Handheld Monitor or compatible software tools.

7. Does this module provide input diagnostics?
   Yes, it provides LED diagnostics for input status and faults.

8. Can it be used in hazardous locations?
   Yes, when installed in accordance with specifications, it meets Class I Div 2 compliance.

9. What voltage is required for input detection?
   It supports 10–30 VDC inputs, typically 24 VDC.

10. What terminal base does this module require?
    It must be installed into a compatible Genius discrete input terminal base unit.
