Product Overview

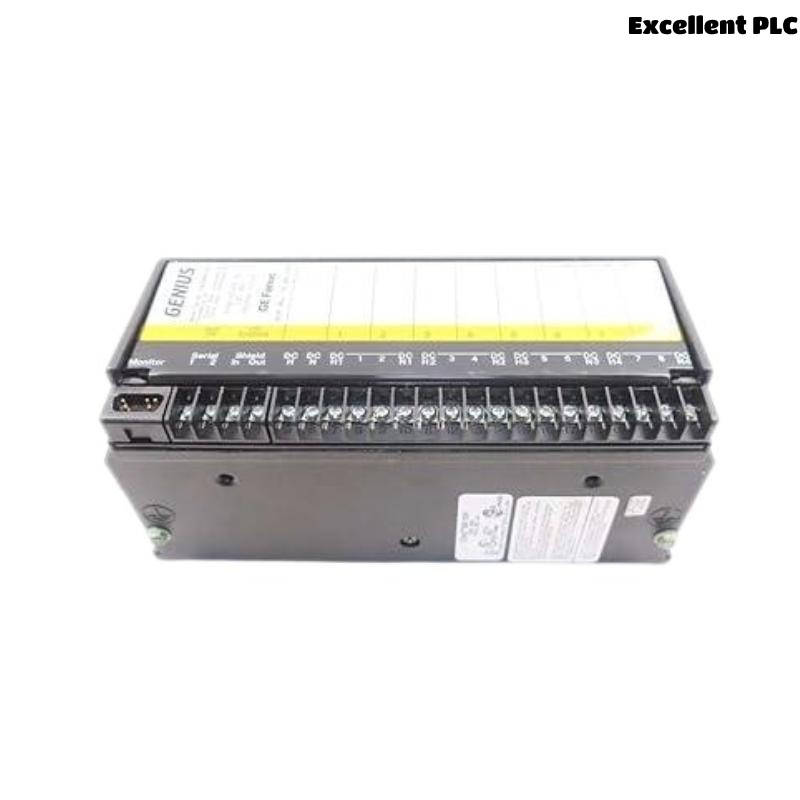

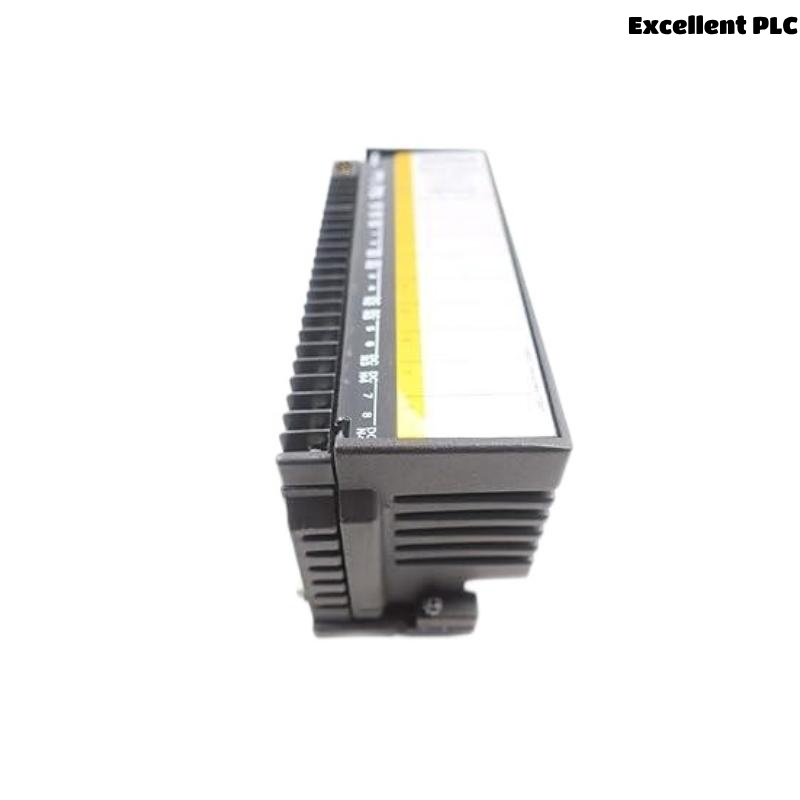

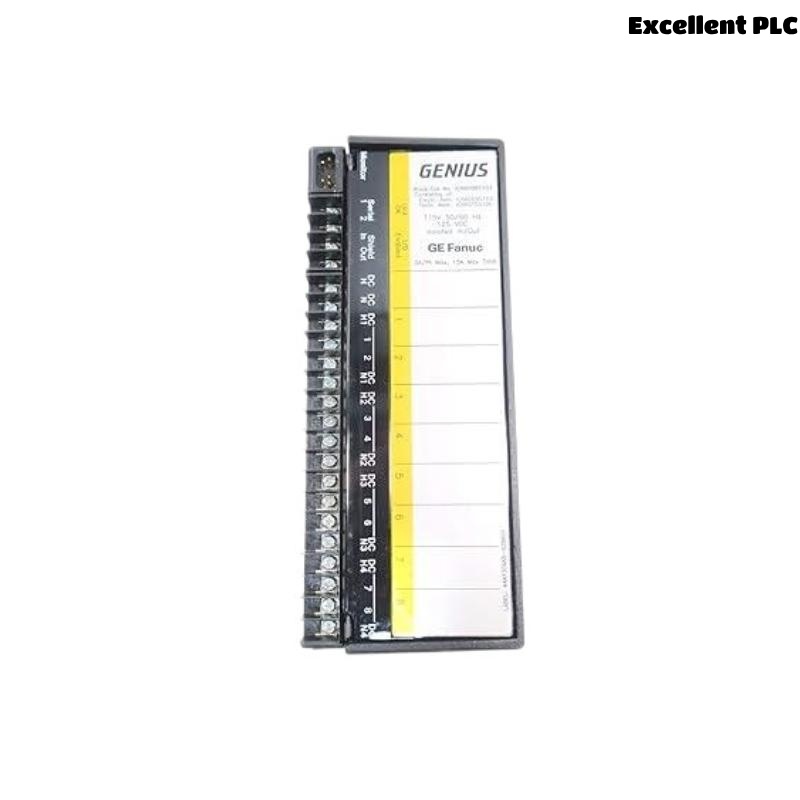

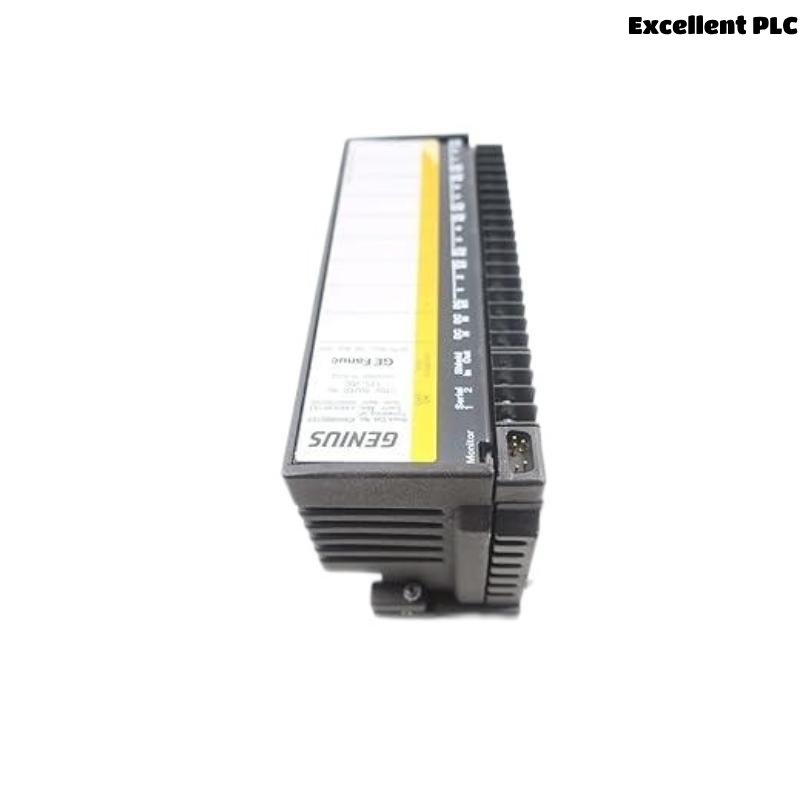

The GE Fanuc IC660EBS103 is an advanced I/O Block Electronics Assembly designed for use with Genius I/O discrete output blocks. As part of the GE Genius I/O product family, this module provides a robust and modular solution for industrial automation environments, enabling high-performance control of output devices such as solenoids, relays, and actuators.
Built to interface with Genius Bus networks, the IC660EBS103 offers precise and configurable control of 16 discrete outputs with comprehensive diagnostics, hot-swap functionality, and broad compatibility with various terminal base units. It is widely used in systems that require decentralized, distributed control with reliable field device interaction.
Key Features
-
Supports 16 discrete outputs with selectable configuration
-
Designed for Genius I/O networks with high-speed communication
-
Features hot-insertion/removal (hot swap) of electronics unit
-
Includes optical isolation between field wiring and logic circuits
-
Configurable output default states and on/off delay settings
-
Advanced diagnostics for short circuit, over-temperature, and loss of power
-
LED indicators for individual output status and fault conditions
-
Non-volatile memory retains settings during power loss
-
Ideal for environments demanding fast and reliable digital output control
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC660EBS103 |
| Type | Discrete Output I/O Electronics Module |
| Output Channels | 16 points |
| Output Voltage Range | 10–30 VDC |
| Maximum Output Current | 0.5 A per output (up to 8 A max per block) |
| Output Type | Sourcing (positive logic) |
| Network Interface | Genius Bus |
| Status Indicators | Individual output status, power, and fault LEDs |
| Diagnostics | Short circuit, over-temperature, open load, voltage loss |
| Configuration Options | Output default state, on/off delay time, fault behavior |
| Isolation | Optical isolation (field-to-logic) |
| Memory | Non-volatile memory |
| Hot-Swap Support | Yes |
| Power Supply | Provided through terminal base |
| Dimensions | 224.4 x 88.9 x 100 mm |
| Weight | 1.8 kg |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Environmental Rating | Class I Division 2 Groups A, B, C, D (Hazardous locations compliant) |
| Compliance | CE, UL, CSA |
Industry Applications
-
Automotive Manufacturing – Used for controlling automated robotic systems and actuators
-
Food & Beverage – Handles conveyor and packaging equipment operations
-
Oil & Gas – Manages field equipment like solenoid valves and pump relays
-
Pharmaceuticals – Ensures regulated output control in sterile production lines
-
Material Handling – Interfaces with sorting systems and palletizing robots
-
Power Utilities – Integrates with auxiliary control in substations and control centers
Product Advantages
-
Precise Output Control – Configurable default states and delays support flexible applications
-
High Reliability – Built for robust industrial operation in demanding environments
-
Hot Swap Electronics – Reduce downtime and improve system maintainability
-
Diagnostics-Driven – Quickly isolate faults with LED and software-based alerts
-
Flexible Integration – Seamlessly connects with GE Fanuc PLC and Genius I/O systems
-
Backward Compatibility – Supports legacy system upgrades with no rewiring
-
Space-Saving Design – Compact form factor suitable for distributed control panels
-
Rugged Construction – Shock and vibration-resistant housing for harsh field deployment
Frequently Asked Questions (FAQ)
-
What does the IC660EBS103 control?
It controls 16 discrete outputs, typically used to operate solenoids, relays, lamps, and actuators. -
Can it be hot-swapped?
Yes, the electronics can be replaced without removing the field wiring. -
How are the outputs configured?
Output behavior (default state, on/off delay) can be set via handheld monitor or software. -
Is this module optically isolated?
Yes, there is full optical isolation between the logic and field circuits. -
What output voltage does it support?
It supports 10–30 VDC for output devices. -
How much current can it handle?
Each output supports 0.5 A; the entire block supports a maximum of 8 A. -
Is it compatible with legacy Genius I/O systems?
Yes, it’s designed for full compatibility with existing Genius network configurations. -
What types of diagnostics are provided?
It provides diagnostics for short circuits, open loads, over-temperature, and voltage issues. -
What environments is it rated for?
It is suitable for industrial environments including Class I Div 2 hazardous locations. -
What tools are needed to configure it?
A GE Handheld Monitor or GE configuration software is typically used for setup.
Related Models in the Same Series
| Model Number | Description |
|---|---|
| IC660EBS102 | Discrete Output I/O Block, 16 Points, Sink Type |
| IC660EBD100 | Discrete Input Block Electronics, 16 Inputs |
| IC660EBA105 | Analog I/O Block Electronics, 8 Inputs / 4 Outputs |
| IC660BBD110 | Source Output Block with Terminals |
| IC660BBA103 | Thermocouple Input Block |
| IC660BPM500 | Genius Hand-held Monitor for I/O Configuration |
