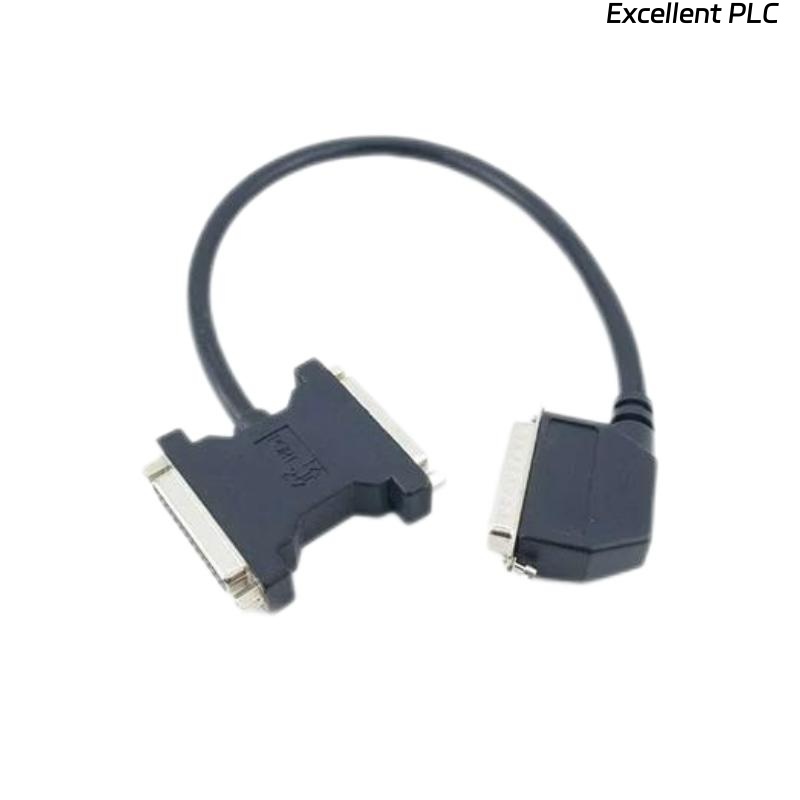

The GE Fanuc IC693CBK001 is a backplane extension cable kit for IC693 PLC systems. It allows extension of the rack backplane to add additional modules beyond the standard slot capacity. Proper use is essential for system stability and safety.

Proper Usage

• The kit is designed to extend the backplane without interrupting signal integrity.

• Only use genuine OEM cables; ensure connectors are fully seated and pins are aligned.

• Keep cables straight and untwisted; avoid sharp bends or tension that could stress the connectors.

• Power down the rack before installing the extension to prevent short circuits or damage.

Field insight: Properly installed IC693CBK001 kits allow smooth expansion of PLC racks without affecting module communication.

Potential Consequences of Improper Use

1. Signal Degradation

   • Twisted, bent, or spliced cables can create impedance mismatches, resulting in communication errors or module misreads.

2. Rack-Wide Faults

   • Misaligned connectors or partially seated cables may cause faults across multiple modules, leading to unexpected shutdowns.

3. Physical Damage

   • Excessive force during installation can damage backplane connectors, which is expensive and time-consuming to repair.

4. Safety and Compliance Risks

   • Improper installation in powered racks can cause electrical shorts or sparks, potentially endangering personnel and voiding warranty.

Field Recommendations

• Always power down the rack before adding or removing the extension.

• Inspect the cable and connectors for damage before installation.

• After installation, verify module communication using system diagnostics or LED indicators.

• Document the extension location and module addresses to avoid configuration mistakes.

Practical tip: In field experience, 90% of communication issues with extensions are due to poor seating or cable stress, not module failure.

References:

• GE Fanuc. IC693CBK001 Backplane Extension Cable Kit Manual, 2017

• GE Fanuc. IC693 PLC System Hardware Guide, 2018
