Product Overview

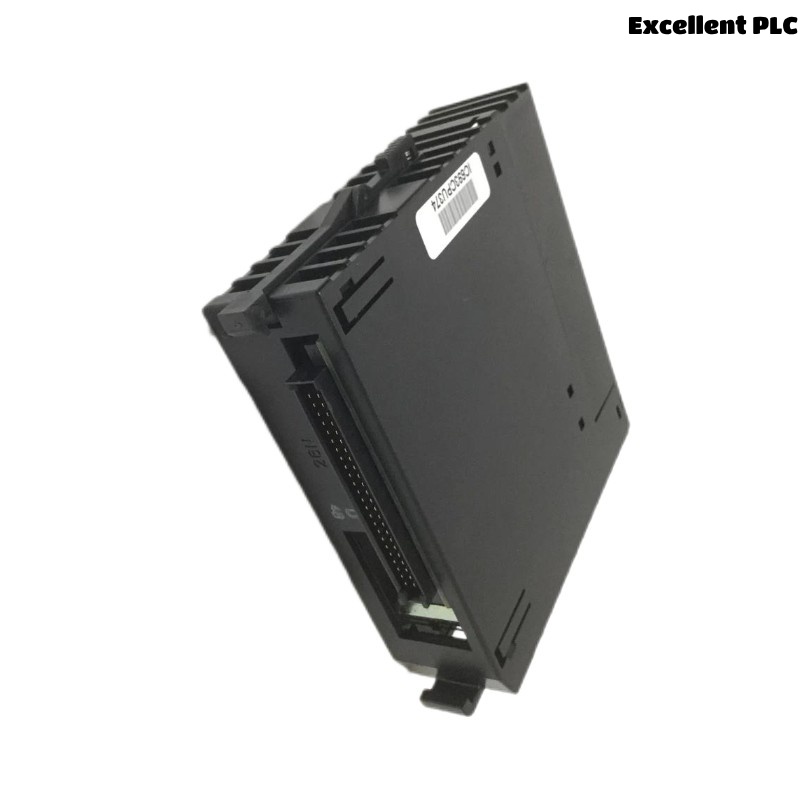

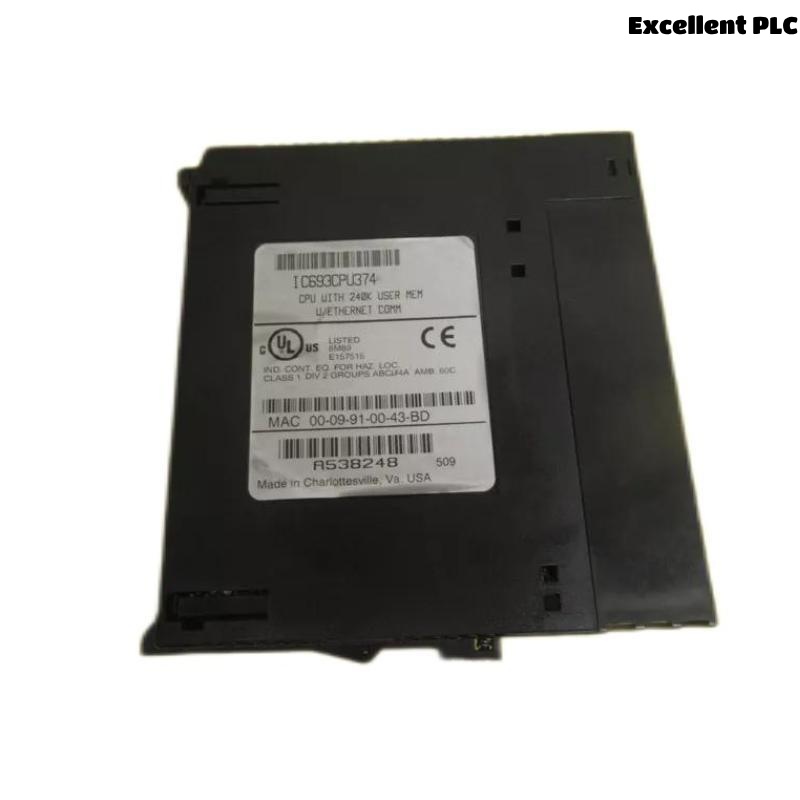

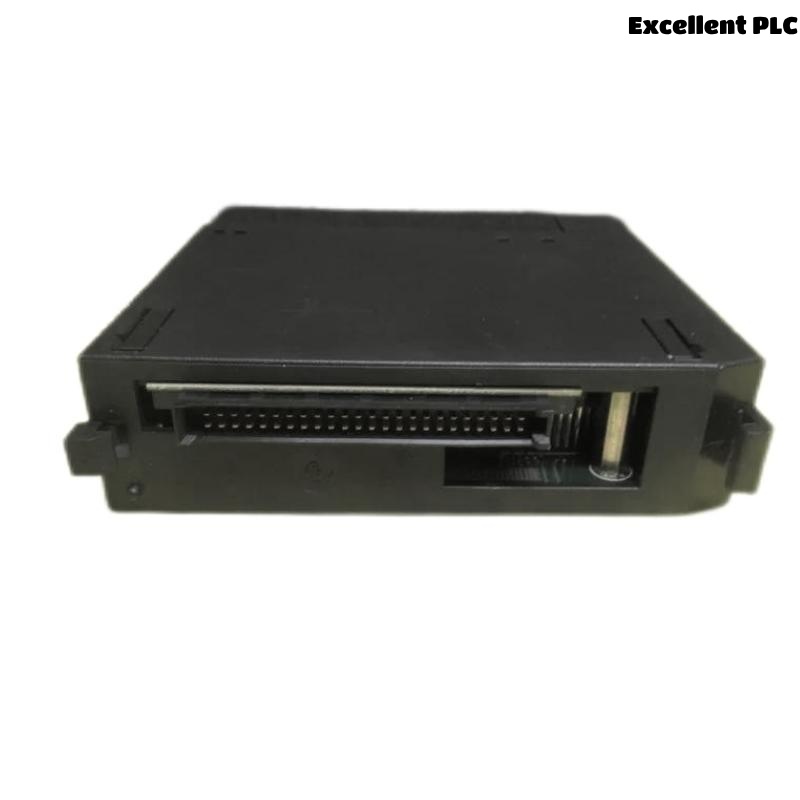

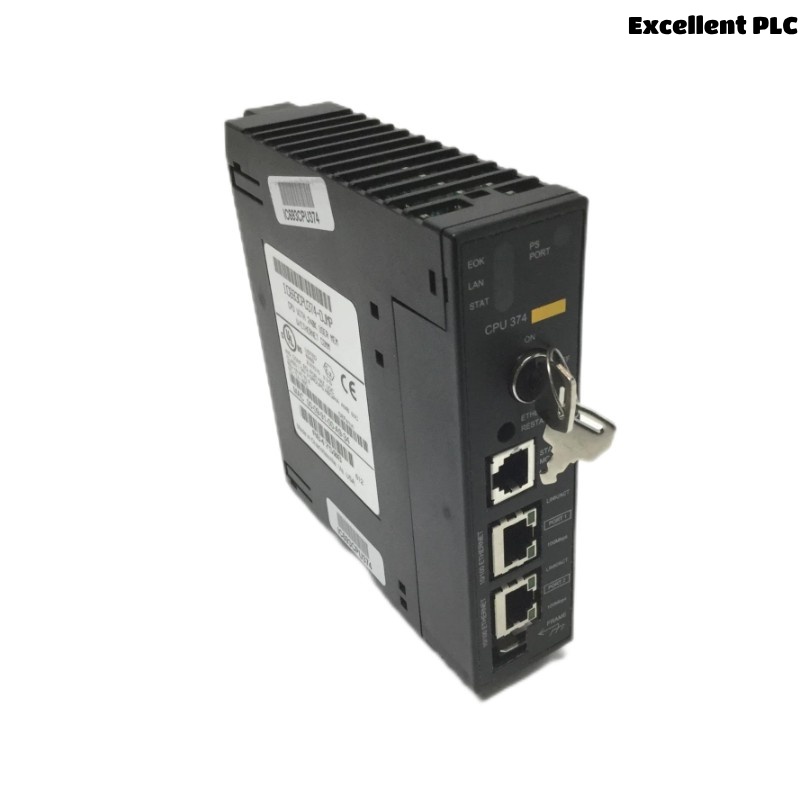

The GE Fanuc IC693CPU374 is a Single Slot CPU Module designed for use in Series 90-30 PLC systems. It is a high-performance processor offering advanced control and communication capabilities in a compact form factor. The IC693CPU374 integrates seamlessly with other modules in the GE Fanuc 90-30 Series, providing a flexible, reliable, and powerful solution for various industrial automation applications.
This CPU module features enhanced processing speed and memory capacity, making it an ideal choice for more demanding applications in industries like manufacturing, process control, and robotics. With a built-in Ethernet port, the IC693CPU374 supports network communication, allowing for easy integration with other devices in the industrial control system.
Key Features
-
Single Slot Design – Compact form factor fits in a single slot of the Series 90-30 PLC chassis.
-
Advanced Processing Power – Provides high-speed processing for applications requiring complex control tasks.
-
Built-in Ethernet Communication – Supports Ethernet-based communication for seamless integration with networked control systems.
-
Expandable Memory – Supports memory expansion to accommodate larger programs and more complex applications.
-
Programmable Logic Control (PLC) – Ideal for controlling and monitoring industrial processes and systems.
-
Battery Backup – Ensures data integrity during power outages by maintaining the CPU’s memory with an onboard battery.
-
Compact and Reliable – Designed to perform in challenging industrial environments with high reliability and durability.
-
Compatibility – Fully compatible with other Series 90-30 modules, making it easy to integrate into existing systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | IC693CPU374 |
| Series | 90-30 Series |
| Slot Type | Single Slot |
| Processor Speed | 100 MHz |
| Memory Capacity | 128KB (expandable to 2MB) |
| Communication Ports | Ethernet, RS-232, RS-485 |
| Battery Backup | Yes, with onboard battery for memory retention |
| Power Consumption | 6 W |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | –40°C to 85°C (–40°F to 185°F) |
| Weight | 0.41 kg |
| Dimensions | 130 x 33 x 119 mm |
| Compatibility | Series 90-30 PLC, Series 90-30 I/O Modules |
Industry Applications
The GE Fanuc IC693CPU374 Single Slot CPU Module is designed for a variety of industrial automation applications:
-
Manufacturing Automation – Control of production lines, machinery, and material handling systems.
-
Process Control – Monitoring and controlling processes in industries like chemical, food & beverage, and pharmaceuticals.
-
Robotics – Integration with robotic systems for precision control and monitoring.
-
Energy Management – Management of energy systems, including power distribution and monitoring in industrial plants.
-
Building Automation – Used in HVAC, lighting, and environmental control systems in buildings and facilities.
-
Machine Control – Ideal for controlling machinery in specialized equipment or automated workstations.
Product Advantages
-
High-Performance Processing – The 100 MHz processor offers fast response times for complex control tasks.
-
Flexible Communication Options – Built-in Ethernet communication allows easy integration with other systems and devices.
-
Expandable Memory – Memory can be expanded up to 2MB, making it scalable for a wide range of applications.
-
Compact Design – The single-slot design allows easy installation in space-constrained environments.
-
Reliability – Designed to operate in harsh industrial environments, ensuring minimal downtime.
-
Battery Backup – The onboard battery ensures that the CPU retains memory during power outages, reducing the risk of losing critical data.
-
Easy Integration – Seamlessly integrates with other Series 90-30 modules for a complete control system solution.
Frequently Asked Questions (FAQ)
-
Q: What is the processing speed of the IC693CPU374 CPU module?
A: The processor runs at 100 MHz, providing fast and efficient control for demanding applications. -
Q: Can the memory of the IC693CPU374 be expanded?
A: Yes, the memory can be expanded up to 2MB to accommodate larger programs. -
Q: What types of communication ports are available on the IC693CPU374?
A: The module supports Ethernet, RS-232, and RS-485 communication for versatile connectivity. -
Q: What is the temperature range for operating the IC693CPU374?
A: The operating temperature range is from 0°C to 60°C (32°F to 140°F), while the storage temperature range is from –40°C to 85°C (–40°F to 185°F). -
Q: Does the IC693CPU374 include a battery backup?
A: Yes, the CPU module includes an onboard battery that ensures memory retention during power outages. -
Q: What industries use the IC693CPU374 CPU module?
A: This CPU module is used in manufacturing automation, process control, robotics, energy management, building automation, and machine control. -
Q: How is the IC693CPU374 installed into the Series 90-30 PLC system?
A: It is installed in a single slot of the Series 90-30 PLC chassis, making installation quick and straightforward. -
Q: What is the power consumption of the IC693CPU374?
A: The module consumes approximately 6 W of power. -
Q: Can the IC693CPU374 be used with older GE Fanuc 90-30 modules?
A: Yes, the IC693CPU374 is fully compatible with older 90-30 I/O modules and other GE Fanuc components. -
Q: Is the IC693CPU374 suitable for use in harsh environments?
A: Yes, the module is designed to withstand challenging industrial environments and operates reliably under tough conditions.
Related or Similar GE Fanuc Models
| Model | Description |
|---|---|
| IC693CPU374A | Same series, minor updates in communication features |
| IC693CPU351 | Advanced processor module for more complex applications |
| IC693CPU323 | Older model with less memory capacity and slower processor |
| IC693CPU335 | Compact CPU module for small to medium automation tasks |
| IC693CPU350 | High-performance CPU with enhanced processing power |
| IC693CPU300 | Lower-end CPU for simple control tasks and small systems |
