Product Overview

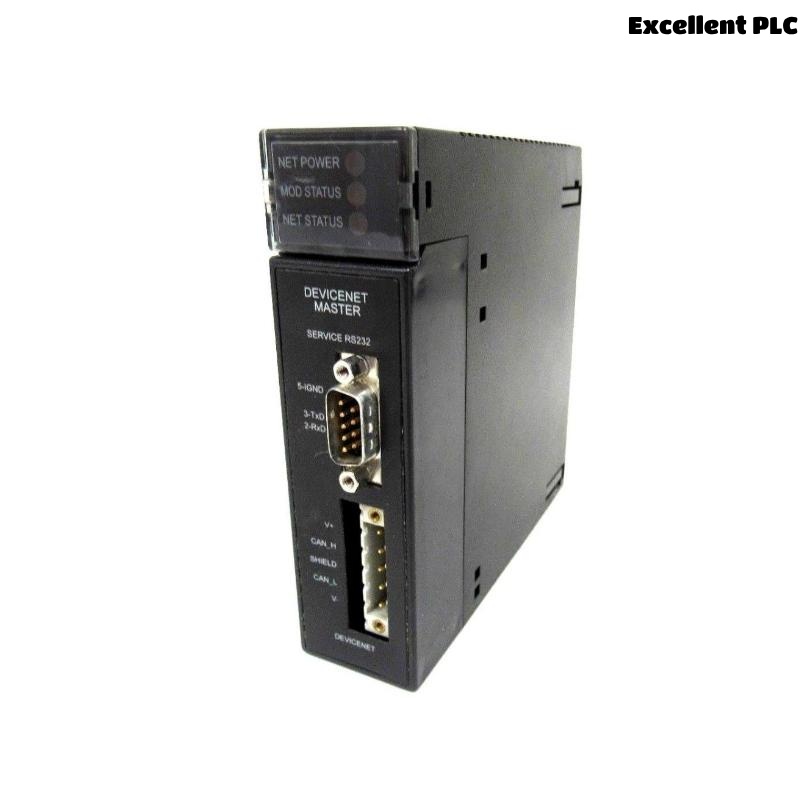

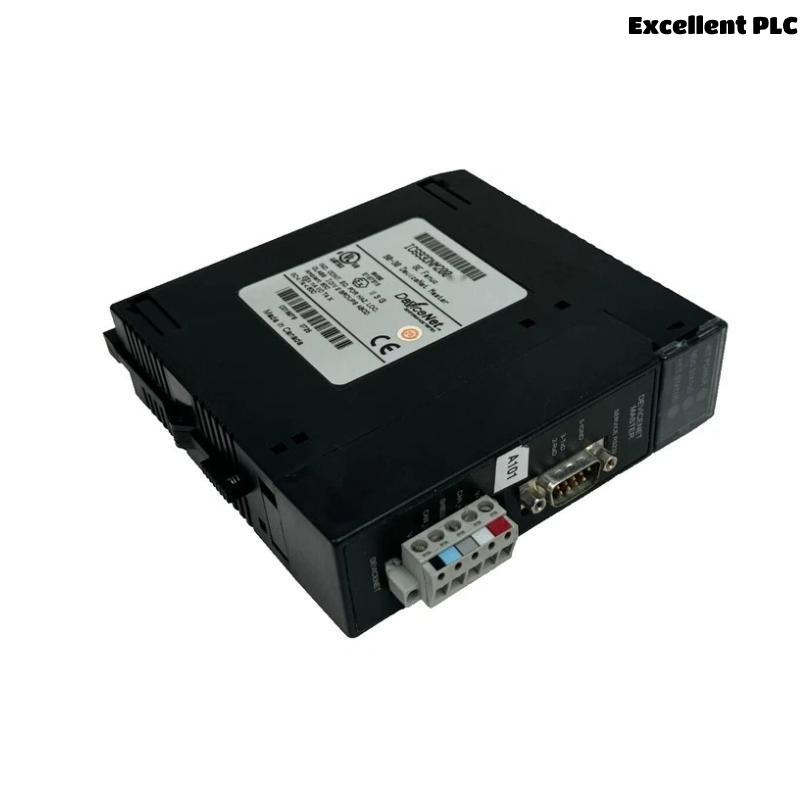

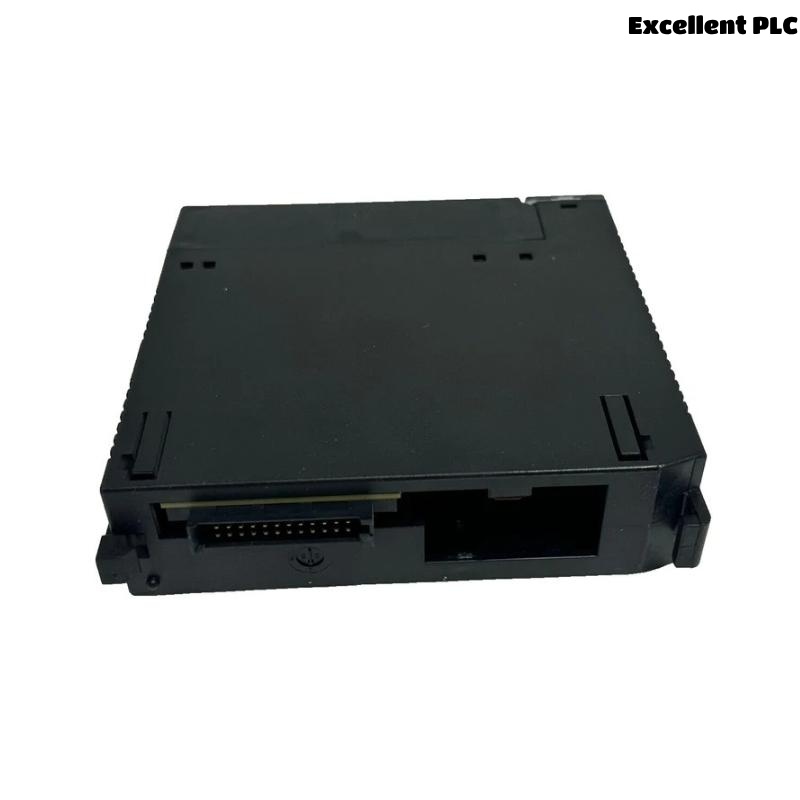

The GE Fanuc IC693DNM200 DeviceNet Master Module is a communication module designed to provide DeviceNet network connectivity for Series 90-30 PLC systems. This module is essential for integrating DeviceNet devices into an automation network, allowing the PLC to communicate with various sensors, actuators, and other devices on the DeviceNet network. The IC693DNM200 acts as a master device, managing the communication and data exchange between the PLC and up to 64 DeviceNet devices.
With its easy integration and reliable communication capabilities, the IC693DNM200 ensures that the PLC system can effectively monitor and control a wide variety of DeviceNet-compatible devices. It is well-suited for industrial applications where multiple devices need to be interconnected for real-time control and monitoring.
Key Features
-
DeviceNet Master Functionality – Enables the PLC to manage and communicate with DeviceNet devices.
-
Supports up to 64 Devices – Can communicate with up to 64 devices on the DeviceNet network.
-
Easy Integration – Seamlessly integrates with other Series 90-30 PLC modules for enhanced control capabilities.
-
Data Exchange – Provides real-time data exchange between the PLC and DeviceNet devices.
-
Built-in Diagnostic Tools – Offers built-in diagnostic LEDs for easy troubleshooting and system monitoring.
-
Communication Protocol – Supports DeviceNet communication protocol for flexible integration with various industrial devices.
-
High Compatibility – Compatible with a wide range of DeviceNet devices, including sensors, actuators, motor controllers, and more.
-
Wide Temperature Range – Suitable for use in various industrial environments with a wide operating temperature range.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | IC693DNM200 |
| Series | Series 90-30 |
| Slot Type | Single Slot |
| Network Type | DeviceNet |
| Device Capacity | Up to 64 DeviceNet devices |
| Communication Speed | 125K, 250K, and 500K baud rates |
| Diagnostic Indicators | LED indicators for power, network status, and device status |
| Power Consumption | 4 W |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | –40°C to 85°C (–40°F to 185°F) |
| Weight | 0.25 kg |
| Dimensions | 130 x 100 x 40 mm |
| Power Supply Requirements | +5 VDC (from PLC power supply) |
| Compatibility | Series 90-30 PLC and other DeviceNet devices |
Industry Applications
The GE Fanuc IC693DNM200 DeviceNet Master Module is widely used in industries where multiple DeviceNet-compatible devices need to be managed and controlled through a PLC system:
-
Manufacturing Automation – Integration of sensors, actuators, and other field devices for production line monitoring and control.
-
Process Control – Communication with devices like flow meters, temperature controllers, and motor drives in process industries.
-
Material Handling Systems – Control and monitoring of devices like conveyors, robots, and automated guided vehicles (AGVs).
-
Robotics – Interface with robotics systems for enhanced motion control and monitoring.
-
Automated Warehousing – Manage inventory control systems, actuators, and conveyors.
-
Packaging – Communication with packaging machinery for automated control and monitoring.
Product Advantages
-
Real-Time Data Exchange – Ensures seamless communication between the PLC and DeviceNet devices, providing real-time control and monitoring.
-
Scalability – Can manage up to 64 devices, making it suitable for small to large-scale systems.
-
Built-in Diagnostics – Diagnostic LEDs for troubleshooting and monitoring system status, improving maintenance efficiency.
-
Compact Design – Fits into a single slot in the Series 90-30 PLC chassis, saving valuable panel space.
-
Wide Temperature Range – Can operate in a broad range of environmental conditions, making it suitable for various industrial applications.
-
Easy Integration – Easily integrates with other 90-30 PLC modules and DeviceNet devices for simple system expansion.
Frequently Asked Questions (FAQ)
-
Q: How many devices can the IC693DNM200 communicate with on the DeviceNet network?
A: The module can communicate with up to 64 DeviceNet devices. -
Q: What communication speeds are supported by the IC693DNM200?
A: The module supports communication speeds of 125K, 250K, and 500K baud. -
Q: Does the IC693DNM200 have any diagnostic indicators?
A: Yes, the module includes built-in LED indicators for power, network status, and device status for easy troubleshooting. -
Q: What is the power consumption of the IC693DNM200?
A: The module consumes approximately 4 W of power. -
Q: What is the operating temperature range of the IC693DNM200?
A: The module operates within a temperature range of 0°C to 60°C (32°F to 140°F). -
Q: Can the IC693DNM200 be used with other DeviceNet devices?
A: Yes, the module is compatible with a wide range of DeviceNet devices, including sensors, actuators, and motor controllers. -
Q: How does the IC693DNM200 integrate with the Series 90-30 PLC system?
A: The module installs into a single slot in the Series 90-30 PLC chassis, enabling DeviceNet communication. -
Q: What is the power supply requirement for the IC693DNM200?
A: The module requires +5 VDC power, which is supplied by the PLC power supply. -
Q: Can the IC693DNM200 operate in extreme environmental conditions?
A: Yes, the module is designed to operate in a broad range of temperatures from –40°C to 85°C (–40°F to 185°F). -
Q: Is the IC693DNM200 compatible with older Series 90-30 PLC modules?
A: Yes, the module is fully compatible with older Series 90-30 PLC modules, making it a great option for system upgrades.
