Product Overview

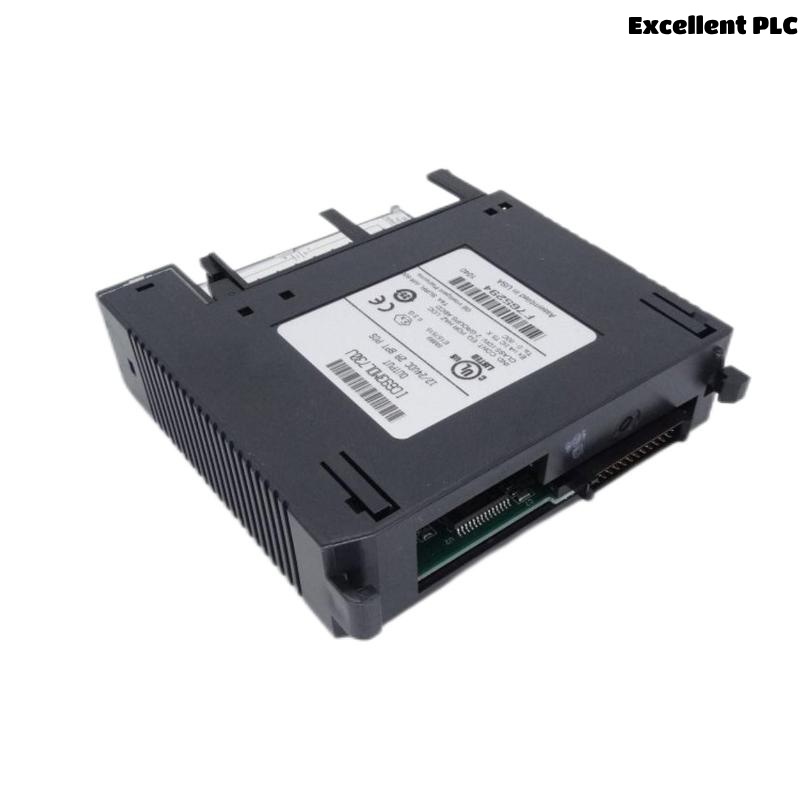

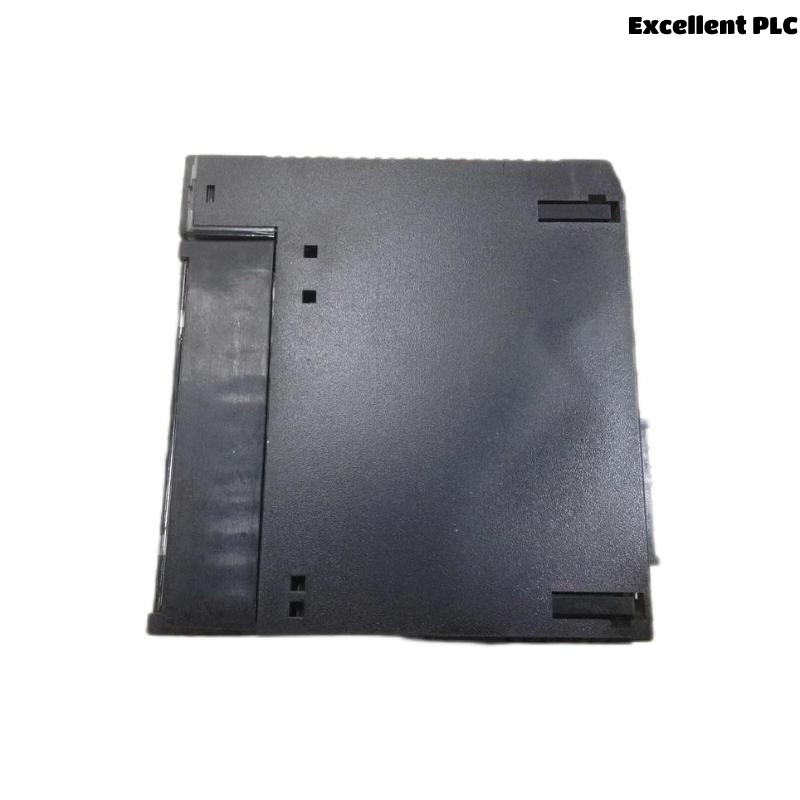

The GE Fanuc IC693MDL730 is a Positive/Negative Logic Output Module designed for the Series 90-30 PLC system. This module provides 24 VDC output for controlling external devices and supports both positive and negative logic signal configurations, offering flexibility for various industrial applications. It is ideal for controlling relays, solenoids, and other 24 VDC devices in automated processes.
The IC693MDL730 is highly reliable, offering safety features such as overcurrent protection for each output point, ensuring that external equipment is protected against overvoltage or overload conditions. The module’s flexibility in logic configuration allows it to be adapted for various automation requirements, making it a critical component in industrial control systems that demand high precision and reliability.
Key Features
-
Positive/Negative Logic Support – Configurable to support both positive and negative logic outputs for greater flexibility.
-
24 VDC Output – Provides 24 VDC to control a wide range of external devices like solenoids, relays, and other actuators.
-
Overcurrent Protection – Each output channel is equipped with individual overcurrent protection to safeguard against potential electrical damage.
-
16 Output Points – Provides 16 individual output points to control multiple devices simultaneously.
-
Diagnostic Indicators – Onboard LEDs for output status and diagnostics for easy troubleshooting.
-
Compact Design – Small form factor, occupying just one slot in the Series 90-30 I/O base.
-
Modular Integration – Easily integrates into the existing GE Fanuc Series 90-30 PLC I/O systems.
-
Wide Temperature Range – Operates effectively in a wide range of industrial environments, from 0°C to 60°C (32°F to 140°F).
-
High Durability – Built to withstand harsh industrial conditions with high shock and vibration resistance.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | IC693MDL730 |
| Type | Digital Output Module |
| Logic Type | Positive or Negative Logic |
| Number of Outputs | 16 Outputs |
| Output Voltage | 24 VDC |
| Output Current | 0.5 A per output point, 8 A total maximum current |
| Isolation | Optical isolation per channel |
| Overcurrent Protection | Individual overcurrent protection for each output |
| Status Indicators | LEDs for each output point |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | –40°C to 85°C (–40°F to 185°F) |
| Dimensions | 150 × 100 × 70 mm |
| Weight | 0.4 kg |
| Mounting | Snap-in for Series 90-30 I/O base |
| Power Consumption | 90 mA maximum (from base unit) |
| Wiring Type | Screw terminal connections |
Industry Applications
The IC693MDL730 Positive/Negative Logic Output Module is used in a variety of applications across different industries that require high-speed, reliable control of external devices:
-
Manufacturing Automation – For controlling robotic arms, conveyors, and assembly line devices.
-
Packaging Systems – Used in systems that require precise control of actuators and solenoids in packaging machines.
-
Material Handling – Controls devices in handling systems such as lifts, sorters, and pick-and-place machines.
-
Energy and Utilities – For controlling relays and switches in energy distribution and utility systems.
-
Automated Testing Equipment – Supports equipment that needs to control solenoids or valves during automated testing procedures.
-
Transportation Systems – Controls the movement of gates, locks, and other equipment in automated transportation systems.
Product Advantages
-
Flexibility in Logic Configuration – The ability to support both positive and negative logic makes it highly adaptable to different application requirements.
-
Efficient Control – The 24 VDC output with overcurrent protection ensures that the controlled devices are powered safely and efficiently.
-
Compact and Modular – Designed to fit into a standard GE Fanuc Series 90-30 PLC base, ensuring ease of integration into existing systems.
-
Diagnostic Features – Onboard LED indicators make it easy to monitor output status and troubleshoot any issues without additional tools.
-
Enhanced Durability – Built to meet the demands of industrial environments with high vibration and shock resistance.
Frequently Asked Questions (FAQ)
-
Q: Can the IC693MDL730 be used with both positive and negative logic outputs?
A: Yes, the module is configurable to support both positive and negative logic outputs, providing flexibility for different control systems. -
Q: How many output points does the IC693MDL730 have?
A: The module has 16 output points, allowing for control of multiple devices simultaneously. -
Q: What type of protection is provided for the outputs?
A: Each output point is equipped with individual overcurrent protection, preventing damage from excessive current flow. -
Q: What is the maximum current per output point?
A: The maximum current for each output is 0.5 A, with a total maximum current of 8 A for all outputs combined. -
Q: What kind of status indicators does the module have?
A: The module has LED indicators that show the status of each output point for easy monitoring and diagnostics. -
Q: Is this module compatible with other GE Fanuc 90-30 modules?
A: Yes, the IC693MDL730 is designed to integrate seamlessly with the GE Fanuc Series 90-30 PLC and other compatible I/O modules. -
Q: What is the temperature range for operating the IC693MDL730?
A: The module operates within a temperature range of 0°C to 60°C (32°F to 140°F). -
Q: How do I wire the module?
A: The module uses screw terminal connections, making it easy to wire to external devices. -
Q: Can the IC693MDL730 be used in harsh industrial environments?
A: Yes, the module is built to withstand high vibration and shock, making it suitable for demanding industrial conditions. -
Q: Is there a way to upgrade the firmware of the IC693MDL730?
A: The firmware can typically be updated using GE Fanuc’s software tools for configuration and maintenance.
