Product Overview

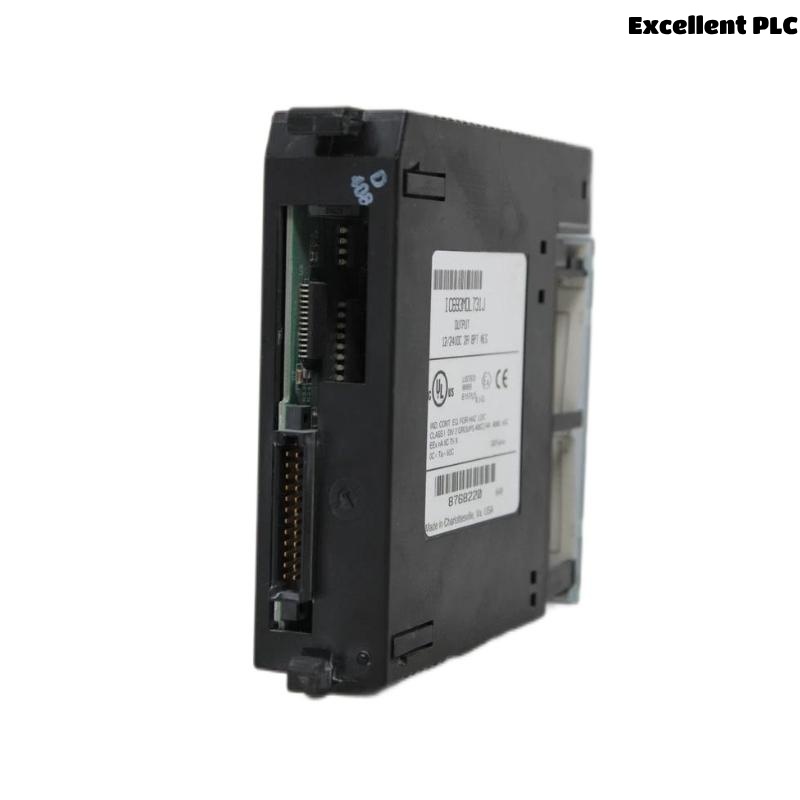

The GE Fanuc IC693MDL731 is a Positive/Negative Logic Output Module designed for the GE Fanuc Series 90-30 PLC system. This module is ideal for controlling external devices in industrial applications, providing both positive and negative logic output configurations. It is used extensively in industries that require reliable control for various actuators, relays, and solenoids that operate at 24 VDC. The module’s flexibility in logic configuration and reliable performance makes it a key component in industrial control systems where precision and adaptability are crucial.
The IC693MDL731 is highly durable and features overcurrent protection for each of its 16 output points, ensuring that connected devices are protected against electrical faults. It also includes diagnostic LEDs for quick status monitoring and troubleshooting. This module fits seamlessly into the GE Fanuc Series 90-30 I/O base, offering a modular design for easy integration and installation in existing control systems.
Key Features
-
Dual Logic Support – Supports both positive and negative logic, offering versatility for various control applications.
-
16 Output Points – Equipped with 16 individual 24 VDC output points, ideal for controlling a wide range of external devices.
-
Overcurrent Protection – Each output is protected by individual overcurrent protection, ensuring safe operation and preventing damage to connected equipment.
-
Compact Design – Designed to fit into a GE Fanuc Series 90-30 I/O base, offering space-saving benefits for system installations.
-
LED Status Indicators – Includes LED indicators for easy monitoring of output status and diagnostics, facilitating quick troubleshooting.
-
Wide Temperature Range – Operates reliably in harsh industrial environments with a temperature range from 0°C to 60°C (32°F to 140°F).
-
High Durability – Built to withstand industrial environments, featuring shock and vibration resistance.
-
Flexible Mounting – Can be easily snapped into the Series 90-30 base or similar modular systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | IC693MDL731 |
| Type | Digital Output Module |
| Logic Type | Positive or Negative Logic |
| Number of Outputs | 16 Outputs |
| Output Voltage | 24 VDC |
| Output Current | 0.5 A per output point, 8 A total maximum current |
| Isolation | Optical isolation per channel |
| Overcurrent Protection | Individual overcurrent protection for each output |
| Status Indicators | LEDs for each output point |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | –40°C to 85°C (–40°F to 185°F) |
| Dimensions | 150 × 100 × 70 mm |
| Weight | 0.4 kg |
| Mounting | Snap-in for Series 90-30 I/O base |
| Power Consumption | 90 mA maximum (from base unit) |
| Wiring Type | Screw terminal connections |
Industry Applications
The IC693MDL731 Positive/Negative Logic Output Module is ideal for various applications in industrial automation systems, including:
-
Manufacturing Automation – Control of relays, actuators, and devices in assembly lines, robotic arms, and conveyors.
-
Packaging Systems – Provides output signals to solenoids, valves, and other packaging machinery components.
-
Process Control – Used in controlling equipment such as pumps, mixers, and sensors in chemical and food processing.
-
Material Handling Systems – Controls systems such as lifts, sorters, and automated storage and retrieval systems (ASRS).
-
Test and Measurement – Used in automated test benches for controlling equipment such as relays and switches.
-
Energy Management – For controlling relays, breakers, and other equipment in electrical substations and grid control systems.
Product Advantages
-
Dual Logic Configurability – The ability to support both positive and negative logic outputs makes the module adaptable for a variety of applications.
-
High Output Density – With 16 output points, this module offers significant flexibility and high I/O density for controlling multiple devices.
-
Comprehensive Protection – The overcurrent protection ensures that both the module and external devices are safe from electrical damage.
-
Diagnostic Features – Integrated LED indicators simplify troubleshooting by providing immediate visual feedback on the output status.
-
Compact & Modular – Fits into the GE Fanuc Series 90-30 I/O base, providing easy integration with existing control systems.
-
Durability – Designed to operate in challenging industrial environments with shock and vibration resistance and wide temperature tolerance.
Frequently Asked Questions (FAQ)
-
Q: Can I use the IC693MDL731 with both positive and negative logic outputs?
A: Yes, this module can be configured to support either positive or negative logic, depending on your system requirements. -
Q: How many output points does the IC693MDL731 have?
A: The module has 16 output points, which can be used to control various external devices. -
Q: What is the maximum output current per channel?
A: The maximum output current per channel is 0.5 A, with a total of 8 A for all 16 channels combined. -
Q: How is overcurrent protection handled for this module?
A: Each output is equipped with individual overcurrent protection to protect both the module and external devices from damage. -
Q: Can the IC693MDL731 be used in outdoor environments?
A: The module is designed for indoor industrial environments, operating within a temperature range of 0°C to 60°C (32°F to 140°F). For outdoor use, it may require additional environmental protection. -
Q: What kind of status indicators are provided with this module?
A: The module features LED indicators for each output point, allowing for easy status monitoring and troubleshooting. -
Q: What is the power consumption of the IC693MDL731?
A: The module consumes a maximum of 90 mA from the Series 90-30 I/O base. -
Q: Can the IC693MDL731 be used in high-vibration environments?
A: Yes, the module is designed to be shock and vibration resistant, making it suitable for use in harsh industrial environments. -
Q: How do I wire the IC693MDL731 to external devices?
A: The module uses screw terminal connections for wiring, ensuring secure and easy connections to external devices. -
Q: Is the IC693MDL731 compatible with other GE Fanuc Series 90-30 modules?
A: Yes, the IC693MDL731 is fully compatible with other GE Fanuc Series 90-30 PLC modules, providing seamless integration in automated control systems.
Related or Similar GE Fanuc Models
| Model | Description |
|---|---|
| IC693MDL732 | 24 VDC Negative Logic Output Module |
| IC693MDL730 | 24 VDC Positive Logic Output Module |
| IC693MDL754 | 16-Point 24 VDC Sourcing Output Module |
| IC693MDL755 | 16-Point 24 VDC Sinking Output Module |
| IC693MDL740 | 32-Point Digital Output Module |
| IC693MDL731C | Enhanced 16-Point 24 VDC Output Module |
