Product Overview

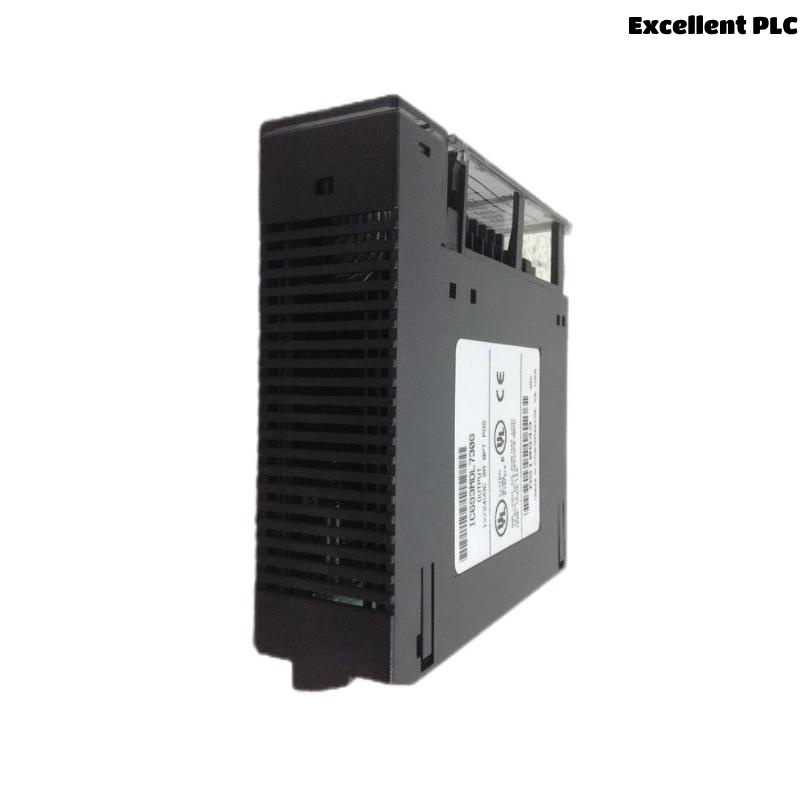

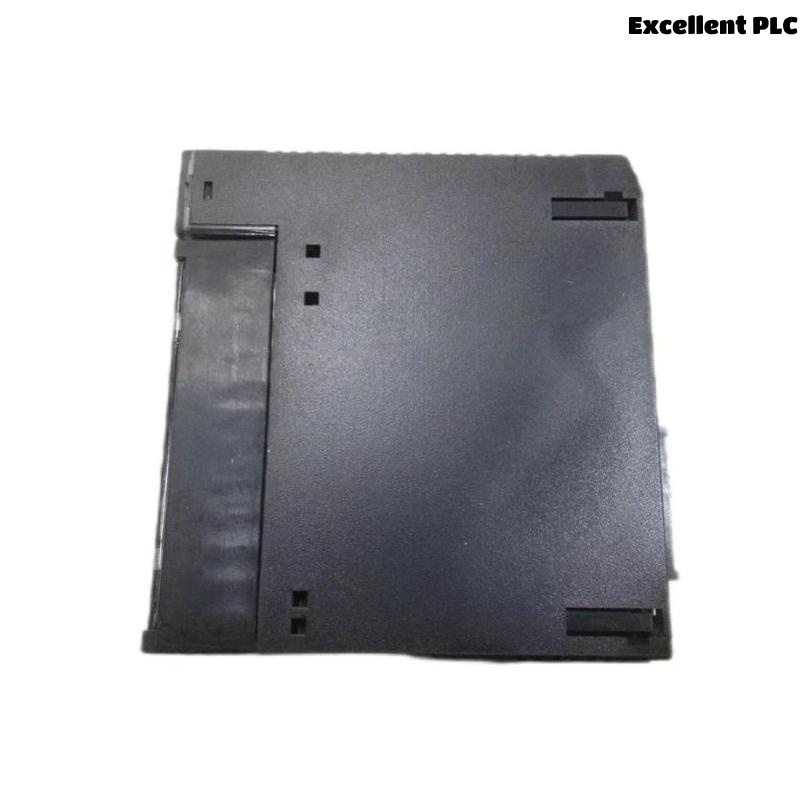

The GE Fanuc IC693MDL734 is a 24 VDC Positive/Negative Logic Output Module designed for use with the GE Fanuc Series 90-30 PLC system. This module offers 16 discrete output channels, allowing it to control a wide range of industrial field devices such as relays, solenoids, and actuators. With its ability to support both positive (sourcing) and negative (sinking) logic, it provides flexibility in handling different types of field wiring and control requirements.
The IC693MDL734 is designed with individual output protection to safeguard against overcurrent or short-circuit conditions, ensuring the integrity of both the module and connected devices. Additionally, it features diagnostic LEDs that provide real-time feedback on the status of each output, making troubleshooting and diagnostics more efficient.
Key Features
-
Dual Logic Types: Supports both positive logic (sourcing) and negative logic (sinking) output configurations for versatility.
-
16 Output Points: Each output point can handle a nominal 24 VDC load, suitable for a variety of field devices.
-
Individual Output Protection: Each output is protected from overcurrent or short-circuit conditions, increasing the system’s reliability and safety.
-
Diagnostic LEDs: Real-time monitoring through LEDs for each output channel helps in fast troubleshooting.
-
Compact and Modular Design: The module is designed for integration into the GE Fanuc 90-30 PLC system, with simple installation and easy maintenance.
-
Optical Isolation: Provides electrical isolation between field and logic circuits to prevent signal interference and damage from electrical surges.
-
Field Device Compatibility: Ideal for controlling devices such as relays, lamps, actuators, and alarms.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IC693MDL734 |
| Product Type | Digital Output Module |
| Number of Outputs | 16 Points |
| Logic Type | Positive (sourcing) or Negative (sinking) |
| Output Voltage Range | 5 to 30 VDC |
| Nominal Output Voltage | 24 VDC |
| Output Current Rating | 0.5 A per point; 4 A per common |
| Field Device Isolation | Optical, 1500 V RMS |
| Output Protection | Overcurrent and short-circuit protection |
| Backplane Current Draw | 90 mA maximum |
| LED Indicators | 16 individual point status LEDs |
| Response Time | <1 ms |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | 150 × 100 × 70 mm |
| Weight | 0.4 kg |
| Wiring Method | Screw terminal block |
| Compatibility | GE Fanuc Series 90-30 |
Industry Applications
The GE Fanuc IC693MDL734 module is suitable for a wide range of industrial applications, including:
-
Manufacturing Automation: Operates solenoids, actuators, relays, and control panels for assembly lines and robotic systems.
-
Packaging Equipment: Controls high-speed packaging machinery and diverter gates.
-
Material Handling Systems: Manages conveyor belts, sorters, and other material movement equipment.
-
Pump and Valve Control: Suitable for use in water and wastewater treatment plants, controlling pump motors and automated valves.
-
Safety Systems: Interfaces with alarm systems, safety lights, and emergency shutdown systems.
-
Oil & Gas: Used to control safety relays and field devices in hazardous environments.
Product Advantages
-
Dual Logic Compatibility: The ability to configure outputs as either sinking or sourcing provides flexibility for various field device configurations.
-
Increased Safety: Built-in protection mechanisms ensure that each output is safeguarded from overcurrent and short-circuit conditions.
-
Efficient Troubleshooting: Diagnostic LEDs for each output channel allow operators to quickly identify any faults or operational issues.
-
Rugged and Reliable: The module is designed for demanding industrial environments, with excellent resistance to vibration, shock, and electrical noise.
-
Space-saving Design: With its compact form factor, it is easy to integrate into systems with limited space.
-
Seamless Integration: Works perfectly with the GE Fanuc Series 90-30 PLC, allowing for easy upgrades and expansions.
Frequently Asked Questions (FAQ)
-
Q: What is the difference between sourcing and sinking logic?
A: Sourcing logic provides current to the load, while sinking logic draws current from the load. The IC693MDL734 supports both options. -
Q: How many output points does the IC693MDL734 module have?
A: The module features 16 discrete output points. -
Q: What is the current rating for each output?
A: Each output can handle 0.5 A with a maximum current rating of 4 A per common. -
Q: Can this module be used in high-vibration environments?
A: Yes, it is designed to operate in industrial environments with resistance to shock and vibration. -
Q: What types of field devices can be controlled by this module?
A: It is ideal for controlling devices such as solenoids, relays, lamps, actuators, and alarms. -
Q: What protection does the module offer?
A: The IC693MDL734 has built-in overcurrent and short-circuit protection for each output point. -
Q: How are the outputs monitored?
A: Individual LEDs indicate the status of each output point, allowing for easy diagnostics. -
Q: What are the dimensions of this module?
A: The dimensions are 150 × 100 × 70 mm. -
Q: Can this module be used in hazardous locations?
A: While the module is rugged and built for industrial use, additional precautions may be needed for explosive environments. Refer to local safety guidelines. -
Q: How do I wire this module?
A: The module uses screw terminal blocks for wiring, providing a secure connection for field devices.
