Product Overview

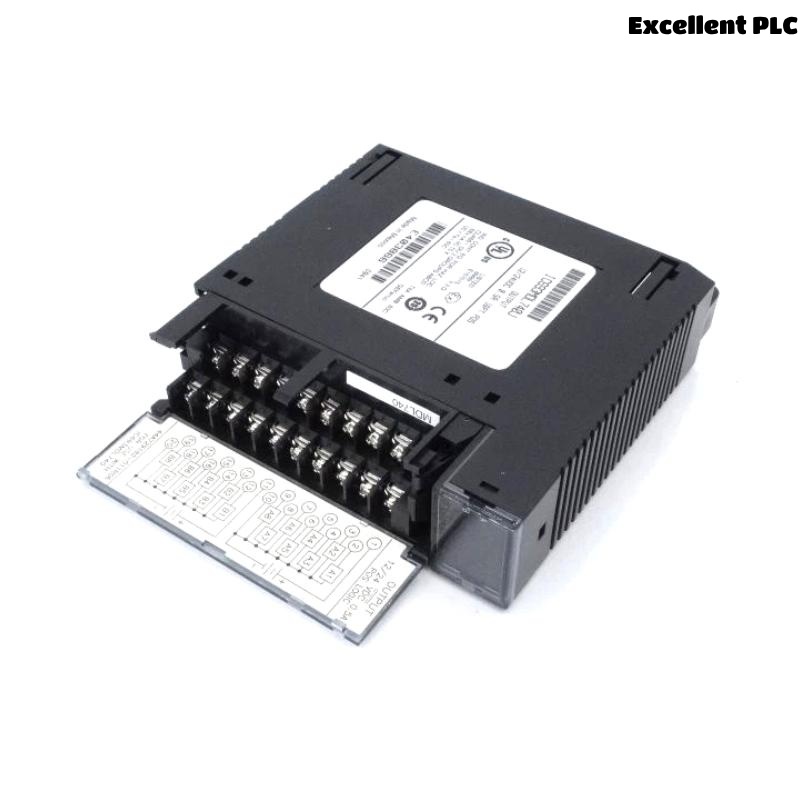

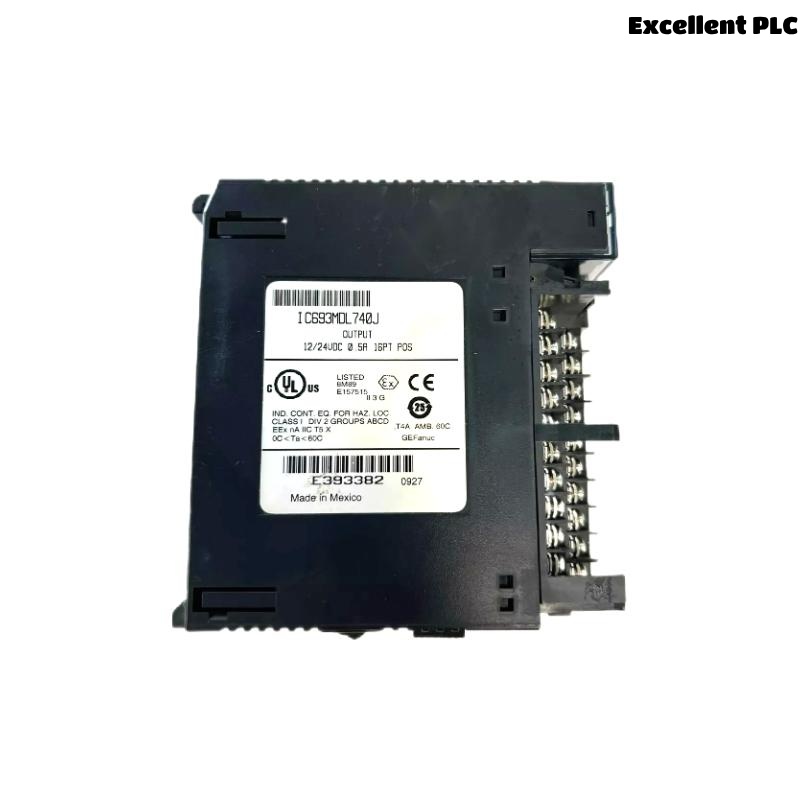

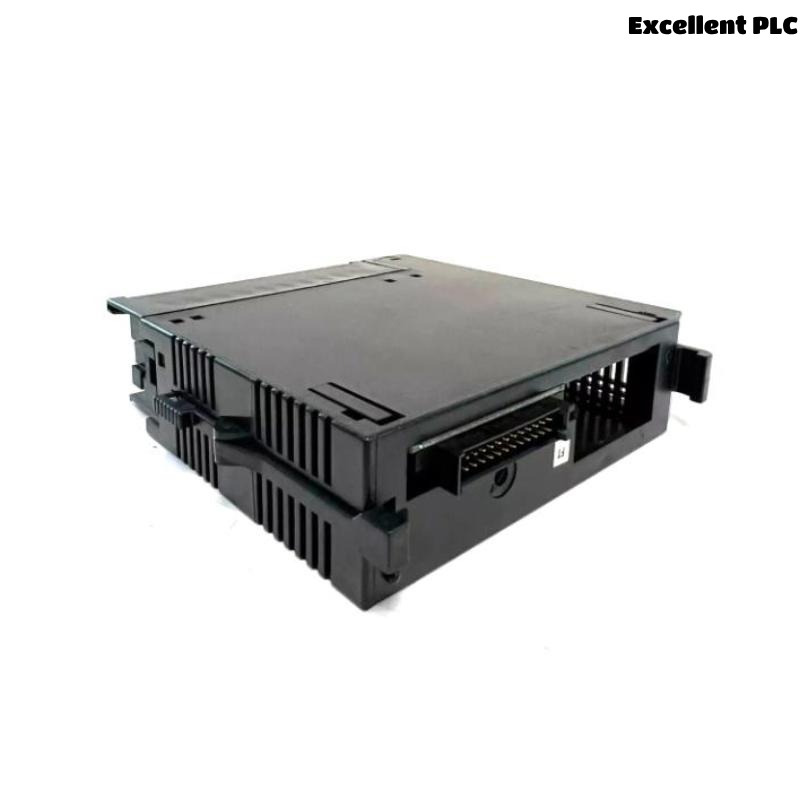

The GE Fanuc IC693MDL740 is a Positive/Negative Logic Output Module designed to work within the GE Fanuc Series 90-30 PLC system. With 32 discrete output points, this module provides efficient control for various field devices, including relays, solenoids, actuators, and alarms. It supports both positive (sourcing) and negative (sinking) logic output configurations, providing flexibility for industrial automation systems that require diverse wiring setups.
This module offers individual output protection against overcurrent and short-circuit conditions, ensuring the reliability and safety of the system. Additionally, diagnostic LEDs give real-time feedback, enabling operators to monitor the operational status of each output point and troubleshoot quickly.
Designed to integrate seamlessly with the GE Fanuc Series 90-30 PLC, the IC693MDL740 supports high-speed, high-reliability operations and is ideal for a variety of industrial automation applications.
Key Features
-
Dual Logic Types: Supports both sourcing (positive) and sinking (negative) output configurations for maximum flexibility.
-
32 Output Points: Each output point can control a 24 VDC field device.
-
Built-in Protection: The module provides overcurrent and short-circuit protection for each output point, ensuring the system’s safety and stability.
-
Diagnostic LEDs: Each output point is equipped with its own LED indicator, which makes it easier to monitor the operational status and detect any issues.
-
Fast Response: The module offers quick response times for high-speed operation in automation applications.
-
Compact and Efficient: Designed for easy integration into the GE Fanuc Series 90-30 PLC, with a space-saving and modular design.
-
Optical Isolation: Provides electrical isolation between the PLC and field devices, preventing damage from electrical surges and noise.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IC693MDL740 |
| Product Type | Digital Output Module |
| Number of Outputs | 32 Points |
| Logic Type | Positive (sourcing) or Negative (sinking) |
| Output Voltage Range | 5 to 30 VDC |
| Nominal Output Voltage | 24 VDC |
| Output Current Rating | 0.5 A per point; 4 A per common |
| Field Device Isolation | Optical, 1500 V RMS |
| Output Protection | Overcurrent and short-circuit protection |
| Backplane Current Draw | 90 mA maximum |
| LED Indicators | 32 individual point status LEDs |
| Response Time | <1 ms |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | 99 x 25 x 140 mm |
| Weight | 0.322 kg |
| Wiring Method | Screw terminal block |
| Compatibility | GE Fanuc Series 90-30 |
Industry Applications
The GE Fanuc IC693MDL740 module is perfect for a wide range of industrial applications, including:
-
Manufacturing Automation: Controls solenoids, actuators, and relays in assembly lines, robotic arms, and automated material handling systems.
-
Packaging Machinery: Manages the operation of sorting, labeling, and packaging machines.
-
Water and Wastewater Treatment: Used to control pumps, valves, and other equipment in water treatment plants.
-
Oil & Gas: Interfaces with field devices in hazardous environments, providing control for drilling rigs, pumps, and other machinery.
-
Automated Control Systems: Ideal for use in control panels, alarm systems, and other automated control applications.
-
Energy Management: Suitable for controlling relay systems and other devices used in energy distribution and grid management.
Product Advantages
-
Dual Logic Compatibility: The flexibility to use either sourcing (positive) or sinking (negative) logic makes it adaptable to a wide variety of field devices.
-
Comprehensive Protection: With overcurrent and short-circuit protection, the IC693MDL740 ensures operational safety and minimizes downtime due to electrical faults.
-
Efficient Diagnostics: Each output is equipped with a diagnostic LED, allowing easy monitoring and troubleshooting in real time.
-
Compact Form Factor: Designed for space-saving integration, the module is easily added to GE Fanuc Series 90-30 PLC systems with minimal impact on space.
-
Rugged Design: Built to withstand harsh industrial environments, with resistance to electrical noise, vibration, and temperature fluctuations.
-
Easy Integration: Seamlessly integrates with the GE Fanuc Series 90-30 PLC, reducing setup time and simplifying system expansions.
Frequently Asked Questions (FAQ)
-
Q: What is the maximum current per output point on this module?
A: Each output can handle 0.5 A, with a maximum total of 4 A per common. -
Q: Can this module be used for high-speed applications?
A: Yes, the IC693MDL740 module has a fast response time of less than 1 ms, making it suitable for high-speed automation tasks. -
Q: How many output points does the IC693MDL740 module have?
A: This module has 32 discrete output points. -
Q: What types of field devices can I control with this module?
A: It can control a wide variety of devices, including relays, solenoids, actuators, and alarm systems. -
Q: Is there built-in protection on the IC693MDL740?
A: Yes, the module includes overcurrent and short-circuit protection for each output point. -
Q: What is the voltage range for the outputs on this module?
A: The module supports 5 to 30 VDC output voltage, with a nominal voltage of 24 VDC. -
Q: How is the module mounted and wired?
A: The module uses screw terminal blocks for easy wiring and can be mounted in the GE Fanuc Series 90-30 PLC system. -
Q: What is the temperature range for operation?
A: The operating temperature range is 0°C to 60°C (32°F to 140°F), with a storage range of -40°C to 85°C (-40°F to 185°F). -
Q: Can I use this module in explosive environments?
A: While the module is built for industrial environments, refer to local safety guidelines for use in hazardous or explosive environments. -
Q: What is the response time of this module?
A: The response time of the IC693MDL740 is less than 1 ms, making it suitable for fast, real-time control.
