Product Overview

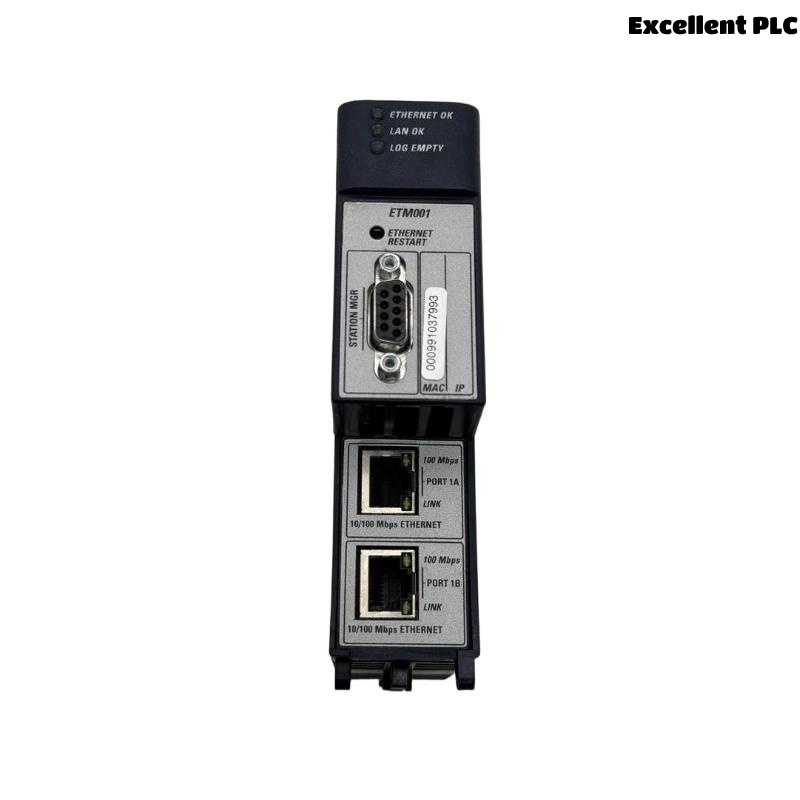

The GE Fanuc IC695ETM001-EP is a high-performance Ethernet Interface Module designed for use in GE PACSystems RX3i programmable automation controllers (PACs). This module provides dual 10/100 Mbps Ethernet ports that support real-time communication between the RX3i controller and external devices, including HMIs, SCADA systems, programming stations, and other PLCs.
Built for industrial environments, the IC695ETM001-EP supports a range of Ethernet-based protocols such as SRTP, Modbus TCP/IP, and EGD (Ethernet Global Data). With advanced diagnostics, built-in web server capabilities, and secure configuration, it enables fast, flexible, and robust communication essential for modern industrial automation systems.
Key Features
-
Two independent 10/100 Mbps Ethernet ports with built-in switch functionality
-
Supports multiple protocols: SRTP, Modbus TCP/IP, EGD, and configuration messaging
-
High-speed data exchange with programmable logic controllers and SCADA systems
-
Web-based diagnostics and status monitoring
-
Configurable IP settings via software or hardware DIP switch
-
Secure communication support including password protection
-
LED status indicators for quick visual diagnostics
-
Supports firmware upgrades via Ethernet
-
Hot-swappable within RX3i rack systems
-
Seamless integration with GE Proficy Machine Edition (PME)
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Ethernet Interface Module |
| Model Number | IC695ETM001-EP |
| Platform Compatibility | GE Fanuc PACSystems RX3i |
| Ethernet Ports | 2 × 10/100Base-T (RJ-45), internal switch |
| Supported Protocols | SRTP, Modbus TCP/IP, EGD, TCP/IP, ICMP, ARP |
| Data Rates | 10/100 Mbps, full-duplex |
| Backplane Interface | PCI-based interface |
| IP Address Configuration | Via PME, DHCP, or DIP switches |
| Diagnostics | Built-in web server, LEDs, PME status tools |
| LED Indicators | Module OK, LAN status, Port activity |
| Power Consumption | 300 mA @ 3.3 VDC (from backplane) |
| Hot Swap Capability | Yes |
| Firmware Upgradeable | Yes (via Ethernet) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | 100 x 90 x 20mm |
| Weight | 0.2 kg |
| Certifications | UL, cUL, CE, RoHS |
Industry Applications
The IC695ETM001-EP Ethernet Module is ideal for a wide range of industries requiring real-time Ethernet communication and remote connectivity:
-
Industrial Automation – Networking PLCs with remote I/O, sensors, and actuators
-
Energy & Utilities – SCADA system integration for power generation and grid control
-
Oil & Gas – Remote equipment monitoring and control over secure Ethernet links
-
Manufacturing – High-speed data exchange between production lines and MES systems
-
Water & Wastewater Treatment – Centralized monitoring and control of distributed systems
-
Building Automation – Connectivity for HVAC, security, and lighting controls
-
Pharmaceuticals & Food Processing – Real-time process monitoring and data logging
Product Advantages
-
Dual Ethernet ports with switching simplify cabling and network architecture
-
Supports industrial Ethernet protocols for wide interoperability
-
Web diagnostics and firmware updates enhance maintainability and lifecycle support
-
Hot-swappable for reduced downtime during maintenance
-
Secure and configurable networking with IP filtering and access control
-
Robust diagnostics and monitoring tools through PME and browser interface
-
High throughput and low latency, ideal for time-sensitive control applications
-
Certified for industrial use, ensuring reliable operation under demanding conditions
Frequently Asked Questions (FAQ)
1. What is the primary function of the IC695ETM001-EP?
It serves as a network interface module that allows RX3i systems to communicate over Ethernet using protocols like SRTP, EGD, and Modbus TCP/IP.
2. How many Ethernet ports does the module have?
It has two 10/100 Mbps Ethernet ports, which act as a built-in Ethernet switch.
3. Can I assign the IP address manually?
Yes. IP addresses can be configured via Proficy Machine Edition, DIP switches, or DHCP.
4. Is this module hot-swappable?
Yes, the IC695ETM001-EP is hot-swappable when used within a compatible RX3i rack.
5. What protocols are supported for communication?
The module supports SRTP, Modbus TCP/IP, EGD, and standard TCP/IP services.
6. Can I use this module to upgrade firmware?
Yes, firmware can be updated via Ethernet using PME.
7. Does the module support diagnostics?
Yes, through a web interface, status LEDs, and Proficy software tools.
8. What is the typical application for this module?
Typical uses include SCADA integration, remote I/O networking, and controller-to-controller communication.
9. Can this module be used in redundant systems?
Yes, when paired with system-level redundancy configurations.
10. Is the module compatible with third-party Ethernet devices?
Yes, it supports standard Ethernet/IP communication, enabling interoperability.
Related GE Fanuc Networking & Communication Modules
| Model | Description |
|---|---|
| IC693CMM321 | Ethernet Communications Module for Series 90-30 |
| IC695ETM001 | Standard version of the RX3i Ethernet Module |
| IC695PNC001 | PROFINET Controller Module for RX3i |
| IC695CPE330 | RX3i CPU with built-in Ethernet and serial ports |
| IC695CMM002 | Serial Communications Module with dual ports |
| IC695USB001 | USB Interface Module for RX3i PACSystems |
Popular GE Fanuc Automation Products
| Model | Description |
|---|---|
| IC695CPU320 | RX3i 1 GHz CPU with 64 MB memory |
| IC695PSA140 | RX3i Power Supply Module |
| IC694MDL645 | 32-Point Digital Input Module |
| IC694ALG391 | 8-Channel Analog Voltage Input Module |
| IC695ALG600 | 4-Channel High-Density Analog Output Module |
| IC695CHS012 | 12-Slot Universal RX3i Backplane |
