Product Overview

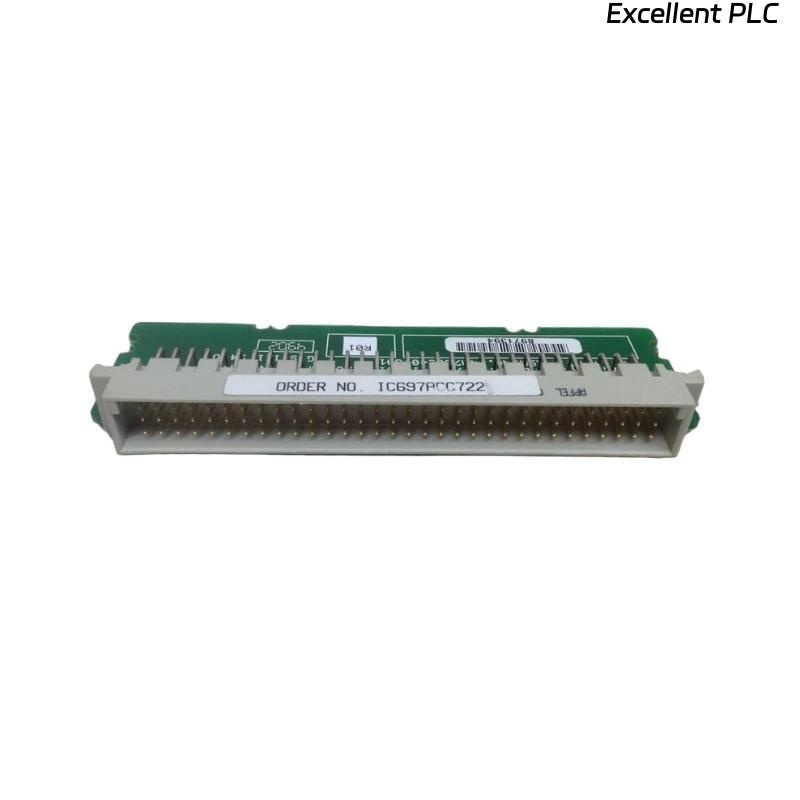

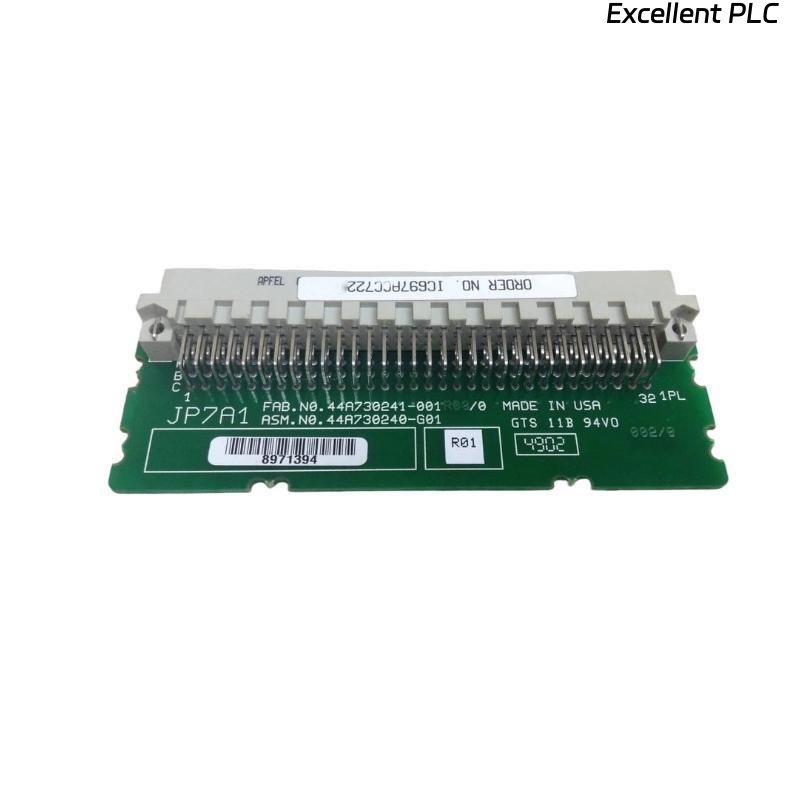

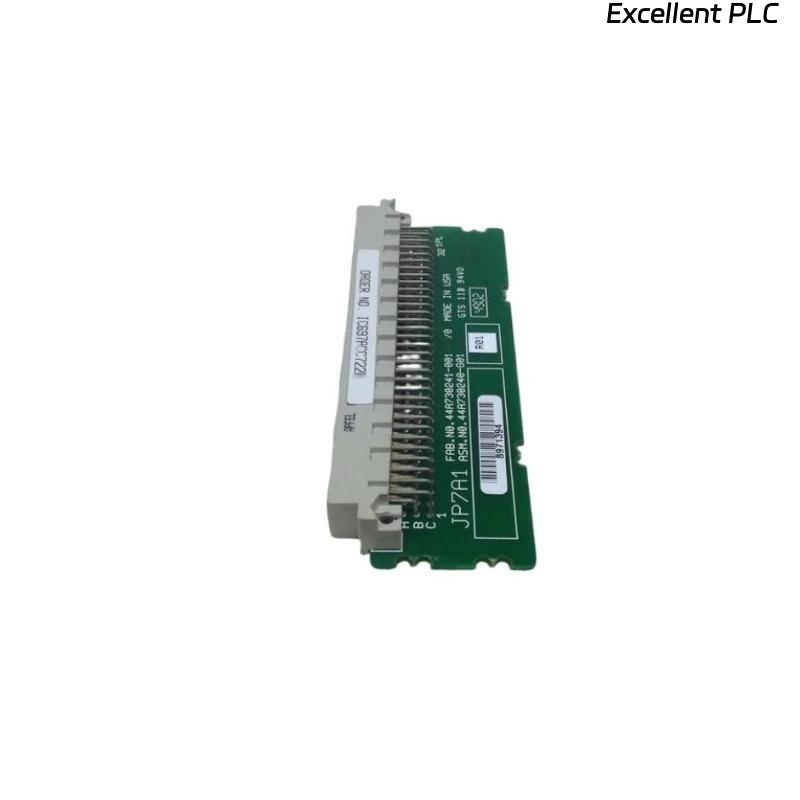

The GE Fanuc IC697ACC722 is a VME backplane connector designed for use in IC697 series modular automation systems. It provides a reliable interface for modules within VME-based PLC racks, ensuring secure signal transmission and robust mechanical stability. These connectors are optimized for industrial environments and facilitate high-density module installation while maintaining signal integrity.
Key Features
-
Reliable Connectivity: Ensures stable electrical connections between VME modules
-
High Durability: Industrial-grade construction suitable for harsh environments
-
Ease of Installation: Designed for quick and secure installation in VME backplanes
-
Signal Integrity: Optimized for low-noise, high-speed communication between modules
-
Modular Compatibility: Works with GE Fanuc IC697 series VME backplanes and compatible modules
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC697ACC722 |
| Type | VME Backplane Connector |
| Compatible Series | GE Fanuc IC697 Modular Automation System |
| Connector Rows | 2 rows |
| Number of Pins | 96 pins |
| Pitch | 2.54 mm (0.1 in) |
| Mounting Type | PCB / Backplane mounted |
| Current Rating | 2 A per pin |
| Voltage Rating | 250 V DC |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Material | High-strength thermoplastic with metal contacts |
| Dimensions | 150 × 25 × 15 mm |
| Weight | 0.08 kg |
Frequently Asked Questions (FAQ)
1. What is the primary function of the IC697ACC722?
It provides secure electrical connections between VME modules in GE Fanuc IC697 PLC systems.
2. How many pins does this connector have?
It has 96 pins arranged in 2 rows.
3. What is the pitch between pins?
The pin pitch is 2.54 mm (0.1 inch).
4. What is the current and voltage rating of the connector?
The connector is rated at 2 A per pin and 250 V DC.
5. What is the operating temperature range?
It operates from -40°C to +85°C (-40°F to +185°F).
6. Is this connector compatible with other IC697 modules?
Yes, it is compatible with VME backplanes and modules in the IC697 series.
7. What type of mounting does it use?
It is designed for PCB or backplane mounting.
8. What material is used for the connector?
The connector is made from high-strength thermoplastic with metal contacts for durability.
