Product Overview

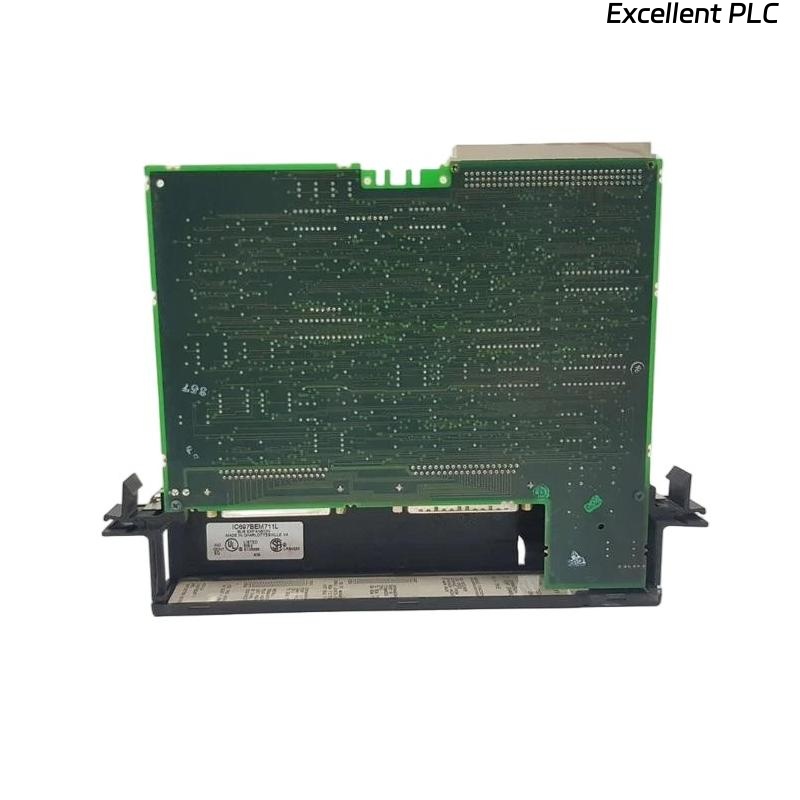

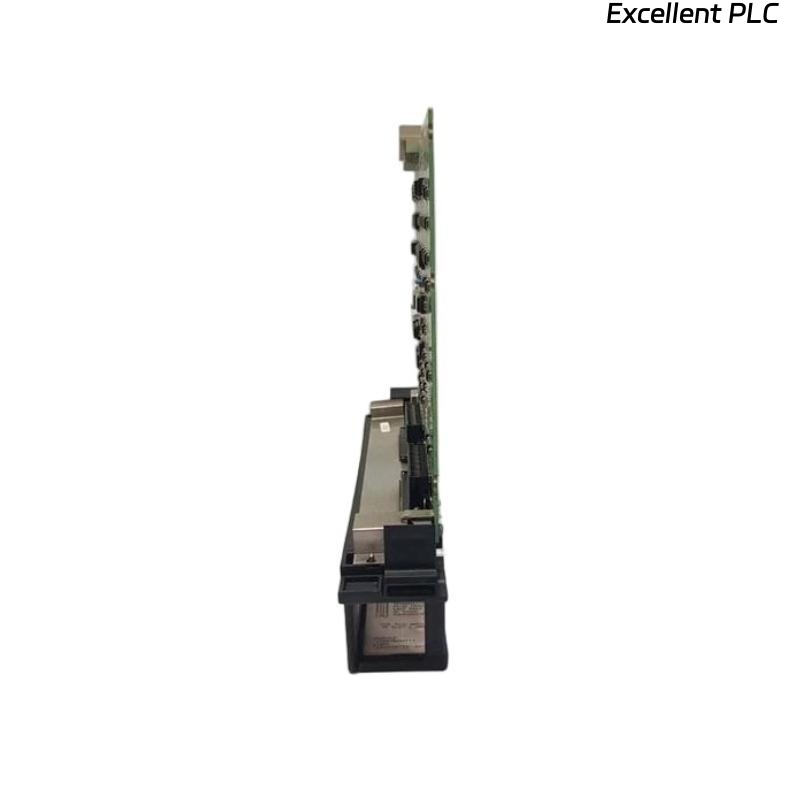

The GE Fanuc IC697BEM711 is a Bus Receiver Module (BRM) designed for the Series 90-70 PLC system. It enables high-speed parallel bus expansion, allowing the main rack to communicate with up to seven additional IC697 PLC racks over a total cable length of up to 50 feet (15 meters). This module is essential for systems requiring modular scalability and reliable communication across multiple racks.
Key Features
-
High-Speed Parallel Bus Expansion: Facilitates communication between the main rack and up to seven expansion racks.
-
Software Configuration: No DIP switches required; configuration is done via MS-DOS or Windows programming software.
-
Hold Last State: Supports holding the last state of output modules during faults or maintenance.
-
System Fault Isolation: Allows isolation of expansion racks for troubleshooting without affecting the main system.
-

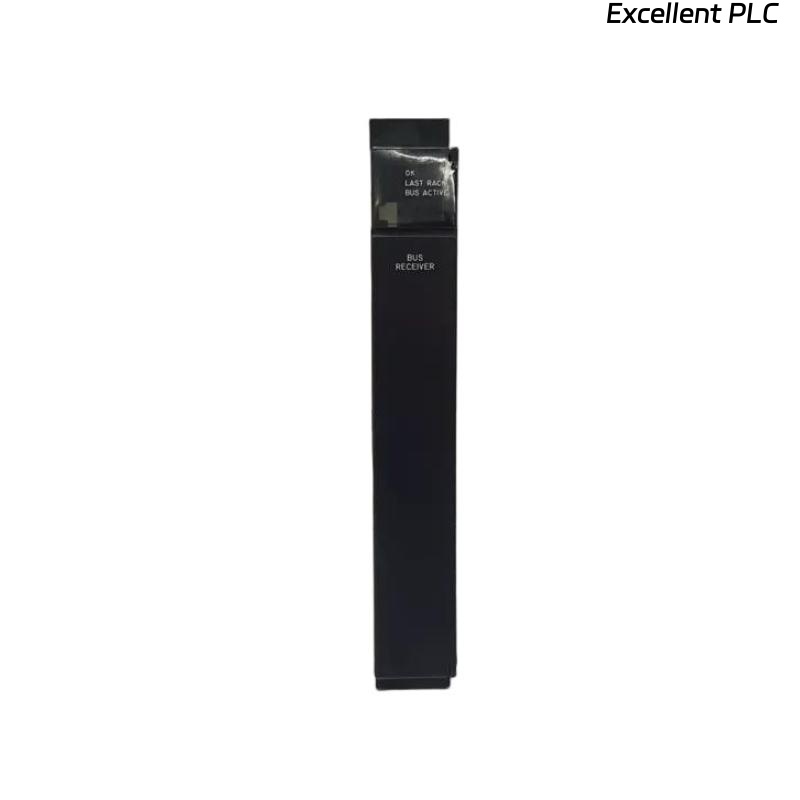

LED Indicators: Three LEDs provide status information for module operation, termination, and bus expansion port.
-
Termination Plug: Requires a termination plug (IC697ACC702) in the last expansion rack to signal the end of the network.
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC697BEM711 |
| Module Type | Bus Receiver Module (BRM) |
| Series | GE Fanuc Series 90-70 |
| Slot Requirement | Must be installed in Slot 1 |
| Supported Expansion | Up to 7 additional racks |
| Maximum Cable Length | 50 feet (15 meters) |
| Data Transfer Rate | 500 Kbytes/sec |
| Power Requirements | +5 V DC, 800 mA |

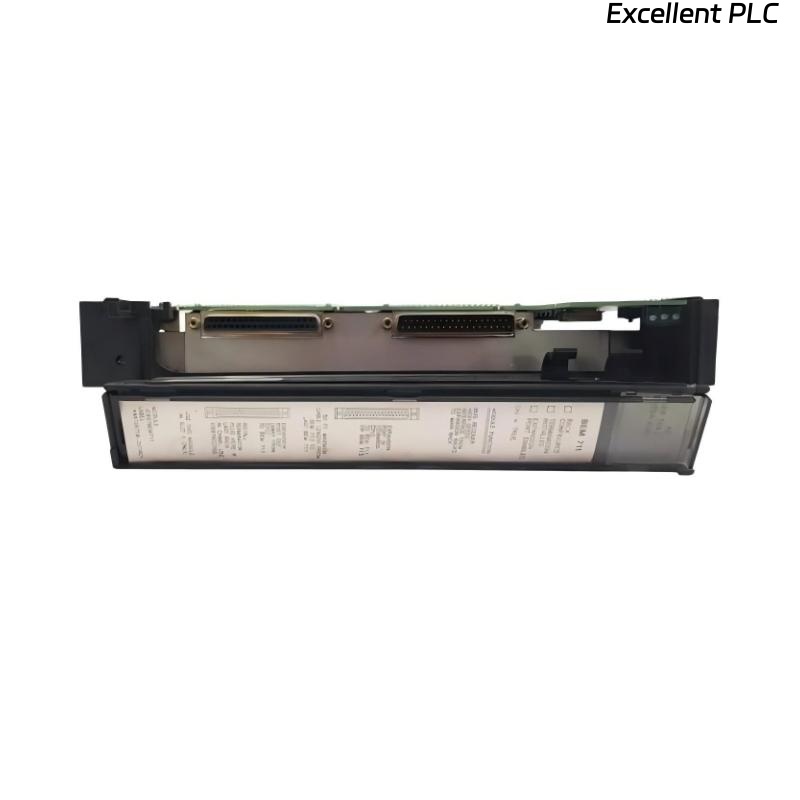

| Connectors | 2 × 25-pin D-shell connectors |
| LED Indicators | Module OK, Bus Activity, Last Rack Status |
| Fault Isolation | Supports hold last state during CPU communication loss |
| Configuration | Software configuration, no DIP switches required |
| Termination Requirement | Termination plug (IC697ACC702) in last expansion rack |
| Electrical Isolation | Non-isolated differential bus |
| Dimensions | 200 x 180 x 30 mm |
| Weight | 0.46 kg |
Frequently Asked Questions (FAQ)
1. What is the purpose of the IC697BEM711 module?
The IC697BEM711 is used to expand the I/O capabilities of a Series 90-70 PLC system by connecting additional racks, allowing for more modules and greater system scalability.
2. How many racks can be connected using this module?
It supports up to seven additional racks, totaling eight racks including the main rack.
3. What is the maximum cable length supported?
The module supports a total cable length of up to 50 feet (15 meters) for connecting expansion racks.
4. Is the module easy to configure?
Yes, configuration is done through software, eliminating the need for DIP switches or manual settings.
5. What is the data transfer rate of the module?
The module supports a data transfer rate of 500 Kbytes/sec.
6. Where should the IC697BEM711 module be installed?
It must be installed in Slot 1 of the main rack.
7. Does the module support fault isolation?
Yes, it allows for system fault isolation, enabling maintenance without affecting the entire system.
8. Is a termination plug required?
Yes, a termination plug (IC697ACC702) is required in the last expansion rack to signal the end of the network.
