Product Overview

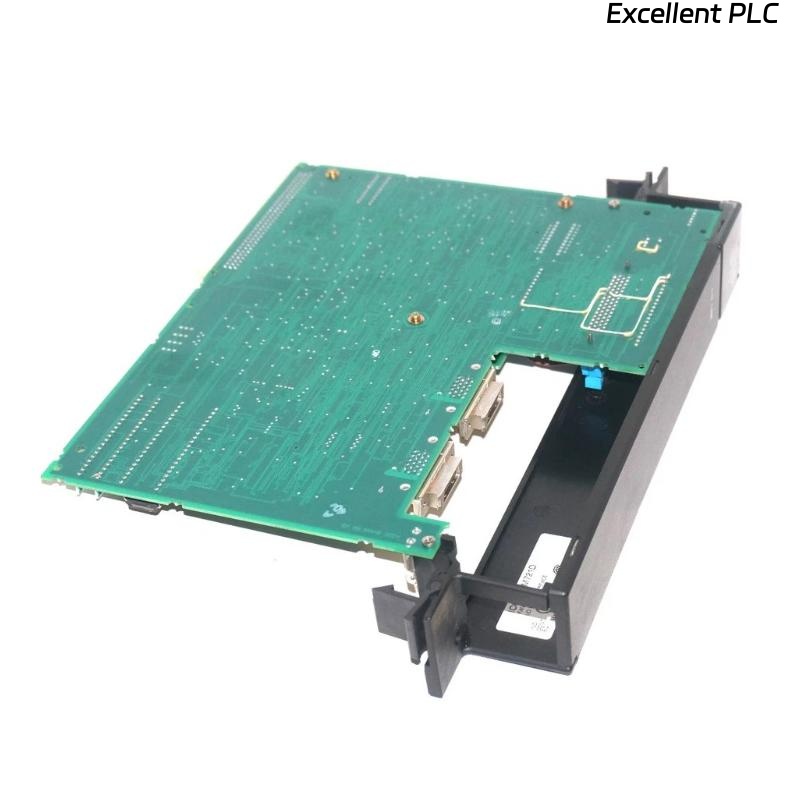

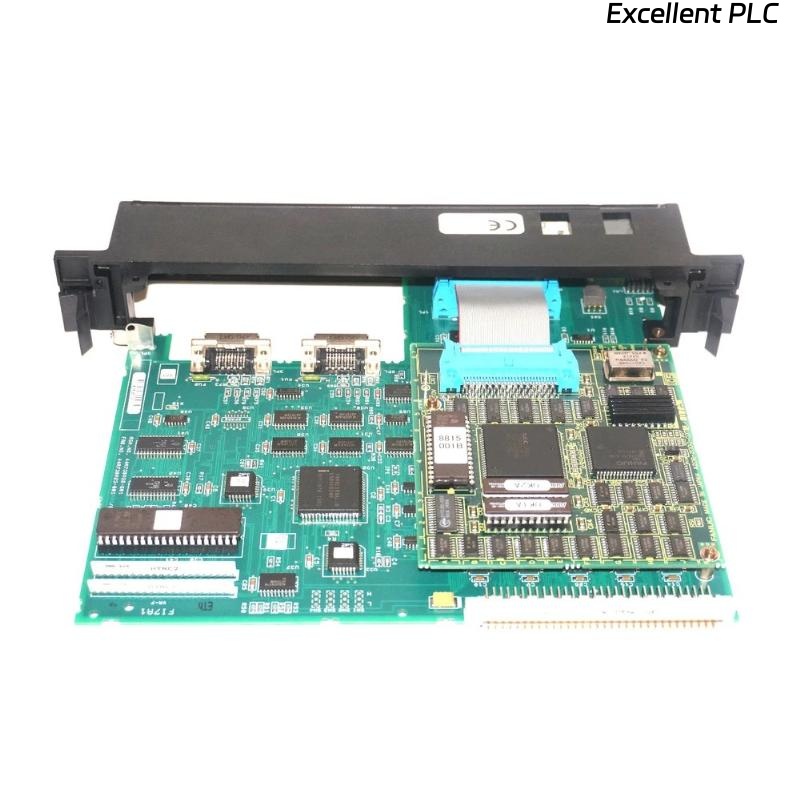

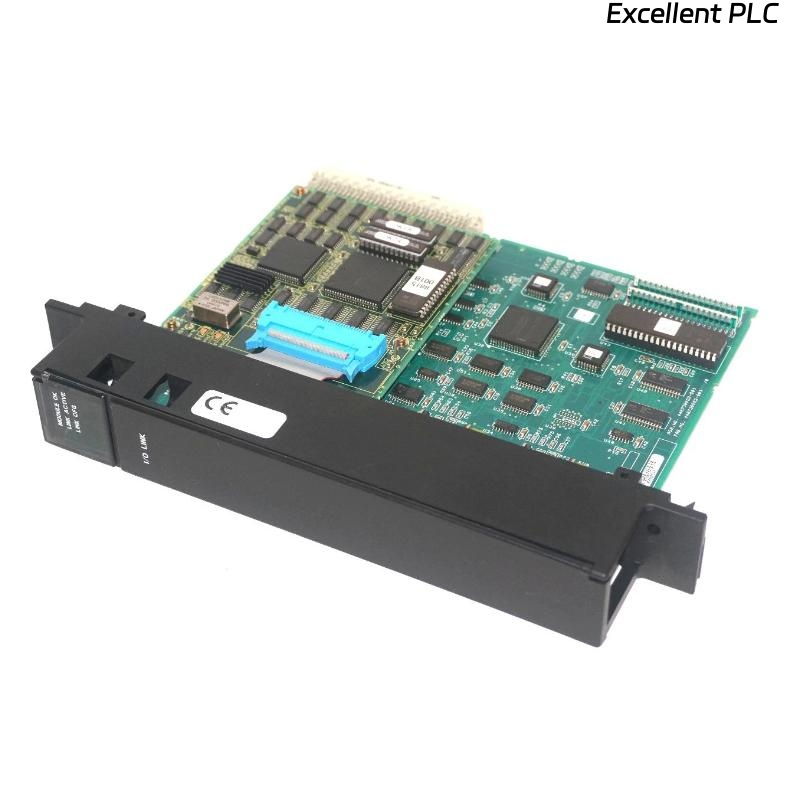

The GE Fanuc IC697BEM721 I/O Link Interface Module is a high-performance communication module designed for the GE Series 90-70 PLC systems. It provides a reliable interface between the PLC and distributed I/O devices via the I/O Link communication network. This module enables efficient, high-speed data exchange between control systems and field devices, ensuring real-time process control and monitoring in industrial automation environments.
Key Features
-
Supports GE Series 90-70 PLC systems
-
High-speed communication over I/O Link network
-
Reduces wiring complexity in large-scale automation systems
-
Provides diagnostic LEDs for link and status monitoring
-
Supports multiple I/O devices with flexible configuration
-
Designed for robust operation in harsh industrial environments
-
Easy installation into the GE 90-70 rack system
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC697BEM721 |
| Type | I/O Link Interface Module |
| Supported System | GE Fanuc Series 90-70 PLC |
| Communication Protocol | GE I/O Link Network |
| Number of Channels | 1 (supports multiple remote I/O devices) |
| Communication Rate | Up to 153.6 kbps |
| Power Requirements | +5 VDC, 1.5 A (typical) |
| Indicators | Module OK, Link Active, Link Fault LEDs |
| Mounting | Standard rack mount (Series 90-70 base) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions | 201 × 40 × 153 mm |
| Weight | 0.26 kg |
Frequently Asked Questions (FAQ)
1. What is the main purpose of the IC697BEM721 module?
It provides communication between the GE Series 90-70 PLC and remote I/O devices via the I/O Link network.
2. Is this module compatible with the Series 90-70 PLC system?
Yes, it is fully compatible and integrates seamlessly with the GE Fanuc Series 90-70 PLC system.
3. How many communication channels does it support?
It supports one I/O Link channel that can communicate with multiple remote I/O nodes.
4. What communication speed does it support?
The module supports a data communication rate of up to 153.6 kbps.
5. What are the typical power requirements?
It requires +5 VDC at approximately 1.5 A.
6. How can the module’s operational status be monitored?
It includes diagnostic LEDs that indicate module OK, link activity, and fault status.
7. What is the recommended operating temperature range?
The module operates reliably from 0 °C to +60 °C.
8. How is the module installed?
It mounts directly into a Series 90-70 PLC rack using standard backplane connectors.
