Product Overview

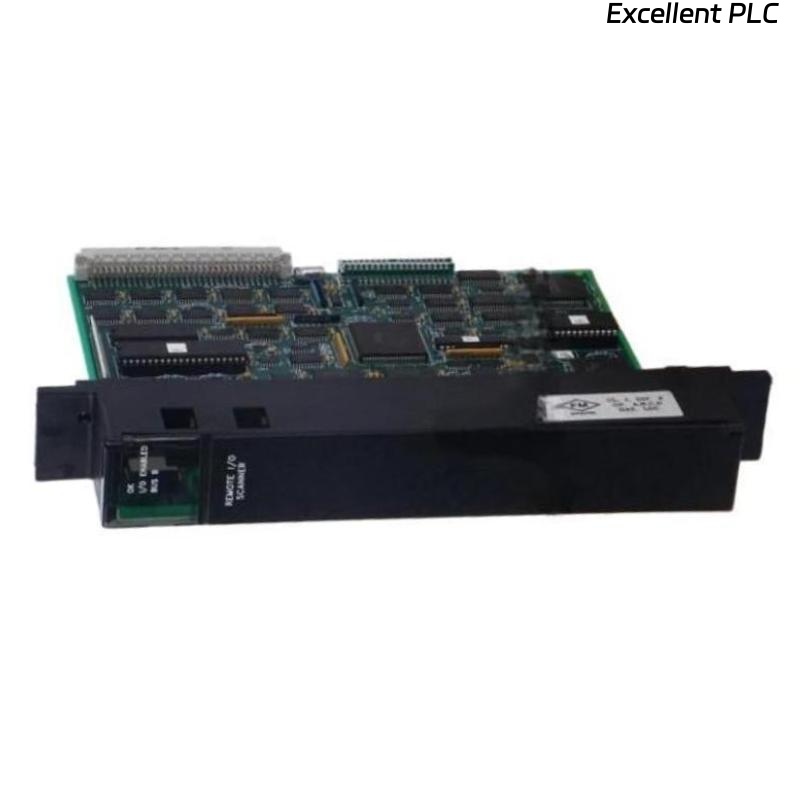

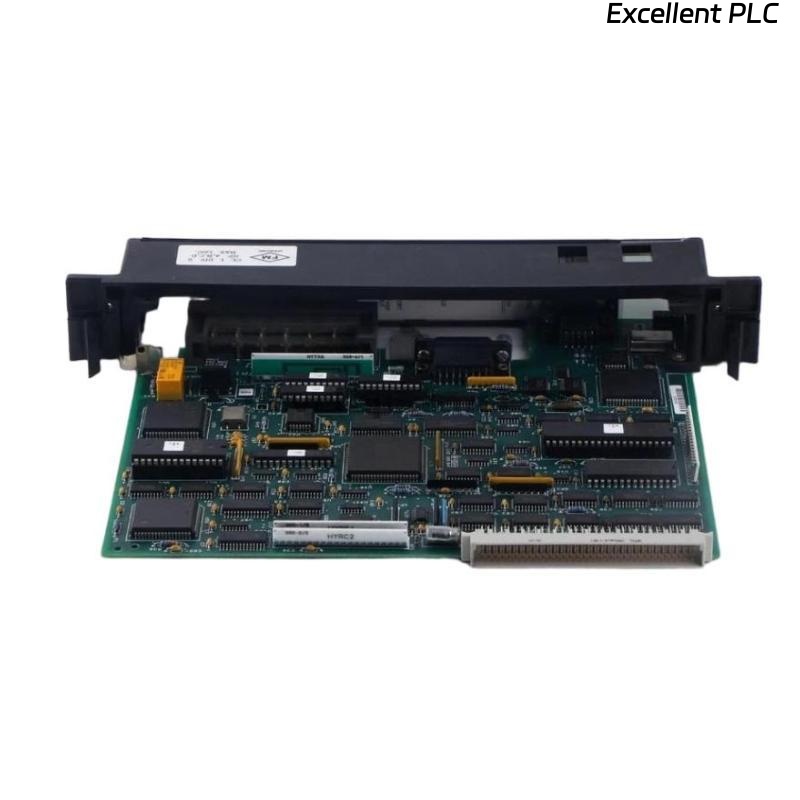

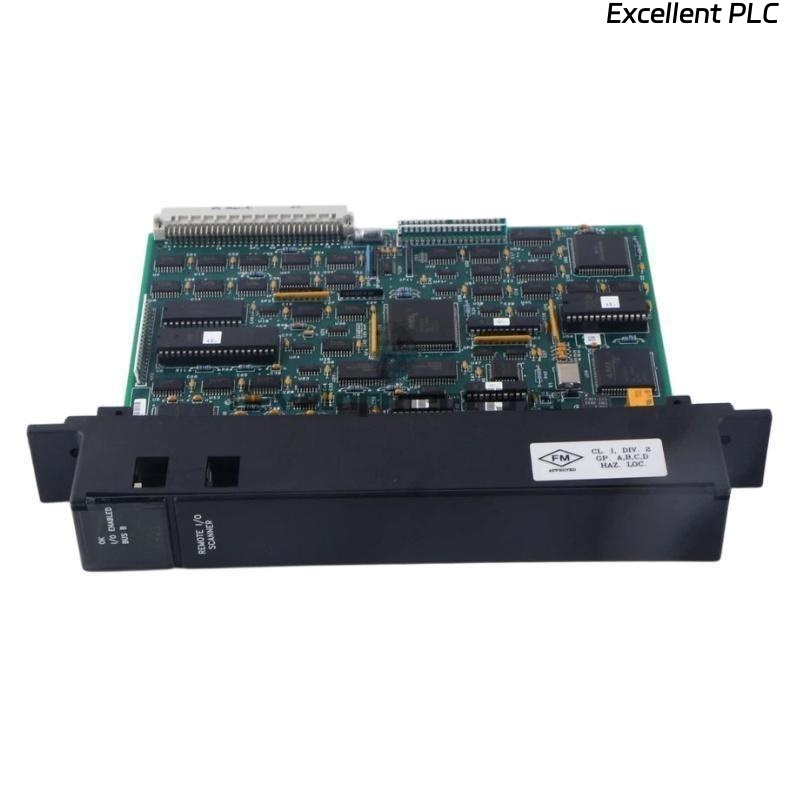

The GE Fanuc IC697BEM733 Remote I/O Scanner Module is designed for use with the GE Series 90-70 PLC system, providing high-speed communication between the main PLC and remote I/O devices over the Genius I/O network. It functions as a master controller for distributed I/O systems, offering robust performance in large-scale industrial automation applications.
Key Features
-
Fully compatible with GE Fanuc Series 90-70 PLCs
-
High-speed Genius I/O bus communication
-
Supports multiple remote I/O racks and devices
-
Built-in LED indicators for module and network status
-
Comprehensive error detection and diagnostics
-
Compact rack-mounted design for simple installation
-
Ideal for distributed control and monitoring applications
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC697BEM733 |
| Type | Remote I/O Scanner Module |
| Supported System | GE Fanuc Series 90-70 PLC |
| Communication Network | Genius I/O Network |
| Communication Speed | Up to 153.6 kbps |
| Bus Length | Up to 750 meters (depending on network configuration) |
| Supported Devices | Multiple Genius I/O nodes |
| Power Requirements | +5 VDC, 1.2 A (typical) |
| Indicators | Module OK, I/O Active, Bus Fault, Communication LEDs |
| Mounting | Rack-mounted (Series 90-70 base) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions | 201 × 40 × 153 mm |
| Weight | 0.48 kg |
Frequently Asked Questions (FAQ)
1. What is the main function of the IC697BEM733 module?
It serves as a remote I/O scanner that enables communication between a Series 90-70 PLC and distributed I/O devices via the Genius I/O network.
2. Which PLC systems are compatible with this module?
The IC697BEM733 is designed for use with the GE Fanuc Series 90-70 PLC family.
3. What communication speed does the module support?
It supports communication speeds up to 153.6 kbps, depending on network configuration.
4. How many devices can be connected to the Genius I/O bus?
Multiple remote I/O racks and devices can be connected, based on total bus capacity.
5. What type of diagnostics does the module offer?
It provides LED indicators for status, bus faults, and communication activity for quick troubleshooting.
6. What is the typical power consumption?
It operates on +5 VDC and consumes approximately 1.2 A.
7. Can this module be used in redundant configurations?
Yes, it supports integration within redundant I/O communication setups.
8. What are the environmental operating limits?
The module operates reliably between 0 °C and +60 °C and can be stored between –40 °C and +85 °C.
