Product Overview

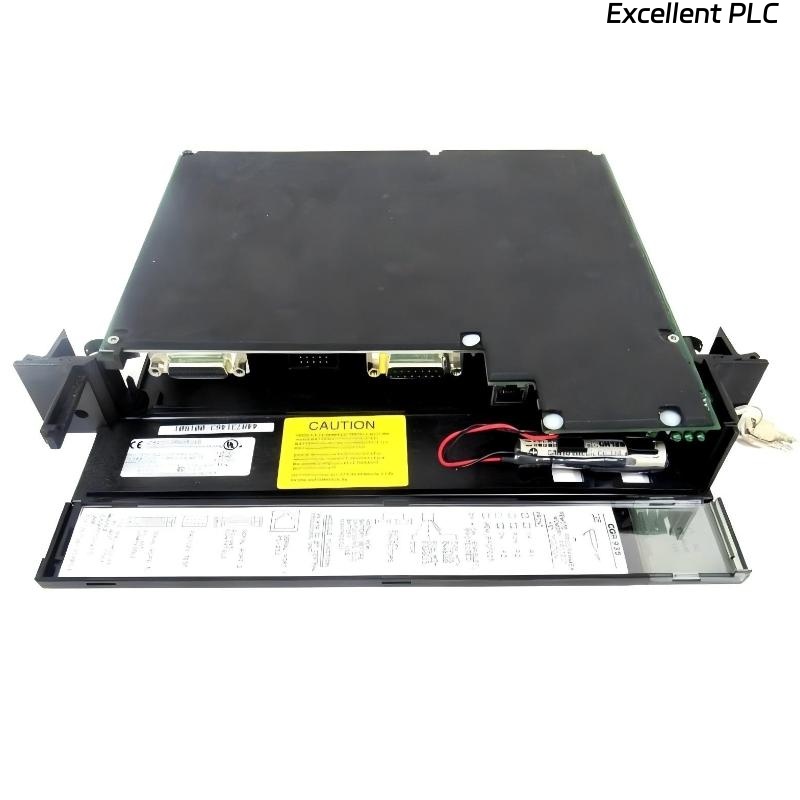

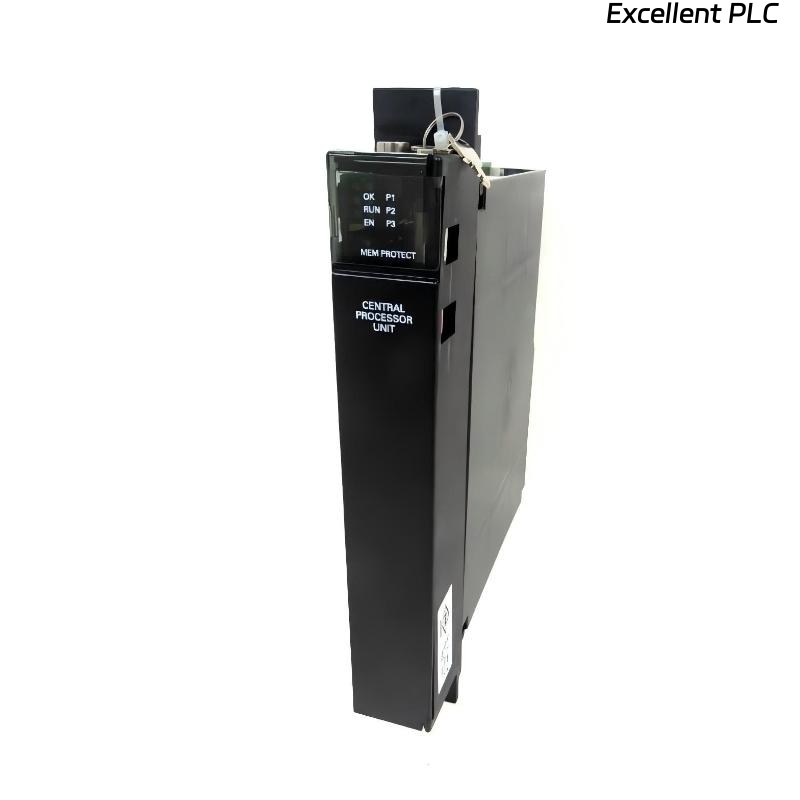

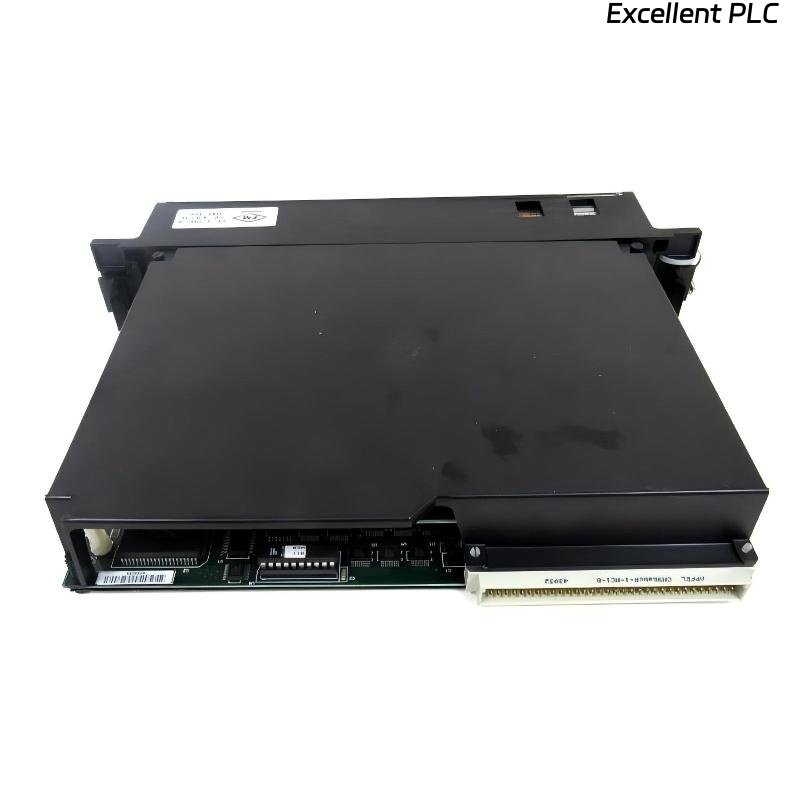

The GE Fanuc IC697CGR935 Single-slot Controller Module is a compact and high-performance controller designed for the Series 90-70 PLC system, providing reliable, deterministic control for large-scale industrial applications. As a single-slot controller, it offers superior processing power while optimizing rack space usage, making it ideal for applications where both performance and space efficiency are critical.
Key Features
-
Single-slot controller for space-efficient installation
-
High-speed 32-bit processor for demanding control applications
-
Supports Series 90-70 I/O and communication modules
-
Advanced fault detection and system diagnostics
-
Compatible with redundancy configurations for high availability
-
Modular architecture for flexible system expansion
-
Ideal for industrial automation, process control, and power generation
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC697CGR935 |
| Type | Single-slot Controller Module |
| Series | GE Fanuc Series 90-70 |
| Processor Type | 32-bit embedded microprocessor |
| User Memory | 2 MB (expandable) |
| Execution Speed | 1 ms per 1K of logic (typical) |
| Communication Interfaces | Ethernet, Genius I/O, Serial RS-232/485 |
| Programming Software | Logicmaster 90 or CIMPLICITY Control |
| Redundancy Support | Supported (Hot Standby) |
| Power Requirements | +5 VDC, 2.5 A (typical) |
| LED Indicators | Run, Stop, Fault, I/O Status |
| I/O Compatibility | Compatible with all Series 90-70 I/O modules |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5% to 95% non-condensing |
| Mounting | Rack-mounted (single slot) |
| Dimensions | 170 × 40 × 120 mm |
| Weight | 0.34 kg |
Frequently Asked Questions (FAQ)
1. What is the main function of the IC697CGR935 controller?
It acts as the central processing unit for Series 90-70 PLC systems, executing user logic and managing communication with I/O modules.
2. Does the IC697CGR935 support redundancy?
Yes, it supports hot standby redundancy configurations to enhance system reliability.
3. Which software is used to program this module?
The IC697CGR935 is compatible with Logicmaster 90 and CIMPLICITY Control software.
4. What communication interfaces are available?
It includes Ethernet, Genius I/O, and serial RS-232/485 communication ports.
5. How much memory does the controller provide?
The module includes 2 MB of user memory, which can be expanded based on application needs.
6. Is the IC697CGR935 compatible with older GE Fanuc I/O modules?
Yes, it is fully compatible with all Series 90-70 I/O and communication modules.
7. What are the typical power requirements?
It operates on +5 VDC and typically consumes 2.5 A of current.
8. What applications is this controller best suited for?
It is ideal for industrial process control, manufacturing automation, and power management systems.
