Product Overview

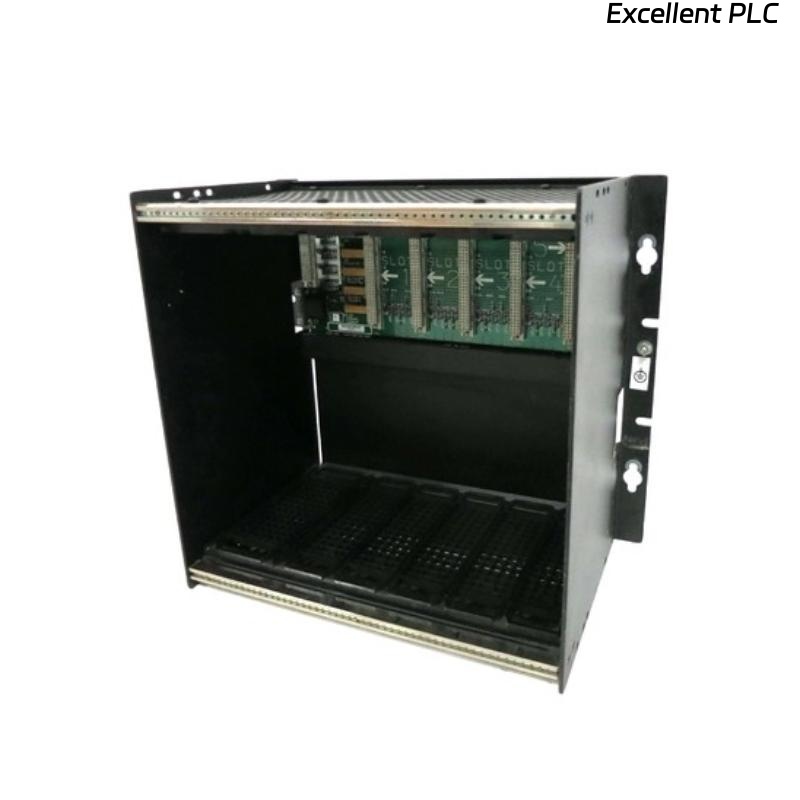

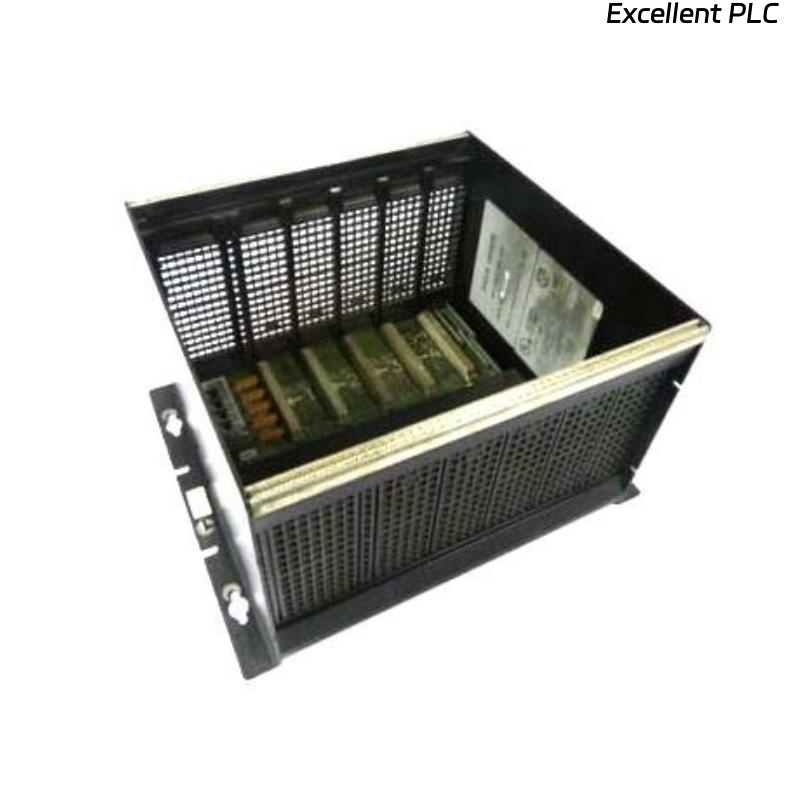

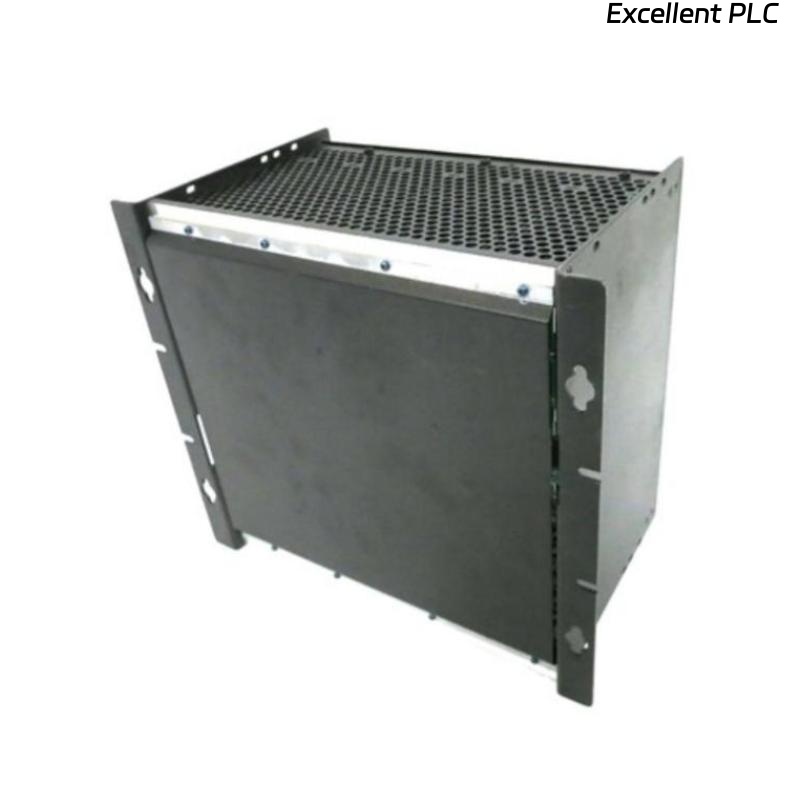

The GE Fanuc IC697CHS750 5-slot Rear I/O Rack is a high-quality modular rack designed for use with the GE Fanuc Series 90-70 PLC system. It provides a durable and efficient platform for mounting I/O modules and power supplies, offering robust mechanical support and reliable backplane connectivity.
Key Features
-
5-slot rack design suitable for rear-mount I/O configuration
-
High-quality backplane for stable communication between modules
-
Compatible with all GE Fanuc Series 90-70 modules
-
Rugged construction for demanding industrial environments
-
Provides reliable power and signal distribution
-
Suitable for remote or expansion rack installations
-
Easy installation and maintenance with modular architecture
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC697CHS750 |
| Type | 5-slot Rear I/O Rack |
| Series | GE Fanuc Series 90-70 |
| Slots Available | 5 module slots (plus power supply connection) |
| Backplane Type | High-speed parallel bus |
| Rack Configuration | Rear-mounted I/O configuration |
| Power Supply Compatibility | IC697PWR711, IC697PWR711H, IC697PWR771 |
| Module Compatibility | All Series 90-70 I/O, CPU, and communication modules |
| Expansion Capability | Supports up to 8 racks in a system |
| Mounting Method | Panel or rack-mounted |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5% to 95% non-condensing |
| Construction Material | Aluminum and industrial-grade thermoplastic |
| Dimensions | 260 × 410 × 150 mm |
| Weight | 4.01 kg |
Frequently Asked Questions (FAQ)
1. What is the function of the IC697CHS750 rack?
It serves as a backplane and mounting structure for Series 90-70 modules, providing both mechanical support and electrical connectivity.
2. How many modules can this rack support?
The rack supports up to five modules, excluding the power supply slot.
3. Is the IC697CHS750 compatible with all Series 90-70 modules?
Yes, it is fully compatible with all standard Series 90-70 CPUs, I/O, and communication modules.
4. What type of power supplies can be used with this rack?
It supports IC697PWR711, IC697PWR711H, and IC697PWR771 power supplies.
5. Can this rack be used in expansion configurations?
Yes, it is commonly used as a rear I/O or expansion rack in multi-rack systems.
6. How is the rack mounted?
The IC697CHS750 can be panel-mounted or installed within a standard rack cabinet.
7. What backplane type does it use?
It uses a high-speed parallel backplane for reliable data communication between modules.
8. What are the environmental limits for operation?
The rack operates between 0 °C and +60 °C with up to 95% non-condensing humidity.
