Product Overview

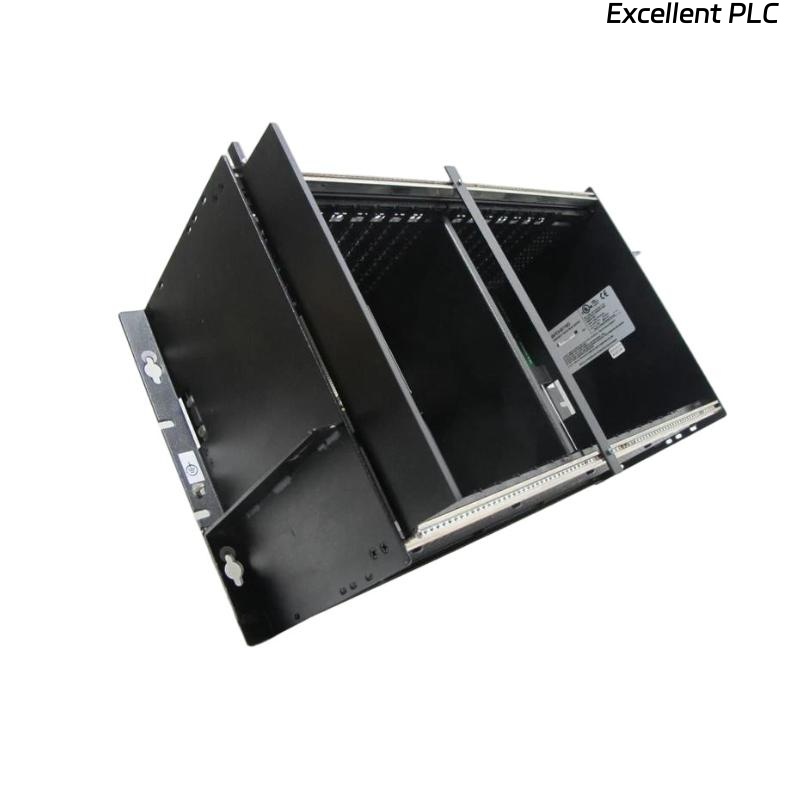

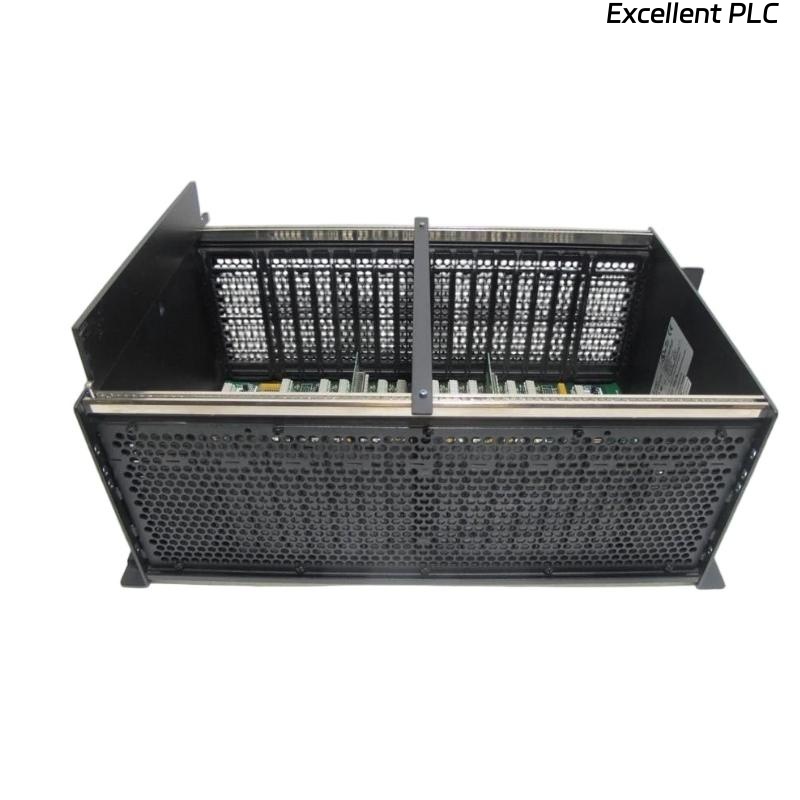

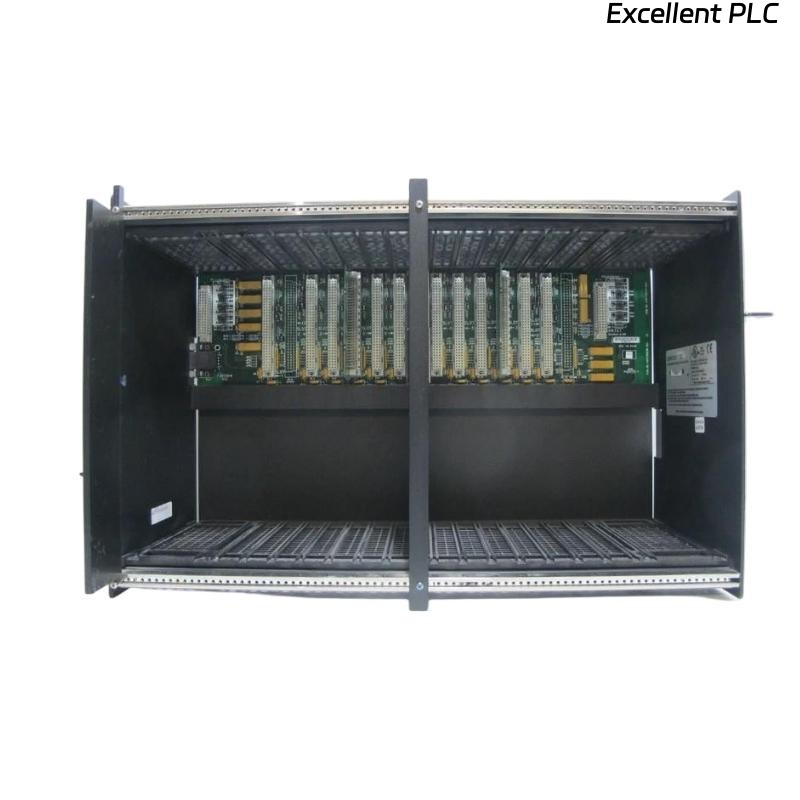

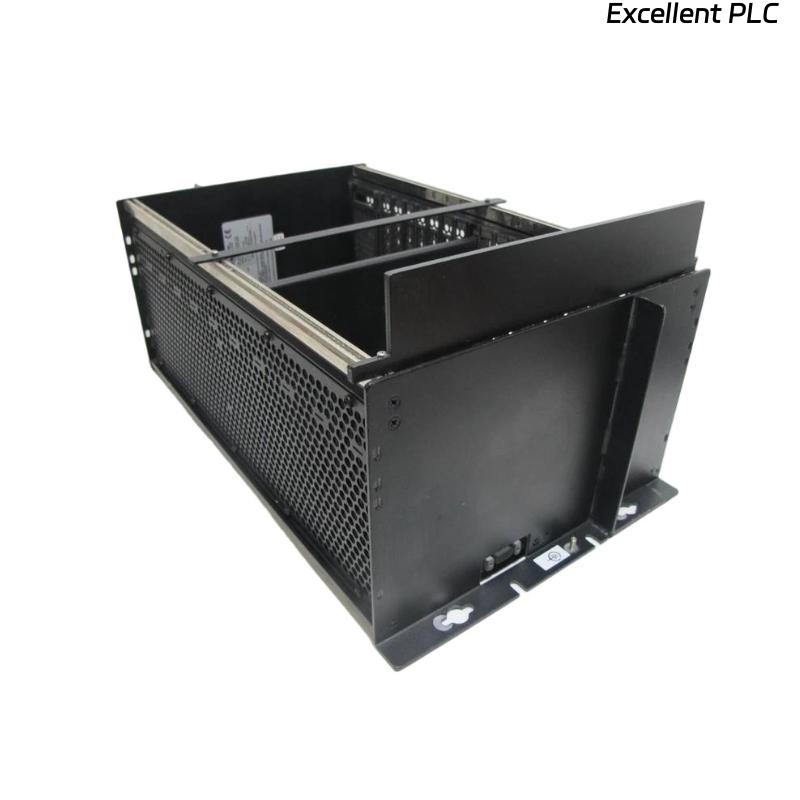

The GE Fanuc IC697CHS770 Redundant Rack is designed for high-availability automation systems within the GE Series 90-70 PLC platform. It accommodates two complete and independent control systems in a single chassis, providing a redundant architecture that ensures uninterrupted operation in critical industrial applications. This rack supports seamless switchover between redundant systems, minimizing downtime and maximizing reliability.
Key Features
-
Dual-section backplane supporting redundant configurations
-
Each section includes its own power supply slot
-
Supports both IC697 and VME-compatible modules
-
Designed for high-reliability and fault-tolerant systems
-
Rear-mount version suitable for 10-inch deep enclosures
-
Provides continuous operation through system redundancy
Technical Specifications
| Item | Specification |
|---|---|
| Model | IC697CHS770 |
| Product Type | Redundant Rack |
| System Type | Dual-section backplane (two independent systems) |
| Number of Slots | 12 total (6 per section) |
| Power Supply Slots | 2 (one for each section) |
| Compatible Modules | GE Fanuc Series 90-70 modules and VME modules |
| Mounting Type | Rear-mount |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 283 × 483 × 190 mm |
| Weight | 9.01 kg |
| Cooling Method | Natural convection |
| Construction | Aluminum frame with integrated backplane |
| System Redundancy | Supports dual controller and I/O redundancy |
Frequently Asked Questions (FAQ)
1. What is the purpose of the IC697CHS770 Redundant Rack?
It provides two independent control sections in one rack to support redundant PLC system configurations.
2. How many slots does each system section contain?
Each section includes six module slots plus one dedicated power supply slot.
3. Can both IC697 and VME modules be installed in the rack?
Yes, the IC697CHS770 is compatible with both IC697 PLC and VME modules.
4. What kind of mounting configuration does the IC697CHS770 support?
It is a rear-mount version suitable for installation in 10-inch deep enclosures.
5. Does the rack require a specific type of power supply?
Each section uses a standard Series 90-70 power supply and can share power between racks if needed.
6. How is redundancy achieved with this rack?
Two complete systems can operate in parallel, allowing one to automatically take over if the other fails.
7. What temperature range is supported by the rack?
The operating temperature range is from 0°C to +60°C, and storage from -40°C to +85°C.
8. Is the rack suitable for industrial environments?
Yes, it is designed to operate reliably in harsh industrial and process control environments.
