Product Overview

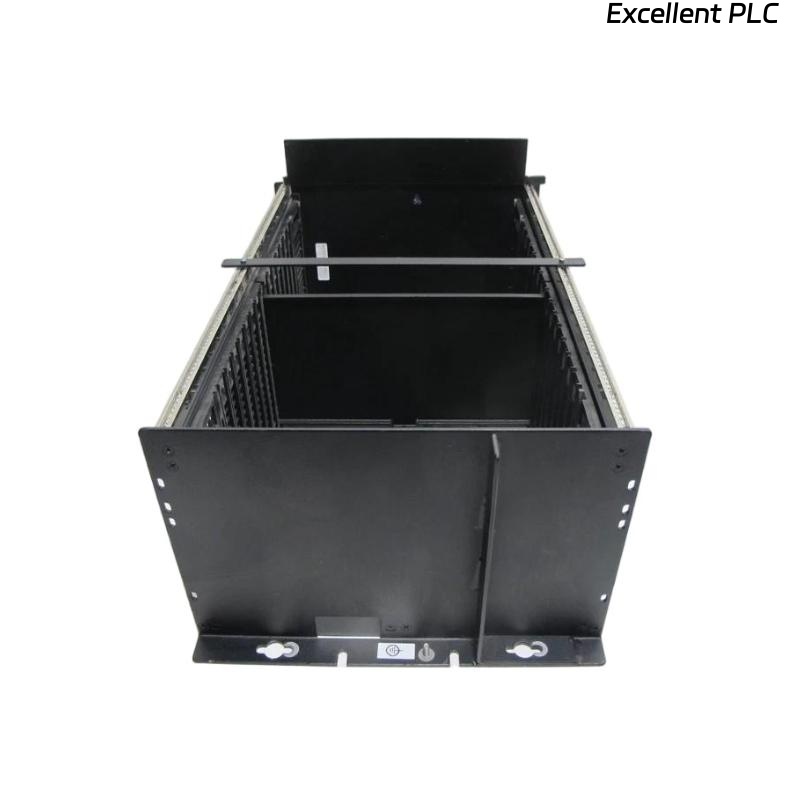

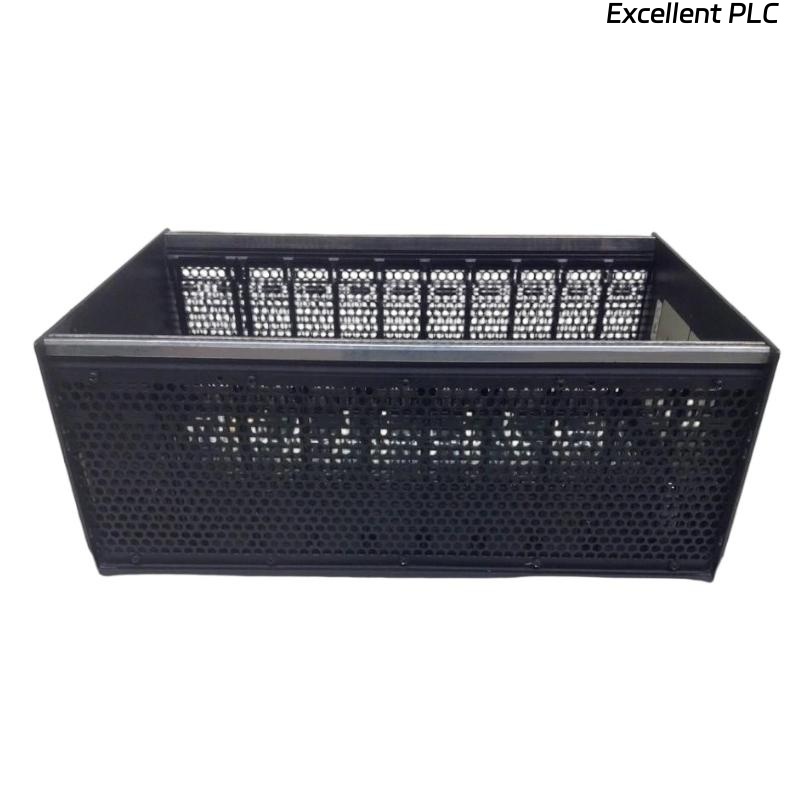

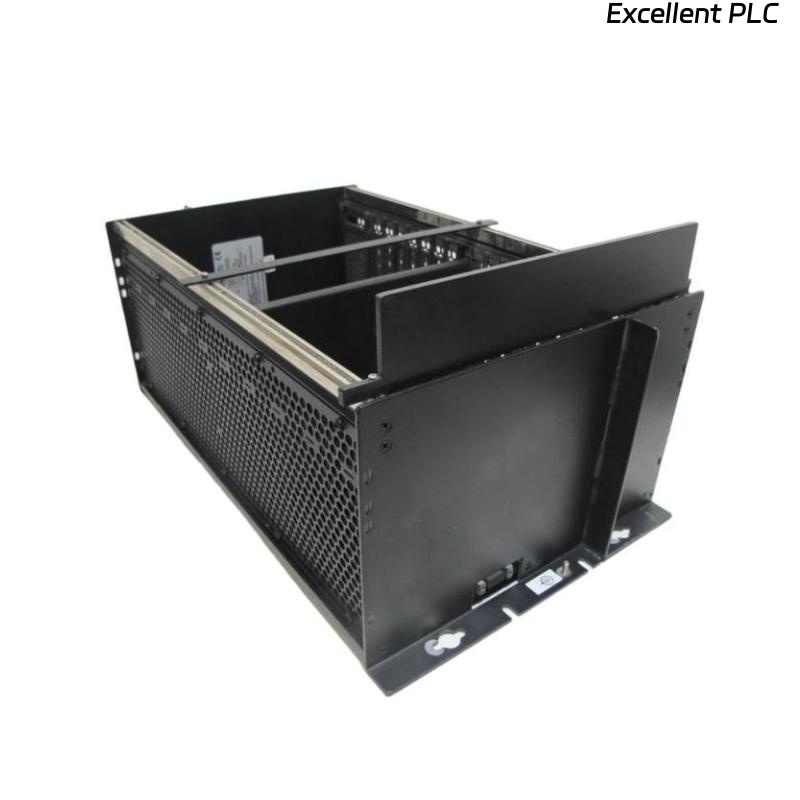

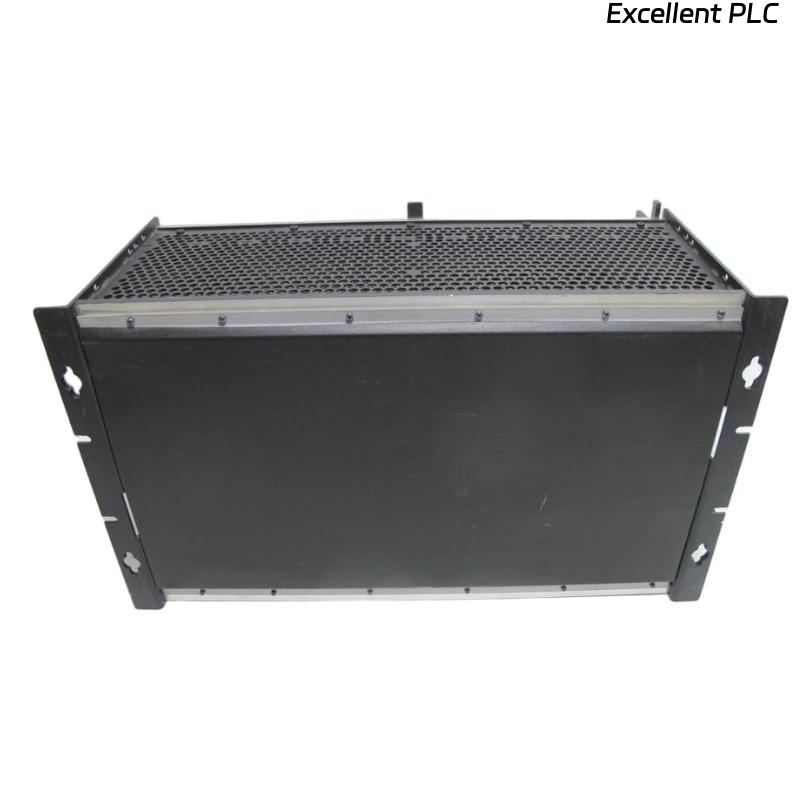

The GE Fanuc IC697CHS790 9-slot Rear Rack is a robust and high-performance backplane chassis designed for use within the GE Fanuc Series 90-70 PLC system. It provides the mechanical and electrical structure for up to nine modules, including CPUs, power supplies, and I/O modules. Its rear-mount configuration allows easy integration in industrial enclosures, optimizing space and accessibility for control systems.
Key Features
-
9-slot rack designed for Series 90-70 PLC systems
-
Rear-mount configuration for compact control cabinet installation
-
Supports CPUs, I/O modules, and communication modules
-
High-quality backplane ensuring signal integrity and reliability
-
Compatible with VME-based and IC697 modules
-
Provides one dedicated slot for power supply and CPU
Technical Specifications
| Item | Specification |
|---|---|
| Model | IC697CHS790 |
| Product Type | 9-slot Rear Rack |
| Number of Slots | 9 total (including power supply and CPU slot) |
| Compatible Modules | GE Fanuc Series 90-70 and VME-compatible modules |
| Mounting Type | Rear-mount |
| Backplane Type | VME standard bus |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Power Supply Slots | 1 |
| Cooling Method | Natural convection |
| Dimensions | 283 × 483 × 190 mm |
| Weight | 5.15 kg |
| Construction | Aluminum chassis with integrated grounding |
| System Compatibility | Series 90-70 PLC Systems |
Industry Applications
-
Industrial automation and process control
-
Manufacturing and production systems
-
Power generation and energy management
-
Oil, gas, and petrochemical industries
-
Transportation and critical infrastructure systems
Frequently Asked Questions (FAQ)
1. What type of modules can be installed in the IC697CHS790 rack?
It supports GE Fanuc Series 90-70 and VME-compatible modules including CPUs, I/O, and communication modules.
2. How many slots are available for use?
The rack provides a total of nine slots, one of which is typically reserved for the power supply and CPU.
3. What is the mounting type of this rack?
It is a rear-mount version, designed for installation in control panels or enclosures.
4. Can this rack operate in high-temperature industrial environments?
Yes, it supports an operating range of 0°C to +60°C, suitable for most industrial conditions.
5. What communication bus standard does it use?
The IC697CHS790 utilizes a VME backplane bus for high-speed communication between modules.
6. Is the rack compatible with redundant systems?
While primarily used for single systems, it can be integrated into redundant setups with compatible modules.
7. How is power distributed in the rack?
Power is supplied through the backplane from the dedicated power supply module, ensuring stable operation for all slots.
8. What is the construction material of the rack?
The rack is built with a durable aluminum frame to provide structural rigidity and electromagnetic shielding.
