Product Overview

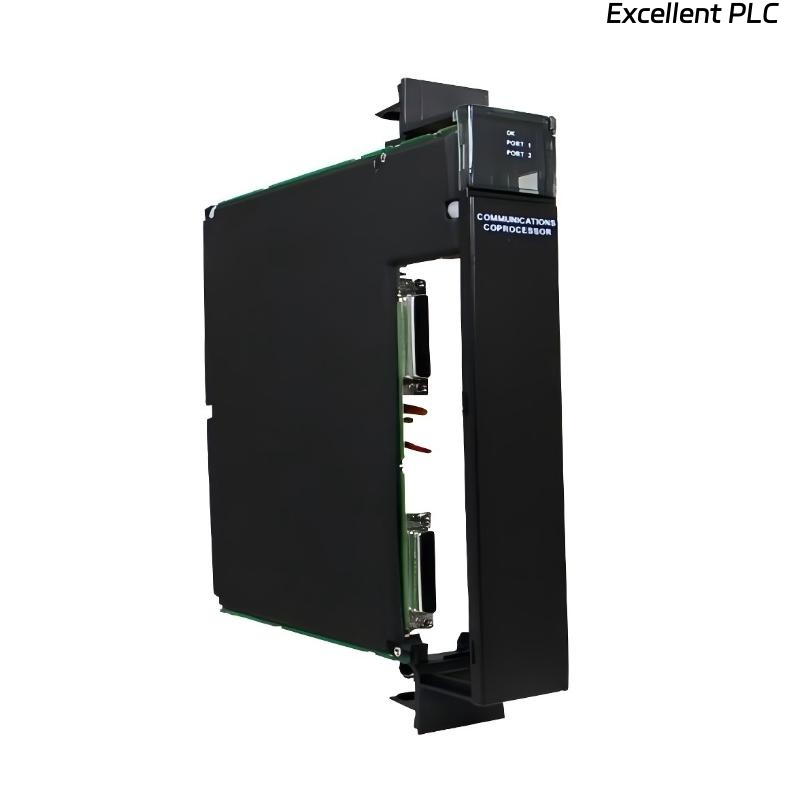

The GE Fanuc IC697CMM711 Communications Coprocessor Module is a versatile and high-performance communication interface designed for the GE Fanuc Series 90-70 PLC system. It provides the processing capability and network connectivity needed for efficient data exchange between PLCs, operator interfaces, supervisory control systems, and other intelligent devices.
Key Features
-
Intelligent communications coprocessor for Series 90-70 PLC systems
-
Supports GE Fanuc SNP and SNPX communication protocols
-
Provides two independent serial communication ports
-
Capable of acting as a master or slave in a network
-
Configurable for point-to-point or multipoint communications
-
Offloads communication processing from the CPU for improved system performance
-
Compatible with programming and monitoring software such as CIMPLICITY and Logicmaster
Technical Specifications
| Item | Specification |
|---|---|
| Model | IC697CMM711 |
| Product Type | Communications Coprocessor Module |
| Compatible System | GE Fanuc Series 90-70 PLC |
| Number of Ports | 2 independent RS-232/RS-485 serial ports |
| Supported Protocols | SNP, SNPX, Modbus RTU, ASCII |
| Communication Speed | 300 to 19,200 baud |
| Network Configuration | Point-to-point or multipoint |
| Processor Type | Dedicated communication microprocessor |
| Power Consumption | 1.2 A at +5 VDC |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Diagnostics | LED indicators for activity, error, and status |
| Firmware Update | Supported via PLC programming tools |
| Mounting Type | Standard Series 90-70 rack mount |
| Dimensions | 233 × 41 × 175 mm |
| Weight | 0.51 kg |
Industry Applications
-
Industrial process automation and monitoring
-
Power generation and distribution systems
-
Oil and gas pipeline control
-
Manufacturing and production line communication networks
-
Building management and HVAC systems
Frequently Asked Questions (FAQ)
1. What is the main function of the IC697CMM711 module?
It serves as a communications coprocessor, managing data exchange between the PLC and external devices or systems.
2. How many communication ports does the IC697CMM711 have?
The module has two independent serial ports that can be configured for RS-232 or RS-485 operation.
3. Which communication protocols are supported?
It supports GE Fanuc SNP, SNPX, Modbus RTU, and ASCII protocols.
4. Can this module be used in both master and slave configurations?
Yes, it can act as either a master or a slave device within a network.
5. How does the module improve PLC performance?
It offloads communication tasks from the CPU, freeing it to handle real-time control and logic processing.
6. Is firmware upgrading supported for this module?
Yes, firmware updates can be performed via the PLC programming environment.
7. What diagnostic features are available?
LED indicators provide real-time feedback for power, communication activity, and fault conditions.
8. Is the IC697CMM711 compatible with all Series 90-70 racks?
Yes, it is designed to fit any standard Series 90-70 rack slot and integrates seamlessly with other GE Fanuc modules.
