Product Overview

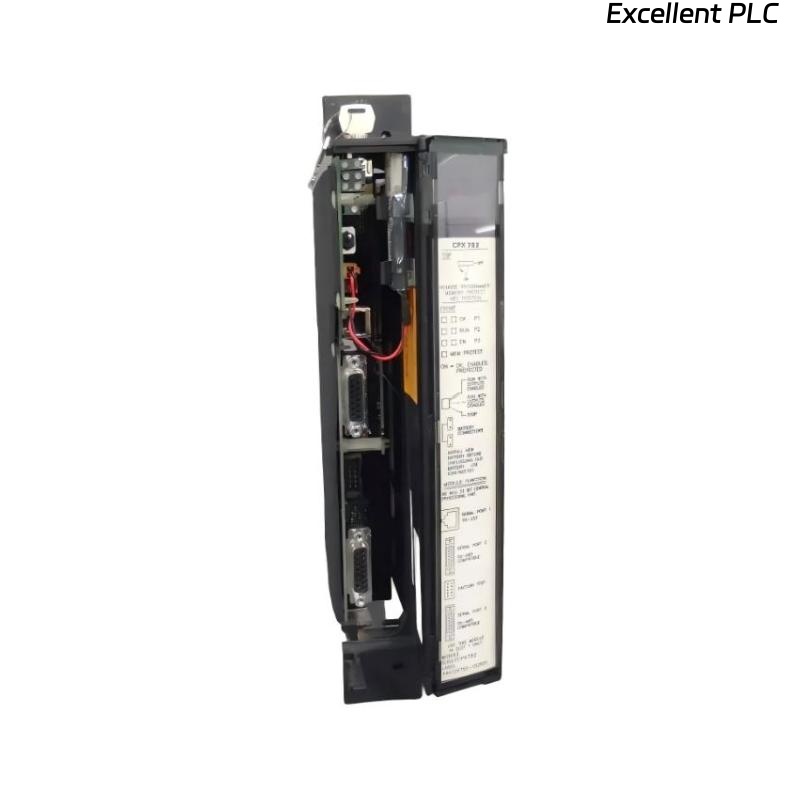

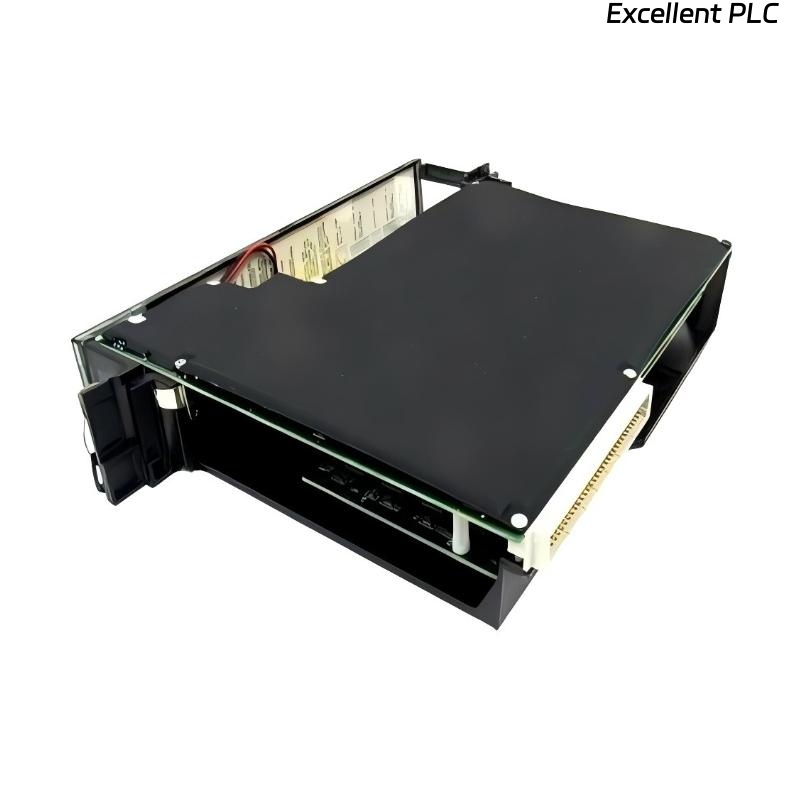

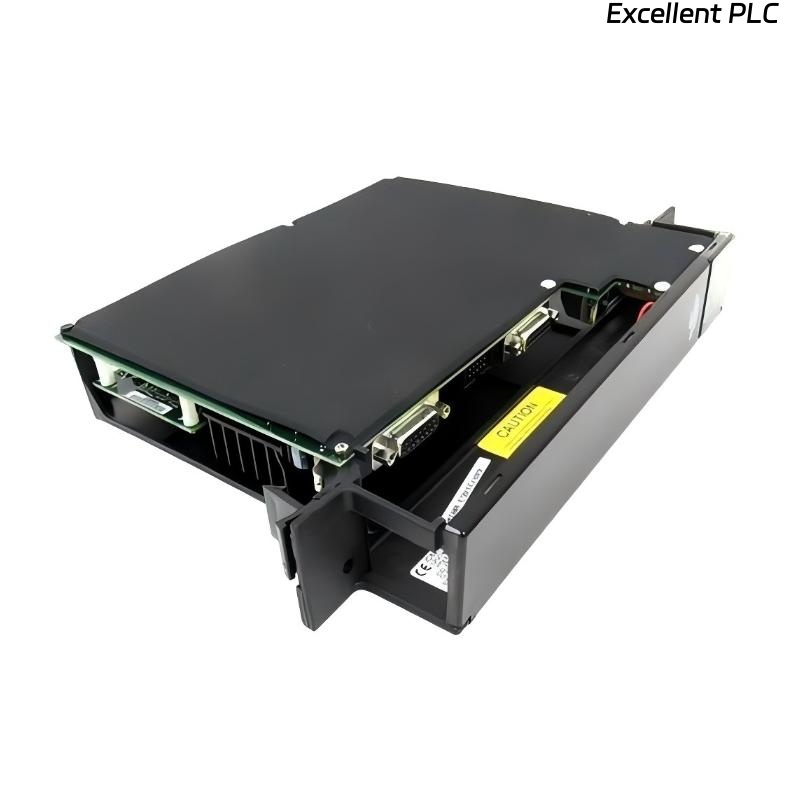

The GE Fanuc IC697CPX782 is a high-performance single-slot CPU module designed for the IC697 Series PLC systems. It provides reliable control and processing capabilities for industrial automation applications, offering fast scan times, advanced communication features, and seamless integration with GE Fanuc I/O modules.
Key Features
-
Single-slot CPU module for IC697 Series PLC systems
-
High-speed processing and fast scan times
-
Compatible with IC697 I/O modules and communication modules
-
Supports advanced control and communication protocols
-
Built-in diagnostic indicators for status and fault monitoring
-
Compact, space-saving design for single-slot applications
-
Suitable for various industrial automation and control tasks
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC697CPX782 |
| Type | Single-slot PLC CPU Module |
| Supported System | GE Fanuc IC697 Series PLC |
| Memory | 128 KB user program memory (typical) |
| Scan Time | 1–2 ms typical per 100 I/O points |
| Communication Ports | RS-232 / RS-485 / Ethernet (optional) |
| Indicators | RUN, FAULT, I/O STATUS LEDs |
| Power Requirements | +5 VDC, 1.5 A (typical) |
| Mounting | Single-slot IC697 PLC rack |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions | 180 × 50 × 100 mm |
| Weight | 0.721 kg |
Frequently Asked Questions (FAQ)
1. What is the main function of the IC697CPX782 module?
It serves as a single-slot CPU for controlling and processing tasks in IC697 PLC systems.
2. Which PLC systems is this module compatible with?
It is compatible with GE Fanuc IC697 Series PLC systems.
3. What is the typical scan time?
The typical scan time is 1–2 ms per 100 I/O points.
4. What type of memory does it have?
It has 128 KB of user program memory (typical).
5. How is it installed?
It mounts directly into a single-slot IC697 PLC rack.
6. What communication options are available?
It supports RS-232, RS-485, and optional Ethernet communication.
7. What is the operating temperature range?
The module operates between 0 °C and +60 °C.
8. What diagnostic features are included?
It has built-in LEDs for RUN, FAULT, and I/O STATUS monitoring.
