Product Overview

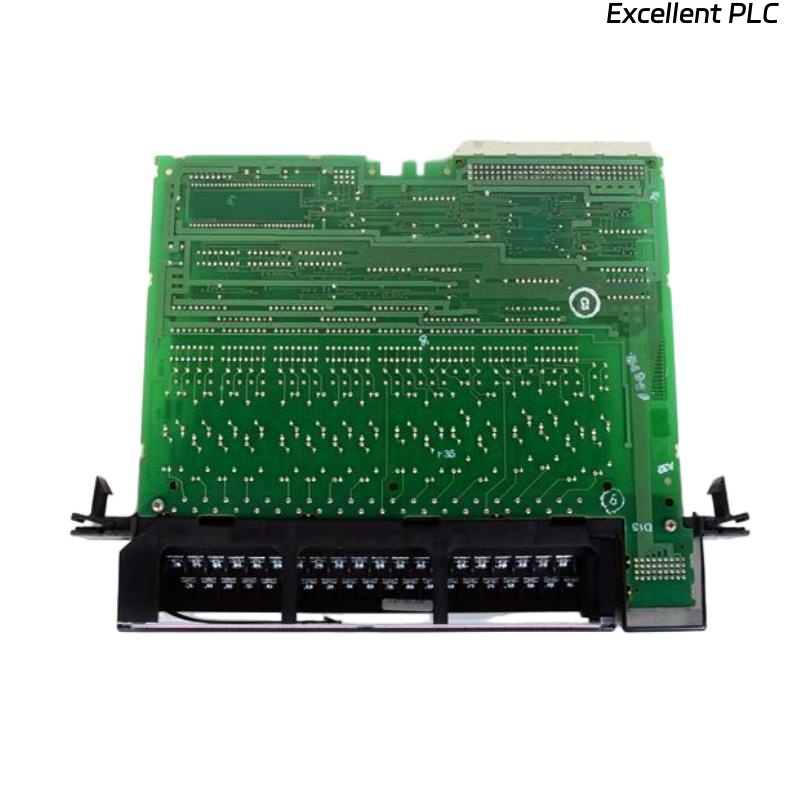

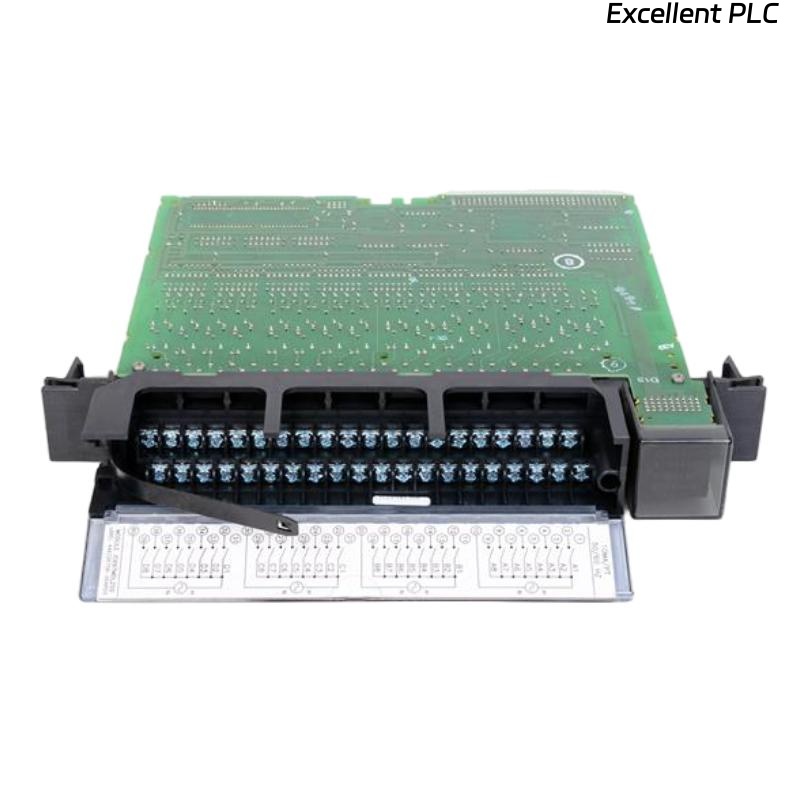

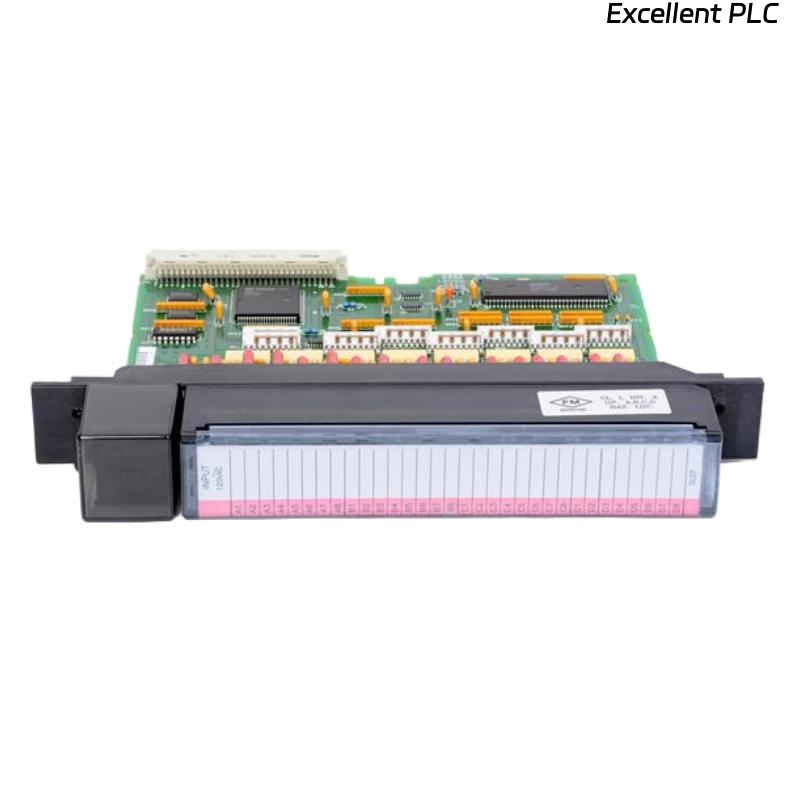

The GE Fanuc IC697MDL250 Discrete Input Module is a 16-point, optically isolated input module designed for use with the GE Fanuc Series 90-70 PLC systems. It is ideal for monitoring discrete ON/OFF signals from field devices operating at 24 VDC. With high noise immunity and robust electrical isolation, this module ensures reliable operation even in demanding industrial environments.
Key Features
-
16 discrete DC input points for ON/OFF signal detection
-
Supports 24 VDC nominal input voltage
-
Optical isolation between channels for superior noise protection
-
LED indicators for individual input status monitoring
-
Compatible with GE Fanuc Series 90-70 PLC systems
-
Field wiring through removable terminal block connectors
-
Rugged construction for industrial automation environments
-
Compact, rack-mounted design for easy installation
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC697MDL250 |
| Type | Discrete Input Module |
| System Compatibility | GE Fanuc Series 90-70 PLC |
| Number of Inputs | 16 points |
| Input Voltage Range | 24 VDC nominal |
| Input Current | 6 mA typical at rated voltage |
| Isolation | Optical isolation per channel |
| Input Impedance | 4.3 kΩ (typical) |
| Logic Type | Sourcing or sinking |
| Indicators | LED per input channel |
| Power Requirements | +5 VDC, 0.25 A (typical) |
| Mounting Type | Standard Series 90-70 rack mount |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions | 201 × 43 × 152 mm |
| Weight | 0.75 kg |
Frequently Asked Questions (FAQ)
1. What is the main purpose of the IC697MDL250 module?
It detects 24 VDC ON/OFF signals from field devices and transmits their status to the Series 90-70 PLC system.
2. How many input channels does the module provide?
The IC697MDL250 provides 16 optically isolated input channels.
3. What voltage range does it support?
It supports a nominal input voltage of 24 VDC.
4. Does this module provide electrical isolation?
Yes, each channel is optically isolated to prevent electrical interference and ensure signal integrity.
5. What devices can be connected to the inputs?
It supports connection to proximity switches, push buttons, relays, and limit switches.
6. Are there LED indicators on the module?
Yes, each input channel includes an LED indicator for quick diagnostic status.
7. What is the typical current consumption of the module?
It requires +5 VDC at approximately 0.25 A from the PLC backplane.
8. What are the environmental operating conditions?
It operates between 0 °C and +60 °C and can be stored between –40 °C and +85 °C.
