Product Overview

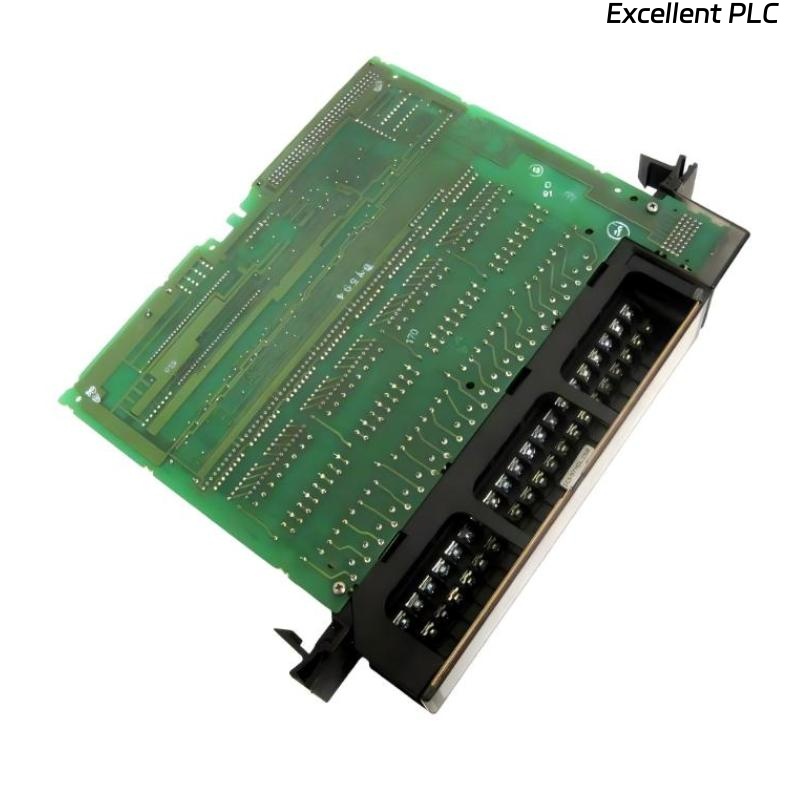

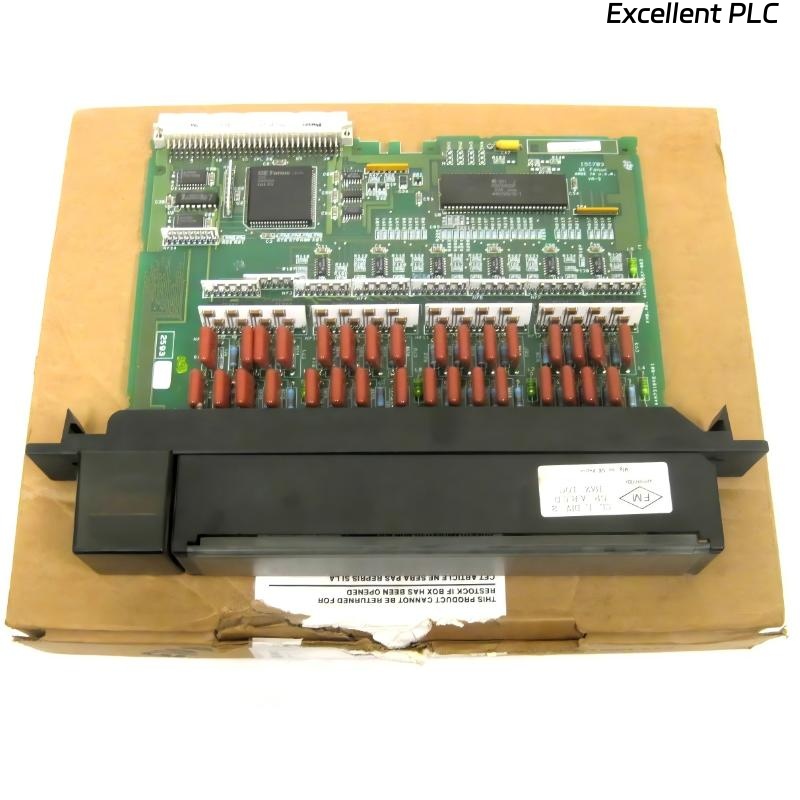

The GE Fanuc IC697MDL254 Discrete Input Module is a 32-point DC input module designed for the GE Fanuc Series 90-70 PLC system. It provides reliable signal detection from field devices that operate at 24 VDC, offering high-speed response and strong noise immunity. The module features optical isolation for each group of inputs, ensuring reliable operation even in electrically noisy industrial environments.
Key Features
-
32 discrete DC input points for ON/OFF signal detection
-
Supports 24 VDC nominal input voltage
-
Optical isolation between input groups for noise protection
-
LED indicators for each input channel for quick diagnostics
-
Compatible with GE Fanuc Series 90-70 PLC systems
-
Compact rack-mounted design for easy installation
-
Reliable signal integrity in industrial environments
-

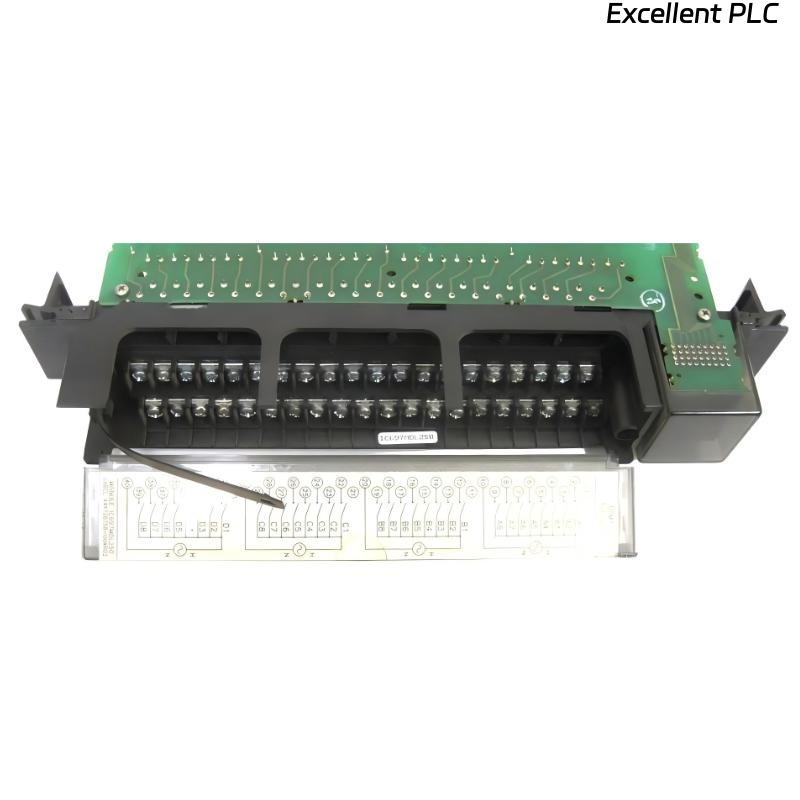

Field wiring via removable terminal block connectors
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC697MDL254 |
| Type | Discrete Input Module |
| System Compatibility | GE Fanuc Series 90-70 PLC |
| Number of Inputs | 32 points |
| Input Voltage Range | 24 VDC nominal |
| Input Current | 6 mA typical at rated voltage |
| Isolation | Optical isolation per group |
| Input Impedance | 4.3 kΩ (typical) |
| Logic Type | Sinking or sourcing |
| Indicators | LED per input channel |
| Power Requirements | +5 VDC, 0.30 A (typical) |
| Mounting Type | Standard Series 90-70 rack mount |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions | 201 × 43 × 152 mm |
| Weight | 0.61 kg |
Frequently Asked Questions (FAQ)
1. What is the primary function of the IC697MDL254 module?
It detects discrete ON/OFF signals from 24 VDC field devices and sends their status to the GE Fanuc Series 90-70 PLC.
2. How many input channels does the IC697MDL254 provide?
The module provides 32 discrete DC input points.
3. What voltage level does it support?
It supports a nominal input voltage of 24 VDC.
4. Does the module include optical isolation?
Yes, the inputs are optically isolated by groups to enhance signal integrity and reduce electrical interference.
5. Are there LED indicators for monitoring?
Yes, each input channel includes an LED for real-time status monitoring.
6. What field devices can be connected to this module?
It supports switches, sensors, proximity detectors, and relays operating at 24 VDC.
7. What is the power requirement of the module?
It consumes +5 VDC at approximately 0.30 A from the backplane.
8. How is the module installed?
It mounts directly into a GE Fanuc Series 90-70 PLC rack using standard connectors.
