Product Overview

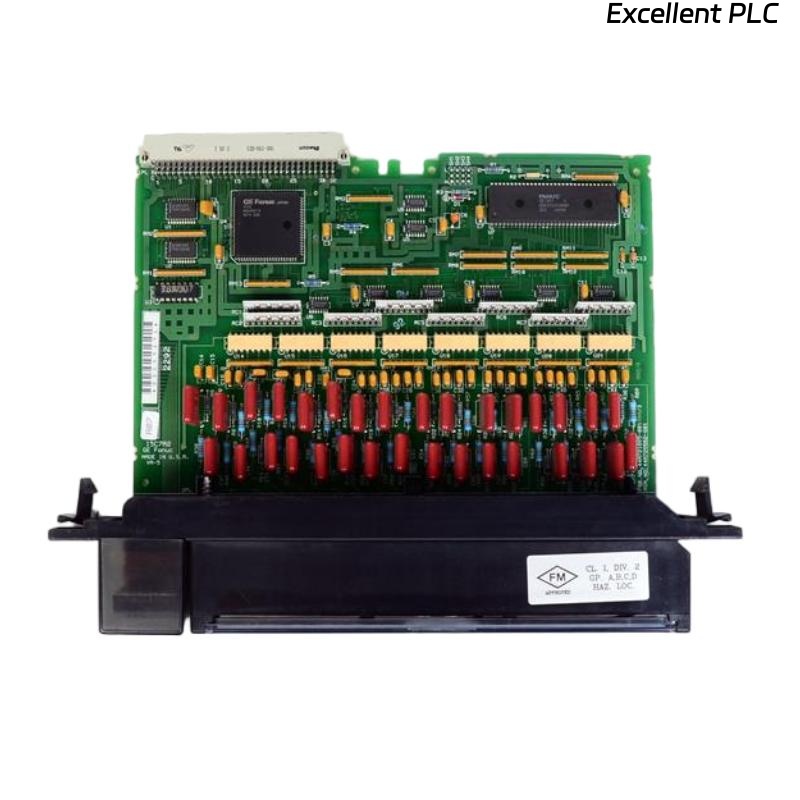

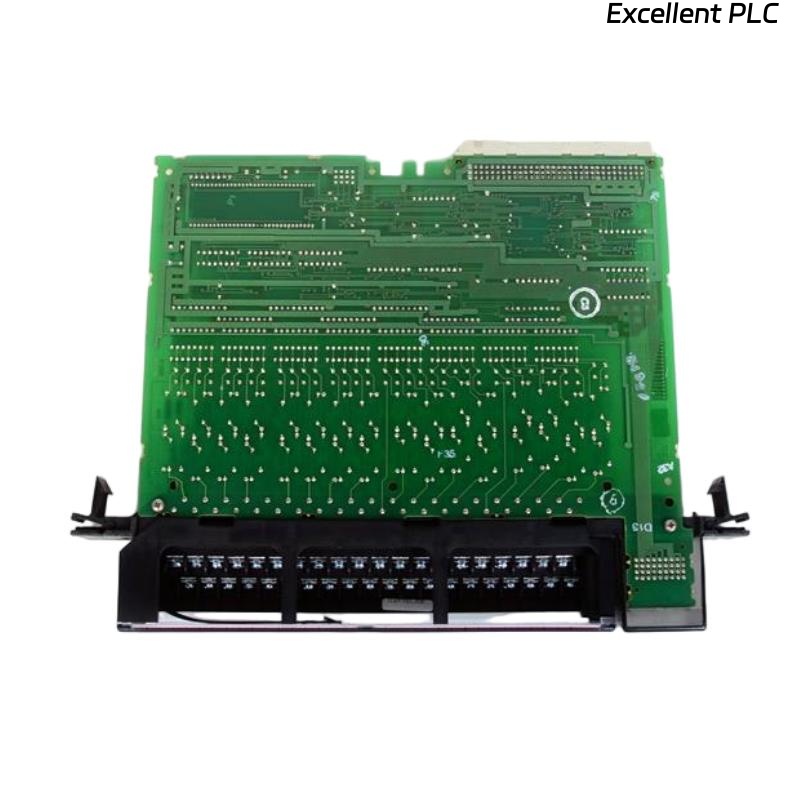

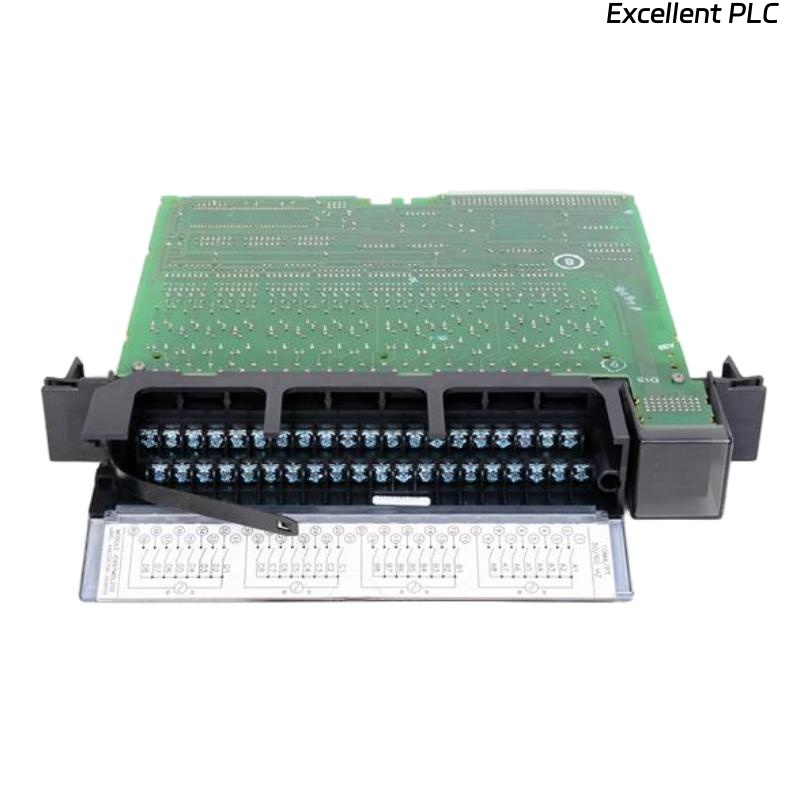

The GE Fanuc IC697MDL350 Discrete Output Module is part of the GE Series 90-70 PLC family, providing reliable digital output capabilities for industrial automation applications. It is designed to interface with the PLC system to control external devices such as motors, solenoids, and indicator lights.
Key Features
-
High-speed discrete output module for GE Series 90-70 PLC systems
-
Controls external devices such as motors, solenoids, and lights
-
Robust design for reliable operation in industrial environments
-
LED indicators for status and diagnostic feedback
-
Compact, rack-mounted design for easy installation
-
Supports integration with multiple PLC I/O modules
-
Reduces wiring complexity and improves system reliability
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC697MDL350 |
| Type | Discrete Output Module |
| Supported System | GE Fanuc Series 90-70 PLC |
| Number of Points | 32 discrete outputs |
| Output Type | Sinking or sourcing, depending on configuration |
| Output Voltage | 24 VDC |
| Maximum Output Current | 0.5 A per point |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Indicators | Output status LEDs |
| Mounting | Standard rack mount (Series 90-70 base) |
| Dimensions | 200 × 45 × 145 mm |
| Weight | 0.34 kg |
Frequently Asked Questions (FAQ)
1. What is the main function of the IC697MDL350 module?
It provides 32 discrete outputs for controlling external devices in automation systems.
2. Which PLC systems is this module compatible with?
It is compatible with GE Fanuc Series 90-70 PLC systems.
3. How many points does it support?
It supports 32 discrete output points.
4. What is the output type?
It supports sinking or sourcing outputs, depending on configuration.
5. What is the maximum output voltage and current?
The module outputs 24 VDC at up to 0.5 A per point.
6. What is the operating temperature range?
It operates reliably between 0 °C and +60 °C.
7. Does the module have diagnostic indicators?
Yes, it includes LEDs for output status.
8. How is this module installed?
It mounts directly into a Series 90-70 PLC rack using standard backplane connectors.
