Product Overview

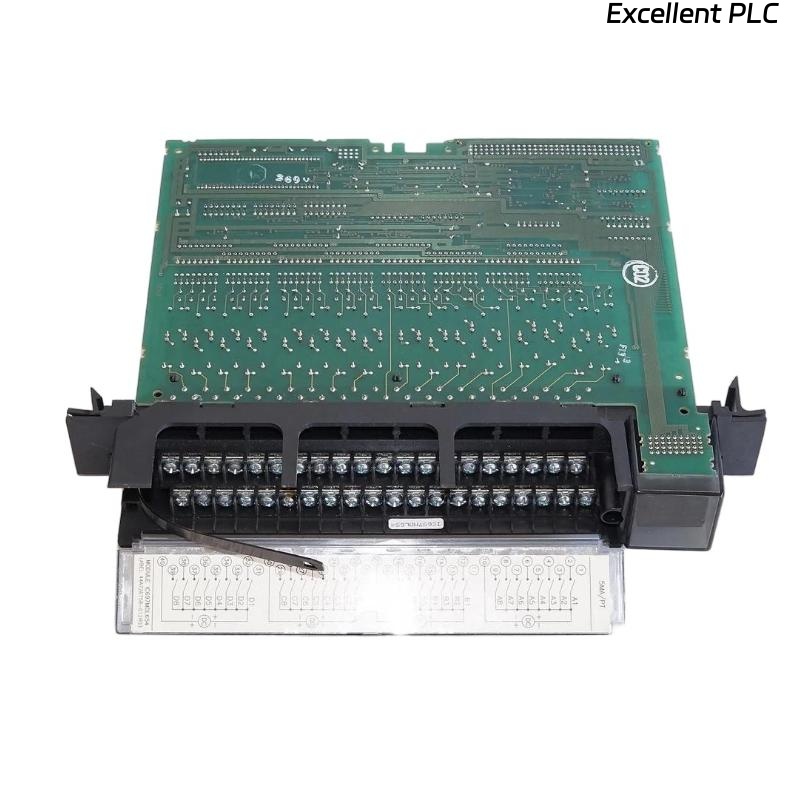

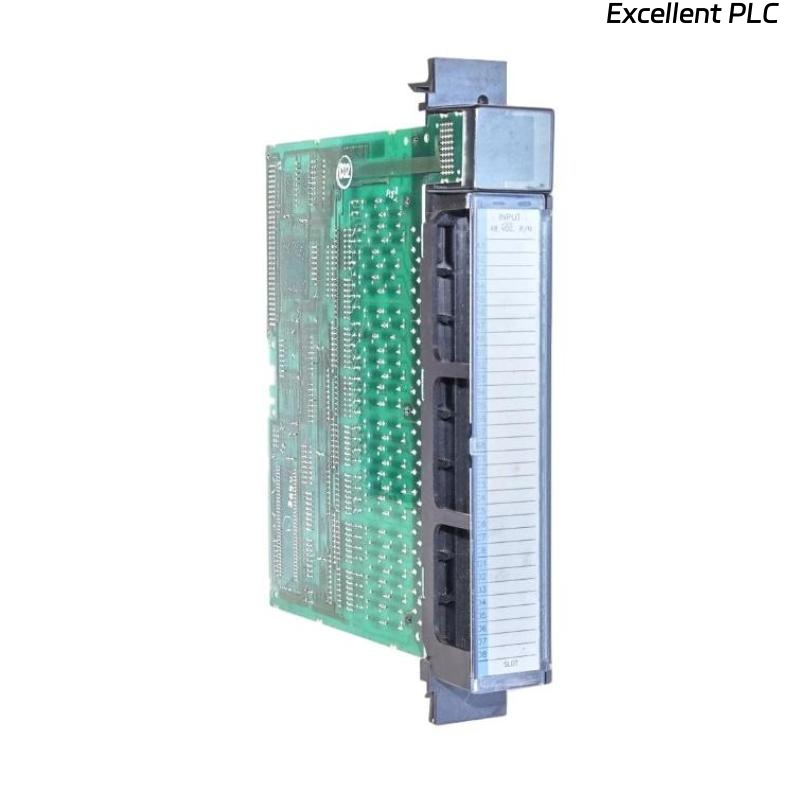

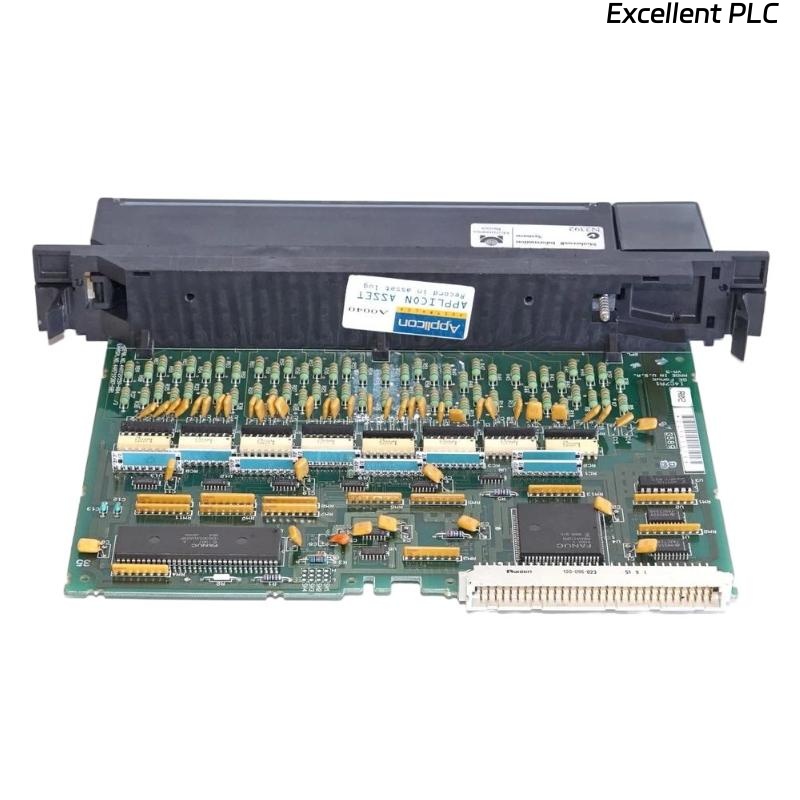

The GE Fanuc IC697MDL654 Discrete Output Module is a high-performance digital output module designed for the GE Series 90-70 PLC family. It provides reliable switching of external devices such as motors, solenoids, and indicator lights, enabling precise control in industrial automation systems.
Key Features
-
High-speed discrete output module for GE Series 90-70 PLC systems
-
Controls external devices including motors, solenoids, and indicator lights
-
Robust design for reliable operation in industrial environments
-
LED indicators for output status and diagnostics
-
Compact, rack-mounted design for easy integration
-
Supports multiple PLC I/O modules for flexible system configurations
-
Reduces wiring complexity and enhances overall system reliability
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC697MDL654 |
| Type | Discrete Output Module |
| Supported System | GE Fanuc Series 90-70 PLC |
| Number of Points | 32 discrete outputs |
| Output Type | Sourcing or sinking, depending on configuration |
| Output Voltage | 24 VDC |
| Maximum Output Current | 0.5 A per point |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Indicators | Output status LEDs |
| Mounting | Standard rack mount (Series 90-70 base) |
| Dimensions | 200 × 40 × 150 mm |
| Weight | 0.75 kg |
Frequently Asked Questions (FAQ)
1. What is the main function of the IC697MDL654 module?
It provides 32 discrete outputs for controlling external devices in automation systems.
2. Which PLC systems is this module compatible with?
It is compatible with GE Fanuc Series 90-70 PLC systems.
3. How many points does it support?
It supports 32 discrete output points.
4. What is the output type?
It supports sourcing or sinking outputs, depending on configuration.
5. What is the maximum output voltage and current?
The module outputs 24 VDC at up to 0.5 A per point.
6. What is the operating temperature range?
It operates reliably between 0 °C and +60 °C.
7. Does the module have diagnostic indicators?
Yes, it includes LEDs for output status.
8. How is this module installed?
It mounts directly into a Series 90-70 PLC rack using standard backplane connectors.
Related GE Fanuc Models
| Model | Description |
|---|---|
| IC697MDL650 | 32-Point Discrete Output Module |
| IC697MDL653 | 32-Point Discrete Output Module |
| IC697MDL654 | 32-Point Discrete Output Module (this model) |
| IC697MDL660 | High-Speed Discrete Output Module |
| IC697MDL670 | Isolated Discrete Output Module |
| IC697MDL680 | AC Discrete Output Module |
