Product Overview

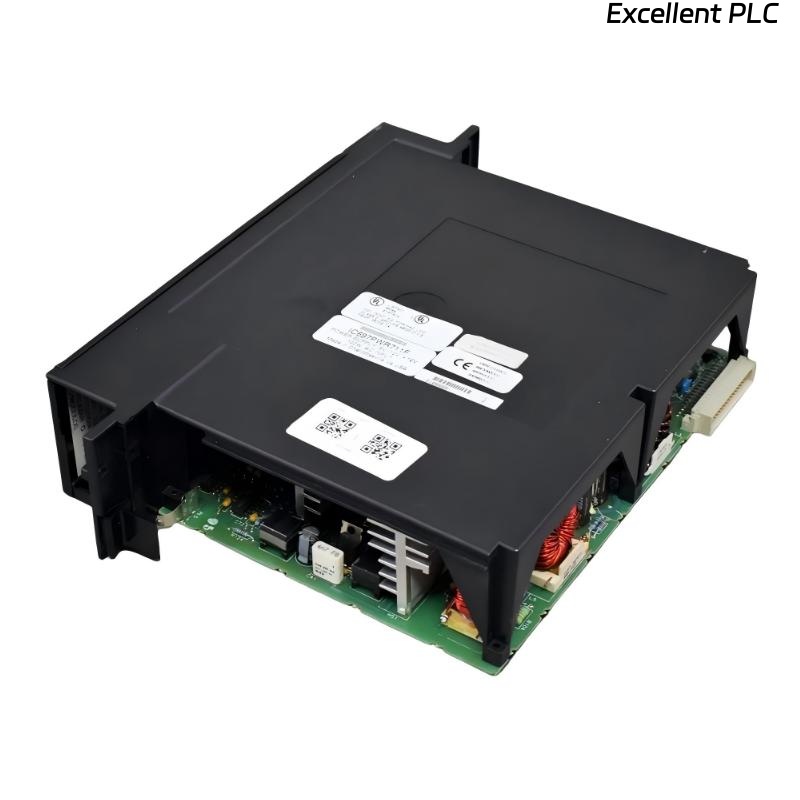

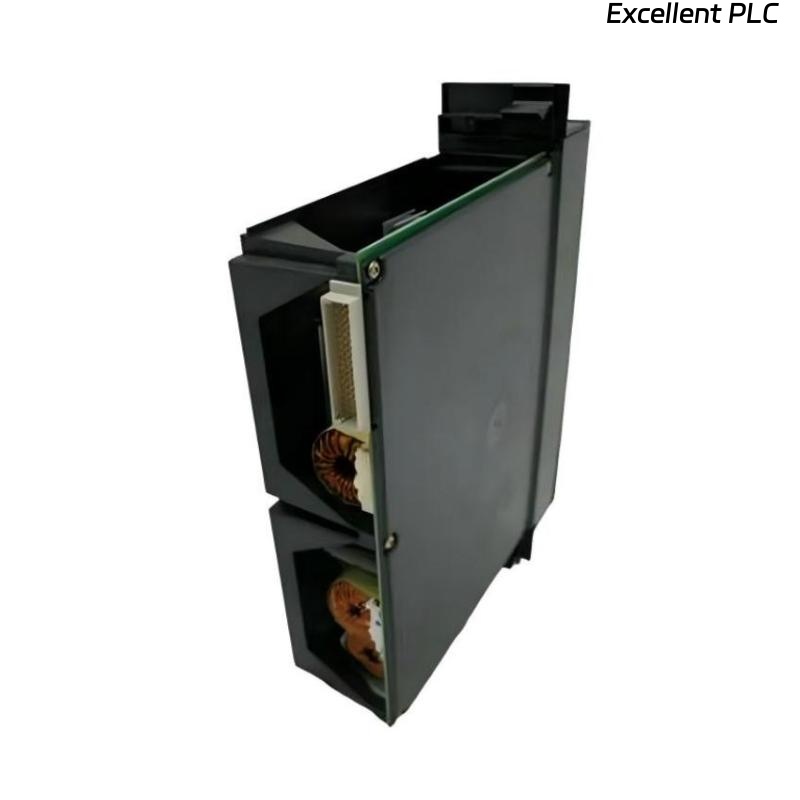

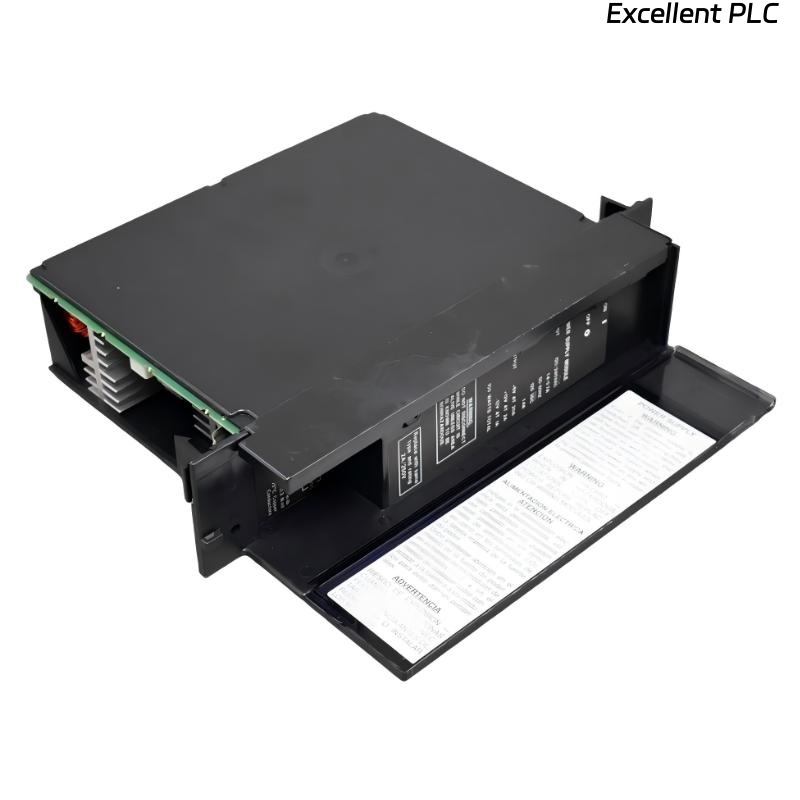

The GE Fanuc IC697PWR711 Power Module is a reliable power supply designed for the Series 90-70 PLC family. It delivers stable DC power to the PLC system and connected I/O modules, ensuring consistent operation in industrial automation environments.
Key Features
-
Provides DC power for GE Series 90-70 PLC systems
-
Compact, rack-mounted design for easy installation
-
Robust construction for dependable operation in industrial environments
-
Supports multiple I/O modules and system expansion
-
Includes LED indicators for power and status monitoring
-
Simplifies wiring and enhances overall system reliability
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC697PWR711 |
| Type | Power Module |
| Supported System | GE Fanuc Series 90-70 PLC |
| Output Voltage | 5 VDC / 24 VDC |
| Output Current | 5 VDC: 6 A, 24 VDC: 5 A |
| Input Voltage | 120/240 VAC |
| Frequency | 50/60 Hz |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Indicators | Power and status LEDs |
| Mounting | Standard Series 90-70 rack mount |
| Dimensions | 206.4 × 49.8 × 158.5 mm |
| Weight | 1.5 kg |
Frequently Asked Questions (FAQ)
1. What is the main function of the IC697PWR711 module?
It provides DC power to the Series 90-70 PLC system and connected I/O modules.
2. Which PLC systems is this module compatible with?
It is compatible with GE Fanuc Series 90-70 PLC systems.
3. What output voltages does it provide?
It provides 5 VDC and 24 VDC outputs.
4. What is the maximum output current?
5 VDC: 6 A, 24 VDC: 5 A.
5. What input voltage does the module require?
It supports 120/240 VAC input.
6. What is the operating temperature range?
It operates reliably between 0 °C and +60 °C.
7. Does the module have diagnostic indicators?
Yes, it has LED indicators for power and system status.
8. How is this module installed?
It mounts directly into a Series 90-70 PLC rack using standard backplane connectors.
