Product Overview

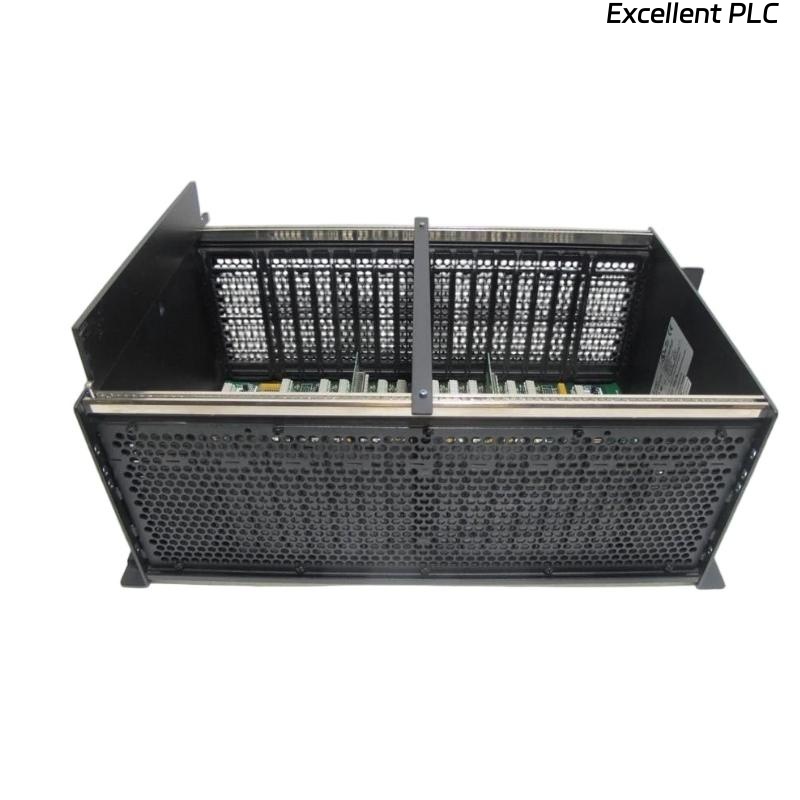

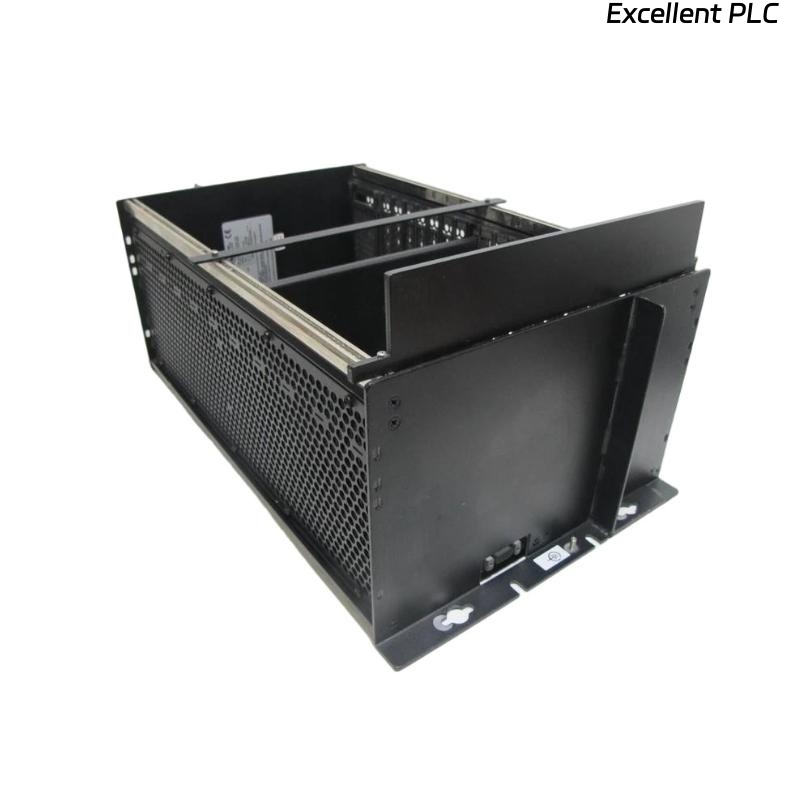

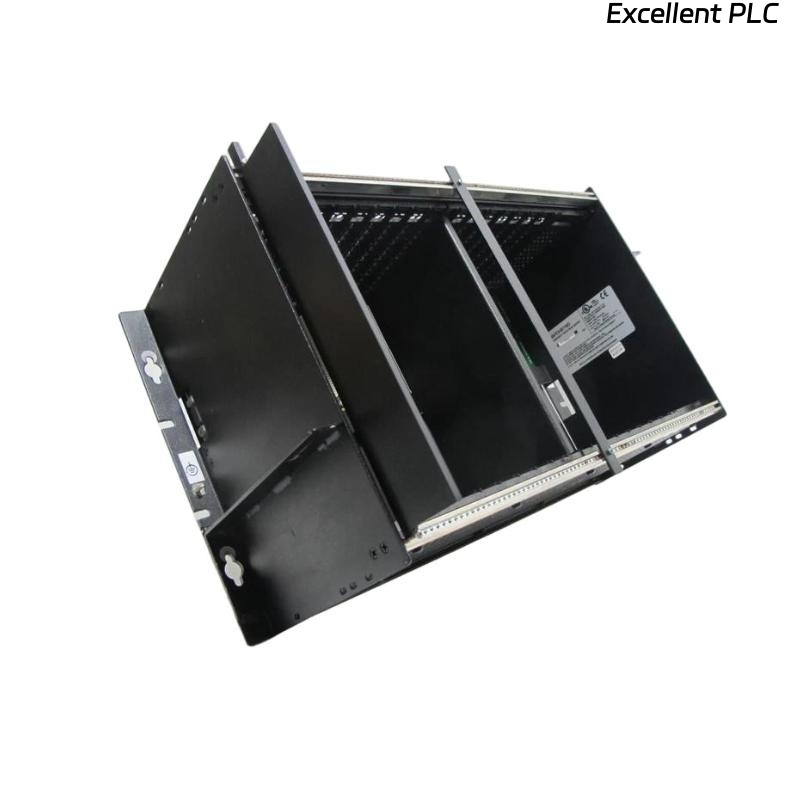

The GE Fanuc IC698CHS117 is a standard PACSystems 17-slot wall (panel) mount I/O rack, part of the RX7i series. This rack supports all RX7i CPU and I/O configurations, Series 90-70 I/O modules, and VME modules. It provides high-speed backplane communication, scalable system expansion, and flexible configuration for complex automation applications.
Key Features
-
Supports up to 17 single-wide modules, 8 double-wide modules, or combinations of both
-
Rugged industrial-grade mechanical design ensures reliable operation
-
Provides high-speed backplane communication for data exchange between modules
-
Flexible system expansion and configuration
-
Wall (panel) mount design for standard industrial enclosures
-
Enhances automation system reliability
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC698CHS117 |
| Type | RX7i PACsystem I/O Rack |
| Supported System | GE Fanuc RX7i PACsystem, Series 90-70, VME modules |
| Number of Slots | 17 slots (up to 17 single-wide or 8 double-wide) |
| Backplane Pitch | 0.8 in (20.3 mm) |
| Mounting | Wall (panel) mount |
| Dimensions | 283 × 483 × 190 mm |
| Weight | 5.90 kg |
| Power Requirements | 5–12 VDC |
| Power Supply | 350 W |
| Current Rating | 60 A @ 5 VDC; 12 A @ 12 VDC |
| Supported Modules | RX7i, Series 90-70, VME modules |
Frequently Asked Questions (FAQ)
1. What is the main function of the IC698CHS117 rack?
It provides mounting, power distribution, and backplane connectivity for RX7i system modules.
2. Which systems is this rack compatible with?
It supports GE Fanuc RX7i PACsystem, Series 90-70 I/O modules, and VME modules.
3. What are the dimensions of the rack?
The rack measures 283 × 483 × 190 mm.
4. What is the weight of the rack?
The rack weighs 5.90 kg .
5. How many modules can be installed?
It supports up to 17 single-wide modules, 8 double-wide modules, or a combination of both.
6. What are the power requirements?
It requires 5–12 VDC, with a power supply rating of 350 W.
7. How is the rack mounted?
It is wall (panel) mounted for standard industrial enclosures.
8. Which industries commonly use this rack?
Manufacturing, utilities, process control, and complex industrial automation applications.
Related GE Fanuc Models
| Model | Description |
|---|---|
| IC698CHS117 | 17-Slot I/O Rack |
| IC698CHS017 | 17-Slot I/O Rack |
| IC698CHS009 | 9-Slot I/O Rack |
| IC698PSD300 | Power Supply Module |
| IC698CRE030 | CPU Module |
| IC698ETM001 | Ethernet Communication Module |
