Product Overview

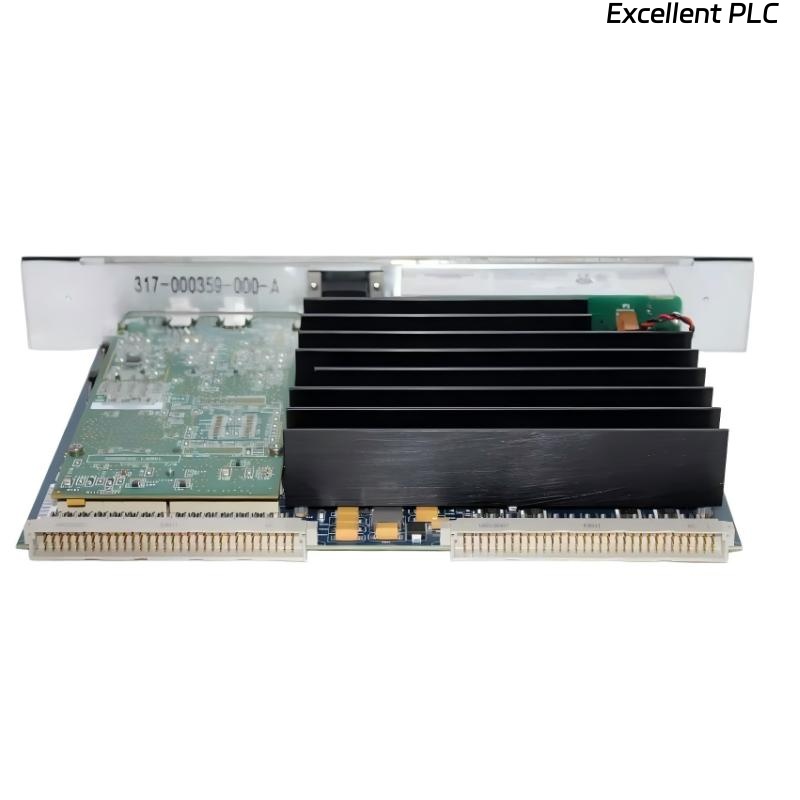

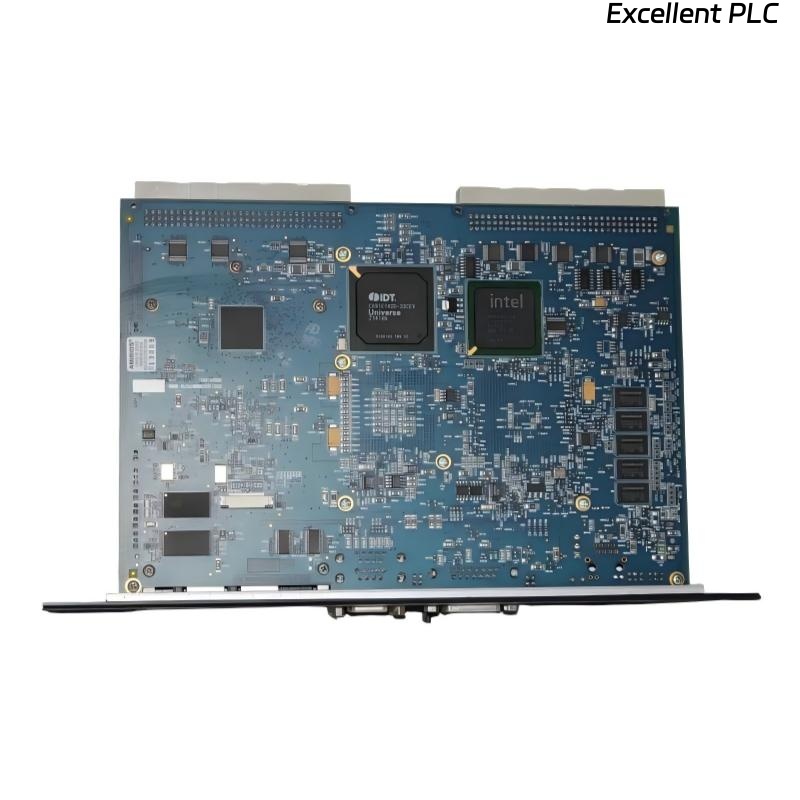

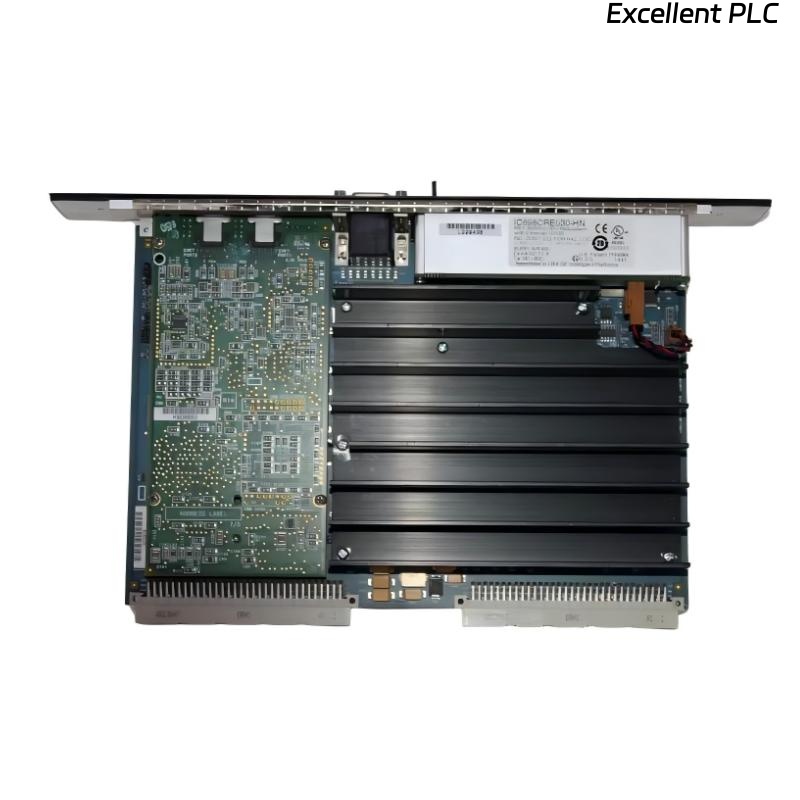

The GE Fanuc IC698CRE030 CPU Module is a high-performance processor designed for the Series 90-70 PLC family. It provides reliable control, processing, and communication capabilities for industrial automation systems, enabling efficient execution of complex control programs.
Key Features
-
High-performance CPU for GE Series 90-70 PLC systems
-
Executes complex control programs with high reliability
-
Compact, rack-mounted design for easy integration
-
Supports multiple I/O and communication modules
-
LED indicators for status, diagnostics, and fault monitoring
-
Enhances overall system performance and reduces downtime
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC698CRE030 |
| Type | CPU Module |
| Supported System | GE Fanuc Series 90-70 PLC |
| Memory | 512 KB user program memory |
| Scan Rate | Typical 1 ms per 1K instructions |
| Communication Ports | Serial, Ethernet (optional depending on configuration) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Indicators | Status, run, and fault LEDs |
| Mounting | Standard Series 90-70 rack mount |
| Dimensions | 210 × 30 × 175 mm |
| Weight | 0.6 kg |
Frequently Asked Questions (FAQ)
1. What is the main function of the IC698CRE030 module?
It acts as the central processing unit for the Series 90-70 PLC, executing control programs and managing system operations.
2. Which PLC systems is this module compatible with?
It is compatible with GE Fanuc Series 90-70 PLC systems.
3. What is the memory capacity of this CPU module?
It provides 512 KB of user program memory.
4. What is the typical scan rate?
Approximately 1 ms per 1K instructions.
5. Which communication ports are available?
It supports serial and optional Ethernet communication, depending on configuration.
6. What is the operating temperature range?
It operates reliably between 0 °C and +60 °C.
7. Does the module have diagnostic indicators?
Yes, it includes LEDs for status, run, and fault monitoring.
8. How is this module installed?
It mounts directly into a Series 90-70 PLC rack using standard backplane connectors.
