Product Overview

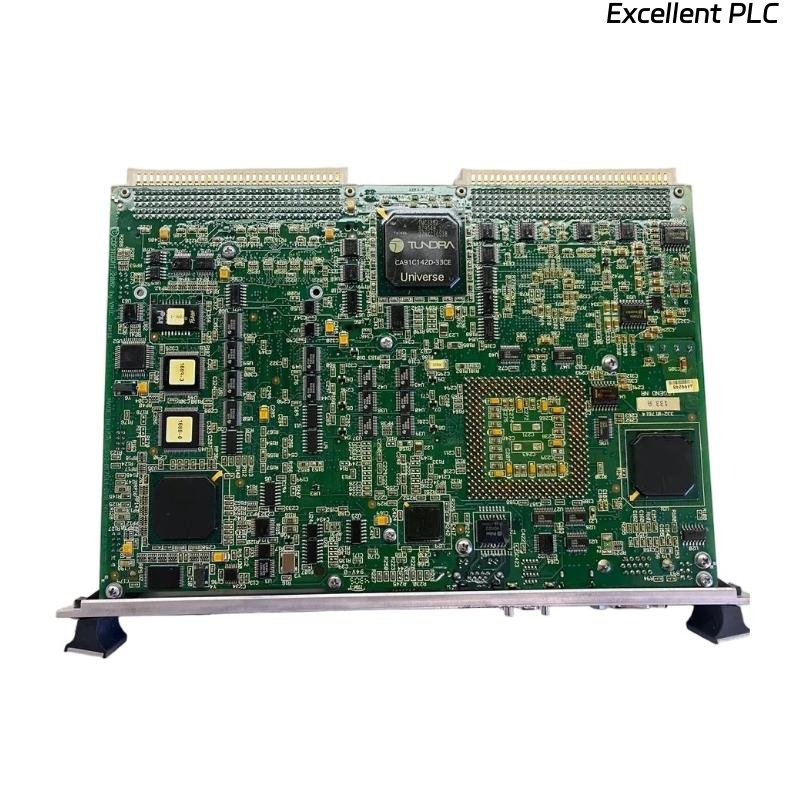

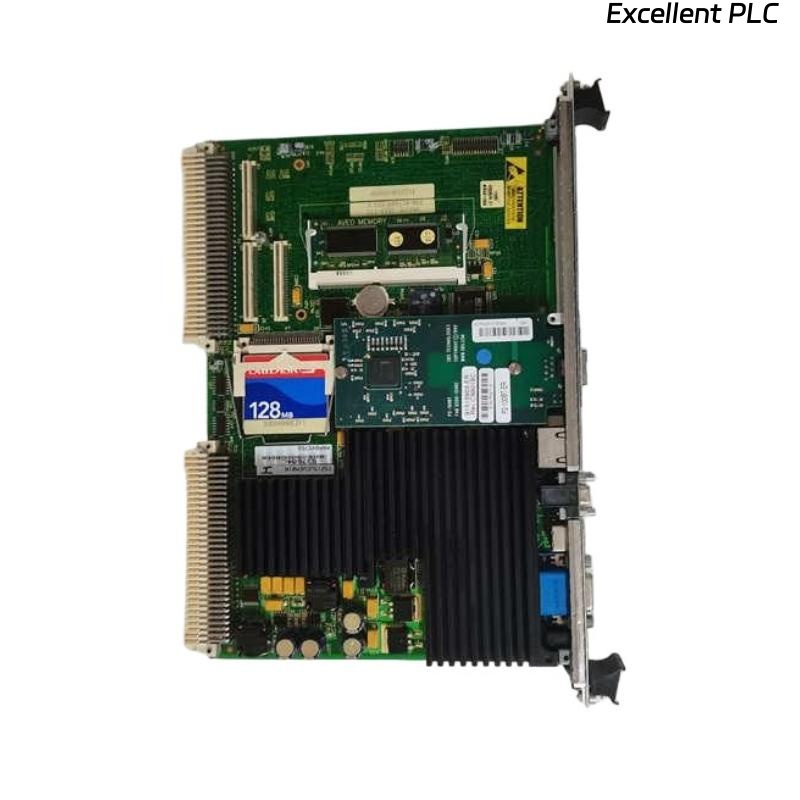

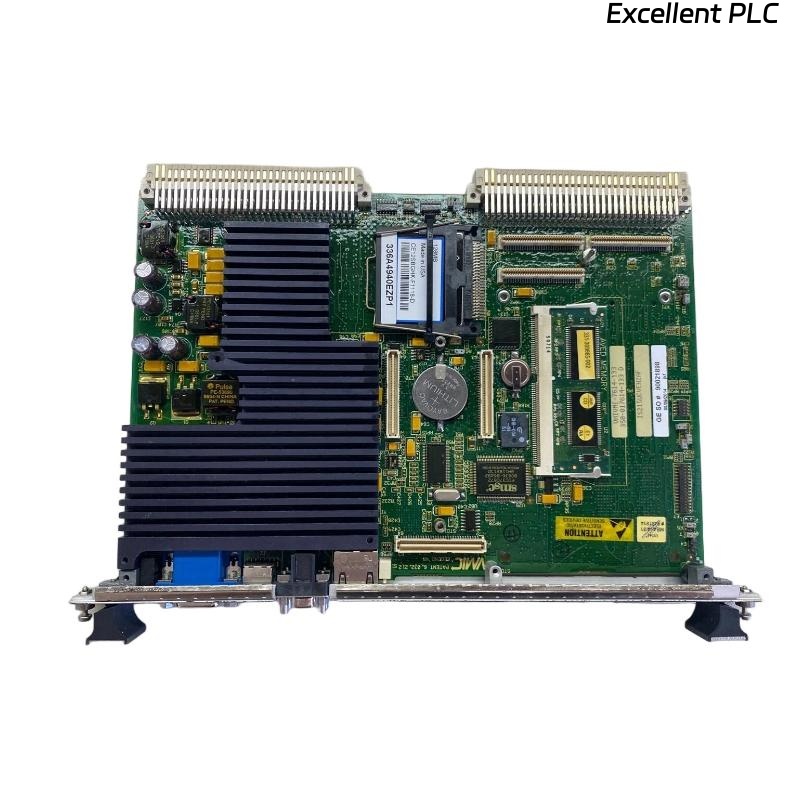

The GE Fanuc IS215UCVEH2AF VME Control Card is a high-performance controller module designed for use within the GE Mark VIe turbine control system. As part of the VME-based architecture, it provides the central processing, communication, and coordination functions necessary to operate gas and steam turbines reliably.
Key Features
-
VME-based control card for GE Mark VIe turbine systems
-
High-performance CPU for fast control and data processing
-
Provides central coordination for I/O and system modules
-
Supports redundant configurations for enhanced system reliability
-
Equipped with Ethernet and serial communication interfaces
-
Rugged and industrial-grade design for long-term operation
-
Modular design for easy installation and replacement
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | IS215UCVEH2AF |
| Type | VME Control Card |
| System Compatibility | GE Mark VIe turbine control systems |
| Processor | Intel-based embedded CPU (optimized for control tasks) |
| Memory | Onboard SDRAM and flash memory |
| Communication Interfaces | Ethernet, serial, VME backplane |
| Redundancy | Supported for system reliability |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 340 × 160 × 20 mm |
| Weight | 0.7 kg |
| Compliance | CE, UL, RoHS |
Industry Applications
-
Power Generation – gas and steam turbine control
-
Oil & Gas – compressor and turbine-driven systems
-
Petrochemical & Chemical – turbine-driven process automation
-
Industrial Utilities – cogeneration and combined-cycle plants
-
Marine & Transportation – turbine-driven propulsion and auxiliary equipment
Advantages
-
Provides centralized control for GE Mark VIe systems
-
High-speed data handling for accurate turbine monitoring and protection
-
Rugged design for harsh industrial environments
-
Supports redundancy for improved system reliability
-
Long-term stability and reduced maintenance requirements
-
Modular architecture allows flexible system expansion
Frequently Asked Questions (FAQ)
Q1: What is the function of the IS215UCVEH2AF?
It serves as a VME control card, providing central processing and communication in GE Mark VIe turbine control systems.
Q2: Which control system is it compatible with?
It is designed for GE Mark VIe turbine control platforms.
Q3: Does it support redundancy?
Yes, it can be configured in redundant control setups.
Q4: What communication interfaces does it provide?
It includes Ethernet, serial ports, and VME backplane communication.
Q5: What is the operating temperature range?
0 °C to +60 °C.
Q6: Can it withstand high-humidity environments?
Yes, up to 95% non-condensing humidity.
Q7: What type of processor does it use?
An Intel-based embedded CPU optimized for real-time control tasks.
Q8: What are the physical dimensions?
Approx. 340 mm × 160 mm × 20 mm.
Q9: What is the weight of the module?
Approx. 0.7 kg.
Q10: Which industries commonly use this card?
Power Generation, Oil & Gas, Petrochemical, Industrial Utilities, and Marine sectors.
