Product Overview

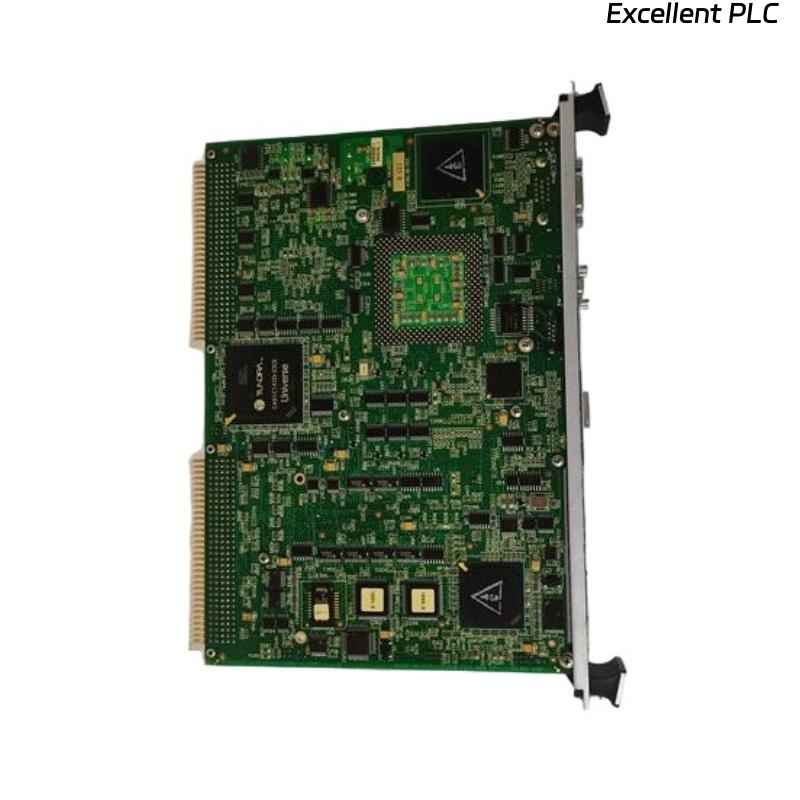

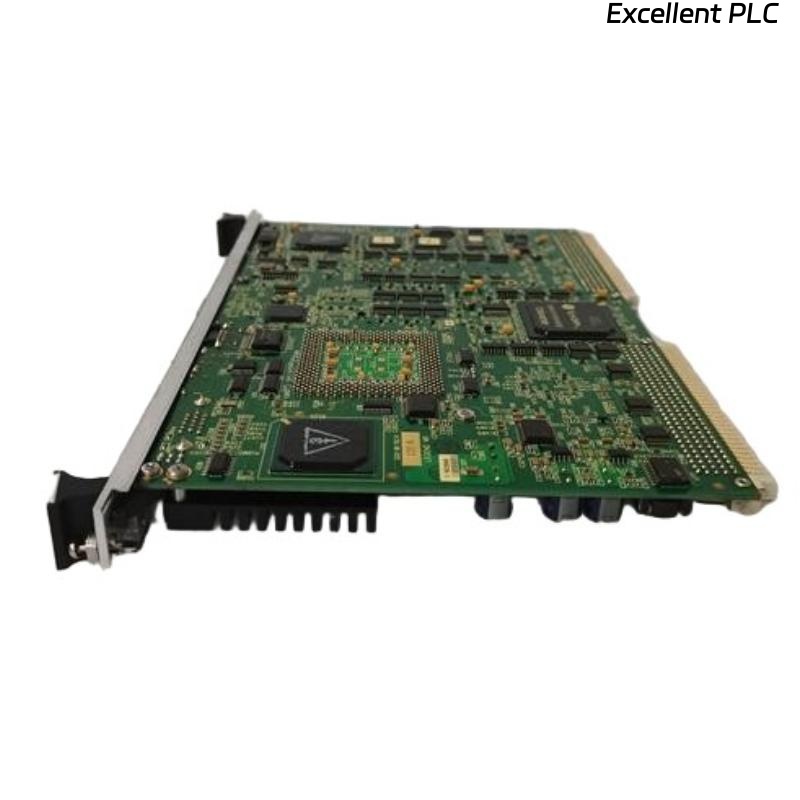

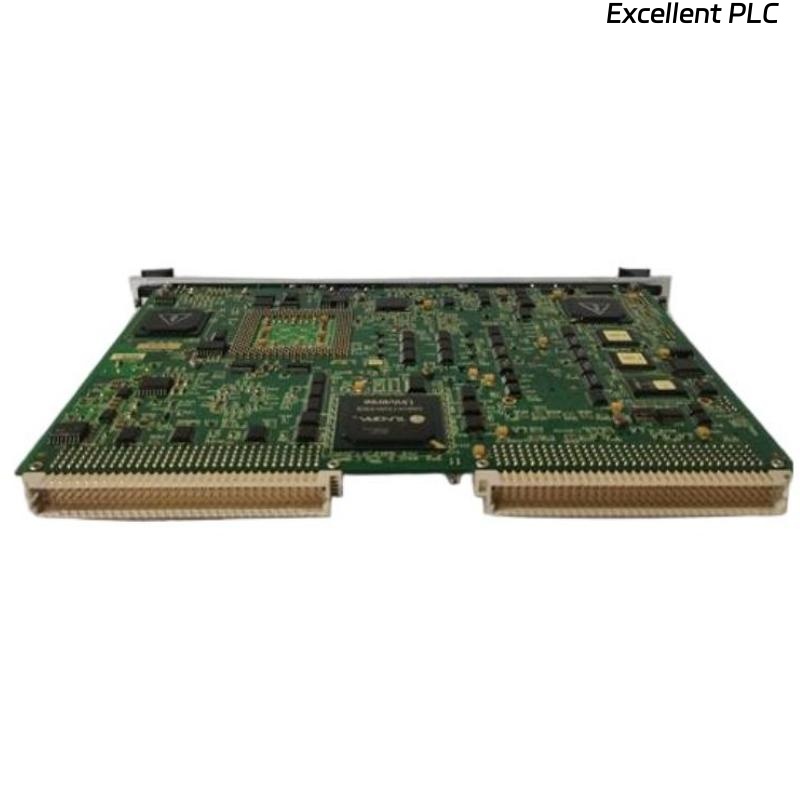

The GE Fanuc IS215UCVEM01A UCVE Controller Module is a VME-based controller designed for use within the GE Mark VIe turbine control system. As a core processor module, it provides the central computing, communication, and coordination functions necessary for precise turbine monitoring, protection, and control.
Key Features
-
UCVE series VME-based controller for GE Mark VIe control systems
-
Provides centralized processing and system coordination
-
Equipped with high-performance CPU and onboard memory
-
Supports Ethernet and serial communications
-
Designed for redundant configurations to ensure system reliability
-
Rugged construction for harsh industrial environments
-
Modular architecture for flexible integration and easy servicing
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | IS215UCVEM01A |
| Type | UCVE Controller Module |
| System Compatibility | GE Mark VIe turbine control systems |
| Processor | Intel-based embedded CPU (optimized for control) |
| Memory | Onboard SDRAM and flash memory |
| Communication Interfaces | Ethernet, serial ports, VME backplane |
| Redundancy | Supported for system reliability |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 340 × 160 × 20 mm |
| Weight | 0.52 kg |
| Compliance | CE, UL, RoHS |
Industry Applications
-
Power Generation – gas and steam turbine control
-
Oil & Gas – compressor and turbine-driven machinery
-
Petrochemical & Chemical – turbine-based process automation
-
Industrial Utilities – cogeneration and combined cycle systems
-
Marine & Transportation – propulsion and auxiliary turbine systems
Advantages
-
Provides centralized processing and control in GE Mark VIe systems
-
High-speed data handling for real-time turbine monitoring and protection
-
Rugged design ensures durability in industrial environments
-
Redundancy support enhances reliability and minimizes downtime
-
Modular design allows for flexible system expansion and servicing
-
Long-term operational stability with advanced diagnostics
Frequently Asked Questions (FAQ)
Q1: What is the function of the IS215UCVEM01A?
It acts as a UCVE controller module, providing central computing and communication functions in GE Mark VIe turbine control systems.
Q2: Which system is it compatible with?
It is designed for GE Mark VIe control platforms.
Q3: Does it support redundant configurations?
Yes, it can be used in redundant controller setups for improved reliability.
Q4: What communication interfaces are available?
Ethernet, serial ports, and VME backplane.
Q5: What is the operating temperature range?
0 °C to +60 °C.
Q6: Can it withstand high humidity environments?
Yes, up to 95% non-condensing humidity.
Q7: What processor does it use?
An Intel-based embedded CPU optimized for real-time turbine control.
Q8: What are the physical dimensions?
Approx. 340 mm × 160 mm × 20 mm.
Q9: What is the weight of the module?
Approx. 0.7 kg.
Q10: Which industries use this module?
Power Generation, Oil & Gas, Petrochemical, Industrial Utilities, and Marine sectors.
