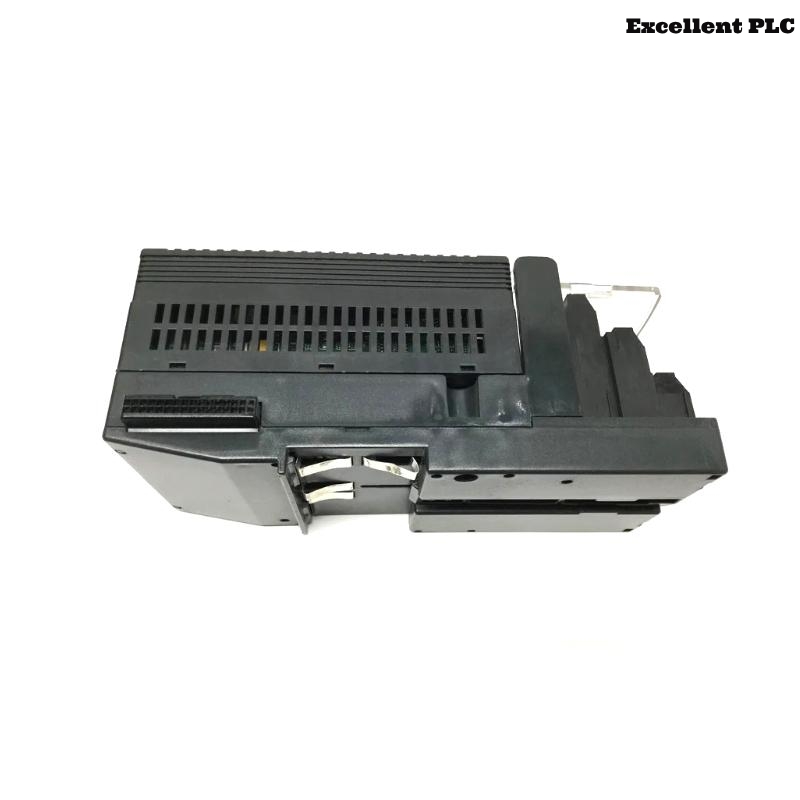

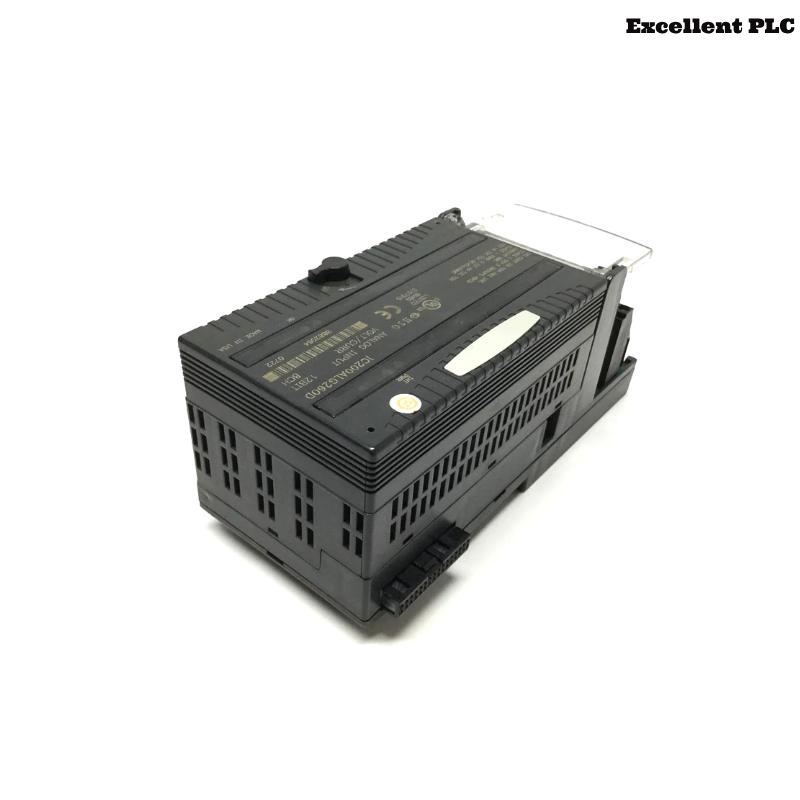

GE IC200ALG260D Analog Input Module

Company Information
E-mail		sales@xmjzjsgs.com
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The GE IC200ALG260D Analog Input Module is designed for high-performance industrial applications where precision, flexibility, and reliability are required in converting analog signals into digital data. This module is a part of the GE Fanuc series of programmable logic controllers (PLC), providing exceptional integration of analog inputs with digital control systems. It supports a variety of input types, such as voltage and current, which makes it highly versatile and suitable for numerous industrial control applications. The module is used in various sectors including manufacturing, energy, chemical processing, and automation, offering robust features for continuous monitoring and control of processes.

The IC200ALG260D is engineered to ensure accurate analog signal processing with a 12-bit resolution, delivering consistent performance even under challenging conditions. This module is designed to work seamlessly with GE’s PLC systems, offering a cost-effective and reliable solution for plant automation.

---

Product Specifications

Parameter	Specification
Model Number	IC200ALG260D
Input Channels	16 analog input channels
Input Range	±10 V, 0 to 20 mA, 4 to 20 mA
Resolution	12-bit (per channel)
Input Type	Voltage or Current
Input Impedance	250 kΩ (Voltage), 150 Ω (Current)
Power Consumption	5 W
Supply Voltage	24 V DC
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Dimensions (W × H × D)	110 x 66.8 x 50 mm
Weight	0.3 kg (0.66 lbs)
Mounting Type	DIN Rail
Status Indicators	16 LED indicators for each input



---

Product Applications

The GE IC200ALG260D module is widely used across various industries to convert analog signals into digital data, enabling seamless integration with PLC systems. Its diverse input types make it suitable for the following applications:

• Manufacturing Automation: Ideal for monitoring and controlling industrial processes like temperature, pressure, and flow rate.

• Energy and Power Generation: Used in power plants for measuring parameters such as temperature, pressure, and electrical current in turbines, transformers, and generators.

• Chemical and Pharmaceutical Industries: Applied in processes requiring precise control and monitoring of variables such as pH, flow, and temperature.

• Water Treatment: Useful in water and wastewater treatment facilities for tracking water quality, flow rates, and other critical parameters.

• Oil and Gas: Used for monitoring wellhead pressure, flow, and temperature, ensuring optimized operations in drilling and production facilities.

• Building Automation: Employed in HVAC systems to monitor temperature, humidity, and airflow, contributing to energy-efficient building management.

---

Product Advantages

• High Resolution: The IC200ALG260D offers 12-bit resolution per input channel, ensuring precise data collection and enhanced accuracy in process control.

• Versatile Input Types: With support for both voltage and current inputs, this module provides flexibility for various field devices, including sensors and transducers.

• Wide Temperature Range: The module is designed to operate in environments ranging from -20°C to 60°C, making it ideal for both indoor and harsh industrial settings.

• Compact Design: With dimensions of just 6.35 cm × 12.7 cm × 12.7 cm, the module is space-efficient, allowing for easy integration into existing systems.

• Reliable and Durable: Built for industrial environments, the IC200ALG260D offers a robust solution that ensures long-lasting performance and minimizes downtime.

• LED Status Indicators: Each of the 16 input channels has an individual LED indicator for easy monitoring and troubleshooting, simplifying maintenance efforts.

---

Frequently Asked Questions (FAQ)

1. What does the GE IC200ALG260D module do?
   It converts analog signals from sensors into digital signals for processing by the PLC.

2. How many input channels does the IC200ALG260D module have?
   It offers 16 input channels, each capable of handling analog signals.

3. What types of analog inputs does the module support?
   The module supports both voltage (±10 V) and current (0 to 20 mA, 4 to 20 mA) inputs.

4. What is the resolution of the IC200ALG260D?
   It offers 12-bit resolution for accurate data conversion on each input channel.

5. What is the supply voltage for the IC200ALG260D?
   The module operates on a 24 V DC power supply.

6. What is the operating temperature range of the module?
   The module can operate between -20°C to 60°C, suitable for industrial environments.

7. Can the IC200ALG260D module be used for outdoor applications?
   While the module is designed for industrial environments, it is recommended for indoor or controlled conditions, as it is not fully weatherproof.

8. What mounting system does the IC200ALG260D use?
   It is designed for easy installation on a DIN rail.

9. How does the module indicate the status of each input?
   Each input channel has an LED status indicator, providing real-time feedback on the signal’s health.

10. What is the weight of the module?
    The IC200ALG260D weighs 0.3 kg (0.66 lbs).

---

---

Frequently Asked Questions (FAQ)

1. What does the GE IC200ALG260D module do?
   It converts analog signals from sensors into digital signals for processing by the PLC.

2. How many input channels does the IC200ALG260D module have?
   It offers 16 input channels, each capable of handling analog signals.

3. What types of analog inputs does the module support?
   The module supports both voltage (±10 V) and current (0 to 20 mA, 4 to 20 mA) inputs.

4. What is the resolution of the IC200ALG260D?
   It offers 12-bit resolution for accurate data conversion on each input channel.

5. What is the supply voltage for the IC200ALG260D?
   The module operates on a 24 V DC power supply.

6. What is the operating temperature range of the module?
   The module can operate between -20°C to 60°C, suitable for industrial environments.

7. Can the IC200ALG260D module be used for outdoor applications?
   While the module is designed for industrial environments, it is recommended for indoor or controlled conditions, as it is not fully weatherproof.

8. What mounting system does the IC200ALG260D use?
   It is designed for easy installation on a DIN rail.

9. How does the module indicate the status of each input?
   Each input channel has an LED status indicator, providing real-time feedback on the signal’s health.

10. What is the weight of the module?
    The IC200ALG260D weighs 0.3 kg (0.66 lbs).

Recommended Models – Same Series or Related

Model Number	Description	Input Channels	Input Type	Resolution
IC200ALG261A	Analog Output Module	8	Voltage/Current	12-bit
IC200ALG262A	Advanced Analog Input Module	16	Voltage/Current	12-bit
IC200ALG263A	Compact Analog Input Module	8	Voltage/Current	10-bit
IC200ALG264A	High-Speed Analog Input Module	16	Voltage/Current	14-bit
IC200ALG260E	Extended Range Analog Input Module	16	Voltage/Current	12-bit
IC200ALG265A	Low Voltage Analog Input Module	16	Voltage/Current	12-bit

Popular Models from GE Fanuc

Model Number	Description	Input Channels	Category
IC200PNS002	Power Supply Module	8	Power Supply
IC200CPU001	CPU Module for Industrial Control Systems	8	Controller
IC200ALC105	Analog Output Module	8	Output Module
IC200BEM002	Ethernet Communication Module	8	Communication
IC200CBL005	Communication Cable	8	Accessories
IC200PDS101	Power Distribution Module	8	Power Management
