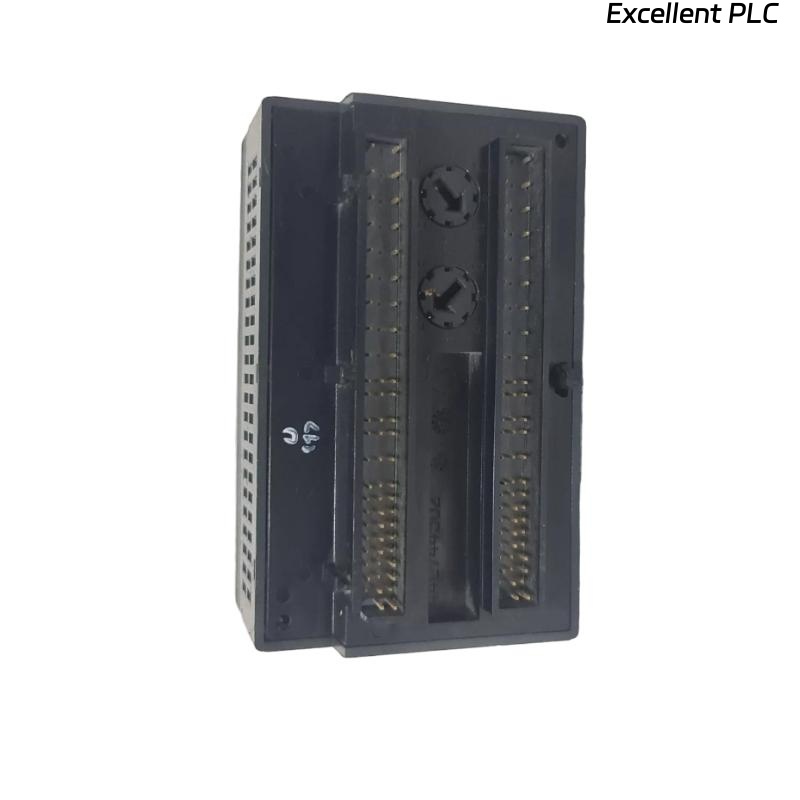

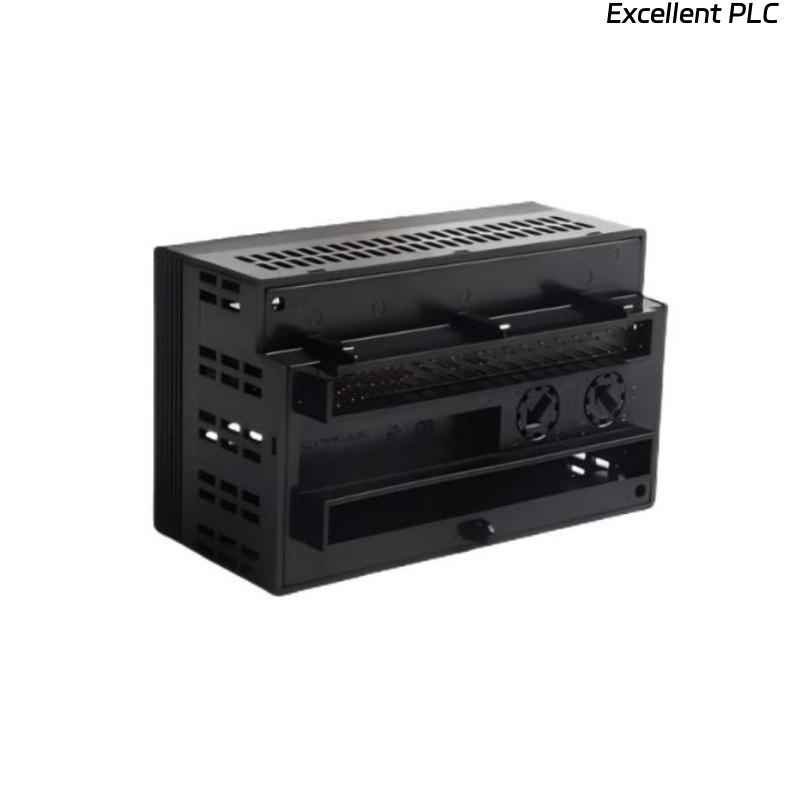

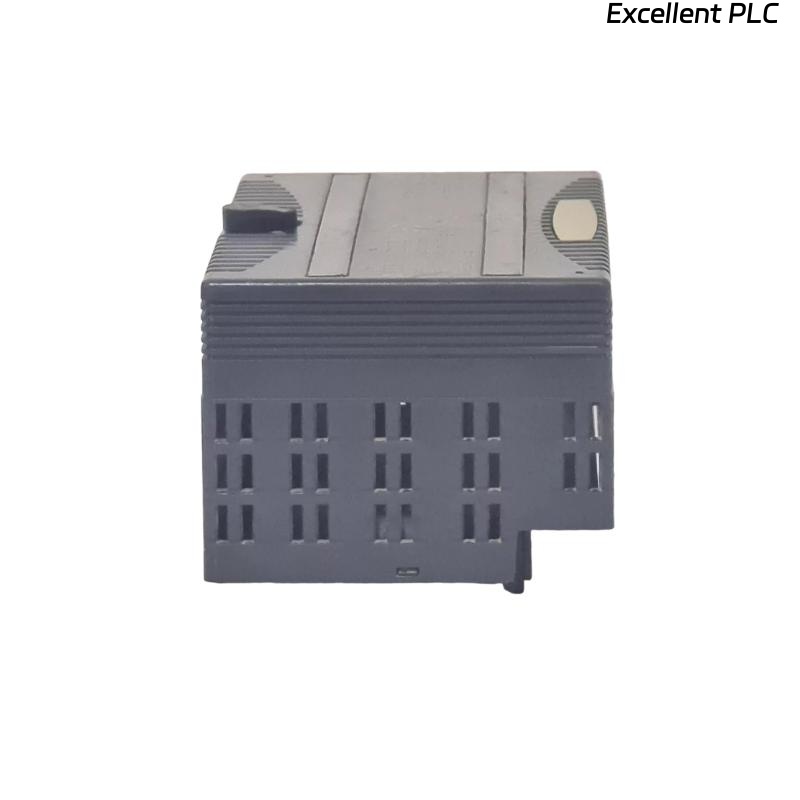

GE IC200ALG266 Analog Input Module

Product Introduction

The GE IC200ALG266 analog input module is a high-performance component designed for industrial applications where precise analog-to-digital signal conversion is required. This module supports both voltage and current input signals, providing accurate data conversion from sensors and other field devices into digital signals that can be processed by control systems. It is widely used in various automation and monitoring systems, where precise data from physical parameters such as temperature, pressure, and flow needs to be captured in real time.

The IC200ALG266 module is optimized for use in environments where space is limited, yet high-performance signal processing is necessary. With its compact form factor and robust design, it is an excellent choice for system integrators looking to enhance their automation solutions without compromising on performance or reliability.

Product Specifications

Applications

The GE IC200ALG266 analog input module is designed for a variety of industrial applications where precise data conversion is critical. It is widely used in:

• Industrial Automation: The IC200ALG266 is used for converting analog signals from temperature sensors, pressure gauges, and flow meters into digital data, making it ideal for controlling automated systems.

• Process Control: Used in industries such as chemical processing and manufacturing, the IC200ALG266 ensures that sensor signals from flow, level, and temperature controllers are accurately converted for use in real-time process control.

• Energy Monitoring: The module is a key component in energy management systems, helping convert signals from power meters and other measurement devices into digital form for analysis and reporting.

• Manufacturing Systems: In production lines, the IC200ALG266 is used to interface with sensors that monitor machine conditions, providing critical data to ensure optimal performance.

• Building Automation: The module integrates with HVAC, lighting, and other building management systems, enabling real-time monitoring and efficient control of infrastructure systems.

Advantages

• High-Resolution Conversion: The IC200ALG266 provides 12-bit resolution for precise analog-to-digital conversion, ensuring high-quality data for control systems.

• Versatile Input Range: With the capability to handle both voltage (0 to 10V) and current (4-20mA) inputs, it is highly adaptable to a wide range of sensors and input devices.

• Compact Design: The IC200ALG266’s small footprint (110 x 66.8 x 50 mm) allows for easy integration into space-constrained environments, making it ideal for smaller control panels.

• Reliable Performance: With an IP20 protection class, the module is designed for robust performance in industrial environments, where durability and stability are key.

• Cost-Effective: This module provides an excellent balance of performance and affordability, making it a cost-effective solution for many industrial applications.

• Ease of Integration: Designed to be compatible with GE control systems, the IC200ALG266 allows for quick installation and easy integration into existing setups.

FAQ

1. What types of input signals can the GE IC200ALG266 handle?

   • The IC200ALG266 can handle both voltage inputs (0 to 10V) and current inputs (4-20mA), making it compatible with a wide range of sensors.

2. How many input channels does the IC200ALG266 provide?

   • The IC200ALG266 offers 8 input channels, allowing for the simultaneous conversion of multiple analog signals.

3. What is the resolution of the GE IC200ALG266?

   • The module provides 12-bit resolution, ensuring high-precision conversion of analog signals into digital data.

4. What is the operating voltage for the IC200ALG266?

   • The IC200ALG266 operates with a 24V DC power supply, which is standard for industrial control systems.

5. How does the IC200ALG266 convert analog signals?

   • The module converts analog signals (voltage or current) into digital signals that can be processed by digital control systems.

6. What protection rating does the IC200ALG266 have?

   • The IC200ALG266 has an IP20 protection rating, offering protection against dust and physical contact, making it suitable for industrial environments.

7. How is the IC200ALG266 mounted?

   • The module is designed for DIN rail mounting, making it easy to install in control panels or other industrial settings.

8. Can the IC200ALG266 be used for energy monitoring applications?

   • Yes, the IC200ALG266 is ideal for converting signals from energy meters and other power measurement devices into digital signals for analysis.

9. What industries are best suited for the IC200ALG266?

   • The module is used in industries such as industrial automation, energy monitoring, process control, building automation, and manufacturing.

10. What benefits does the IC200ALG266 provide to industrial systems?

    • By converting analog signals into precise digital data, the IC200ALG266 enables real-time monitoring and control of industrial processes, improving overall system efficiency and performance.
