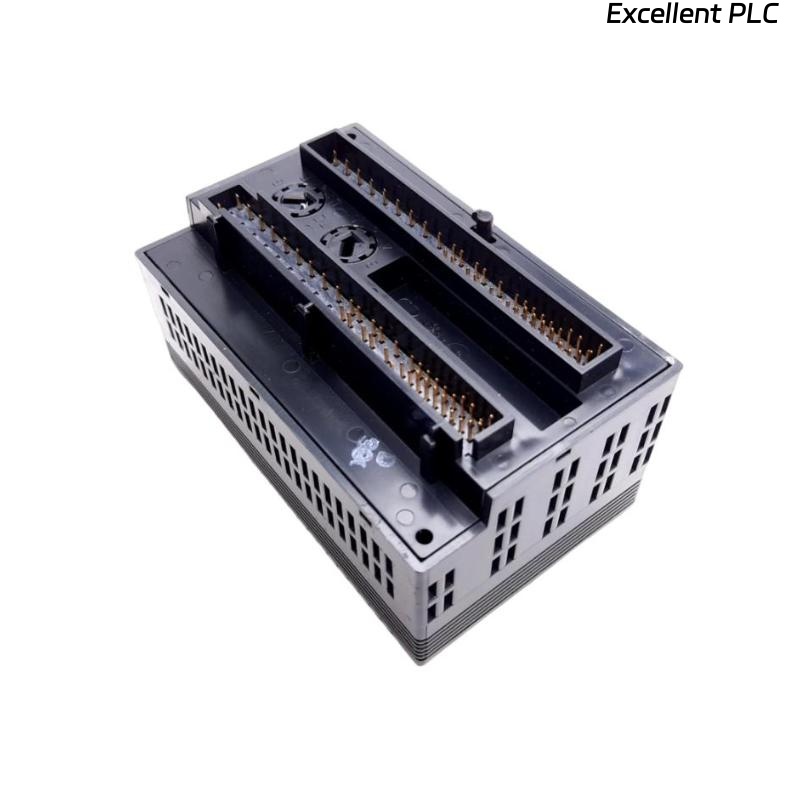

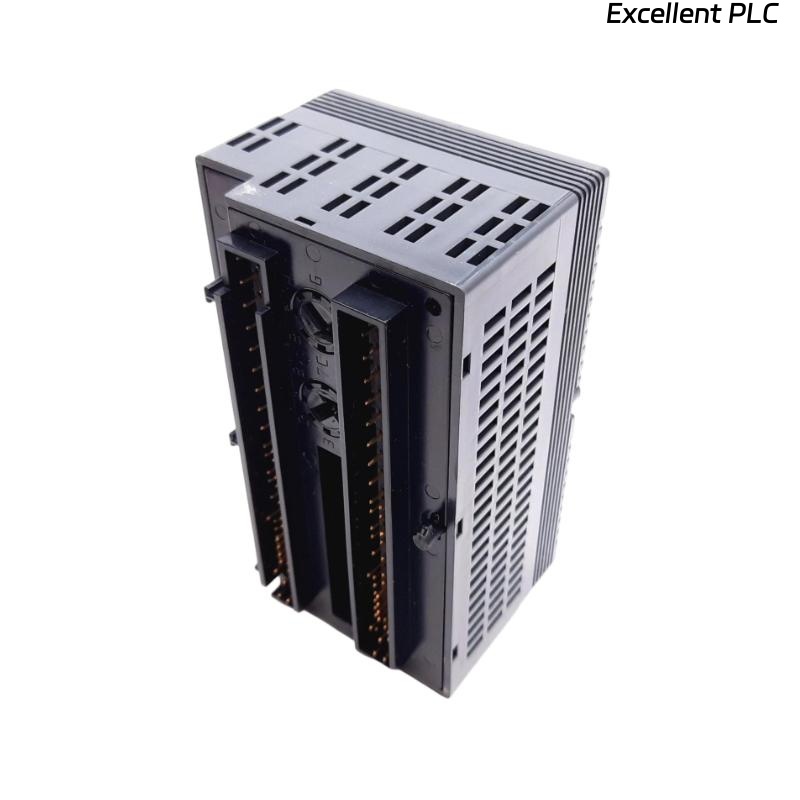

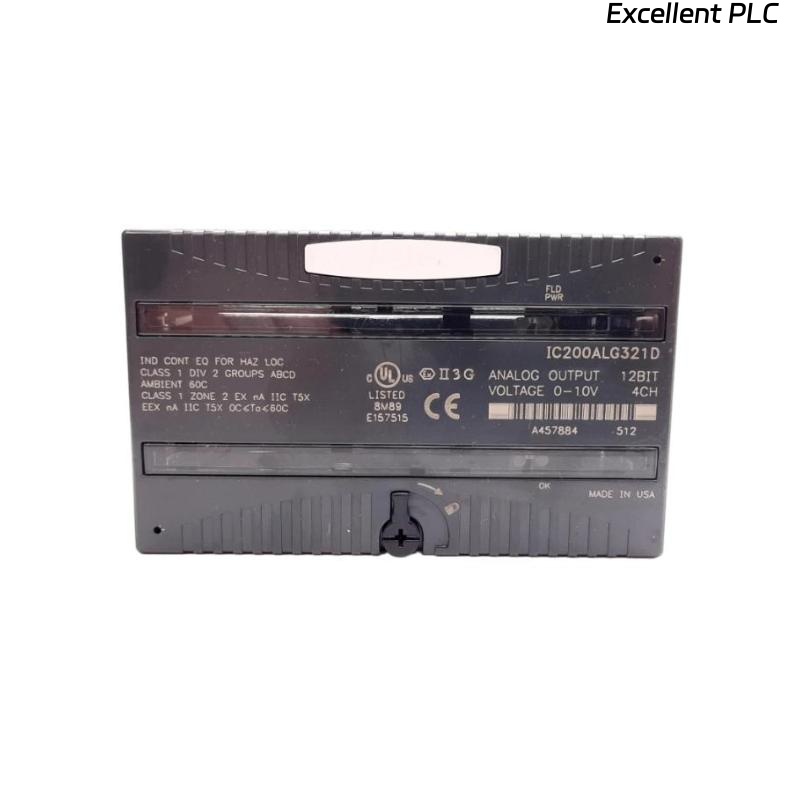

GE IC200ALG321 Analog Output Module

Product Introduction

The GE IC200ALG321 is a high-performance analog output module that is part of the GE Intelligent Platforms line of industrial automation solutions. This module is designed to convert digital signals into accurate, high-quality analog outputs, such as voltage or current signals. It is essential for controlling field devices like actuators, valves, and other industrial equipment that require analog input for operation.

The IC200ALG321 module is built for precision and reliability, offering fine control over industrial processes. Whether you are controlling motor speeds, regulating pressure, or adjusting temperatures, this module helps streamline operations and enhance overall system performance. Its compact and efficient design allows for seamless integration into a variety of automation systems, making it a go-to choice for control systems requiring precise analog output.

Product Specifications

Applications

The GE IC200ALG321 analog output module is widely used in applications requiring precise control of analog systems. Here are some common use cases:

• Industrial Automation: The IC200ALG321 module is used to convert digital control signals into analog outputs to control devices such as actuators, motor drives, and valves in automated systems.

• Process Control: In industries like chemical and pharmaceutical manufacturing, this module is used to generate control signals for regulating pumps, mixers, and other equipment that require analog inputs.

• Energy Management: The IC200ALG321 is used in energy monitoring systems to output control signals for power distribution, energy meters, and monitoring equipment.

• Manufacturing Systems: The module is integral in manufacturing setups where precise control of machinery parameters, such as speed, temperature, and pressure, is needed for optimal operation.

• Building Automation: This module is used in building management systems for controlling HVAC systems, lighting, and other infrastructure by outputting signals based on system inputs and environmental conditions.

Advantages

• High Resolution: With a 12-bit resolution, the IC200ALG321 ensures precise and high-quality output for industrial control applications.

• Versatile Output Range: The module supports both voltage (0 to 10V) and current (4-20mA) output signals, making it compatible with a variety of field devices and control systems.

• Compact and Lightweight: With its compact size (110 x 66.8 x 50 mm) and lightweight design (0.136 kg), the IC200ALG321 is ideal for installations in tight spaces or where weight is a concern.

• Reliable and Durable: The IC200ALG321 is built to withstand harsh industrial environments, with an IP20 protection class to prevent dust and physical contact with sensitive components.

• Cost-Effective: The module offers exceptional performance at an affordable price, making it a cost-effective solution for high-precision analog output needs.

• Easy Integration: It is designed to easily integrate into existing industrial control systems, with simple DIN rail mounting for quick and easy installation.

FAQ

1. What types of output signals can the GE IC200ALG321 generate?

   • The IC200ALG321 supports both voltage (0 to 10V) and current (4-20mA) outputs, making it versatile for a range of industrial applications.

2. How many output channels are available on the IC200ALG321?

   • The module provides 8 output channels, allowing you to generate multiple control signals simultaneously.

3. What is the resolution of the IC200ALG321?

   • The IC200ALG321 offers 12-bit resolution, providing precise analog signal conversion for accurate control.

4. What is the operating voltage for the IC200ALG321?

   • The module operates with a 24V DC power supply, which is typical for many industrial control systems.

5. How does the IC200ALG321 convert digital signals?

   • The IC200ALG321 converts digital signals from the controller into analog voltage or current outputs, which can be used to control various field devices.

6. What protection class does the IC200ALG321 have?

   • The module is rated IP20, meaning it is protected against dust and physical contact, suitable for industrial environments.

7. How is the IC200ALG321 mounted?

   • The module is designed for easy DIN rail mounting, allowing for quick and secure installation in control panels or industrial enclosures.

8. Can the IC200ALG321 be used for process control applications?

   • Yes, the IC200ALG321 is perfect for process control systems, where precise analog control of equipment such as pumps and mixers is necessary.

9. What industries benefit from using the IC200ALG321?

   • The IC200ALG321 is widely used in industries such as industrial automation, energy management, process control, and manufacturing.

10. How does the IC200ALG321 improve industrial system performance?

    • By providing accurate analog outputs, the IC200ALG321 helps ensure precise control of critical equipment, leading to better process optimization and improved system efficiency.
